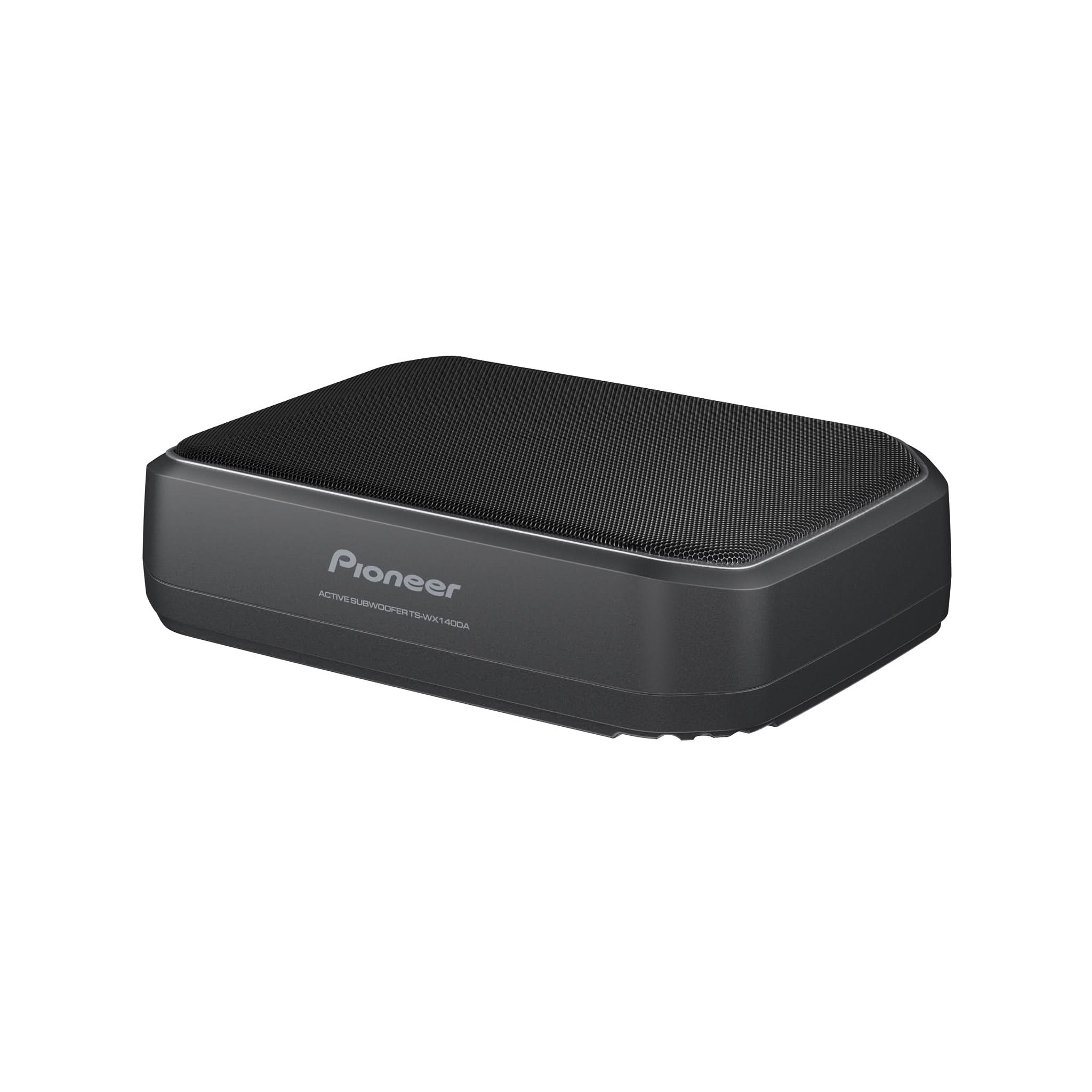

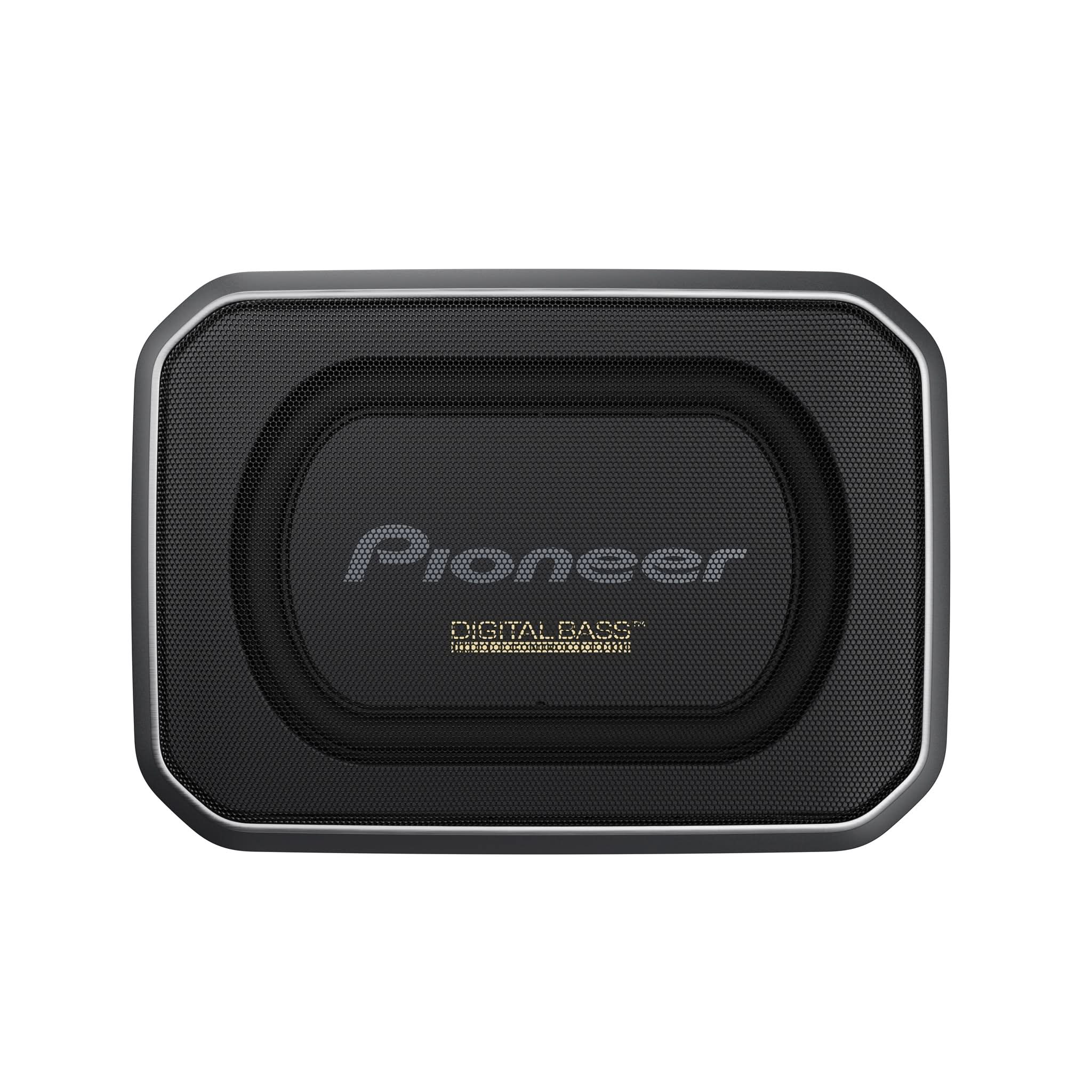

Pioneer_TS-WX140DA_Front Image
Pioneer_TS-WX140DA_Right Angle Image
Pioneer_TS-WX140DA_Left Angle Image

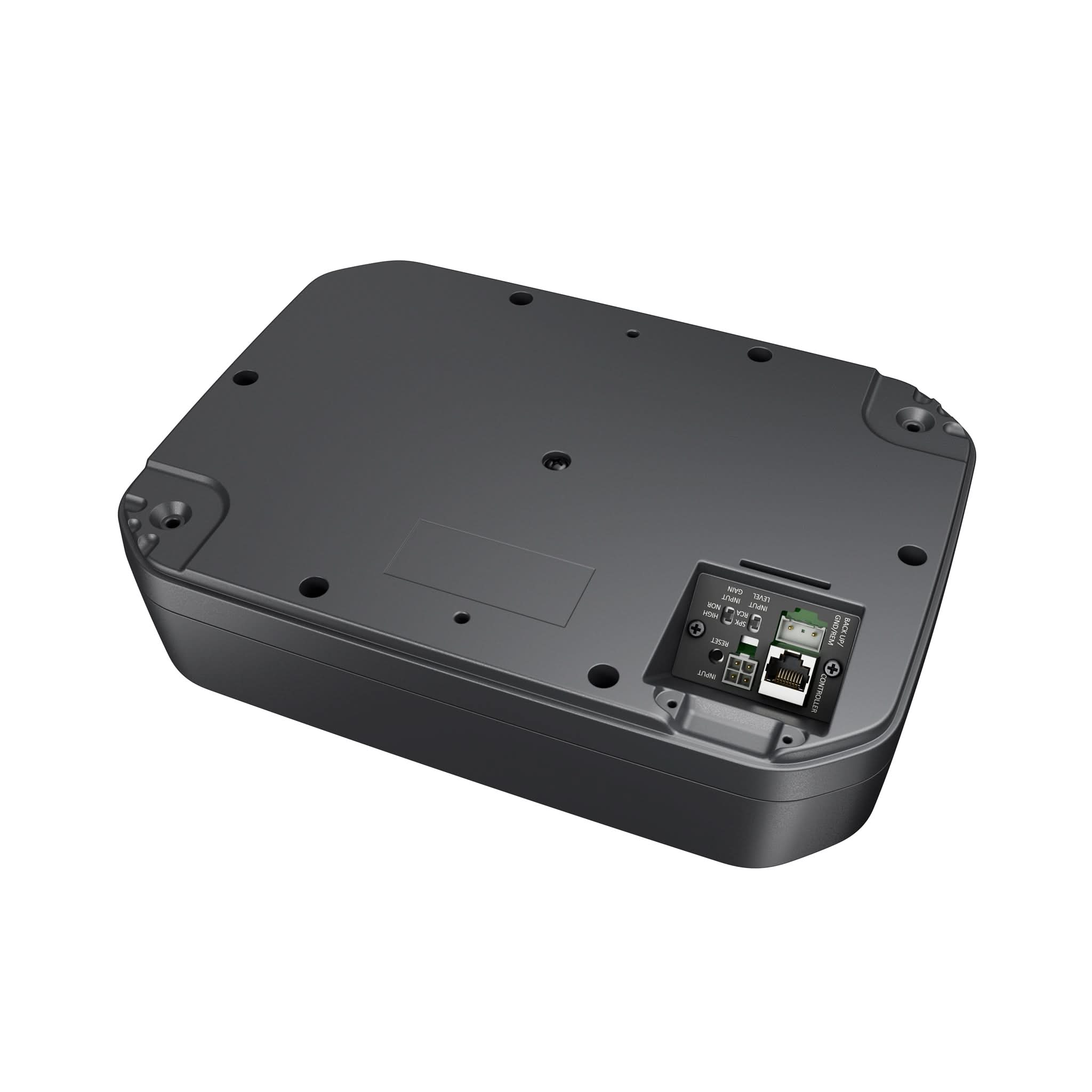

Pioneer_TS-WX140DA_Back Image
Pioneer_TS-WX140DA_Top Image

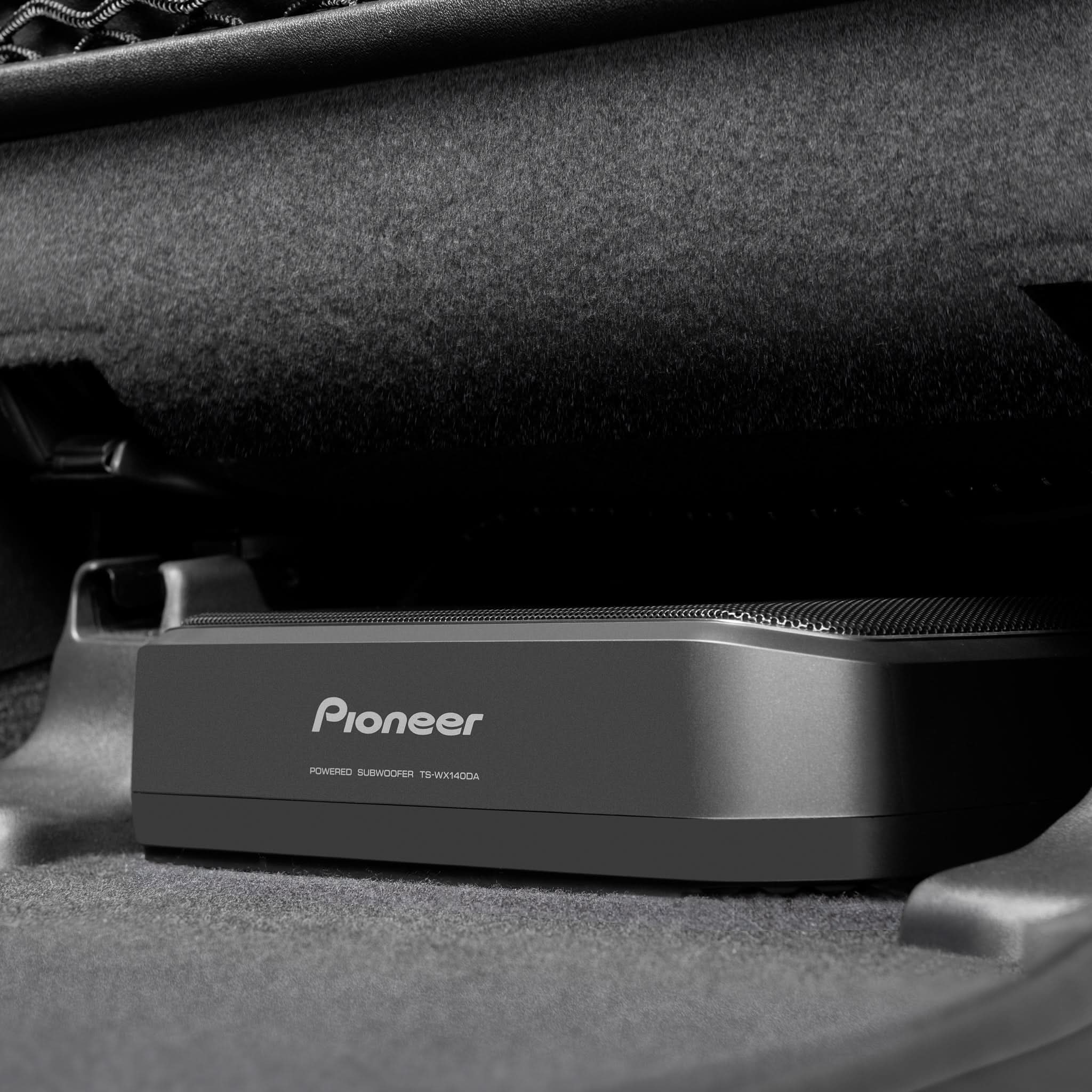

Pioneer_TS-WX140DA_Installed Image

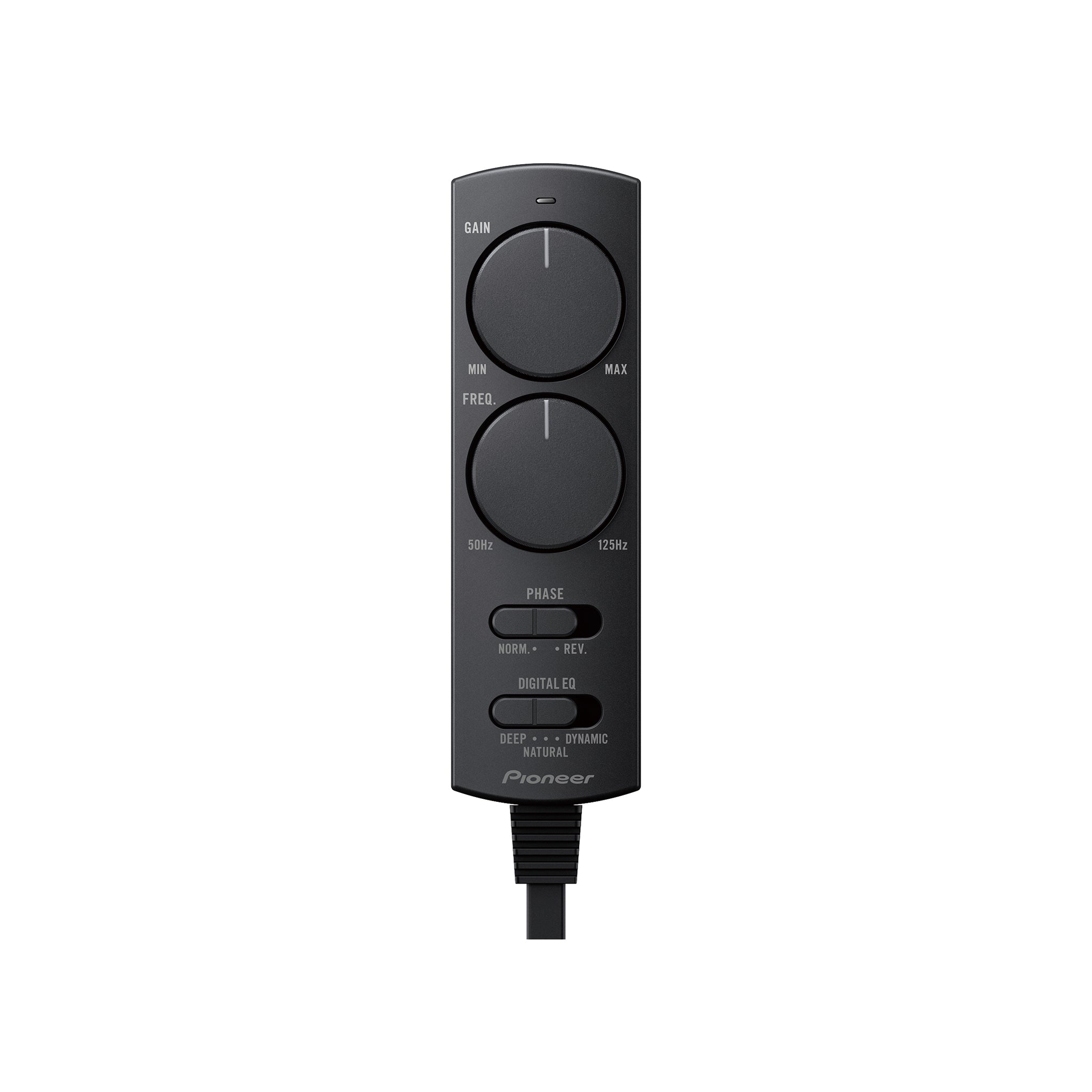

Pioneer_TS-WX140DA_Whats in the box Image
Pioneer_TS-WX140DA_Front Image
Pioneer_TS-WX140DA_Right Angle Image
Pioneer_TS-WX140DA_Left Angle Image
Pioneer_TS-WX140DA_Back Image
Pioneer_TS-WX140DA_Top Image
Pioneer_TS-WX140DA_Installed Image
Pioneer_TS-WX140DA_Whats in the box Image
Overview
Small in size, yet able to produce powerful and impactful bass, the TS-WX140DA compact active subwoofer is a perfect upgrade for many of today’s vehicles where small size and low power consumption are a priority. Featuring a powerful, built-in 170 W Max (50 W RMS) Class D amplifier, down-firing 8" x 5-1/4" rectangular subwoofer and Pioneer's DIGITAL BASS CONTROL, the TS-WX140DA can be digitally matched to your listening preference and vehicle interior. The TS-WX140DA also has multiple input options allowing connectivity to both aftermarket and OE (Original Equipment) car audio systems. Measuring only 11" wide, 7-7/8" deep, and 2-3/4” high the TS-WX140DA can be installed in many vehicle types and applications.

TS-WX140DA

Regular price $200.00

Find out if this product fits your vehicle

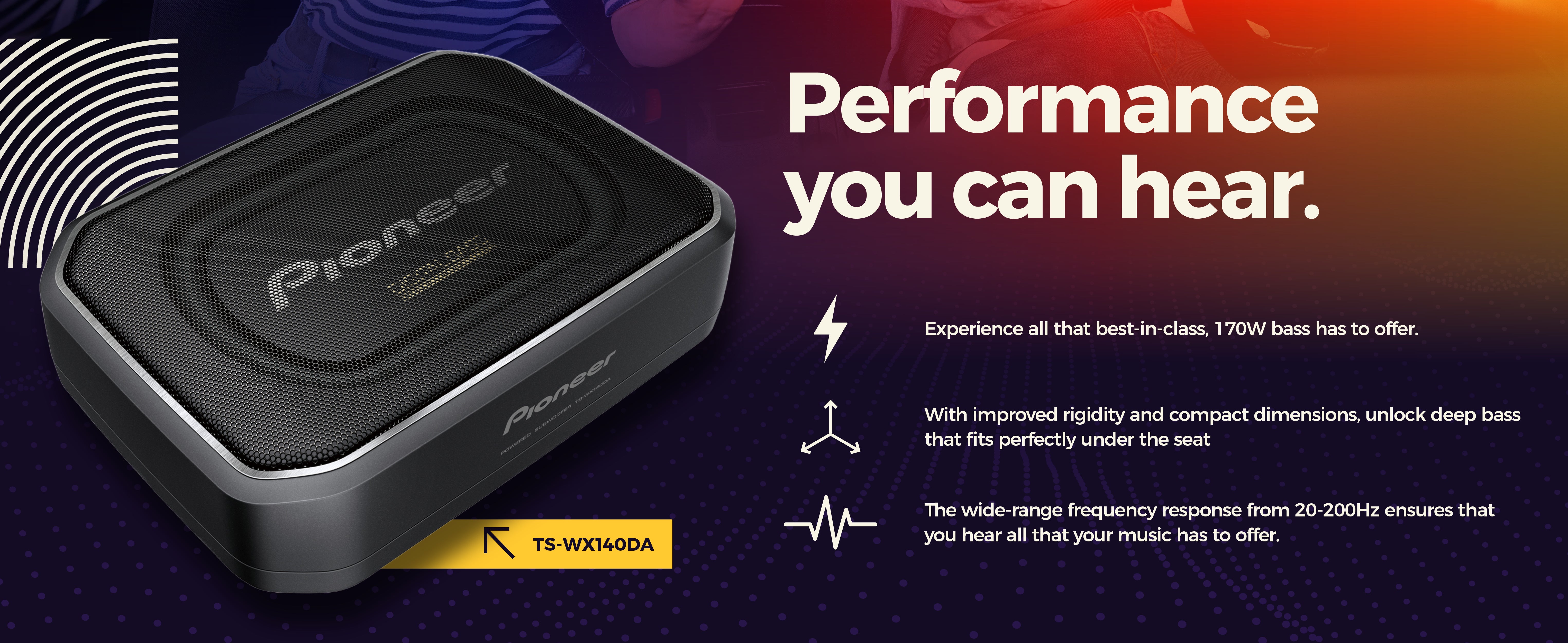

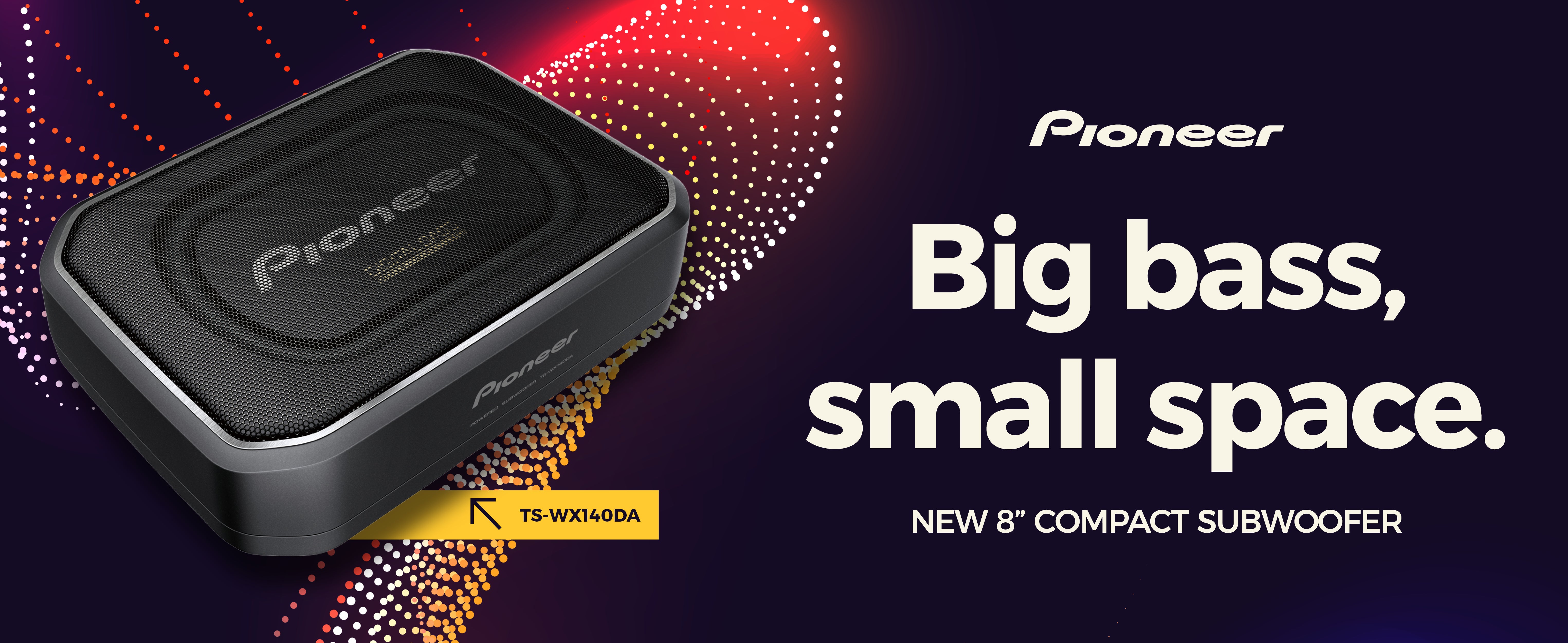

8” x 5-1/4" - 170 W Max Power - Compact Active Subwoofer

Built-in 170 W Max (50 W RMS) Class D amplifier

9" x 5-1/2" Rectangular Subwoofer (7" woofer effective surface area)

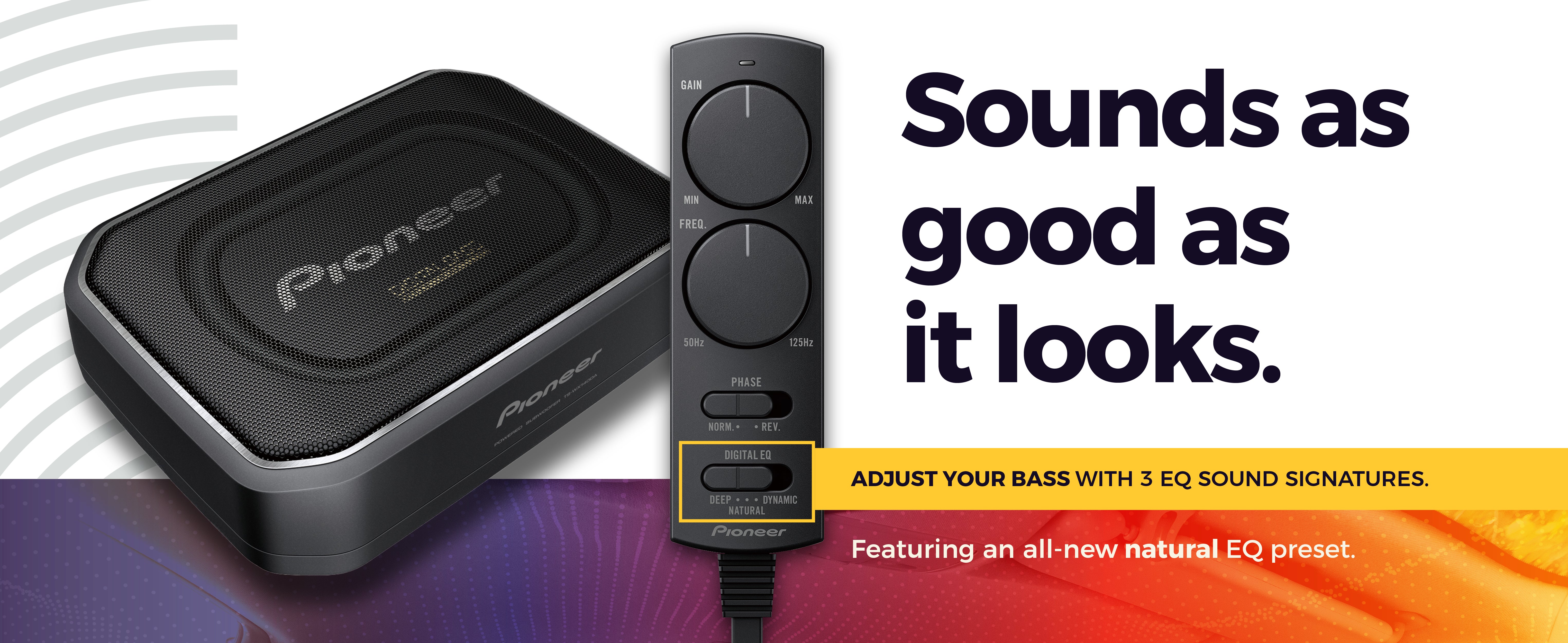

Pioneer DIGITAL BASS CONTROL digitally matches the subwoofer output to your listening preference and vehicle interior

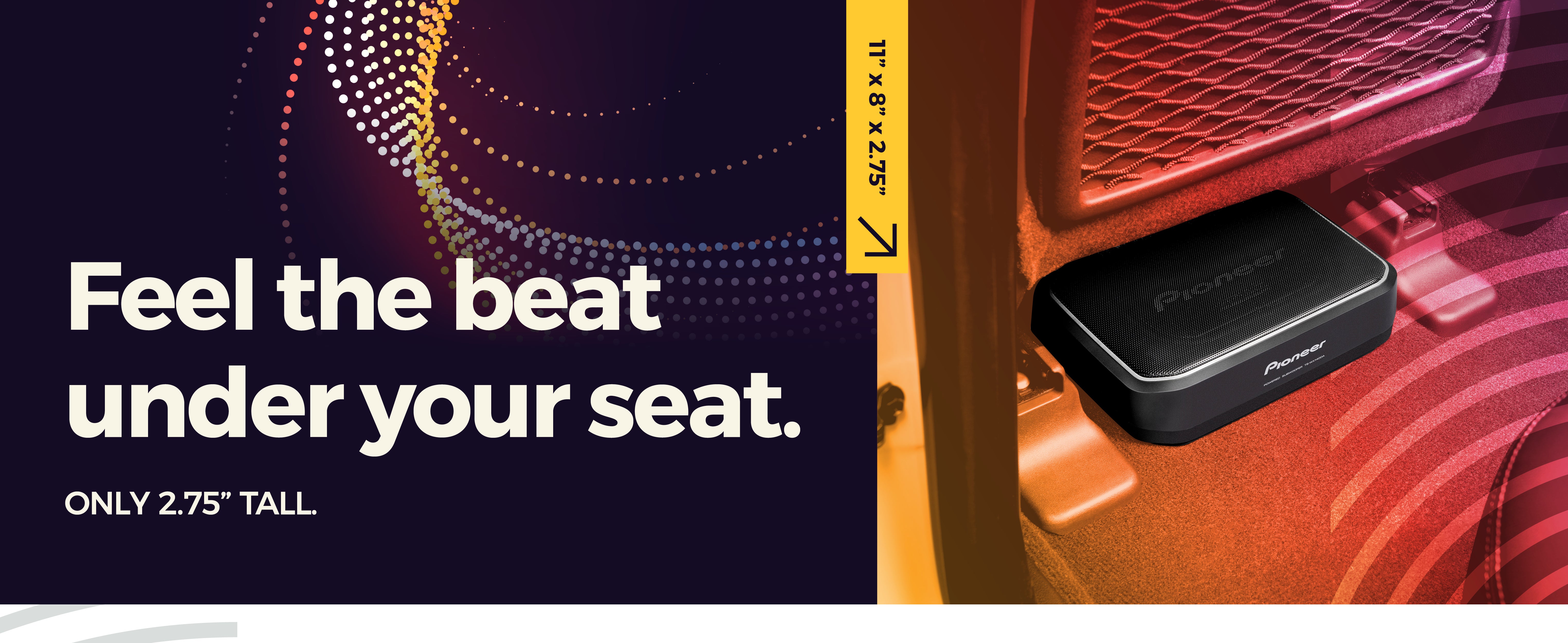

Compact enclosure for installation flexibility (11" W x 7.875" D x 2.75" H)

Small in size, yet able to produce powerful and impactful bass, the TS-WX140DA compact active subwoofer is a perfect upgrade for many of today’s vehicles where small size and low power consumption are a priority. Featuring a powerful, built-in 170 W Max (50 W RMS) Class D amplifier, down-firing 8" x 5-1/4" rectangular subwoofer and Pioneer's DIGITAL BASS CONTROL, the TS-WX140DA can be digitally matched to your listening preference and vehicle interior. The TS-WX140DA also has multiple input options allowing connectivity to both aftermarket and OE (Original Equipment) car audio systems. Measuring only 11" wide, 7-7/8" deep, and 2-3/4” high the TS-WX140DA can be installed in many vehicle types and applications.
FEATURES
Amp - Grounding
Negative
Built In Amp
Yes
CarSoundFit
Yes
Cut Out dimensions
No
Equivalent Compliance (VAS)
No
Free Air ResoNAnce (Fs)
No
Linear Excursion (Xmax)
No
Mounting Depth
No
Port Diameter
No
Port Length
No
Recommended Ported Box Internal volume
No
Recommended Sealed Enclosure Volume
No
Total Speaker Q (Qts)
No
FEATURES
Amp - Grounding
Negative
Built In Amp
Yes
CarSoundFit
Yes
Cut Out dimensions
No
Equivalent Compliance (VAS)
No
Free Air ResoNAnce (Fs)
No
Linear Excursion (Xmax)
No
Mounting Depth
No
Port Diameter
No
Port Length
No
Recommended Ported Box Internal volume
No
Recommended Sealed Enclosure Volume
No
Total Speaker Q (Qts)
No
MATERIALS
Basket Material
Metal
Center Cap Material
NA
Cone Material
Cellulose fiber
Custom Fit Basket
No
Damper
Aramid Fiber
Drive Cone Material
Blended Pulp
Gasket
No
Magnet Material
Ferrite
Magnet Weight
17.2 oz
Surround Material
Urethane
Surround Type
Rolled
Voice Coil Material
Glass Imide
Voice Coil Special Feature
Heat Resistant
Voice Coil Type
Single Voice Coil
Voice Coil wire
Copper
Wire Terminals
No
MATERIALS
Basket Material
Metal
Center Cap Material
NA
Cone Material
Cellulose fiber
Custom Fit Basket
No
Damper
Aramid Fiber
Drive Cone Material
Blended Pulp
Gasket
No
Magnet Material
Ferrite
Magnet Weight
17.2 oz
Surround Material
Urethane
Surround Type
Rolled
Voice Coil Material
Glass Imide
Voice Coil Special Feature
Heat Resistant
Voice Coil Type
Single Voice Coil
Voice Coil wire
Copper
Wire Terminals
No
PRODUCT PERFORMANCE

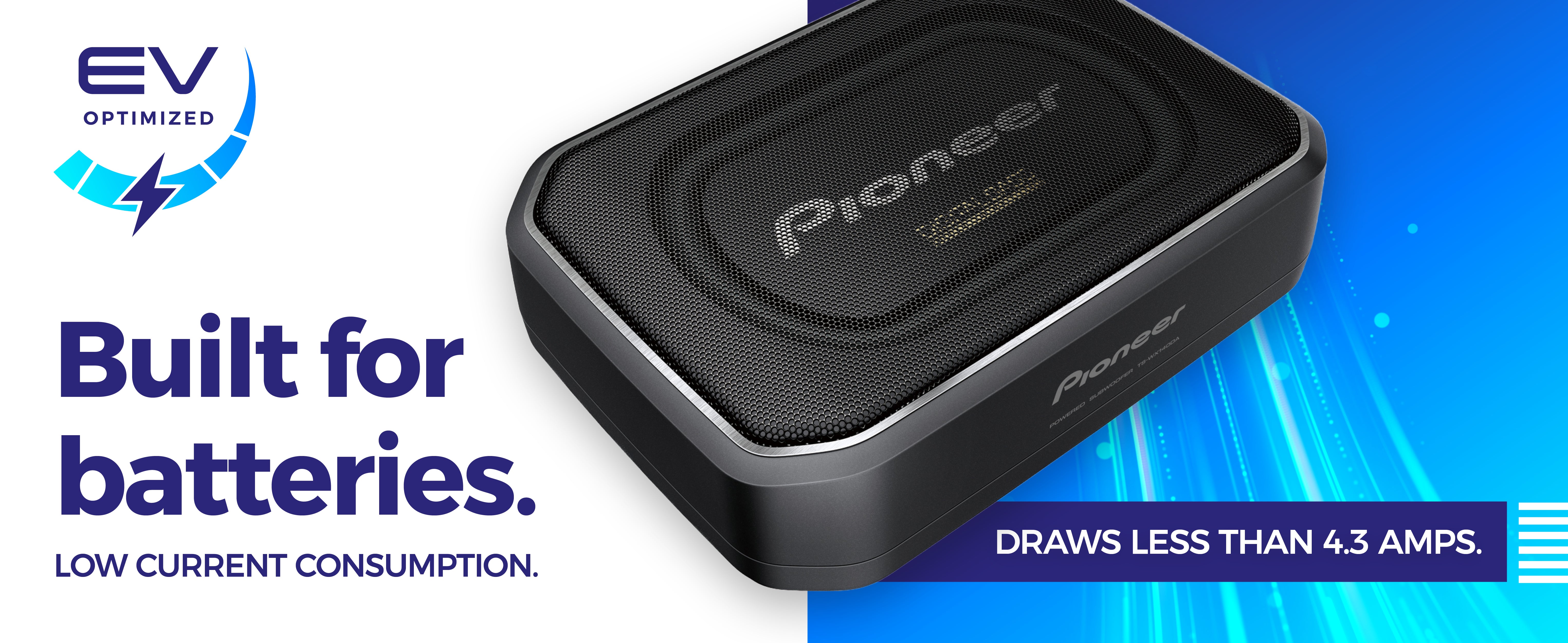

Amp - Max Current Consumption
4.3 A
Amp - Power Source
DC 14.4V
Bass Boost
No
Continuous Power handling (RMS) - Watts
50
Frequency Response
DEEP: 20 Hz to 200 Hz, DYNAMIC: 40 Hz to 160 Hz
Input Level @Gain Max
DEEP: 60mV+60mV/22kOhm, DYNAMIC: 30mV+30mV/22kOhm
Maximum Peak Power Handling - Watts
170
Sensitivity (1W/1m)
DEEP: 95 dB, DYNAMIC: 100 dB
Speaker Line input Sensor
DEEP 1.2V+1.2V/5KOhm
System-Type
Powered
PRODUCT PERFORMANCE
Amp - Max Current Consumption
4.3 A
Amp - Power Source
DC 14.4V
Bass Boost
No
Continuous Power handling (RMS) - Watts
50
Frequency Response
DEEP: 20 Hz to 200 Hz, DYNAMIC: 40 Hz to 160 Hz
Input Level @Gain Max
DEEP: 60mV+60mV/22kOhm, DYNAMIC: 30mV+30mV/22kOhm
Maximum Peak Power Handling - Watts
170
Sensitivity (1W/1m)
DEEP: 95 dB, DYNAMIC: 100 dB
Speaker Line input Sensor
DEEP 1.2V+1.2V/5KOhm
System-Type
Powered
