TS-WX010A

Pioneer_TS-WX010A_Whats in the box Image

TS-WX010A

$150.00

Find out if this product fits your vehicle

Select quantity

6-5/8" x 3-1/8" - 160 W Max Power - Compact Powered Subwoofer

Built-in 160 W Max (50 W RMS) Class D Amplifier

6-5/8" x 3-1/8" Rectangular Aluminum Woofer Cone with Urethane Surround

2-Way Easy Installation (Vertical / Horizontal)

Down Firing Subwoofer System

Compact Design

Overview
Specs
Knowledgebase
Manuals/Warranty

Compact in size, yet able to produce powerful and impactful bass, the TS-WX010A compact powered subwoofer is a perfect upgrade for many of today’s vehicles, especially EV (electric vehicle) and gasoline/electric hybrid vehicles where low weight, small size, and low power consumption are a priority. Measuring only 9-inches wide, 4-5/8” deep, and 2-3/4” high, and weighing just under 3-1/2 pounds, the TS-WX010A has been optimized for installation in the passenger side footwell and is the smallest and lightest powered subwoofer in the Pioneer lineup.

Small Footprint with High Efficiency

Due to its small size and high electrical efficiency, the TS-WX010A compact subwoofer is a perfect upgrade for many of today’s vehicles, especially EV (electric vehicle) and gasoline/electric hybrid vehicles where low weight, small size and low power consumption are a priority. Measuring only 9-inches wide, 4-5/8” deep, and 2-3/4” high, and weighing just under 3-1/2 pounds, the TS-WX010A is the smallest and lightest powered subwoofer in the Pioneer lineup. In comparison, the TS-WX010A is 48% smaller than Pioneer’s next smallest powered subwoofer, the TS-WX130DA.

Small Subwoofer with High Power

A rectangular woofer with a low mass, high strength aluminum cone, urethane surround and high-power magnetic circuit housed in a down firing sealed enclosure made of high-grade resin. This compact subwoofer is powered by a built-in Class-D amplifier rated at 50 watts RMS output.

Vertical or Horizontal Installation

The compact dimensions of the TS-WX010A allows installation inside the passenger compartment of most vehicles, providing the potential to integrate acoustically with the vehicle’s full range speakers and seamlessly enhance both output and overall sound quality. With installation options that include vertical or horizontal mounting, the TS-WX010A is optimized for installation in the passenger side footwell, where its small size affords the ability to be attached near the underside of the dashboard or the center console. Warning: This product must never be installed anywhere in the driver area or elsewhere in the vehicle where it might interfere with its safe operation or impair the performance of operating systems or safety features, including air bags, controls and indicators (lights). Appropriate installation locations will depend on the vehicle model including, specific to hybrid and electric vehicles, the location of the vehicle battery and battery charging system, and where the TS-WX010A can be attached securely.

Down firing system

For foot space and effective reproduction of deep, powerful bass. The TS-WX010A features a full grille and down firing structure for cone protection to be installed inside your vehicle interior. This combines deep, powerful bass while seamlessly integrating physically, electrically and most importantly acoustically into the vehicle.

Bass Sound Creator

Designed to be small in size with reduced power consumption while still producing impactful bass output for enhanced sound quality, the TS-WX010A accepts both RCA type line level and speaker level inputs for connection to aftermarket audio systems or integration into factory-installed systems, making installation a simple process.

CarSoundfit

Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

FEATURES
Amp - Grounding Negative	Built In Amp Yes
CarSoundFit Yes	Cut Out dimensions No
Equivalent Compliance (VAS) No	Free Air ResoNAnce (Fs) No
Linear Excursion (Xmax) No	Port Diameter No
Port Length No	Recommended Ported Box Internal volume No
Recommended Sealed Enclosure Volume No	Subwoofer Grille No
Total Speaker Q (Qts) No

FEATURES
Amp - Grounding Negative
Built In Amp Yes
CarSoundFit Yes
Cut Out dimensions No
Equivalent Compliance (VAS) No
Free Air ResoNAnce (Fs) No
Linear Excursion (Xmax) No
Port Diameter No
Port Length No
Recommended Ported Box Internal volume No
Recommended Sealed Enclosure Volume No
Subwoofer Grille No
Total Speaker Q (Qts) No

MATERIALS
Basket Material Metal	Center Cap Material NA
Cone Material Cellulose fiber	Custom Fit Basket No
Damper Aramid Fiber	Drive Cone Material Cellulose Fiber
Gasket No	Magnet Material Ferrite
Magnet Weight 9.5 oz	Surround Material Urethane
Surround Type Rolled	Voice Coil Material Glass Imide
Voice Coil Special Feature No	Voice Coil Type Single Voice Coil
Voice Coil wire Copper	Wire Terminals No

MATERIALS
Basket Material Metal
Center Cap Material NA
Cone Material Cellulose fiber
Custom Fit Basket No
Damper Aramid Fiber
Drive Cone Material Cellulose Fiber
Gasket No
Magnet Material Ferrite
Magnet Weight 9.5 oz
Surround Material Urethane
Surround Type Rolled
Voice Coil Material Glass Imide
Voice Coil Special Feature No
Voice Coil Type Single Voice Coil
Voice Coil wire Copper
Wire Terminals No

PRODUCT PERFORMANCE
Amp - Max Current Consumption 4.2 A	Amp - Power Source DC 14.4V
Bass Boost No	Bass Boost - Frequency No
Bass Boost Knob - Wired No	Bass Boost - Level No
Continuous Power handling (RMS) - Watts 50	Frequency Response 20 Hz to 200 Hz
Input Level @Gain Max 2 V to 6 V	Maximum Peak Power Handling - Watts 160
Sensitivity (1W/1m) 98dB	Speaker Line input Sensor 1.4V+1.4V/5KOhm
System-Type Powered

PRODUCT PERFORMANCE
Amp - Max Current Consumption 4.2 A
Amp - Power Source DC 14.4V
Bass Boost No
Bass Boost - Frequency No
Bass Boost Knob - Wired No
Bass Boost - Level No
Continuous Power handling (RMS) - Watts 50
Frequency Response 20 Hz to 200 Hz
Input Level @Gain Max 2 V to 6 V
Maximum Peak Power Handling - Watts 160
Sensitivity (1W/1m) 98dB
Speaker Line input Sensor 1.4V+1.4V/5KOhm
System-Type Powered

CES 2021 Pioneer TS-WX010A - System Overview

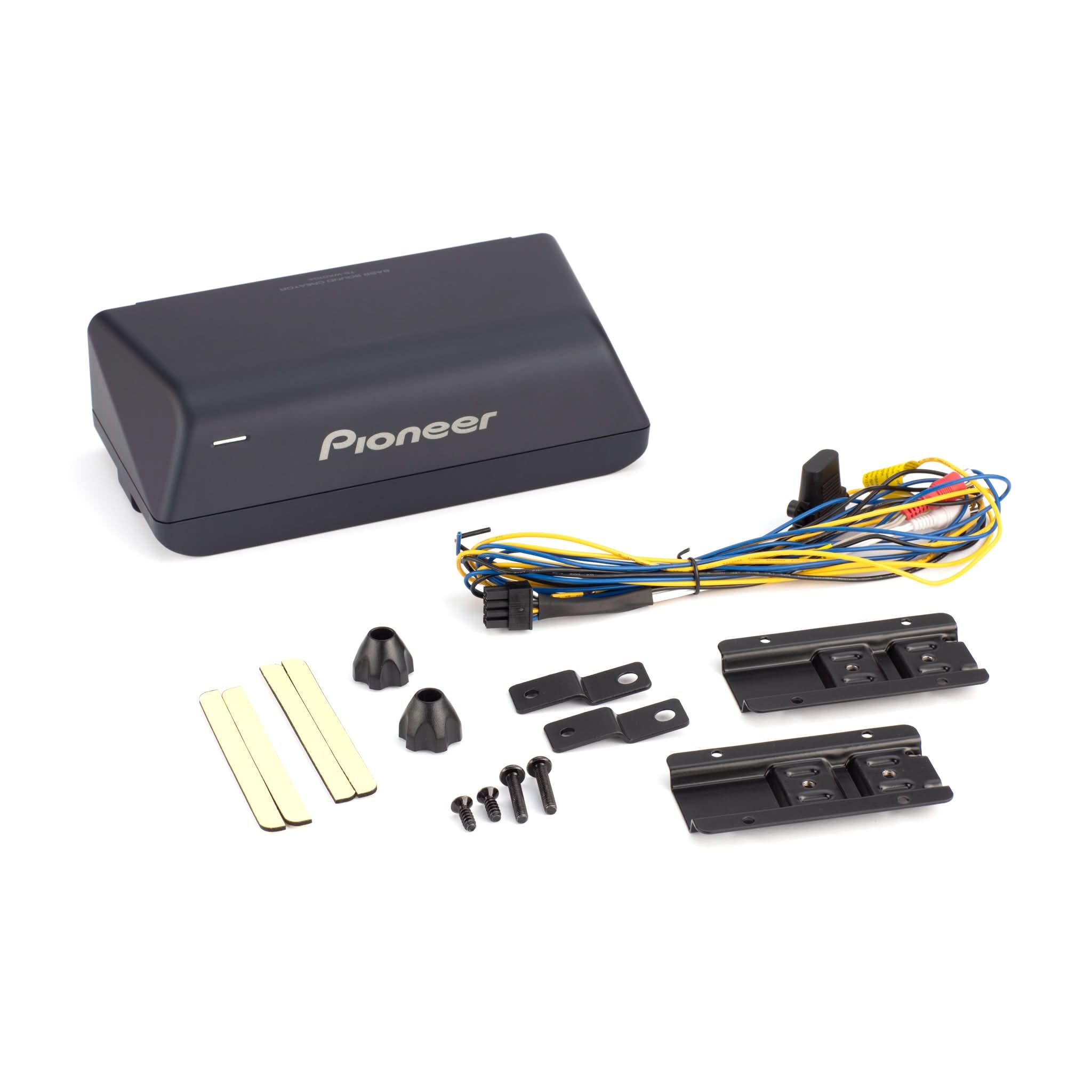

Pioneer TS-WX010A - Whats in the Box

Pioneer Electronics 2021 CES Recap

TS-WX010A

$150.00
