TS-A120D4

Name: TS-A120D4
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-A120D4
Price: 70.0 USD
Availability: OutOfStock

12" - 1500 W Max Power, Dual 4 Ohm Voice Coil, IMPP™ cone, Rubber Surround - Component Subwoofer

$70.00

Orders of $100 or more will receive FREE shipping!

Does it fit your car?

Features

1500 W Max Power (500 W Nominal)

Dual 4 Ohm Voice Coils

12” Glass Fiber and Mica Interlaced Injection Molded Polypropylene (IMPP) Cone Construction

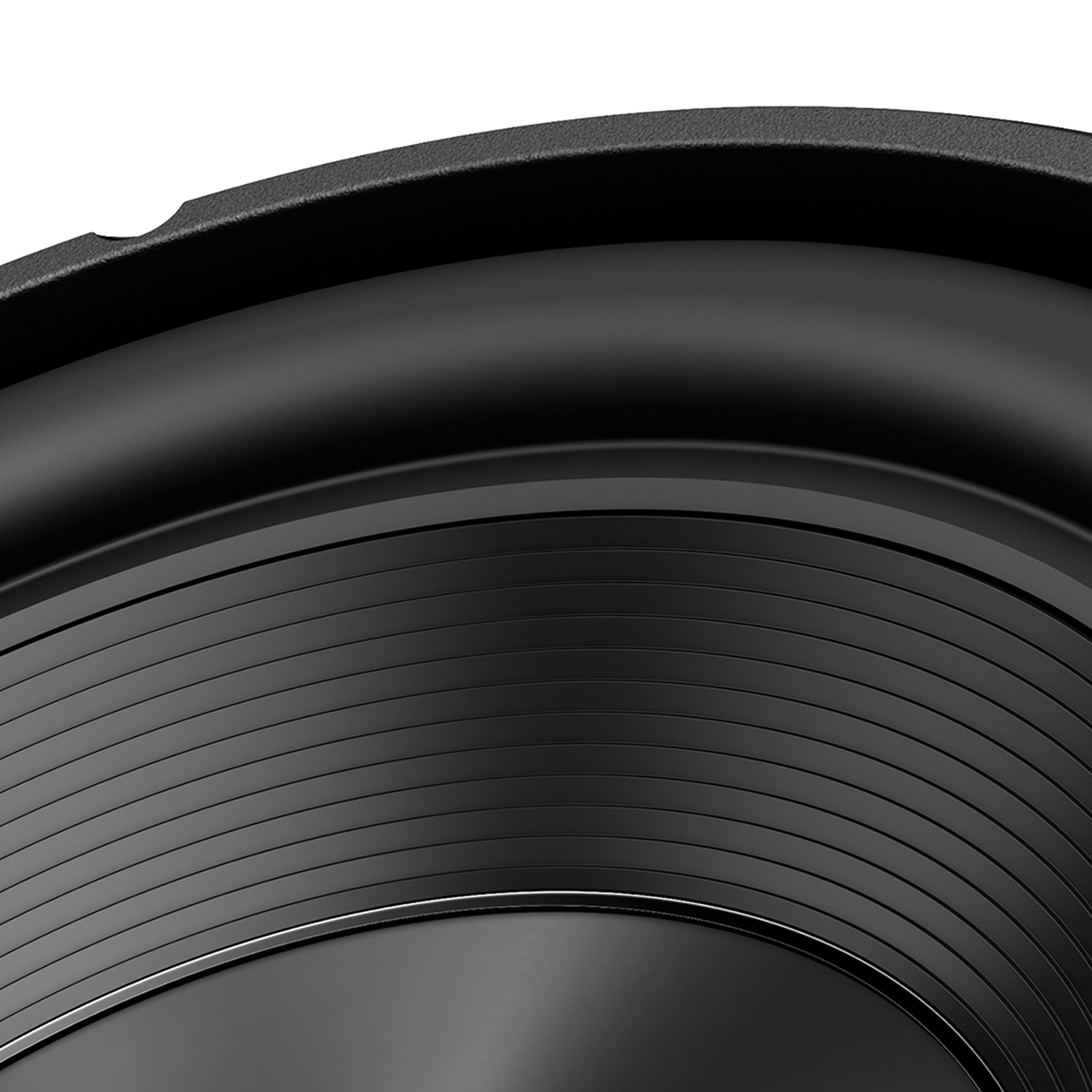

Butyl rubber surround and polycotton / cotton dual spider for strength and linearity during high excursion

Oversized 60 oz double stacked magnet and vented pole yoke for increased power handling

TS-A120D4

$70.00

Overview
Specs
Knowledgebase
Manuals/Warranty

Features You'll Love.

12” Dual 4 Ω Voice Coil Subwoofer - Glass fiber and mica interlaced Injection Molded Polypropylene (IMPP™ cone construction, Butyl rubber surround and polycotton / cotton dual spider for strength and linearity during high excursion, Oversized 60 oz double stacked magnet and vented pole yoke for increased power handling.

A Series

The highly efficient design of the Pioneer A Series speakers intentionally matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics, with dynamic, high-impact bass that lets you hear and feel the music. Pioneer's OPEN & SMOOTH sound concept ensures a seamless transition between the midrange and tweeter drivers, delivering a uniform off-axis frequency response optimized for automotive applications, where one or more speakers are often aimed away from the listeners' ears. The A Series lineup enhances audio details and improves acoustic performance.

Linear-Balanced Motion

Linear, balanced motion in both the forward and reverse directions of cone movement is critical in delivering accurate reproduction of recorded sound waves. Careful engineering of the entire motor structure and suspension system (voice coil, magnet, surround and spider) is required maintain a high level of linearity, even during high output / high excursion transients.

PRODUCT PERFORMANCE
Continuous Power Handling (Rms) - Watts 500	Frequency Response 20 Hz to 2.3 kHz
Maximum Peak Power Handling - Watts 1500	Nominal Impedance - Ohm 4-Ohm dual
Sensitivity (1W/1M) 77 dB	System-Type Component

PRODUCT PERFORMANCE
Continuous Power Handling (Rms) - Watts 500
Frequency Response 20 Hz to 2.3 kHz
Maximum Peak Power Handling - Watts 1500
Nominal Impedance - Ohm 4-Ohm dual
Sensitivity (1W/1M) 77 dB
System-Type Component

FEATURES
Cut Out dimensions 11-1/8", 28 cm	Equivalent Compliance (VAS) 87.1 Liters, 3.1 Cu. Ft.
Free Air ResoNAnce (Fs) 25	Linear Excursion (Xmax) 10.1 mm, 0.4"
Mounting Depth 5-3/4", 14.61cm	Port Diameter 3", 8 cm
Port Length 6-1/2", 17 cm	Recommended Ported Box Internal volume 42.5 Liters, 1.5 Cu. Ft
Recommended Sealed Enclosure Volume 35.4 Liters, 1.25 Cu Ft	Total Speaker "Q" (Qts) 0.69
Woofer Dimensions 12"

FEATURES
Cut Out dimensions 11-1/8", 28 cm
Equivalent Compliance (VAS) 87.1 Liters, 3.1 Cu. Ft.
Free Air ResoNAnce (Fs) 25
Linear Excursion (Xmax) 10.1 mm, 0.4"
Mounting Depth 5-3/4", 14.61cm
Port Diameter 3", 8 cm
Port Length 6-1/2", 17 cm
Recommended Ported Box Internal volume 42.5 Liters, 1.5 Cu. Ft
Recommended Sealed Enclosure Volume 35.4 Liters, 1.25 Cu Ft
Total Speaker "Q" (Qts) 0.69
Woofer Dimensions 12"

MATERIALS

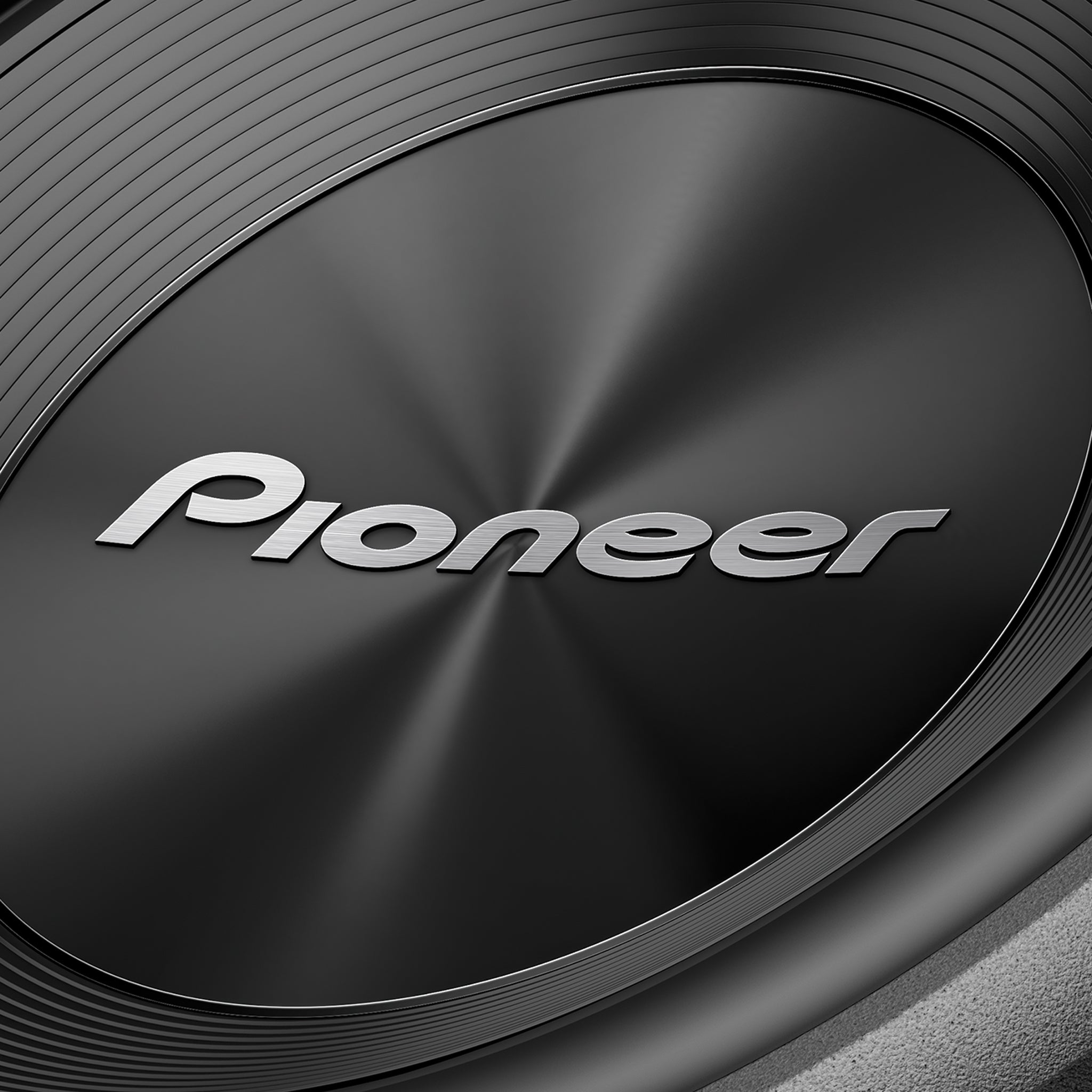

Basket Material Stamped Metal	Center Cap Material ABS
Cone Material IMPP - Composite	Damper Poly cotton
Installation Ring ABS	Magnet Material Ferrite
Magnet Weight 60 oz	Surround Material Rubber
Surround Type Rolled	Voice Coil Bobbin Kapton
Voice Coil Type Dual Voice Coil 4-ohm	Voice Coil wire Copper

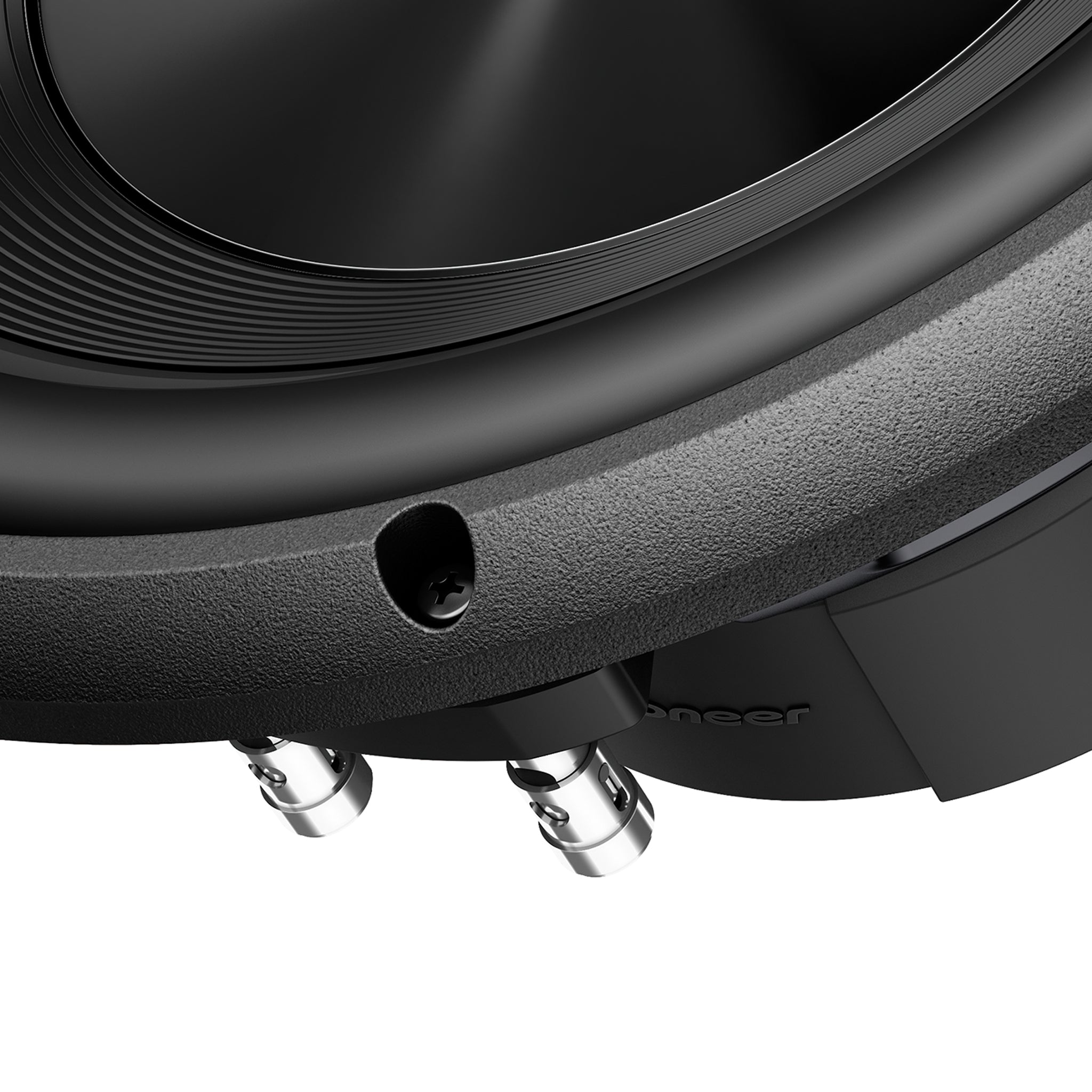

Wire Terminals Push Type

MATERIALS
Basket Material Stamped Metal
Center Cap Material ABS
Cone Material IMPP - Composite
Damper Poly cotton
Installation Ring ABS
Magnet Material Ferrite
Magnet Weight 60 oz
Surround Material Rubber
Surround Type Rolled
Voice Coil Bobbin Kapton
Voice Coil Type Dual Voice Coil 4-ohm
Voice Coil wire Copper
Wire Terminals Push Type
