Name: TS-F1035R
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-F1035R
Price: 25.0 USD
Availability: InStock

TS-F1035R

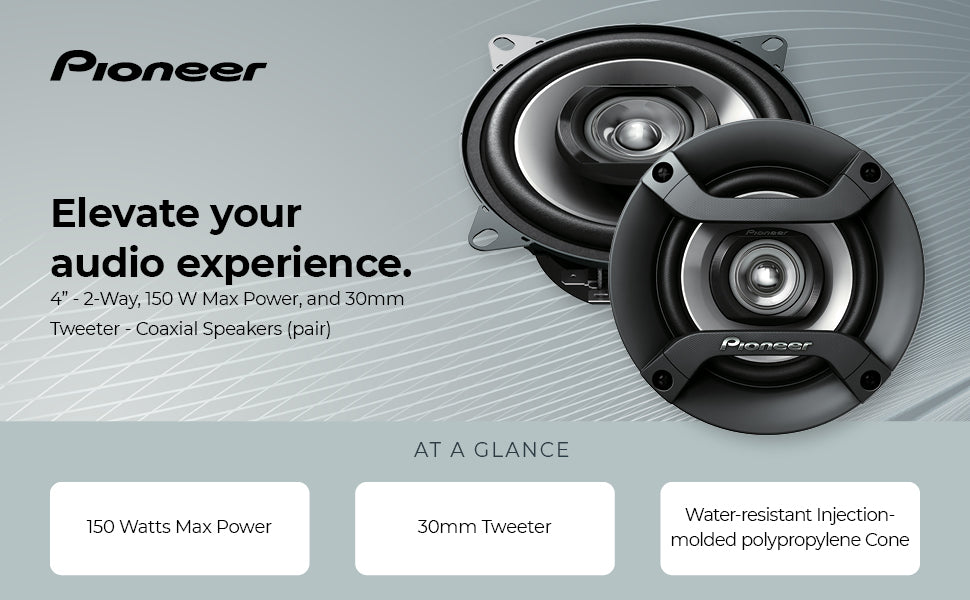

4" - 2-Way, 150 W Max Power, and 30mm Tweeter - Coaxial Speakers (pair)

$25.00

Orders of $100 or more will receive FREE shipping!

Does it fit your car?

Features

150 Watts Max Power (20 Watts Nominal)

30mm Tweeter

Water-resistant Injection-molded polypropylene Cone

Heat-resistant Voice Coil

TS-F1035R

$25.00

Overview
Specs
Knowledgebase
Manuals/Warranty

Features You'll Love.

Pioneer TS-F1035R 2-Way Coaxial Car Audio Speakers Full Range 4" Round Speakers 150W Max Enhanced Bass Response Easy Installation Black Car Speakers.

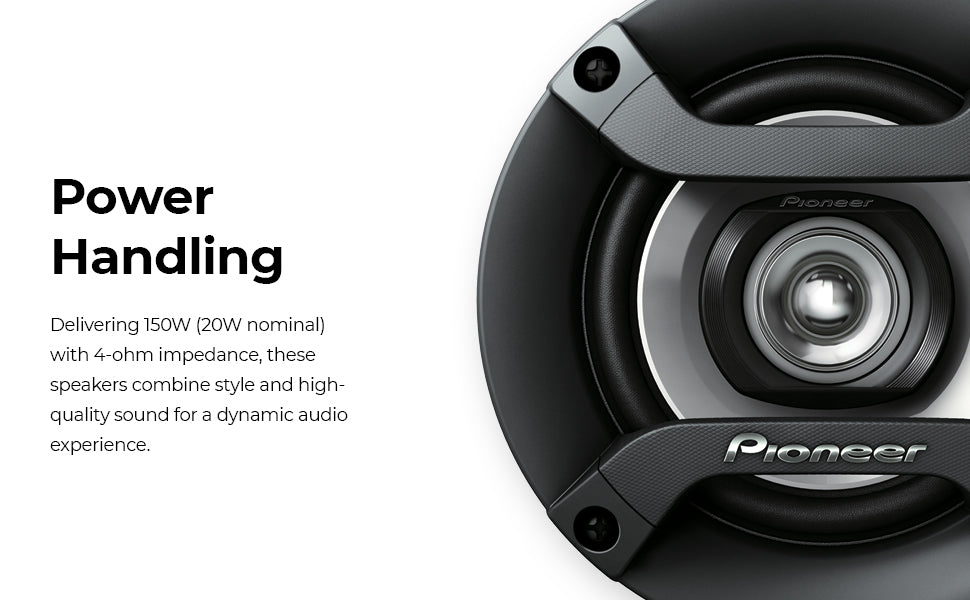

Power Handling

Delivering 150W (20W nominal) with 4-ohm impedance, these speakers combine style and high-quality sound for a dynamic audio experience.

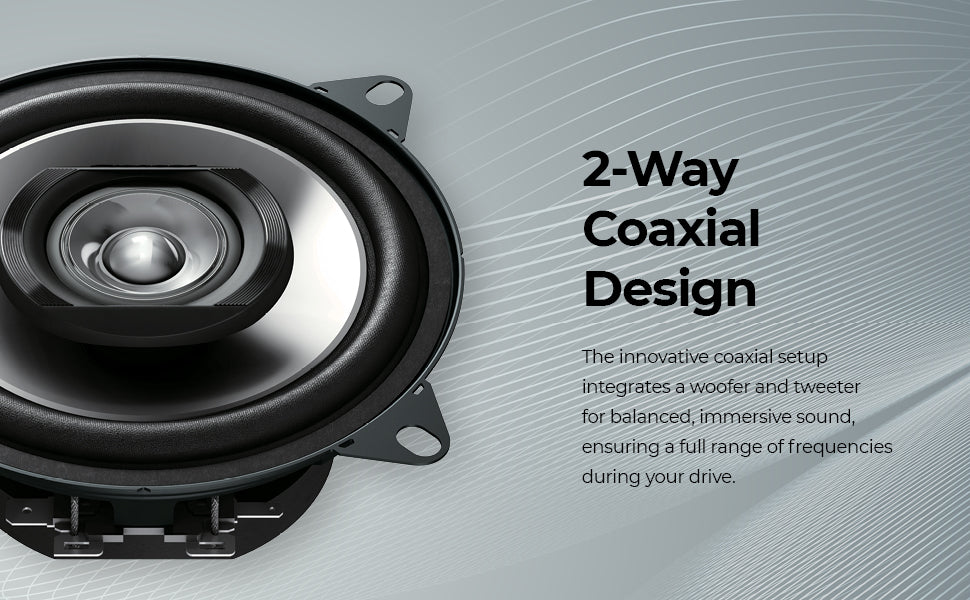

2-Way Coaxial Design

The innovative coaxial setup integrates a woofer and tweeter for balanced, immersive sound, ensuring a full range of frequencies during your drive.

Sensitivity

With an 86dB sensitivity rating, enjoy distortion-free music at higher volumes, ensuring a clear and loud audio experience with lower power inputs.

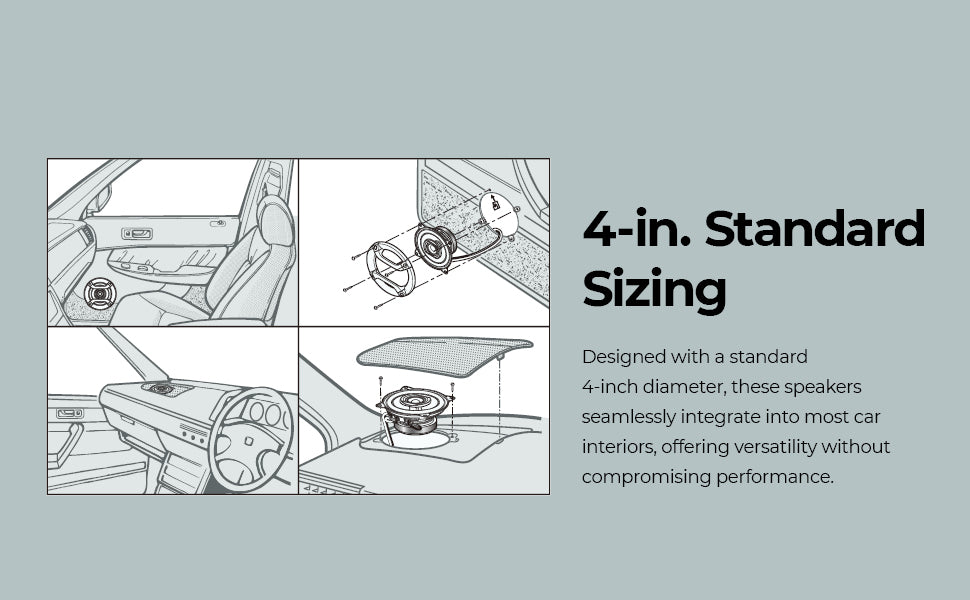

4 in Standard Sizing

Designed with a standard 4-inch diameter, these speakers seamlessly integrate into most car interiors, offering versatility without compromising performance.

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 20	Frequency Response 45 Hz to 18 kHZ
Maximum Peak Power Handling - Watts 150	Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 86 dB	System-Type Coaxial 2-Way

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 20
Frequency Response 45 Hz to 18 kHZ
Maximum Peak Power Handling - Watts 150
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 86 dB
System-Type Coaxial 2-Way

FEATURES
Cut Out dimensions 4-1/8"	Mounting Depth 1-3/4"
Tweeter Dimensions 1.18"	Woofer Dimensions 3.5"

FEATURES
Cut Out dimensions 4-1/8"
Mounting Depth 1-3/4"
Tweeter Dimensions 1.18"
Woofer Dimensions 3.5"

MATERIALS
Cone Material Injected Molded Polypropylene -IMPP Composite	Damper Aramid, Cotton
Magnet Material Ferrite	Magnet Weight 4.4 oz
Surround Material Rubber Coated Cloth	Surround Type Rolled
Voice Coil Bobbin Kapton	Voice Coil wire Copper
Wire Terminals Lug Type

MATERIALS
Cone Material Injected Molded Polypropylene -IMPP Composite
Damper Aramid, Cotton
Magnet Material Ferrite
Magnet Weight 4.4 oz
Surround Material Rubber Coated Cloth
Surround Type Rolled
Voice Coil Bobbin Kapton
Voice Coil wire Copper
Wire Terminals Lug Type
