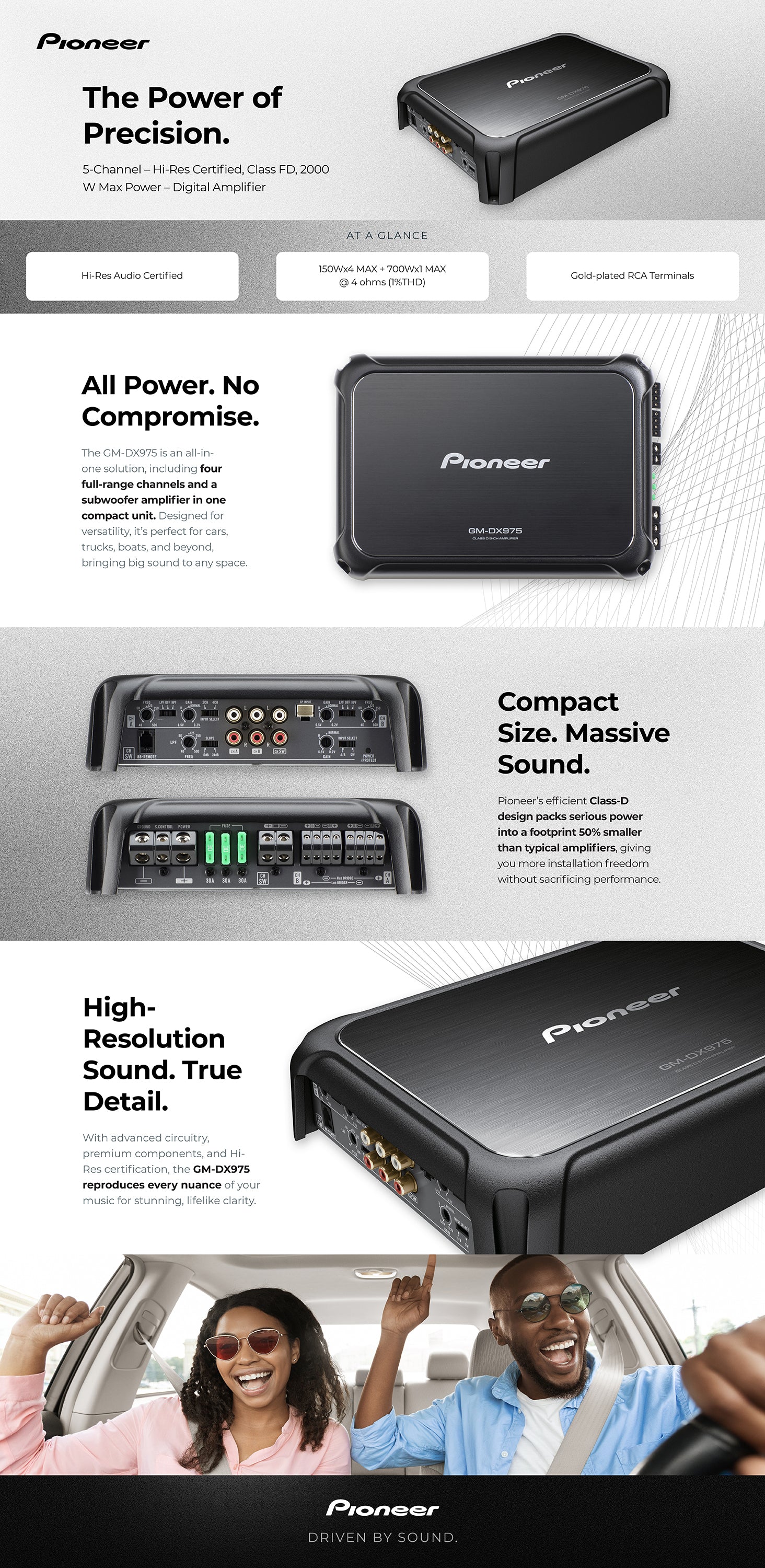

The Complete Package
Pioneer’s 5-channel amplifier produces impressive power in an all-in-one solution designed to deliver big sound without sacrificing space. Ideal for any vehicle including compact vehicles and pickup trucks with limited real estate, this Receiver also offers installation flexibility for a variety of other applications including boats and ATVs/UTVs.
Packs a Punch
The 5-channel amplifier is rated at 2,000 watts max with the A and B channels rated at 75 watts x 4 (RMS) and the subwoofer output rated at 600 watts at 2 (RMS). Compared to similarly priced multi-channel amplifiers, the variable crossover networks on the [Model ID] offer increased flexibility and give listeners more control. This amplifier also features block terminals for a cleaner installation and direct wire contact to minimize resistance.
Turn Up the Bass
This Receiver also features a Bass Boost Remote for optimal bass level adjustment according to listening preferences and music characteristics.
Variable Low-Pass Filter1 - 40 Hz to 240 Hz.
For extra flexibility, a variable LPF makes audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. The [Model ID] LPF is adjustable from 40 Hz to 240 Hz.
AMP FEATURES | |
---|---|
Bass Boost Remote
Yes
|
Bridgable
Yes
|
Class
D
|
Grounding System
Negative
|
High Quality Audio Components
Yes
|
Power Source
14.4V (10.8 V to 15.1 V allowable)
|
Protection Control system
Yes
|
Terminal Type
Block
|
Unit Weight
7.3 lbs
|
AMP FEATURES |
---|
Bass Boost Remote
Yes
|
Bridgable
Yes
|
Class
D
|
Grounding System
Negative
|
High Quality Audio Components
Yes
|
Power Source
14.4V (10.8 V to 15.1 V allowable)
|
Protection Control system
Yes
|
Terminal Type
Block
|
Unit Weight
7.3 lbs
|
PRODUCT PERFORMANCE | |
---|---|
Allowable Load Impedance
2 ohm to 8 ohm allowable
|
Avg Current Consumption (amps x #ch)
5.2 A x 5-Channel - 4 Ohm
|
Bass Boost
50 Hz - Frequency
|
Continuous-Power-Output
75 W x 4-Channel + 350 W x 1-Channel - 4 Ohm, 100 W x 4-Channel + 600 W x 1-Channel - 2 Ohm, 200 W x 2-Channel + 350 W x 1-Channel - 4 Ohm Bridged
|
Crossover Network Channel
HPF - A/B Ch 40Hz-500Hz, LPF - A/B Ch 40Hz-500Hz
|
Crossover Network Channel Slope
-12db/oct (A/B CH)
|
Crossover Network Subwoofer Channel
LPF - 40 Hz to 500 Hz
|
Crossover Network Subwoofer Slope
-12dB, 24 dB/oct
|
Frequency Response Channel
10 Hz to 50 kHz (+0dB,-3dB) A/B Ch
|
Frequency Response - Sub Channel
10 Hz ~ 500 Hz
|
Fuse Rating
30A x 3
|
Maximum Power Output
150 W x 4-Channel + 700 W x 1-Channel (4 Ohm)
|
RCA Inputs
5-Channel
|
Signal to Noise
75 dBA (Reference: 1 W into 4 ohm)
|
Speaker Line input Sensor
Yes
|
