Apple CarPlay split-screen support
If you’ve ever wanted to control two apps simultaneously when using Apple CarPlay®, get excited for Pioneer’s first feature-driven “over the air” software update, highlighting split-screen mode for select NEX in-dash receivers. *
Android Auto
This receiver also features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices.
Back up camera input (2-camera)
This back up camera input enables you to add a rear-view camera, with the system automatically switching to a full-screen image of the rear view when the car is placed in reverse gear. The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear. *Rear visibility systems (backup cameras) are required under federal regulations in certain new vehicles according to a phase-in schedule that began on May 1, 2016. Owners of vehicles equipped with compliant rear visibility systems should not install or use this product in a way that alters or disables that system’s compliance with applicable regulations. If you are unsure whether your vehicle has a rear visibility system subject to these regulations, please contact the vehicle manufacturer or dealer.

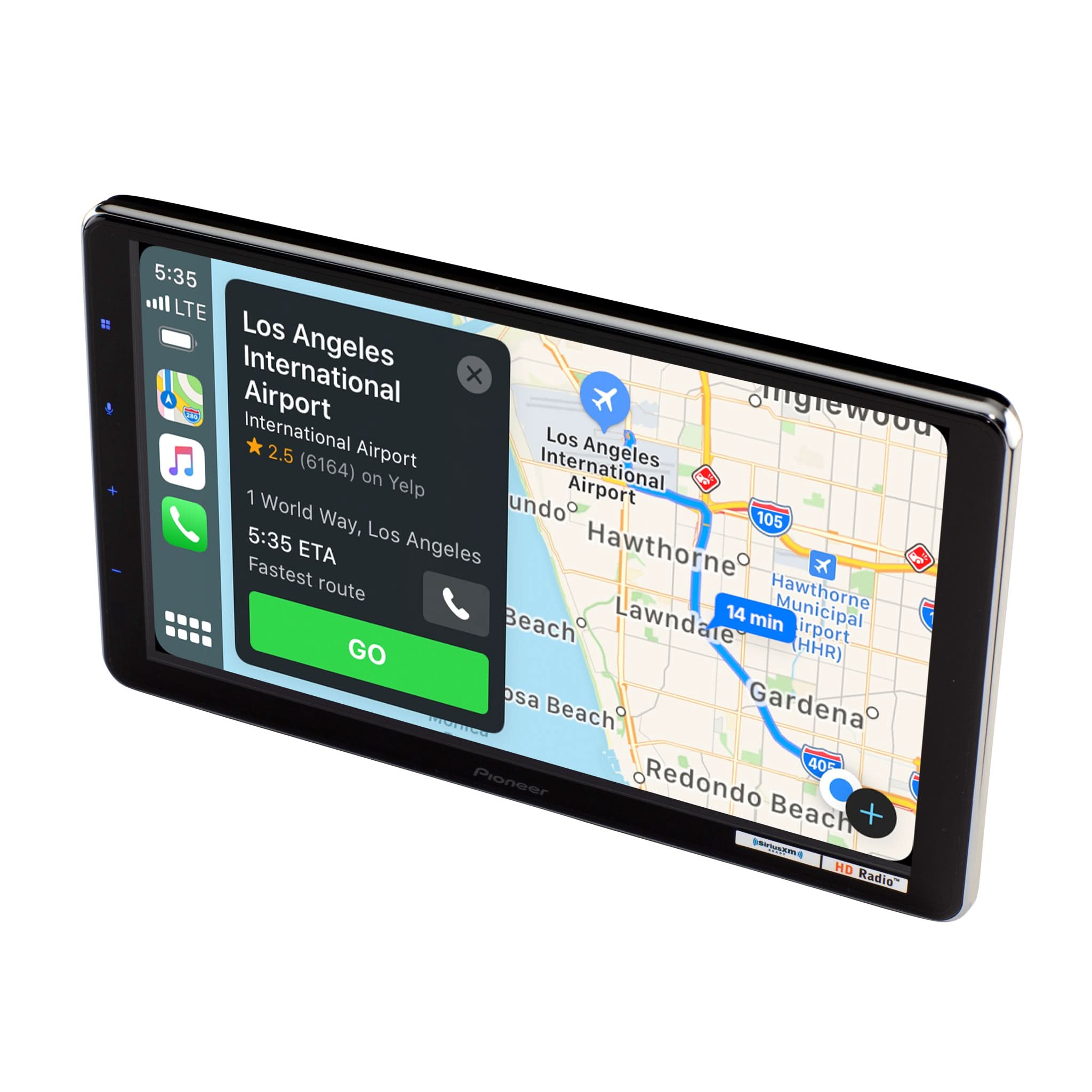

Apple CarPlay
This receiver features Apple CarPlay, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 device or newer with the latest version of iOS.
Sound quality for all (auto EQ)
Your car and your music are as unique as you are. With a Pioneer NEX in-dash receiver, sound quality features like built-in Auto EQ and Time Alignment, 13-Band Graphic Equalizer with touch panel swipe settings and built-in high/low pass crossover with adjustable points and slopes provide you with the controls to tailor the listening experience to your vehicle and listening preferences. The CD-MC20 microphone is required for Auto EQ features and is sold separately.
Alexa Built-in
This in-dash receiver features the latest automotive connectivity solutions, including Amazon Alexa Built-in. With Alexa, users can talk to Amazon Alexa directly through this Pioneer receiver. With Alexa, you can ask to play music, hear the news, check the weather, control smart home devices*, and more. Alexa lives in the cloud, so it’s always getting smarter, adding new capabilities that are delivered to compatible devices automatically. Using Alexa with the Pioneer units is simple and hands-free – just ask, and Alexa will respond instantly. Visit www.pioneerelectronics.com/PUSA/Car/Alexa to learn more including the latest features, apps, and language support for Alexa compatible Pioneer in-dash receivers.
iDataLink Maestro (RR & RR2)
These are sold separately which preserves factory features such as climate control, performance gauges and vehicle information such as tire pressure and diagnostics. Features vary by vehicle.
HD touchscreen
Large HD screen provides an expansive viewing experience that makes map reading safer and easier Using the highly responsive capacitive touch panel enables smoother and easier operation.
HD Radio
This receiver features a built-in HD Radio™ tuner, which allows you to enjoy your radio in an all-new way. Besides broadcasting in clear digital quality, many stations offer extra local FM channels so you can enjoy more music, news, and sports – all 100% subscription FREE! Your FM stations now with near CD-quality sound (on single channel stations), AM stations now in stereo and sounding like FM stations, and crystal-clear reception with no audio distortion. With HD Radio, you'll also see song titles, album art, and station information and be able to tag new discoveries.
Hi-res audio file playback via USB
Enjoy High-Resolution Audio music playback just as the musicians intended with higher than CD quality. With the Pioneer NEX Receiver you can play up to 5.6 MHz DSD (Direct Stream Digital) files, and up to 192 kHz/24-bit WAV and FLAC files from an MSC formatted USB device.
Siri® Eyes Free - touchscreen
Simply touch a NEX touchscreen and Siri listens through the NEX unit's external microphone and answers requests over the vehicle's speakers, helping you keep your eyes on the road and your hands on the wheel, for select iPhones.
Hands free Bluetooth
This NEX Receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
FLAC
Your love of high-res audio does not need to stop at the front door. Enjoy FLAC files in your vehicle without the need to convert. Pioneer's NEX in-dash receivers were the first in the industry to offer playback of files encoded as high-res FLAC up to 192kHz/24 bit and provide playback output at CD quality. With Pioneer, your high-res FLAC is no longer confined to your home hi-fi system - put your music on the move.
Time alignment-no microphone
This feature allows for delay time and synchronizing from each speaker to be adjusted to correct any phase mismatches in the sound resulting from the listening position. Does not include the CD-M20 microphone.
CarAVAssist
CarAVAssist This in-dash receiver is compatible with the CarAVAssist App, which supports home screen customization and other functions. You can bookmark websites that you want to enjoy in your car while parked, register your favorite sports teams to receive real-time game updates, make notifications settings for your smartphone, and more. The app also allows you to customize your receiver's home screen, including adding your own background image and easily performing OTA Firmware Updates. Visit www.pioneerelectronics.com/CarAVAssist for a list of all compatible models. Download the Pioneer CarAVAssist app on the Apple® App Store and Google Play.
Wireless connectivity
This receiver supports a cable free connection between your smartphone and the receiver using Wi-Fi® wireless connectivity. Now compatible with both Android Auto Wireless (available on Google Pixel and Nexus devices)¹ and Android Auto over USB, the receiver makes it easier than ever to connect. Android Auto¹ makes it easier to access your favorite navigation, media and communication apps on the road while minimizing distractions. Compatibility with Apple CarPlay supports connecting to an iPhone® device using either a wireless connection or a wired USB connection. Wi-Fi Certified Miracast™ provides additional wireless connectivity, enabling seamless display of multimedia content between compatible devices and the Pioneer receiver². More information is available at www.wi-fi.org/discover-wi-fi/miracast. Now you no longer need to worry about taking your smartphone out of your bag or your pocket before you get into your car. Additional fees may apply. ¹Android Auto Wireless or Android Auto may not be available on all devices. ²Video playback is enabled only when the vehicle is in park and the parking brake engaged.

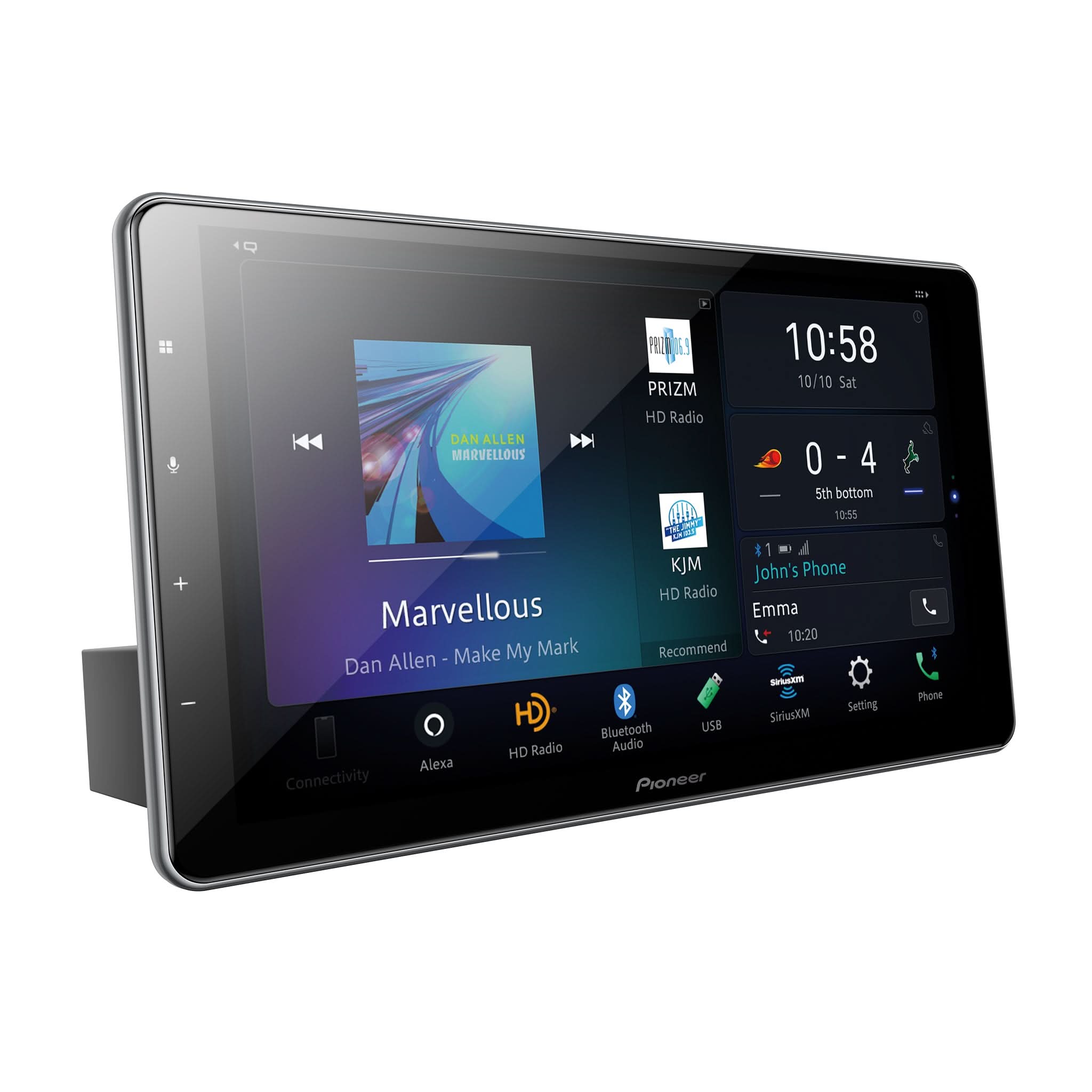

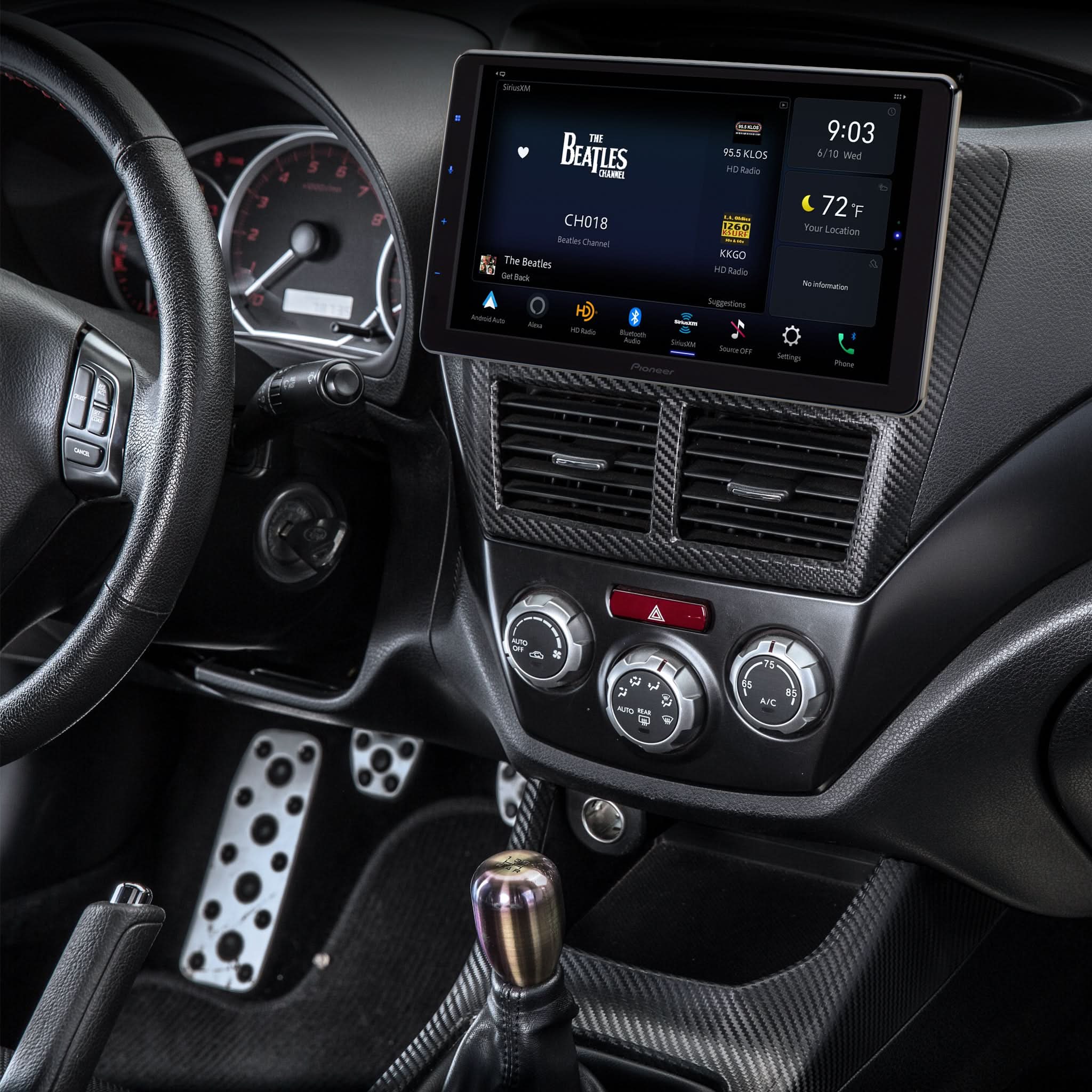

Floating display
The all new floating display configuration allows a large display to be installed using a universal 1-DIN chassis. The floating screen offers horizontal, vertical and tilt adjustability to ensure the best fit and usability in the vehicle's dash.
HEAD UNIT AUDIO | |
---|---|
Advanced Sound Retriever
Mode-1/Mode-2/Off
|
Audio Bass Boost
Yes
|
Auto EQ (CD-MC20 Microphone sold separately)
No
|
Automatic Level Control
No
|
Auto Sound Levelizer (ASL)
No
|
Balance
Yes
|
Bass & Treble
No
|
Built-in Amplifier
MOSFET 50 W x 4
|
Crossover Network Mode
HPF/Band Pass/LPF
|
Crossover Standard Mode
HPF/LPF
|
Customizable Graphic Equalizer
13 Band
|
DA Converter
24 Bit
|
Digital Signal Processor
Built In
|
Dynamic Bass Enhancer
Off/Low/High
|
Easy EQ (EEQ) Preset Equalizer
Yes
|
Fade
Yes
|
Listening Position Selector
Yes
|
Loudness
High/Mid/Low/Off
|
MIXTRAX®
No
|
Source Level Adjuster
No
|
Speaker Output
4-ch
|
Spectrum Analyzer
Yes
|
Subwoofer Control
Yes
|
Time Alignment
Manual
|
HEAD UNIT AUDIO |
---|
Advanced Sound Retriever
Mode-1/Mode-2/Off
|
Audio Bass Boost
Yes
|
Auto EQ (CD-MC20 Microphone sold separately)
No
|
Automatic Level Control
No
|
Auto Sound Levelizer (ASL)
No
|
Balance
Yes
|
Bass & Treble
No
|
Built-in Amplifier
MOSFET 50 W x 4
|
Crossover Network Mode
HPF/Band Pass/LPF
|
Crossover Standard Mode
HPF/LPF
|
Customizable Graphic Equalizer
13 Band
|
DA Converter
24 Bit
|
Digital Signal Processor
Built In
|
Dynamic Bass Enhancer
Off/Low/High
|
Easy EQ (EEQ) Preset Equalizer
Yes
|
Fade
Yes
|
Listening Position Selector
Yes
|
Loudness
High/Mid/Low/Off
|
MIXTRAX®
No
|
Source Level Adjuster
No
|
Speaker Output
4-ch
|
Spectrum Analyzer
Yes
|
Subwoofer Control
Yes
|
Time Alignment
Manual
|
HEAD UNIT BLUETOOTH | |
---|---|
Built-in Bluetooth®
Yes
|
Hands-Free
Yes
|
AVRCP
1.6
|
Advanced Audio Distribution Profile (A2DP)
Yes
|
Secure Simple Pairing (SSP)
Yes
|
Serial Port Profile (SPP)
Yes
|
Dual Phone Connection
Yes
|
Sound Retriever Air
No
|
Guest Mode
No
|
Hands Free Version
1.6
|
Microphone Included
Included
|
Phone Registation
5-phone
|
HEAD UNIT BLUETOOTH |
---|
Built-in Bluetooth®
Yes
|
Hands-Free
Yes
|
AVRCP
1.6
|
Advanced Audio Distribution Profile (A2DP)
Yes
|
Secure Simple Pairing (SSP)
Yes
|
Serial Port Profile (SPP)
Yes
|
Dual Phone Connection
Yes
|
Sound Retriever Air
No
|
Guest Mode
No
|
Hands Free Version
1.6
|
Microphone Included
Included
|
Phone Registation
5-phone
|
HEAD UNIT DIGITAL MEDIA PLAYBACK | |
---|---|
Audio Playback via USB
MP3 Audio Playback, WMA Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res), DSD Audio Playback (Hi-Res)
|
Audio Video Playback via USB
.avi, .mpg/mpeg, .divx, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts
|
Image Display Via USB
BMP, JPEG, PNG
|
HEAD UNIT DIGITAL MEDIA PLAYBACK |
---|
Audio Playback via USB
MP3 Audio Playback, WMA Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res), DSD Audio Playback (Hi-Res)
|
Audio Video Playback via USB
.avi, .mpg/mpeg, .divx, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts
|
Image Display Via USB
BMP, JPEG, PNG
|
HEAD UNIT DISPLAY | |
---|---|
Anti Glare/Reflection
No
|
Back Light
LED
|
Brightness Control
Yes
|
Color Customization
5 display colors, 112 key colors
|
Device Display
No
|
Device (Non-DIN/Modular Unit)
1-DIN, Floating
|
Dimmer
Automatic with vehicle illumination, Timer Controlled, Manual
|
Display Off Mode
Yes
|
Home Screen Customization
Yes
|
Monitor Mechanism
Adjustable, Floating
|
Resolution
HD (1280 x 720)
|
Screen Size/Aspect Ratio
10.1/16:9
|
Touch Screen
Capacitive
|
HEAD UNIT DISPLAY |
---|
Anti Glare/Reflection
No
|
Back Light
LED
|
Brightness Control
Yes
|
Color Customization
5 display colors, 112 key colors
|
Device Display
No
|
Device (Non-DIN/Modular Unit)
1-DIN, Floating
|
Dimmer
Automatic with vehicle illumination, Timer Controlled, Manual
|
Display Off Mode
Yes
|
Home Screen Customization
Yes
|
Monitor Mechanism
Adjustable, Floating
|
Resolution
HD (1280 x 720)
|
Screen Size/Aspect Ratio
10.1/16:9
|
Touch Screen
Capacitive
|
HEAD UNIT EXPANDABILITY | |
---|---|
Audio Video Inputs
Input 1 - Backup Camera Dedicated, Input 2 - AUX (Minijack), Input 3 - A/V or 2nd Camera, Input 4 - HDMI Micro (Type D)
|
Dual Zone Rear-Seat Entertainment
No
|
OEM Integration
iDatalink Maestro RR, iDatalink Maestro RR2, Metra Axxess
|
OTA Update Compatabile
Yes
|
Parking Assist Lines
Yes
|
RCA-Video-Output
Yes
|
SD/SDHC Memory Card Slot
No
|
USB
Rear, Type-C (5 V, 3.0 Amp)
|
USB Direct Control for iPhone®
5s and newer
|
HEAD UNIT EXPANDABILITY |
---|
Audio Video Inputs
Input 1 - Backup Camera Dedicated, Input 2 - AUX (Minijack), Input 3 - A/V or 2nd Camera, Input 4 - HDMI Micro (Type D)
|
Dual Zone Rear-Seat Entertainment
No
|
OEM Integration
iDatalink Maestro RR, iDatalink Maestro RR2, Metra Axxess
|
OTA Update Compatabile
Yes
|
Parking Assist Lines
Yes
|
RCA-Video-Output
Yes
|
SD/SDHC Memory Card Slot
No
|
USB
Rear, Type-C (5 V, 3.0 Amp)
|
USB Direct Control for iPhone®
5s and newer
|
HEAD UNIT GENERAL | |
---|---|
Detachable Face Security
Fixed
|
Direct Access Key
No
|
Flap Face
No
|
Multi-Language Display
English, French, Spanish Portuguese, Chinese (Simplified)
|
Music Browser
USB
|
Parking Sensor input (Optional with ND-PS1)
No
|
Remote Control
Included
|
Rotary Volume Control
No
|
Smartphone Cradle
No
|
Steering Wheel Control Ready (Adapter Sold Separately)
Yes
|
HEAD UNIT GENERAL |
---|
Detachable Face Security
Fixed
|
Direct Access Key
No
|
Flap Face
No
|
Multi-Language Display
English, French, Spanish Portuguese, Chinese (Simplified)
|
Music Browser
USB
|
Parking Sensor input (Optional with ND-PS1)
No
|
Remote Control
Included
|
Rotary Volume Control
No
|
Smartphone Cradle
No
|
Steering Wheel Control Ready (Adapter Sold Separately)
Yes
|
HEAD UNIT INTEGRATION | |
---|---|
Amazon Alexa
Built In
|
Android Auto™
Wireless Connection or Wired USB Connection
|
Apple® CarPlay
Wireless Connection or Wired USB Connection
|
AppRadio Mode+
No
|
CarAVassist
Yes
|
Gracenote Sports
Yes
|
Mirroring
No
|
Mobile Operating System
AndroidApple iOS
|
Music Playback (MTP)
Yes
|
Pandora®
With Apple CarPlay or Android Auto
|
Pioneer App Compatibility
CarAVAssist Android, CarAVAssist iPhone
|
Siri® Eyes Free (VR) (Internet Required)
iPhone Only
|
Spotify
With Apple CarPlay or Android Auto
|
Voice Control
Yes
|
Weblink
No
|
Wifi
Tethering, WiFi Hotspot
|
HEAD UNIT INTEGRATION |
---|
Amazon Alexa
Built In
|
Android Auto™
Wireless Connection or Wired USB Connection
|
Apple® CarPlay
Wireless Connection or Wired USB Connection
|
AppRadio Mode+
No
|
CarAVassist
Yes
|
Gracenote Sports
Yes
|
Mirroring
No
|
Mobile Operating System
AndroidApple iOS
|
Music Playback (MTP)
Yes
|
Pandora®
With Apple CarPlay or Android Auto
|
Pioneer App Compatibility
CarAVAssist Android, CarAVAssist iPhone
|
Siri® Eyes Free (VR) (Internet Required)
iPhone Only
|
Spotify
With Apple CarPlay or Android Auto
|
Voice Control
Yes
|
Weblink
No
|
Wifi
Tethering, WiFi Hotspot
|
HEAD UNIT NAVIGATION | |
---|---|
External GPS Antenna
Yes
|
HEAD UNIT NAVIGATION |
---|
External GPS Antenna
Yes
|
HEAD UNIT TUNER | |
---|---|
Best Station Memory
Yes
|
HD Radio™
Built InArtist ExperienceMulticasting
|
Hybrid Radio
Yes
|
Local Seek tuning
Yes
|
Presets
18 FM, 6 AM
|
PS (Preset Scan)
No
|
RDS
Yes
|
SiriusXM-Ready™ (Tuner Sold Separately)
Yes
|
Supertuner® IIID
No
|
HEAD UNIT TUNER |
---|
Best Station Memory
Yes
|
HD Radio™
Built InArtist ExperienceMulticasting
|
Hybrid Radio
Yes
|
Local Seek tuning
Yes
|
Presets
18 FM, 6 AM
|
PS (Preset Scan)
No
|
RDS
Yes
|
SiriusXM-Ready™ (Tuner Sold Separately)
Yes
|
Supertuner® IIID
No
|
PRODUCT PERFORMANCE | |
---|---|
Continuous Power Output
22 W x 4-Channel
|
Load Impedence Allowance
4 Ohm (4 Ohm to 8 Ohm Allowable)
|
Max Power Output
50 W x 4-ch 4 ohm , 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
|
RCA Preamp Outputs
6-ch
|
RCA Preout Voltage
4V
|
RMS Power Output (CTA-2006)
14 W RMS x 4-ch 4 ohm
|
Signal to Noise
No
|
PRODUCT PERFORMANCE |
---|
Continuous Power Output
22 W x 4-Channel
|
Load Impedence Allowance
4 Ohm (4 Ohm to 8 Ohm Allowable)
|
Max Power Output
50 W x 4-ch 4 ohm , 50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
|
RCA Preamp Outputs
6-ch
|
RCA Preout Voltage
4V
|
RMS Power Output (CTA-2006)
14 W RMS x 4-ch 4 ohm
|
Signal to Noise
No
|
