Name: TS-WX106B
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-WX106B
Price: 110.0 USD
Availability: InStock

TS-WX106B

$110.00

Find out if this product fits your vehicle

Select quantity

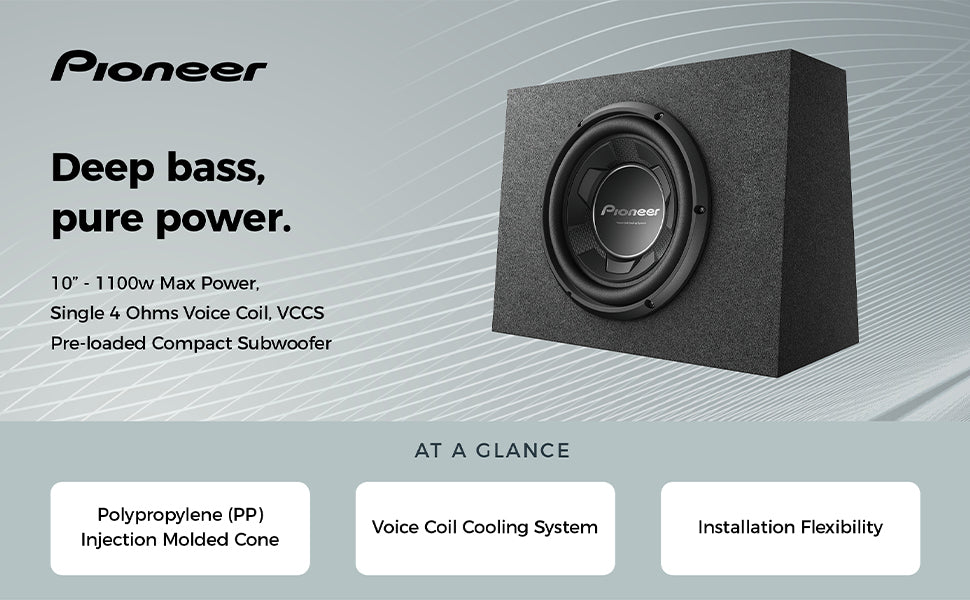

10" - 1100 W Max Power, Single 4Ω Voice Coil, VCCS - Pre-loaded Compact Subwoofer

Passive (non-amplified) design provides system flexibility

4Ω Single Voice Coil (SVC)

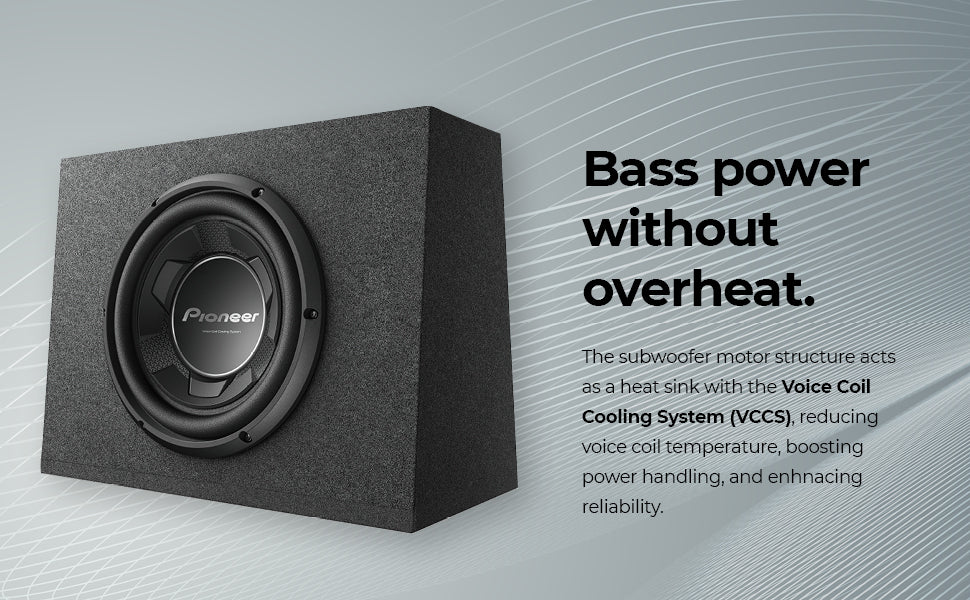

Voice Coil Cooling System (VCCS)

Extended magnet pole for improved linearity

Overview
Specs
Knowledgebase
Manuals/Warranty

10" Pre-loaded compact subwoofer system - Lightweight polymide (PI) tweeter diaphragm loaded uniquely shaped wave guide provides natural loaded clear vocals subwoofer wide dispersion.

Flexible Sound Adjustment

User adjustable controls include an LPF, phase control, variable bass boost level (0 to +12 dB), and bass boost frequency adjuster (40Hz to 100Hz) to provide enhanced subwoofer control. To expand system flexibility and user control, input gain can be adjusted using the included wired remote bass control knob or via the input gain control mounted on the enclosure side panel.

Installation Flexibility

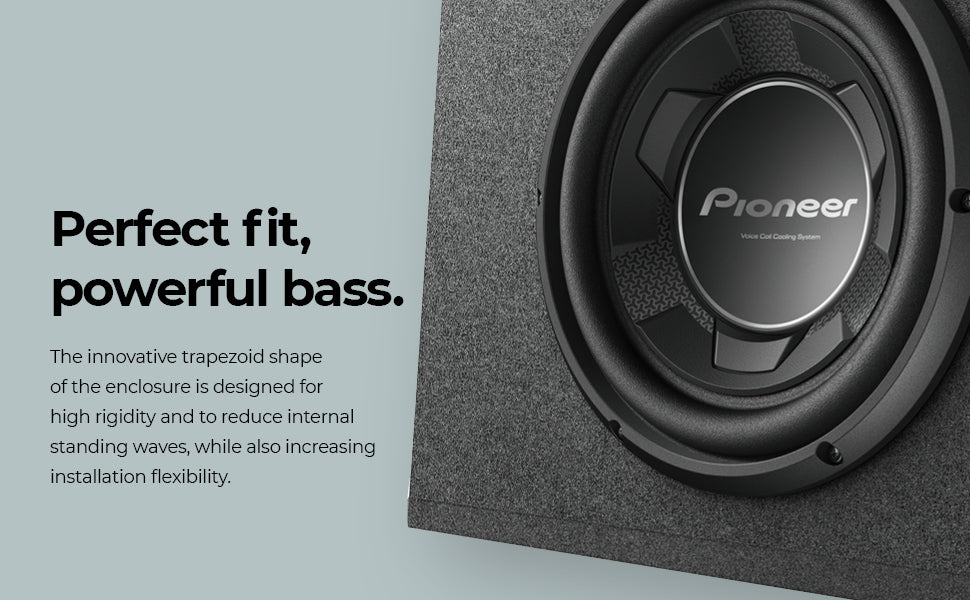

The innovative trapezoid shape of the enclosure is designed for high rigidity and to reduce internal standing waves, while also increasing installation flexibility. Can be installed freely in the cabin or trunk space and re-positioned with the subwoofer firing rear, front or upwards for optimal bass tuning. The enclosure is fully carpeted, creating a non-slip, durable and scratch resistant surface.

FEATURES
Built In Amp No

FEATURES
Built In Amp No

MATERIALS

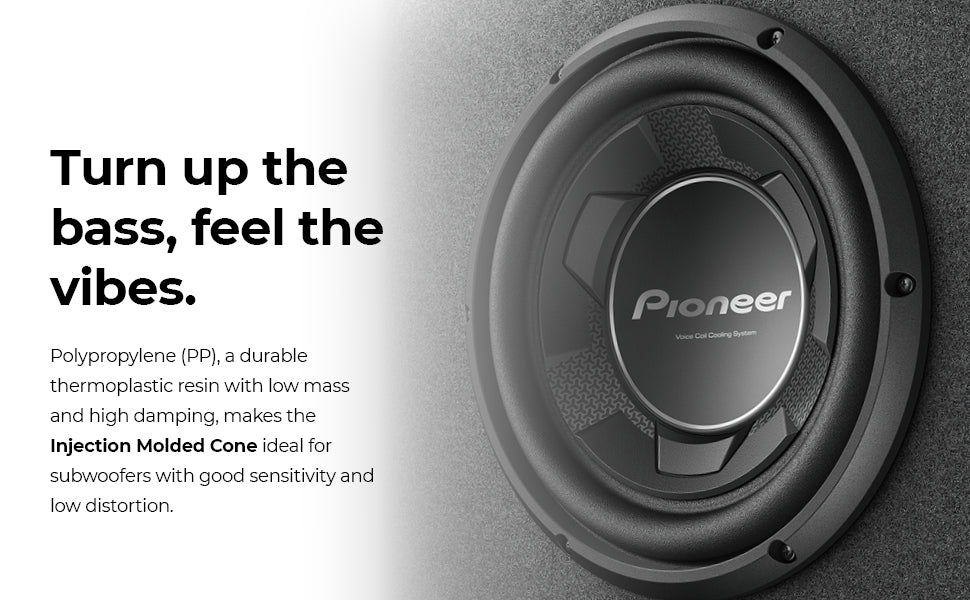

Basket Material Stamped Metal	Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP
Damper Poly cotton	Installation Ring Polypropylene
Magnet Material Ferrite	Magnet Weight 29.1 oz
Surround Material Urethane	Surround Type Rolled
Voice Coil Material Aluminum	Voice Coil Special Feature VCCS
Voice Coil wire Copper

MATERIALS
Basket Material Stamped Metal
Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP
Damper Poly cotton
Installation Ring Polypropylene
Magnet Material Ferrite
Magnet Weight 29.1 oz
Surround Material Urethane
Surround Type Rolled
Voice Coil Material Aluminum
Voice Coil Special Feature VCCS
Voice Coil wire Copper

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 250	Frequency Response 20 Hz to 3.7 kHz
Maximum Peak Power Handling - Watts 1100	Sensitivity (1W/1m) 73dB
System-Type Pre-Loaded

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 250
Frequency Response 20 Hz to 3.7 kHz
Maximum Peak Power Handling - Watts 1100
Sensitivity (1W/1m) 73dB
System-Type Pre-Loaded
