Name: TS-MR2040
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-MR2040
Price: 180.0 USD
Availability: InStock

TS-MR2040

$180.00

Find out if this product fits your vehicle

Select quantity

8" - 2-way, 200 W Max Power, Water-resistant IMPP™ cone, 11mm Dome Tweeter - Marine Coaxial Speakers (pair)

40 W Nominal Power

Water-Resistant IMPP Composite Cone Woofer

11mm Poly-Imide Reflex Horn Tweeter

Overview
Specs
Knowledgebase
Manuals/Warranty

Nautica Series 8'' Marine-Use 2-way Speaker with 200 W Maximum Power - Lightweight polymide (PI) tweeter diaphragm with uniquely shaped wave guide provides natural with clear vocals Marine wide dispersion.

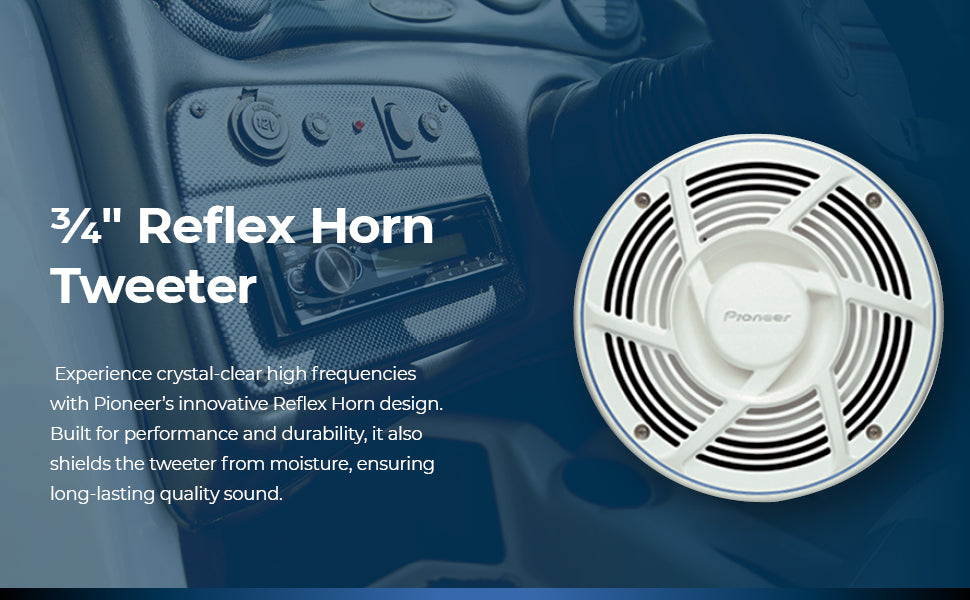

¾ inch Poly-Imide Reflex Horn Tweeter

The Reflex Horn design is a Pioneer innovation that delivers stunning high frequencies while at the same time providing protection for the tweeter from moisture

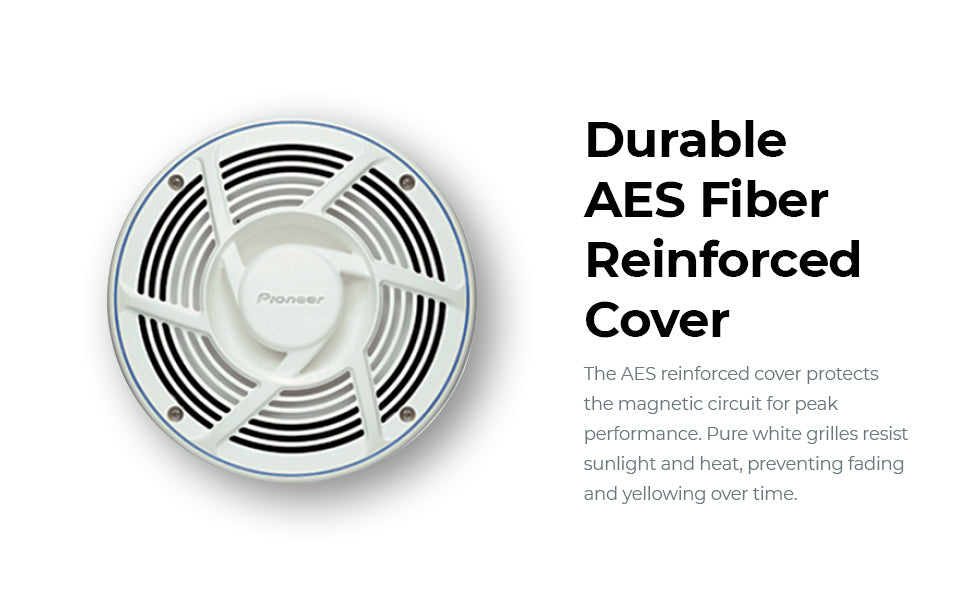

Acrylonitrile-Elastomer Styrene (AES) Glass Fiber Reinforced Basket/Magnet Cover

The AES cover protects the magnetic circuit that can affect the performance of the speaker. The speakers also sport the pure white AES grilles to resist fading and yellowing caused by direct sunlight and heat.

Elastomer Surround

Each speaker utilizes an elastomer surround that resists color fading or running, which extends the longevity of the product.

Gold Tinsel Wire

Gold tinsel wire and gold plated wire terminals are used for better current transfer.

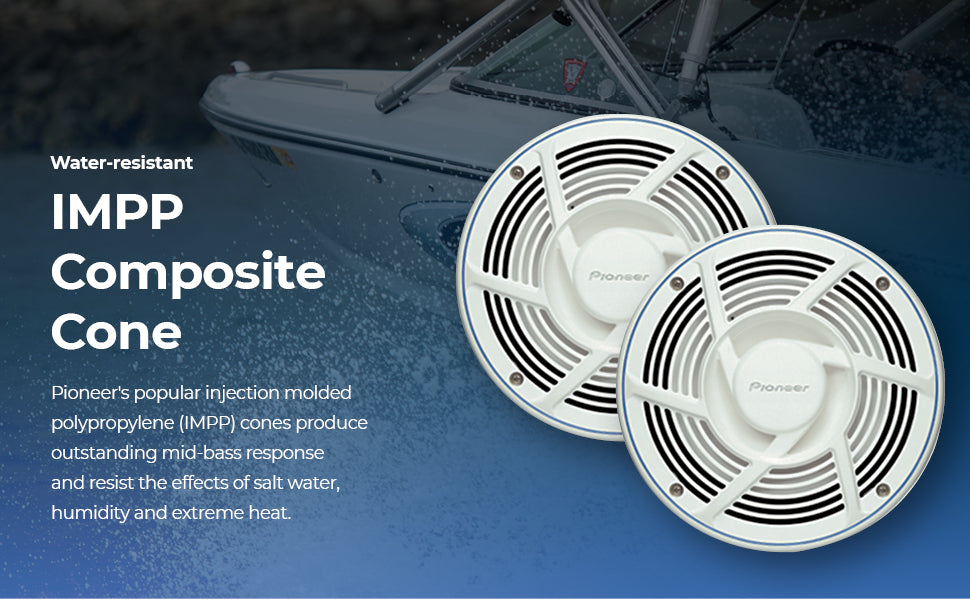

Water-resistant IMPP Composite Cone

Pioneer's popular injection molded polypropylene (IMPP) cones produce outstanding mid-bass response and resist the effects of salt water, humidity and extreme heat.

FEATURES
Cut Out dimensions 7-1/4	Mounting Depth 3 - Midrange
Outer Diameter 1-1/8	Speaker Grill Classic White
Tweeter 11mm

FEATURES
Cut Out dimensions 7-1/4
Mounting Depth 3 - Midrange
Outer Diameter 1-1/8
Speaker Grill Classic White
Tweeter 11mm

MATERIALS
Basket Material Heat Resistant Resin	Cone Material IMPP-Water Resistant
Custom Fit Basket No	Damper Nomex
Diaphragm Material Polyimide - Tweeter	Magnet Material Ferrite - Speaker,Ferrite, Strontium - Midrange
Magnet Weight 16.93 oz - Speaker,2.1 oz - Midrange	Surround Material Elastic Polymer
Surround Type Rolled	Voice Coil Material Glass Imide
Voice Coil wire Copper	Wire Terminals Integrally molded

MATERIALS
Basket Material Heat Resistant Resin
Cone Material IMPP-Water Resistant
Custom Fit Basket No
Damper Nomex
Diaphragm Material Polyimide - Tweeter
Magnet Material Ferrite - Speaker,Ferrite, Strontium - Midrange
Magnet Weight 16.93 oz - Speaker,2.1 oz - Midrange
Surround Material Elastic Polymer
Surround Type Rolled
Voice Coil Material Glass Imide
Voice Coil wire Copper
Wire Terminals Integrally molded

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 40	Crossover Frequency 2000 Hz
Frequency Response 25 Hz to 30 kHz	Maximum Peak Power Handling - Watts 200
Nominal Impedance - Ohm 4-Ohm	Sensitivity (1W/1m) 92 dB
System-Type Coaxial 2-way,Horn - Midrange

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 40
Crossover Frequency 2000 Hz
Frequency Response 25 Hz to 30 kHz
Maximum Peak Power Handling - Watts 200
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 92 dB
System-Type Coaxial 2-way,Horn - Midrange
