Name: TS-G400
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-G400
Price: 45.0 USD
Availability: InStock

TS-G400

$45.00

$60.00

Find out if this product fits your vehicle

Select quantity

4" - 2-way, 210 W Max Power, IMPP™ cone, 30mm Tweeter - Coaxial Speakers (pair)

G Series 4" 2-way Car Speakers

Injection molded polypropylene IMPP™ and mica-reinforced composite woofer cone

Rubber-coated cloth surround

30mm PET balanced dome tweeter

Handles up to 30 W RMS (210 W peak power)

Frequency range: 35-27,000 Hz

Sensitivity: 87 dB

Overview
Specs
Knowledgebase
Manuals/Warranty

The Pioneer TS-G400 4" is a 2-way speaker system with 210 W maximum power handling/30 W continuous power handling. In addition, it has a 30mm Tweeter to enrich high-range reproduction. The speaker cone comprises of polypropylene IMPP™ cone and a rubber-coated cloth surround giving your music more impact and presence.

G-Series Speakers

This G-series speaker sets you up with quality materials and a durable design for a better listening experience. The sensitive yet strong polypropylene woofer and a rubber-coated cloth surround give your music more impact and presence. Its large balanced dome tweeter allows accuracy for high-range rich reproductions of all the details in your favorite vocal and instrumentation.

Mid-Range Dome

The mid-range is a 30mm PET Balanced Dome producing vibrant high frequencies, and its OFC shorting ring minimizes distortion when you turn up the volume.

P.F.S.S. spider

Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, while its hard part controls excessive vibration and prevents movement error.

Installation and sound to suite any car

These speakers are excellent choices to replace a bad set of factory speakers. Their two-way design features Pioneer’s extremely strong and lightweight Injected Molded Polypropylene™ (IMPP) with MICA composite cone woofer for improved sensitivity and reduced distortion. You don't get just basic, run-of-the-mill features either. The conex damper delivers higher power handling and deeper bass, and the Balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy installation and custom-fit baskets for select Ford and Mazda vehicles.

FEATURES

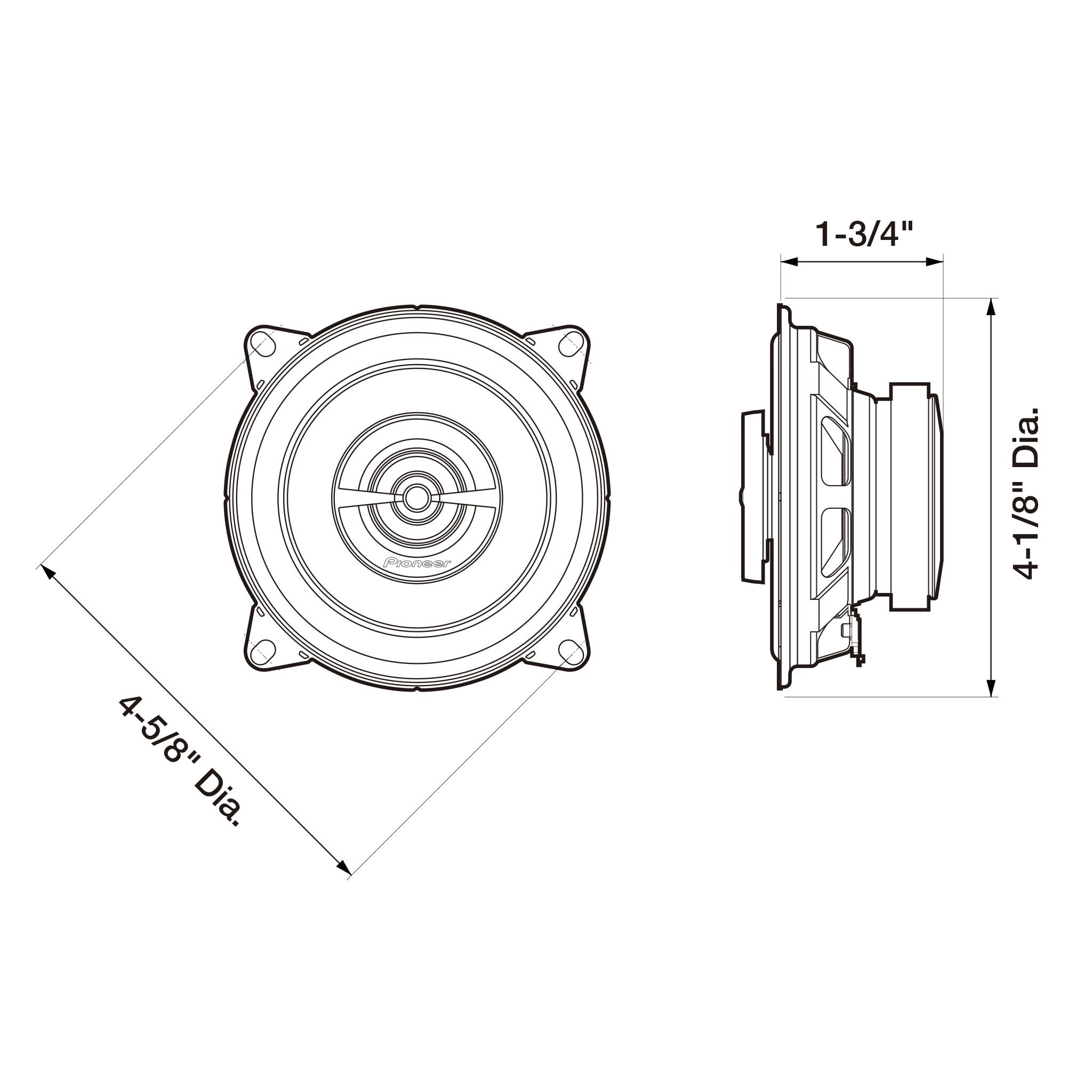

Cut Out dimensions 4-1/8	Mounting Depth 1-3/4 - Tweeter
Tweeter 30mm

FEATURES
Cut Out dimensions 4-1/8
Mounting Depth 1-3/4 - Tweeter
Tweeter 30mm

MATERIALS
Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP	Surround Material Rubber Coated Cloth
Basket Material Stamped Metal	Magnet Weight 3.9 oz
Voice Coil Bobbin Kapton	Voice Coil wire Copper
Surround Type Rolled	Magnet Material Ferrite
Damper Poly cotton

MATERIALS
Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP
Surround Material Rubber Coated Cloth
Basket Material Stamped Metal
Magnet Weight 3.9 oz
Voice Coil Bobbin Kapton
Voice Coil wire Copper
Surround Type Rolled
Magnet Material Ferrite
Damper Poly cotton

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 30W	Frequency Response 35 Hz - 22 KHz
Maximum Peak Power Handling - Watts 210W	Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 87	System-Type Coaxial 2-way, Balance Dome - Tweeter

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 30W
Frequency Response 35 Hz - 22 KHz
Maximum Peak Power Handling - Watts 210W
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 87
System-Type Coaxial 2-way, Balance Dome - Tweeter

Instruction Manual ()
Product Warranty ()
