Name: TS-D65C
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-D65C
Price: 170.0 USD
Availability: InStock

TS-D65C

$170.00

Find out if this product fits your vehicle

Select quantity

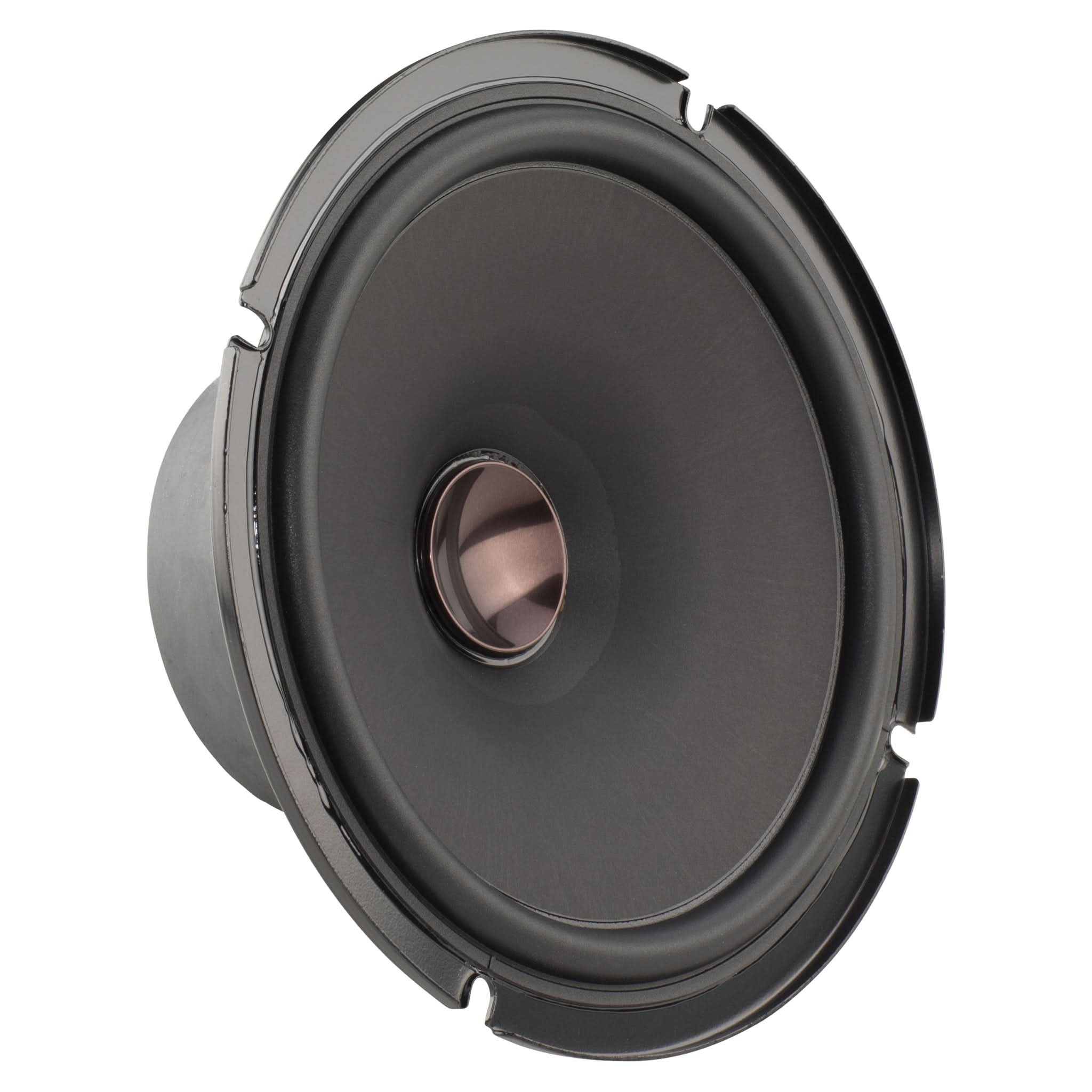

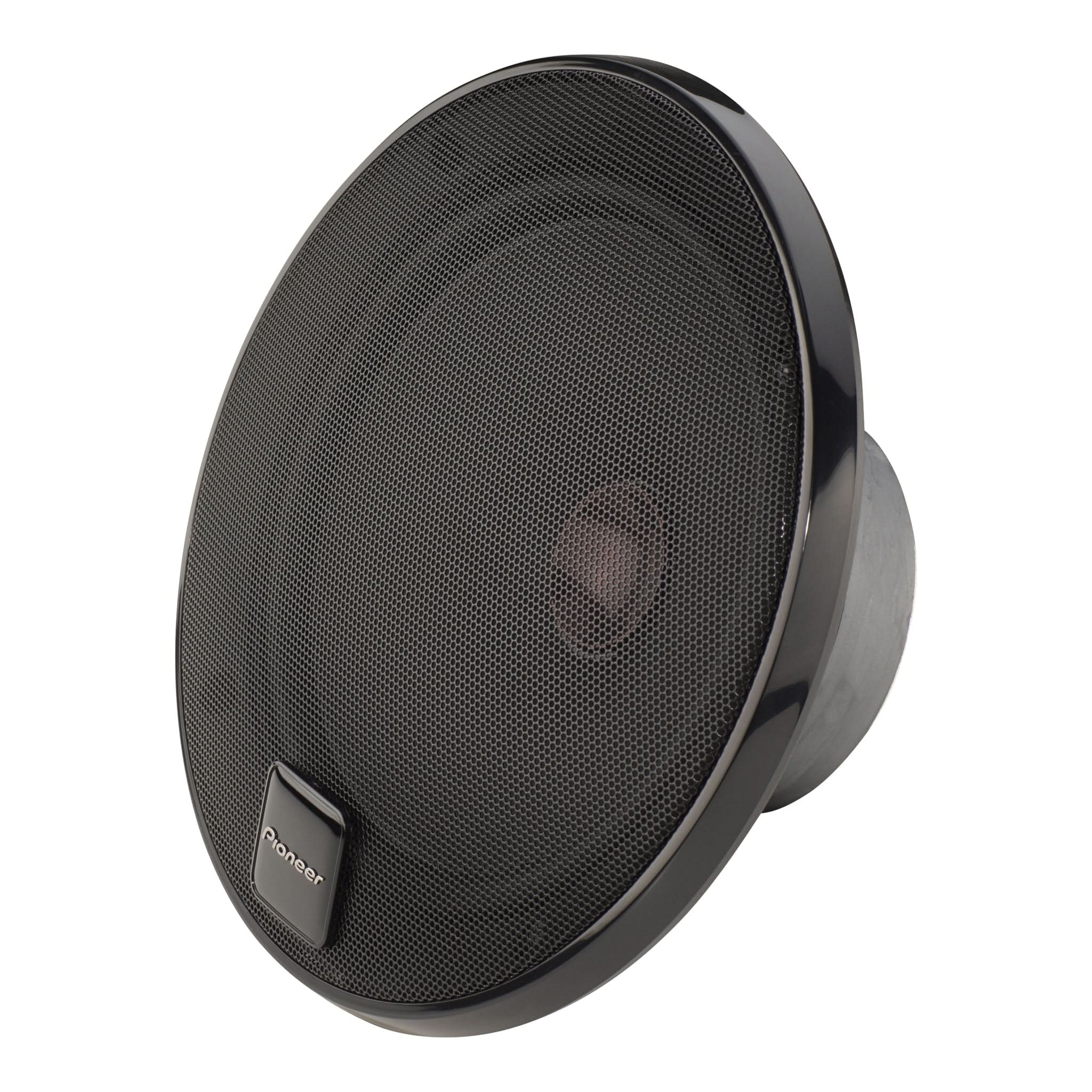

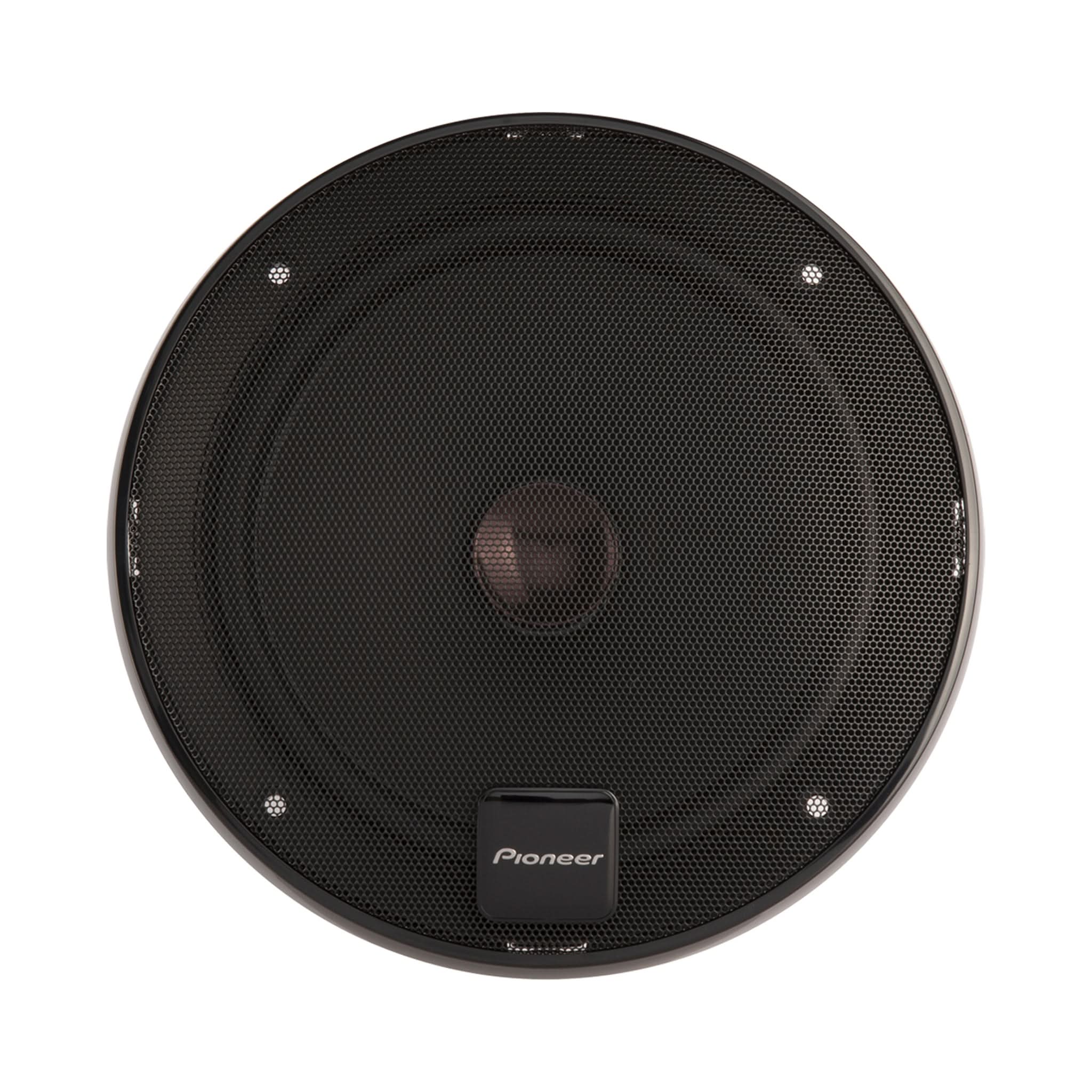

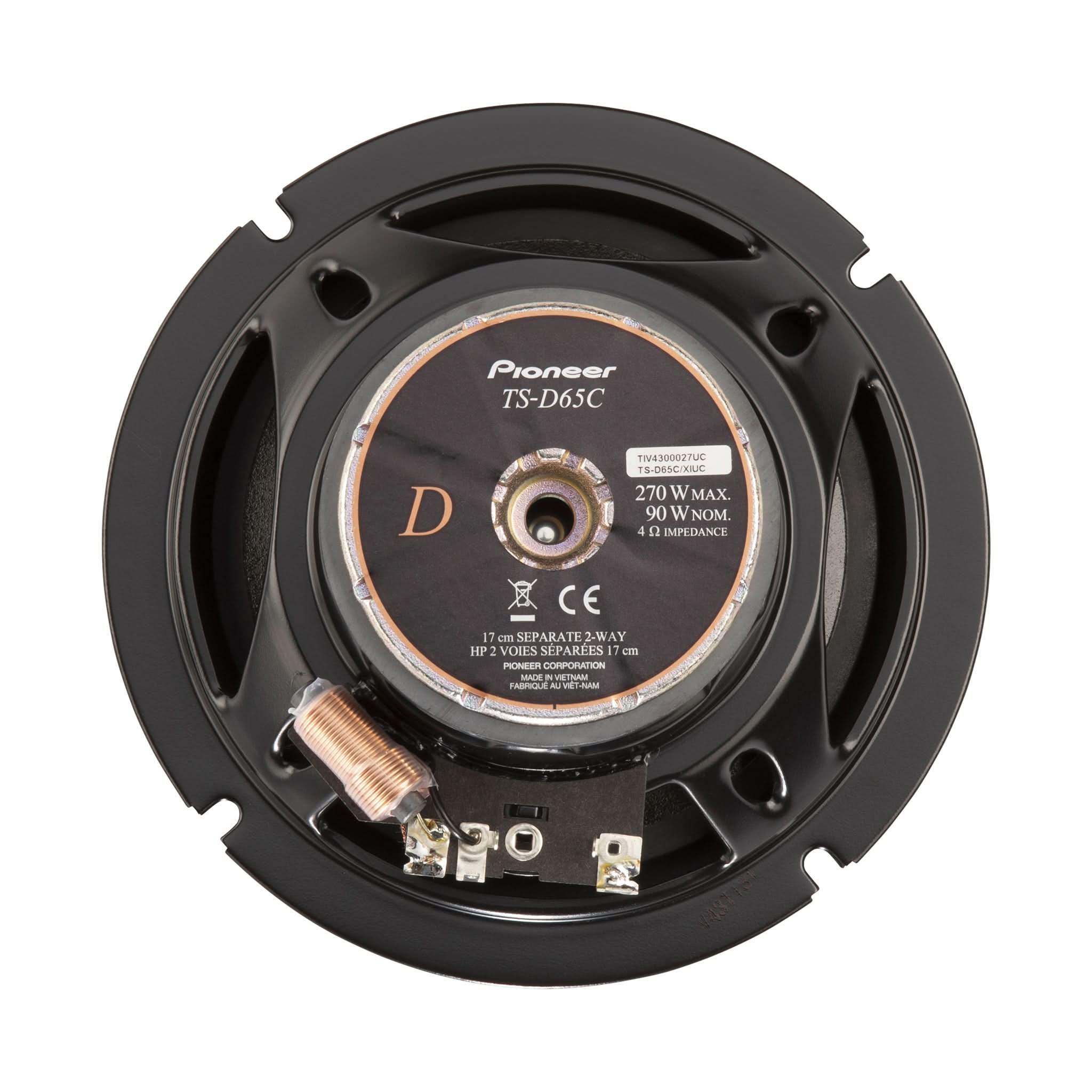

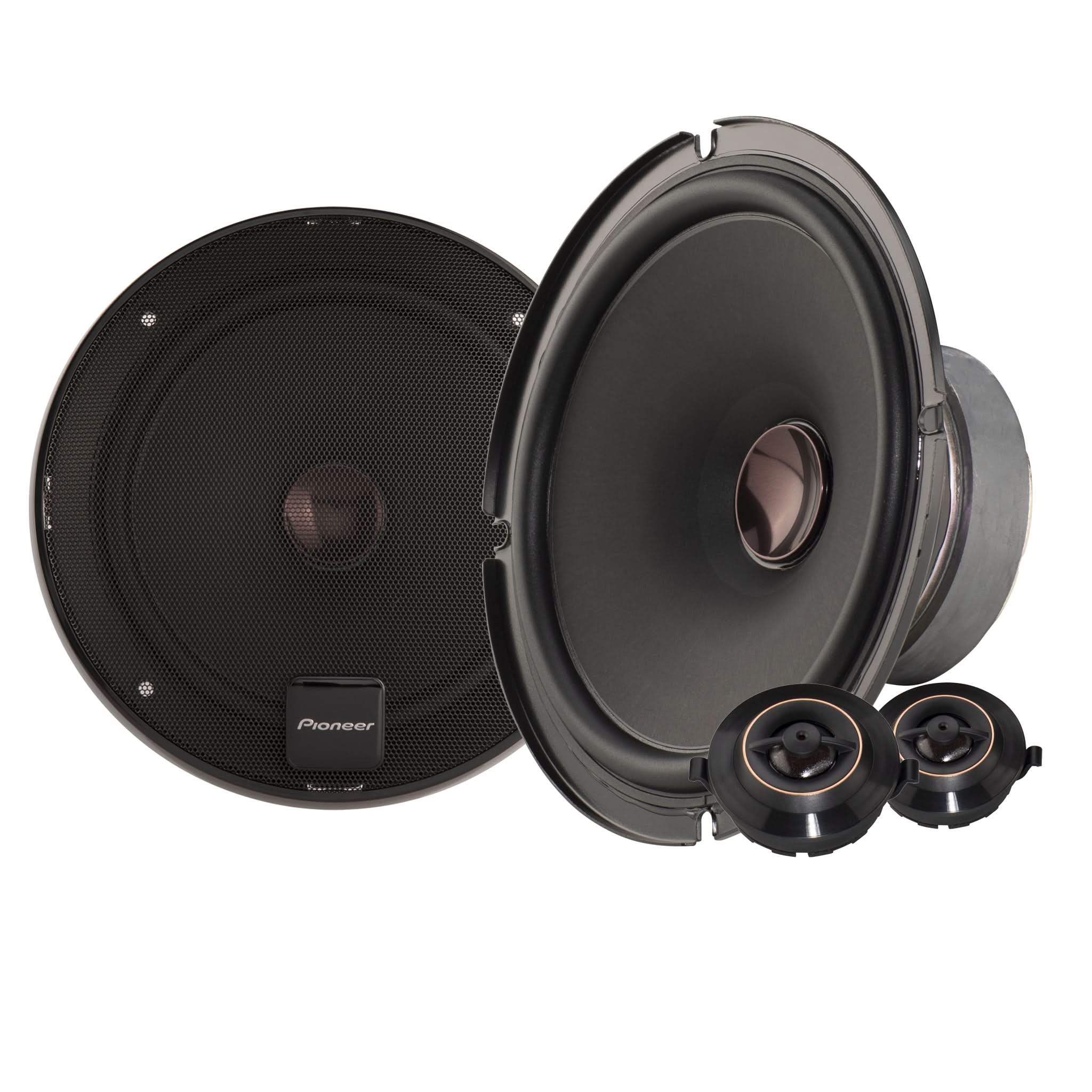

6-1/2" - 2-way, 270 W Max Power, Aramid Fiber IMPP™ cone, 26mm Polyester Dome Tweeter-Swivel Design - Component Speakers (pair)

270 W Max Power (90 W Nominal)

26mm Polyester Soft Dome Tweeter with Swivel Capability

Aramid Fiber Interlaced Injection Molded Polypropylene IMPP™ Cone Construction

Unique Tri-position, Swivel Tweeter Mounting Kit Expands Installation Flexibility

Overview
Specs
Knowledgebase
Manuals/Warranty

The TS-D65C 6-1/2" component speaker system gives you low distortion and unfailing performance, even under the harsh conditions of living in your car doors. This D Series polypropylene subwoofer IMPP™ cone is infused with strong aramid fibers, making it both durable and incredibly responsive for the best bass experience. A coated textile dome tweeter ensures excellent high-frequency performance for precise music playback. The tweeter has a unique swivel mount letting you aim your music's high frequencies. Flush, surface, and bracket mounting hardware gives you more options for installing your tweeters.

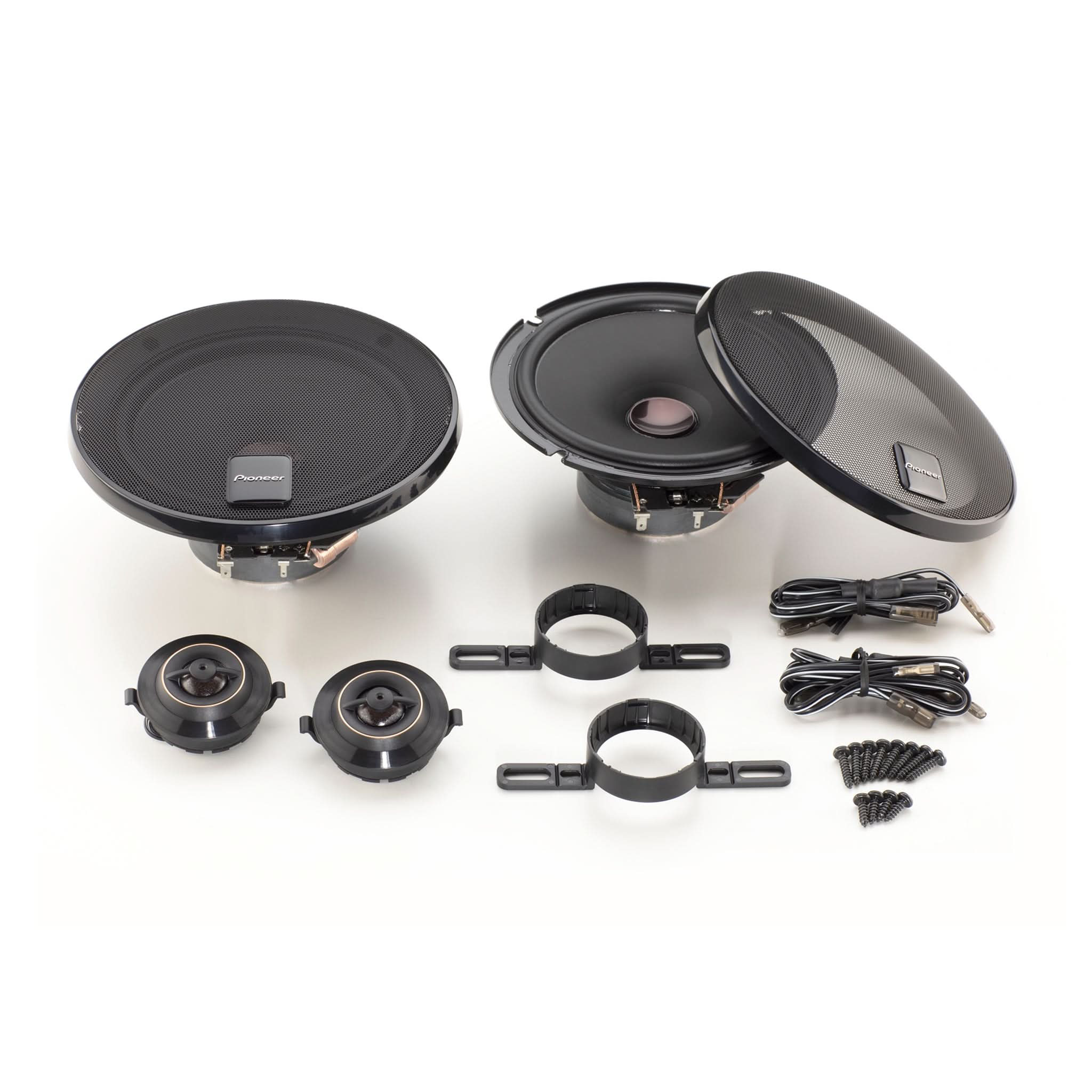

Mounting Kit

More than any other speaker, the positioning and mounting location of the tweeter is crucial to the stereo imaging of the system and the overall listening experience. To ensure installation flexibility, the D component system tweeters are extremely compact and feature a unique swivel mount that allows precise aiming of high frequencies. Pioneer’s tri-position mounting kit (included) provides the flexibility to mount the tweeter using a variety of methods; flush mount, surface mount or bracket mount, especially important for concealing the tweeter behind an original equipment tweeter grille in the vehicle dash or door.

Tweeter - Soft Dome

Contoured from lightweight, resin-impregnated fibers of coated polyester fabric, the D tweeter delivers extended high-frequency performance. The 26mm diaphragm is very resistant to the harsh environmental conditions of the automotive interior (temperature, humidity, vibration, etc.), while maintaining its uniform hemispherical shape to reduce dome breakup due to excessive vibration at ultrasonic frequencies. The result is extremely low distortion levels and a smooth, natural sound.

IMPP D Series

Polypropylene (PP) is a tough thermoplastic resin, ideal material for a speaker cone. The low mass and high damping of a PP cone generate good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers used advanced Computer-Aided Manufacturing to develop a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting aramid fiber interlaced IMPP cone is ultra-thin and low mass with high rigidity and superior strength, built to produce natural, detailed sound with deep and powerful bass.

CarSoundfit

Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

FEATURES
CarSoundFit Yes	Cut Out dimensions 5-5/8
Mounting Depth 2-1/2 - Midrange,5/8 - Tweeter	Outer Diameter 2-3/8
Protrusion 1/2	Speaker Grill NA
Tweeter 26mm	Tweeter Mounting Hole Diameter 2

FEATURES
CarSoundFit Yes
Cut Out dimensions 5-5/8
Mounting Depth 2-1/2 - Midrange,5/8 - Tweeter
Outer Diameter 2-3/8
Protrusion 1/2
Speaker Grill NA
Tweeter 26mm
Tweeter Mounting Hole Diameter 2

MATERIALS
Basket Material Metal	Center Cap Material Polyethylene Terephthalate (PET)
Cone Material IMPP - Aramid Fiber	Custom Fit Basket No
Damper Aramid Fiber	Diaphragm Material Tetron Net - Tweeter
Magnet Material Ferrite - Speaker,Neodymium - Tweeter	Magnet Weight 11.3 oz - Speaker,0.2 oz - Midrange
Shorting Ring Material Copper	Surround Material Butyl Rubber
Surround Type Rolled	Swivel Type Yes
Voice Coil Material Glass Imide	Voice Coil wire Copper
Wire Terminals Lug Type

MATERIALS
Basket Material Metal
Center Cap Material Polyethylene Terephthalate (PET)
Cone Material IMPP - Aramid Fiber
Custom Fit Basket No
Damper Aramid Fiber
Diaphragm Material Tetron Net - Tweeter
Magnet Material Ferrite - Speaker,Neodymium - Tweeter
Magnet Weight 11.3 oz - Speaker,0.2 oz - Midrange
Shorting Ring Material Copper
Surround Material Butyl Rubber
Surround Type Rolled
Swivel Type Yes
Voice Coil Material Glass Imide
Voice Coil wire Copper
Wire Terminals Lug Type

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 90	Crossover Frequency 5600 Hz (Acoustic), 3500 Hz (Electric)
Frequency Response 32 Hz to 49 kHz	Maximum Peak Power Handling - Watts 270
Nominal Impedance - Ohm 4-Ohm	Sensitivity (1W/1m) 84dB (+- 1.5dB)
System-Type Soft Dome - Tweeters

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 90
Crossover Frequency 5600 Hz (Acoustic), 3500 Hz (Electric)
Frequency Response 32 Hz to 49 kHz
Maximum Peak Power Handling - Watts 270
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 84dB (+- 1.5dB)
System-Type Soft Dome - Tweeters

Pioneer TS-D65C - CarSoundFit App Listening Demonstration

Pioneer CarSoundFit App Demonstration
