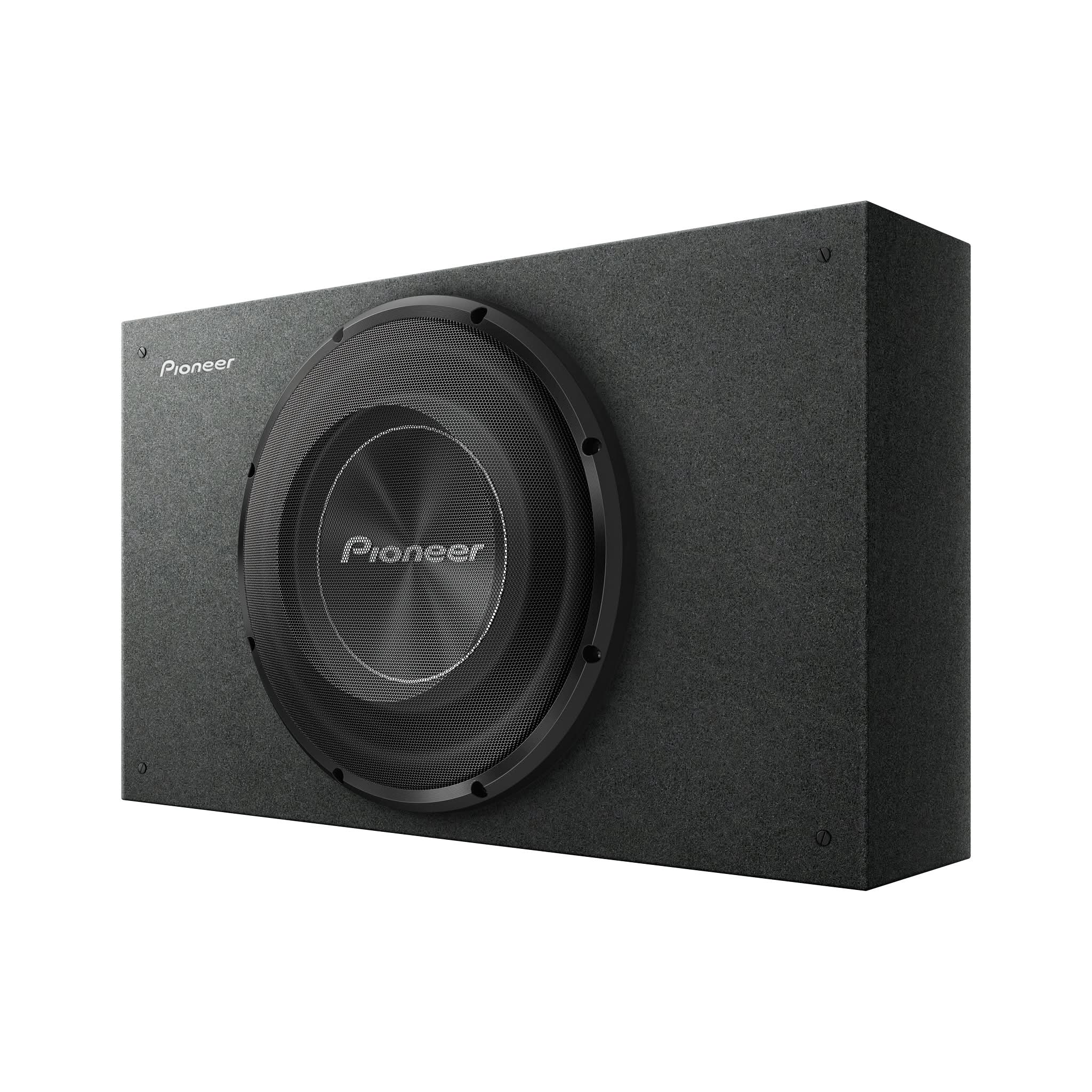

TS-A3000LB

TS-A3000LB

$280.00

Find out if this product fits your vehicle

Select quantity

12" – 1500 W Max Power/ 400 W RMS, Single 2 Ω Voice Coil, Rubber Surround - Shallow-Mount Pre-Loaded Enclosure Subwoofer

1,500 W Max / 400 W RMS

2Ω Single Voice Coil

Glass Fiber and a Mica Interlaced IMPP™ Cone

Butyl Rubber Surround

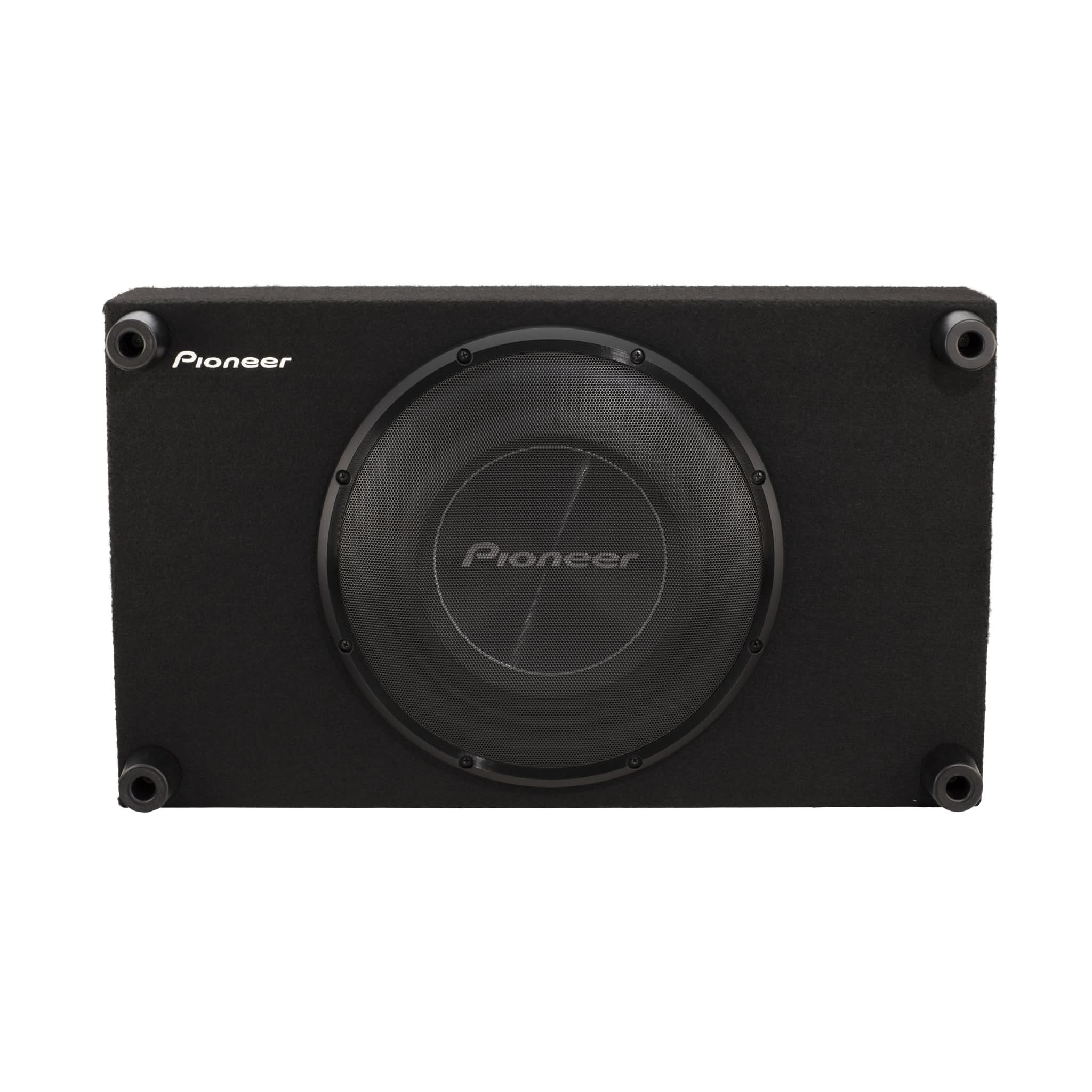

Fully Covered Steel Mesh Grille

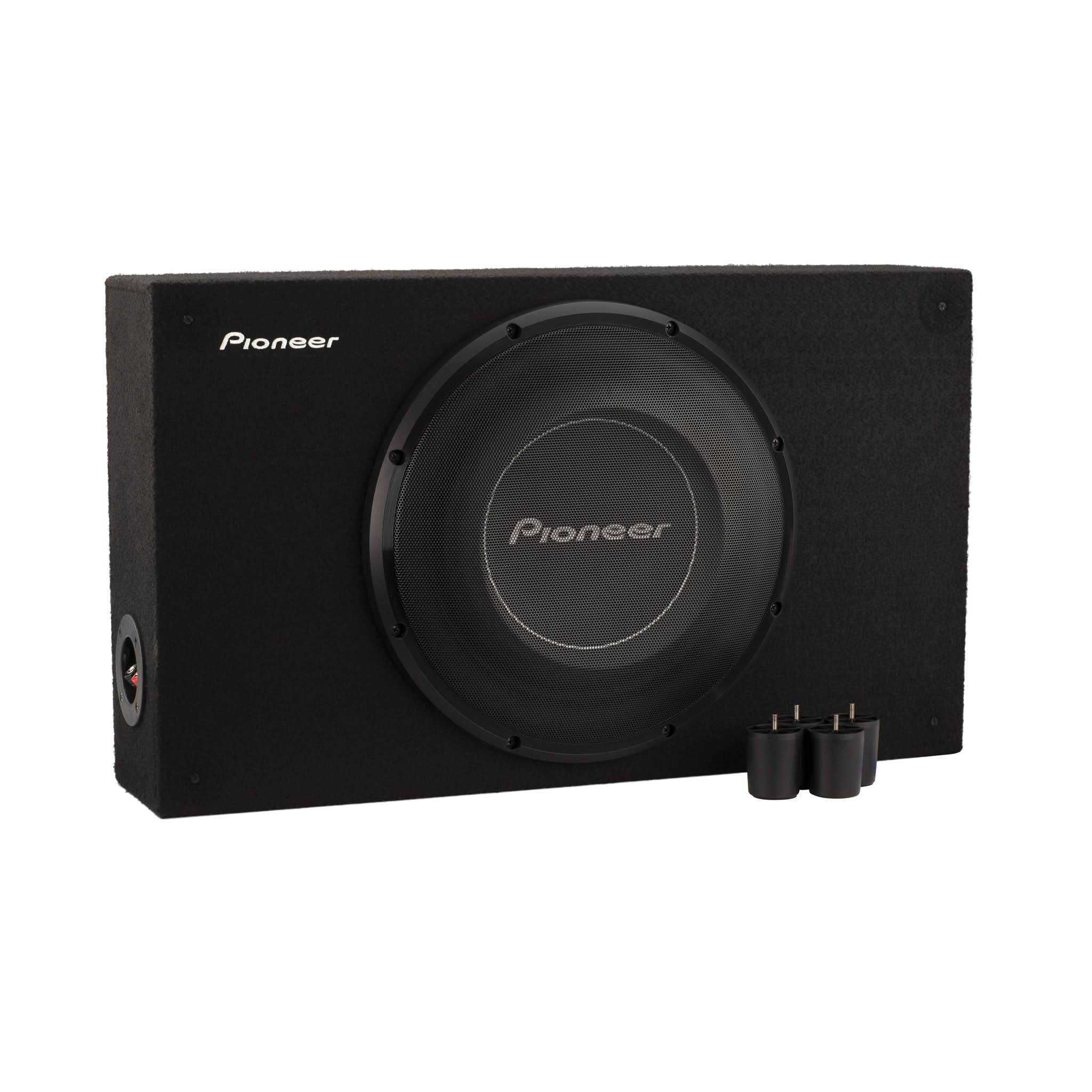

Removable Feet & Cushions

Carpeted Enclosure with Embroidered Logo

Overview
Specs
Knowledgebase
Manuals/Warranty

The TS-A3000LB features a compact, space-saving enclosure designed for optimal use of space. The carpeted enclosure is shallow enough for mounting in a wide variety of vehicles including pickup trucks with standard or extended-cab models. The enclosure’s unique design allows it to be mounted upright or lying flat, facing upwards or configured in a down-fire position. The enclosure is fully carpeted with an embroidered Pioneer Logo, creating a non-slip and scratch resistant surface. This Shallow-Mount Pre-Loaded Enclosure provides a maximum power of 1,500 W with continuous 400 W RMS. The subwoofer features a glass fiber and a mica interlaced, injection molded polypropylene IMPP™ cone with a 2 Ω single voice coil. The surround is rolled butyl rubber and is fully protected by a steel mesh grille. For installation flexibility, the feet & cushions are removable to enable different layout configurations, to suit your vehicle’s application.

Upgrade to High Performance

Pioneer’s A-series shallow-mount subwoofers delivers big bass performance of a full-size subwoofer, but in a compact design. Designed to provide wider installation options for a broad range of vehicle, this A-Series subwoofer produces seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

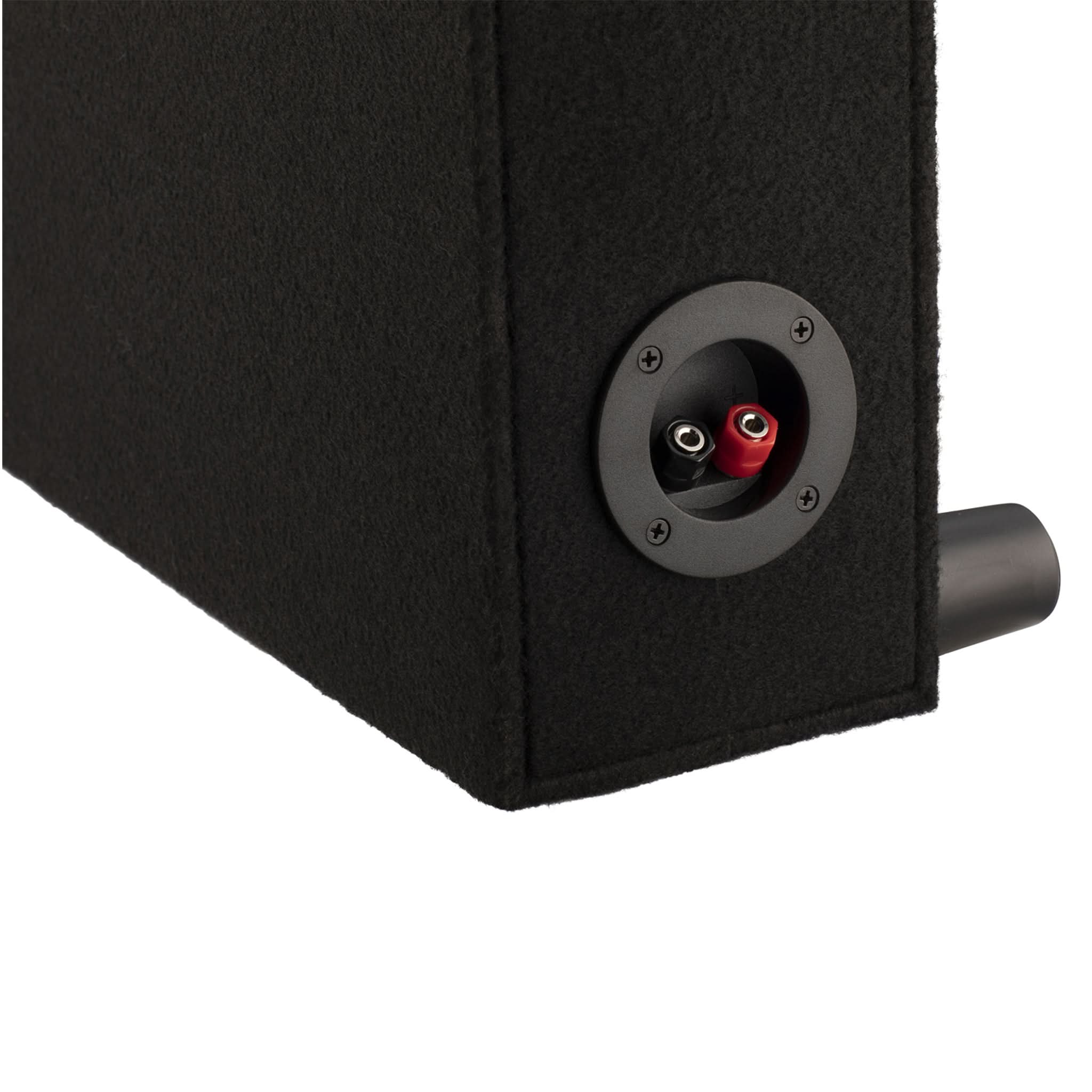

Angled Push Terminals

Traditional subwoofer terminals are mounted horizontally or vertically. These mounts force wires to be bent to fit which can be difficult if low gauge high-performance wires are used. The Pioneer shallow subwoofer’s angled binding-post push terminals make it easy to connect speaker wires, saves space, and make installation easier. Two metal angle brackets and eight 1 screws are provided for mounting the enclosure to a trunk or rear compartment floor in an upright fashion. Four screw-on feet also allow the enclosure to be mounted flat under a seat in a down-firing configuration.

Bass Boost

This amplifier can be set bass boost to levels variably from 0 to 12 dB for optimal bass. With this precise control it enhances the overall balance and impact of all sounds according to listening preference and music style. The amplifier allows adjustment in three steps: 0 dB, 6 dB or 12 dB.

Subwoofer Firing Options

This subwoofer features a full grille and down-firing structure for cone protection and can be installed inside your vehicle's interior. This combines deep, powerful bass while seamlessly integrating physically, electrically, and more importantly improves the acoustics in the vehicle. This subwoofer was designed with the flexibility to be installed in three different ways. The provided feet can be screwed onto the bottom or top using the pre-drilled holes. Cushions on the feet prevent sliding. Down-fire –With the four feet installed to the bottom of the subwoofer to allow space between the cone and the floor, it will push the soundwaves towards the floor where they are reflected to deliver a richer sound for a stronger “rumble” effect. Up-fire – This option allows you to place the subwoofer with the cone facing upward. It can use the provided feet to prevent sliding. Firing the sub upwards moves more cabin air to deliver a stronger, more crisp sounding bass. Vertical-Facing – This option allows you to place the subwoofer with the cone facing on its side. It can use the provided feet to prevent sliding. This position will disperse sound like conventional loudspeakers producing fast and impactful bass, hitting the ear before being reflected off a surface which can lead to an especially precise and punchy sound.

CarSoundfit

Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

FEATURES
Built In Amp No	CarSoundFit Yes
Cut Out dimensions No	Equivalent Compliance (VAS) No
Free Air ResoNAnce (Fs) No	Linear Excursion (Xmax) No
Mounting Depth No	Port Diameter No
Port Length No	Recommended Ported Box Internal volume No
Recommended Sealed Enclosure Volume No	Subwoofer Grille Fully Covered Steel Mesh
Total Speaker Q (Qts) No

FEATURES
Built In Amp No
CarSoundFit Yes
Cut Out dimensions No
Equivalent Compliance (VAS) No
Free Air ResoNAnce (Fs) No
Linear Excursion (Xmax) No
Mounting Depth No
Port Diameter No
Port Length No
Recommended Ported Box Internal volume No
Recommended Sealed Enclosure Volume No
Subwoofer Grille Fully Covered Steel Mesh
Total Speaker Q (Qts) No

MATERIALS
Basket Material Metal	Center Cap Material ABS
Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP	Custom Fit Basket No
Damper Poly cotton	Drive Cone Material No
Gasket Polypropylene	Installation Ring Polypropylene
Magnet Material Ferrite	Magnet Weight 71.6 oz
Surround Material Rubber	Surround Type Rolled
Voice Coil Material Glass Imide	Voice Coil Type Single Voice Coil
Voice Coil wire Copper	Wire Terminals Screw

MATERIALS
Basket Material Metal
Center Cap Material ABS
Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP
Custom Fit Basket No
Damper Poly cotton
Drive Cone Material No
Gasket Polypropylene
Installation Ring Polypropylene
Magnet Material Ferrite
Magnet Weight 71.6 oz
Surround Material Rubber
Surround Type Rolled
Voice Coil Material Glass Imide
Voice Coil Type Single Voice Coil
Voice Coil wire Copper
Wire Terminals Screw

PRODUCT PERFORMANCE
Amp - Max Current Consumption No	Amp - Power Source No
Bass Boost No	Continuous Power handling (RMS) - Watts 400
Frequency Response 20 Hz to 1 kHz	Maximum Peak Power Handling - Watts 1500
Nominal Impedance - Ohm 2-Ohm	Sensitivity (1W/1m) 88dB
System-Type Pre-Loaded

PRODUCT PERFORMANCE
Amp - Max Current Consumption No
Amp - Power Source No
Bass Boost No
Continuous Power handling (RMS) - Watts 400
Frequency Response 20 Hz to 1 kHz
Maximum Peak Power Handling - Watts 1500
Nominal Impedance - Ohm 2-Ohm
Sensitivity (1W/1m) 88dB
System-Type Pre-Loaded

Pioneer TS-A LB Shallow Sub Box Family - Whats in the Box

Instruction Manual ()
Product Warranty ()
