Name: TS-A25S4
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-A25S4
Price: 60.0 USD
Availability: InStock

TS-A25S4

$60.00

$80.00

Find out if this product fits your vehicle

Select quantity

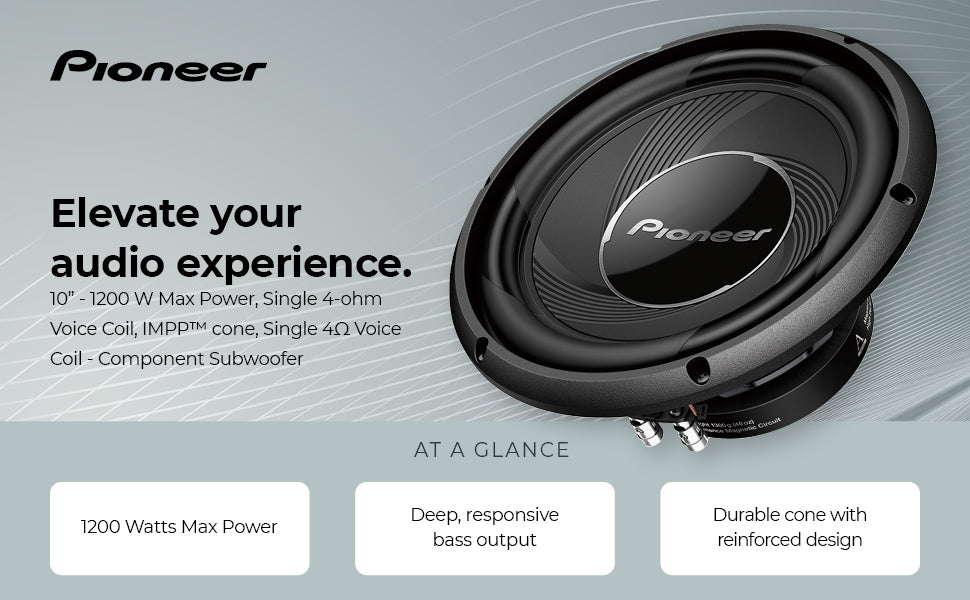

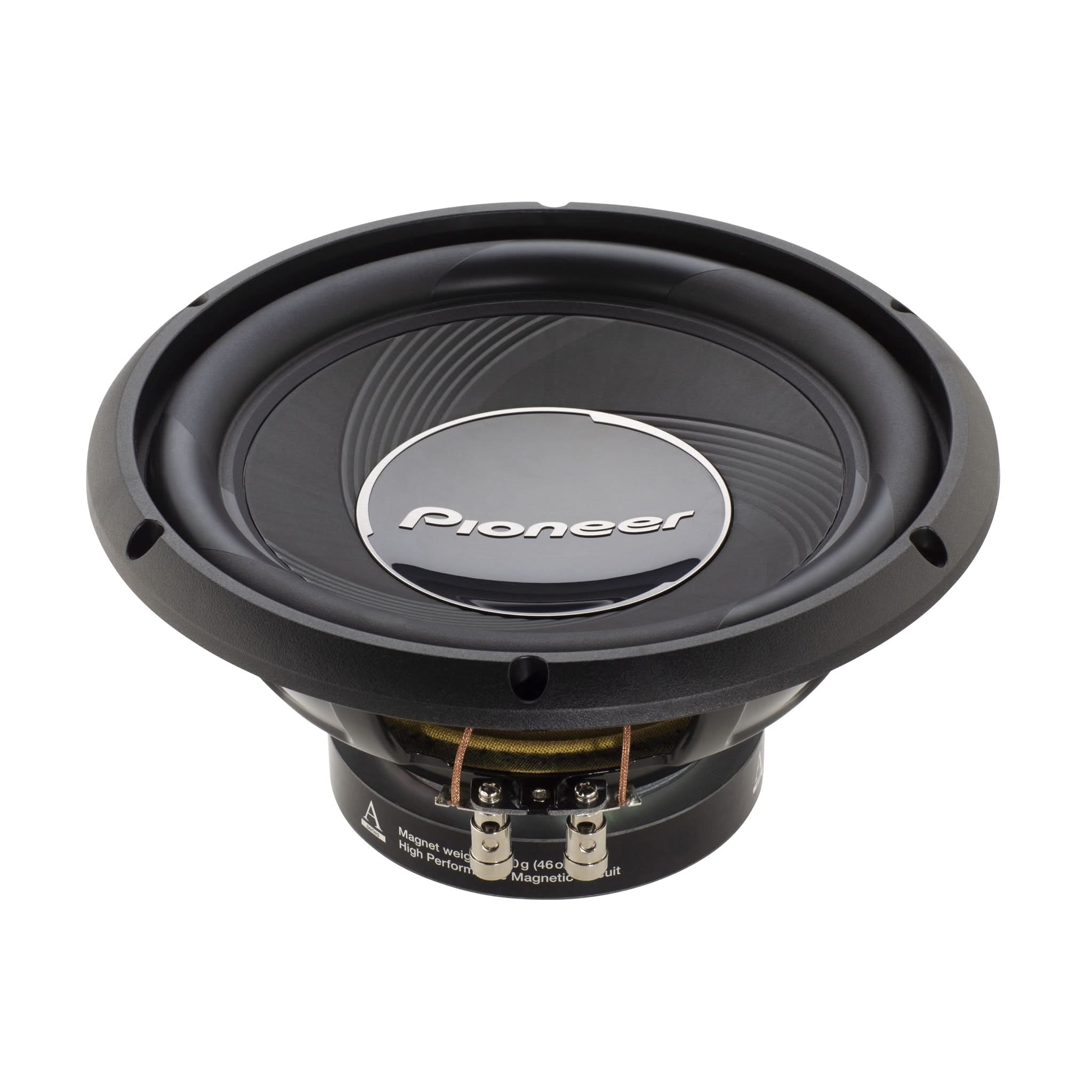

10" - 1200 W Max Power, Single 4-ohm Voice Coil, IMPP™ cone - Component Subwoofer

1200 W Max Power / 350 W Nominal Power

4-ohm Single Voice Coil

IMPP™ Composite Cone

Butyl Rubber Surround

Overview
Specs
Knowledgebase
Manuals/Warranty

10” Component Subwoofer - 1200 W Max Power (350 W Nominal), IMPP™ cone produces tight and accurate bass, Specially designed Voice coil offers higher power handling

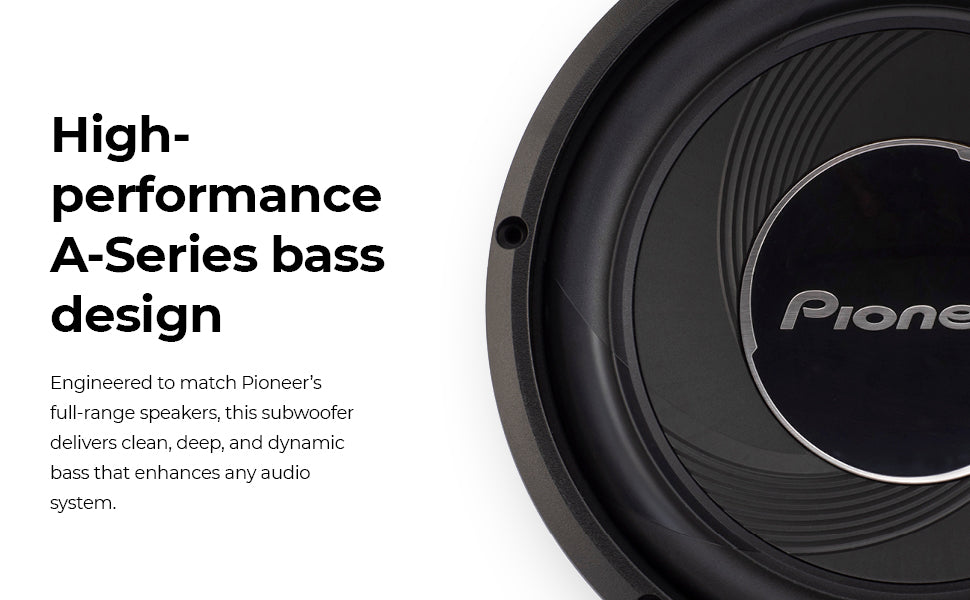

A-Series Subwoofer

Upgrade to high performance with the Pioneer A-series sound design which acoustically matches the subwoofer and full-range loudspeakers to provide seamless and smooth sound characteristics with dynamic, high impact bass that lets you hear and feel the music.

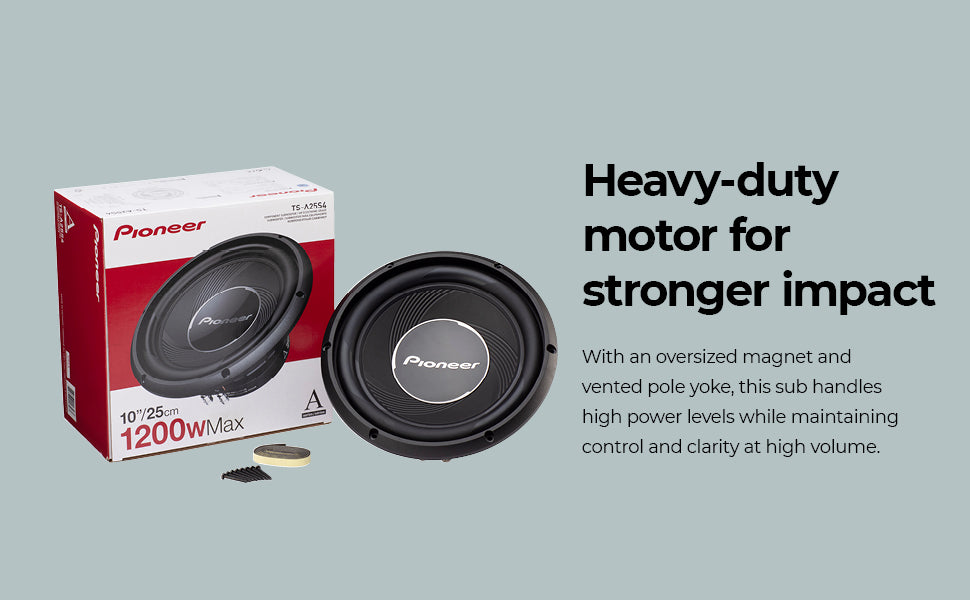

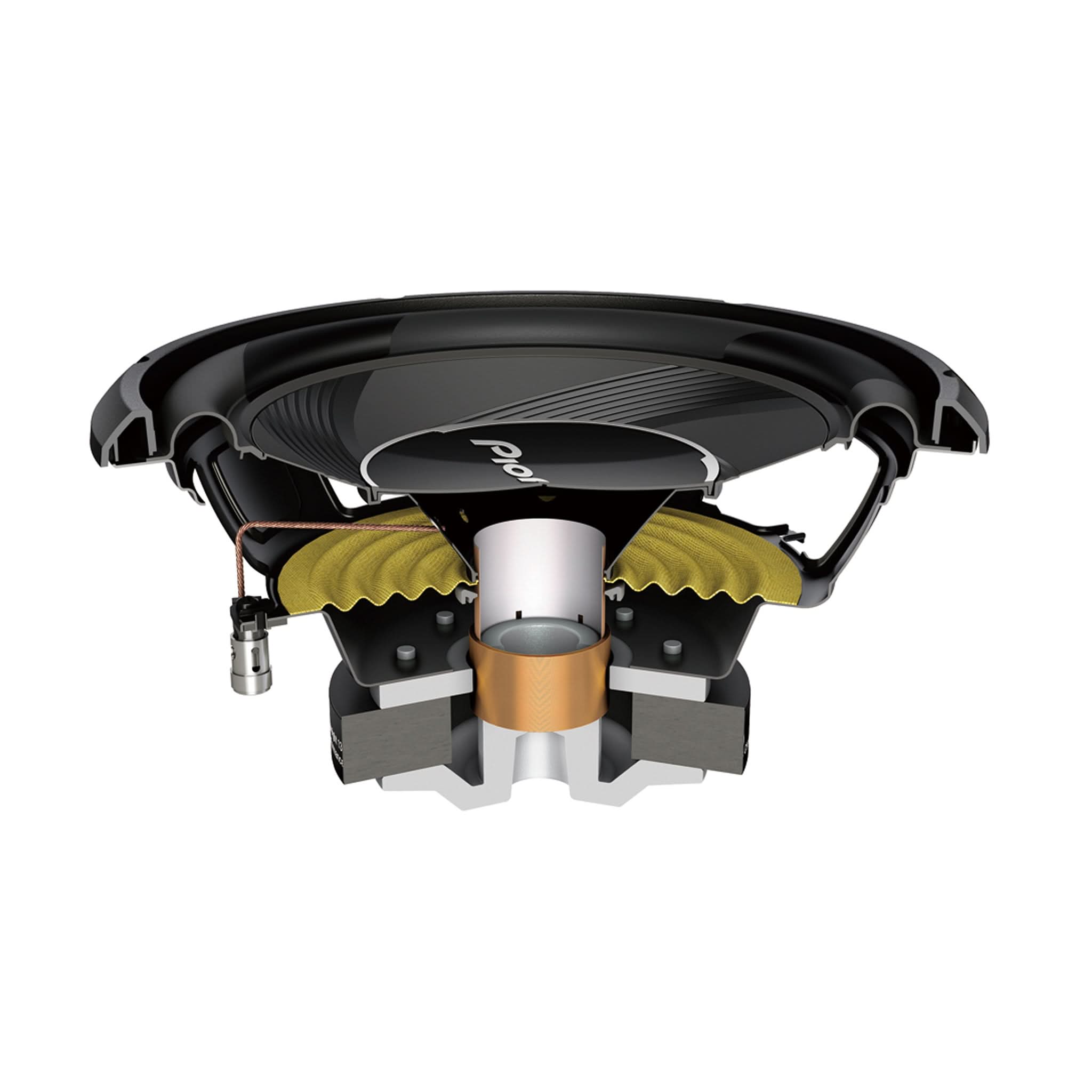

Voice Coil and Magnet

A subwoofer motor structure consists of the voice coil and magnet assembly. Increasing the diameter and length of the voice coil provides greater control of the woofer cone and higher power handling. To take full advantage, however, the magnet must also be increased, both in magnetic power and physical size.

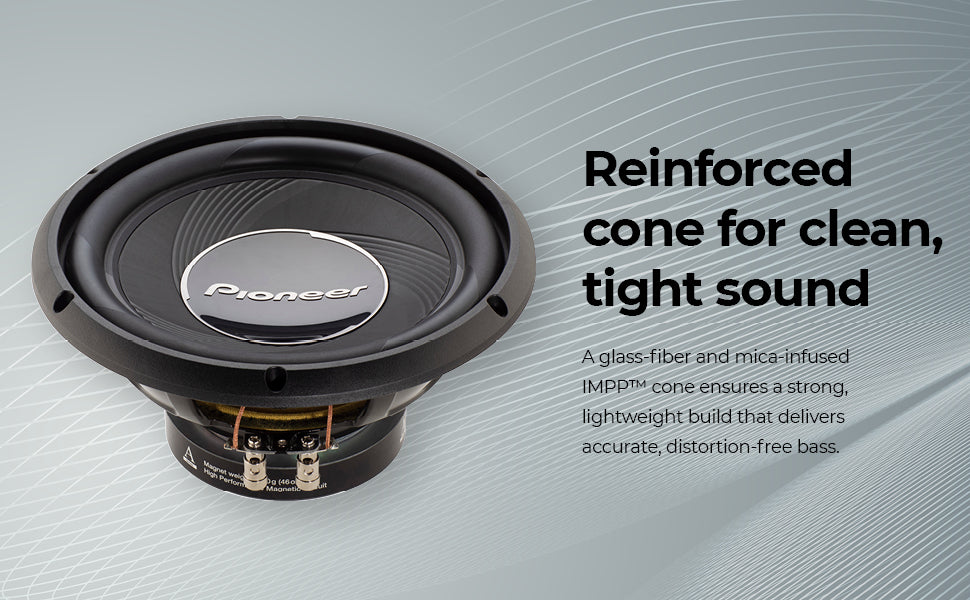

IMPP Cone with Aramid Fibers

This A-series speaker cone has a blend of Aramid fibers interlaced with Polypropylene during the injection molding process to meet Pioneer's standards for sensitivity, low distortion, rigidity and strength.

CarSoundfit

Pioneer’s Car Sound Fit app is actually a car sound simulator for experiencing in-car sound with your own smartphone. Hear the difference between original car speakers and different Pioneer audio upgrades: convince yourself of the level of quality Pioneer can offer for your vehicle. For a virtual listening demonstration of these and many other Pioneer car speakers, download the free Pioneer CarSoundFit app.

FEATURES
Built In Amp No	CarSoundFit Yes
Cut Out dimensions 9,23 cm	Equivalent Compliance (VAS) 23 Liters,0.8 Cu. Ft.
Free Air ResoNAnce (Fs) 39.2	Linear Excursion (Xmax) 8.7 mm,0.34
Mounting Depth 5,12.7cm	Port Diameter 3,8 cm
Port Length 6-1/2,17 cm	Recommended Ported Box Internal volume 31.1 Liters,1.09 Cu. Ft.
Recommended Sealed Enclosure Volume 22.6 Liters,0.8 Cu Ft	Subwoofer Grille No
Total Speaker Q (Qts) 0.72

FEATURES
Built In Amp No
CarSoundFit Yes
Cut Out dimensions 9,23 cm
Equivalent Compliance (VAS) 23 Liters,0.8 Cu. Ft.
Free Air ResoNAnce (Fs) 39.2
Linear Excursion (Xmax) 8.7 mm,0.34
Mounting Depth 5,12.7cm
Port Diameter 3,8 cm
Port Length 6-1/2,17 cm
Recommended Ported Box Internal volume 31.1 Liters,1.09 Cu. Ft.
Recommended Sealed Enclosure Volume 22.6 Liters,0.8 Cu Ft
Subwoofer Grille No
Total Speaker Q (Qts) 0.72

MATERIALS
Basket Material Metal	Center Cap Material ABS
Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP	Custom Fit Basket No
Damper Poly cotton Aramid	Drive Cone Material No
Installation Ring Polypropylene	Magnet Material Ferrite
Magnet Weight 46 oz	Surround Material Rubber
Surround Type Rolled	Voice Coil Material Aluminum
Voice Coil Special Feature No	Voice Coil Type Single Voice Coil 4-ohm
Voice Coil wire Copper	Wire Terminals Push Type

MATERIALS
Basket Material Metal
Center Cap Material ABS
Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP
Custom Fit Basket No
Damper Poly cotton Aramid
Drive Cone Material No
Installation Ring Polypropylene
Magnet Material Ferrite
Magnet Weight 46 oz
Surround Material Rubber
Surround Type Rolled
Voice Coil Material Aluminum
Voice Coil Special Feature No
Voice Coil Type Single Voice Coil 4-ohm
Voice Coil wire Copper
Wire Terminals Push Type

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 350	Frequency Response 22 Hz to 1.4 kHz
Maximum Peak Power Handling - Watts 1200	Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 85dB	System-Type Component

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 350
Frequency Response 22 Hz to 1.4 kHz
Maximum Peak Power Handling - Watts 1200
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 85dB
System-Type Component

Instruction Manual ()
Product Warranty ()

TS-A25S4

$60.00

$80.00

Car Fit Guide Provided by

Guide provided for reference but cannot be guaranteed.
