Overview

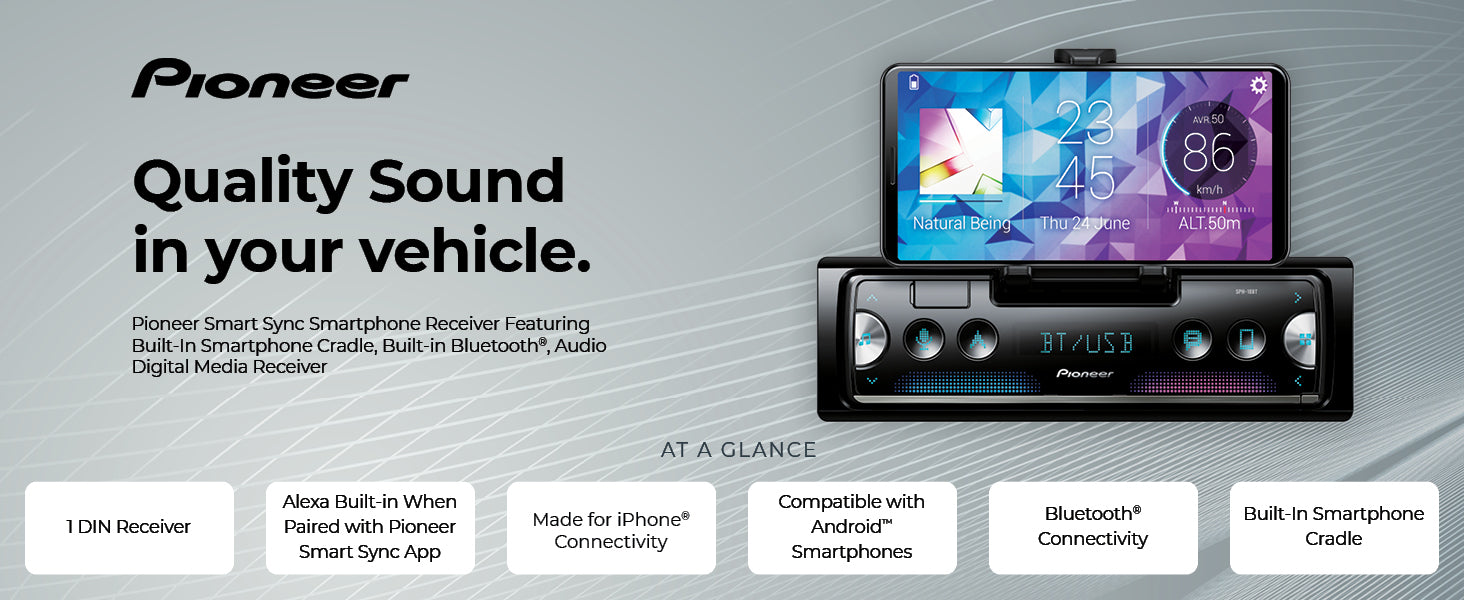

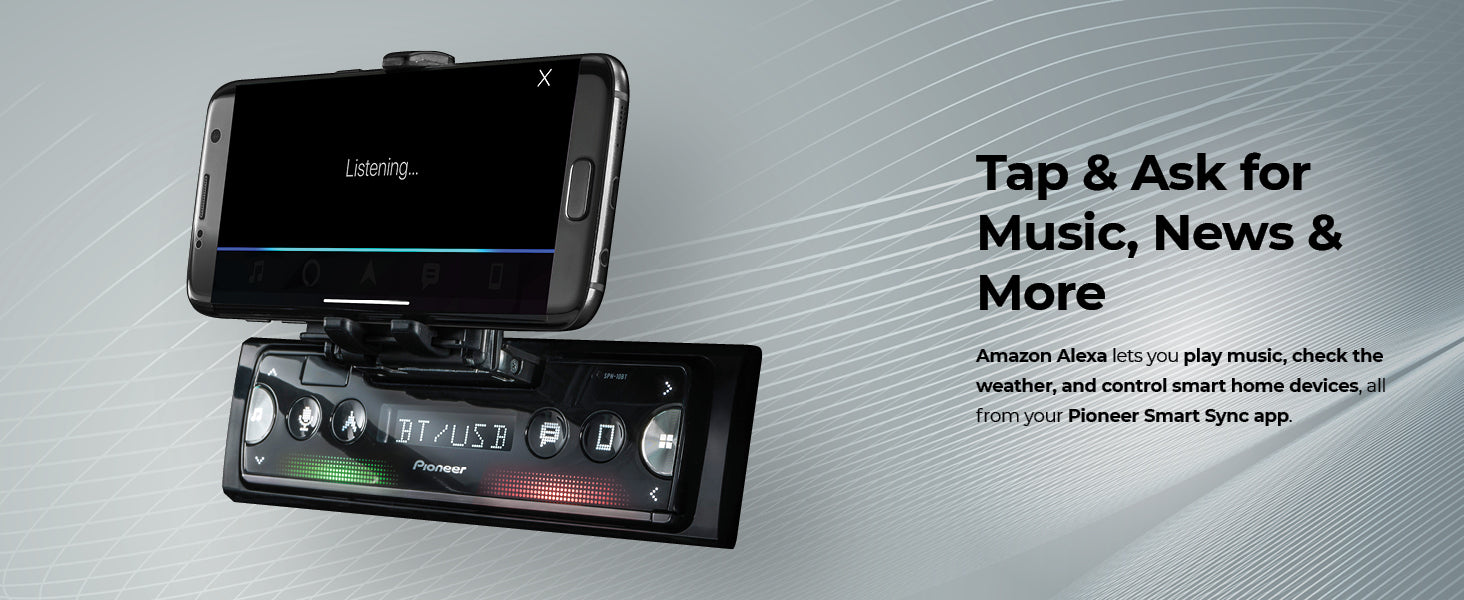

The SPH-10BT is designed to accommodate the Smartphone lifestyle. When using Pioneer Smart Sync with Amazon Alexa it opens a new world for this Digital Media Receiver. Mount your smartphone into the built-in cradle, then connect to Pioneer Smart Sync to enjoy a smarter connected driving experience. Using this application, you broaden your access may it be wired or wireless. The receiver has a built-in amplifier and is equipped with two RCA pre-outs at 2V each. It has a 13-band customizable graphic equalizer and when utilizing Pioneer Smart Sync increases to 31 bands. Pioneer Smart Sync coupled with the installation of the ND-PS1 Rear Parking Sensors (sold separately, requires professional installation) provides obstacle detection on your smartphone display. Features include built-in Bluetooth®, Pioneer Smart Sync App with Amazon Alexa, Pandora® and Spotify® via Bluetooth®, USB direct control for iPhone® and much more.
The SPH-10BT is designed to accommodate the Smartphone lifestyle. When using Pioneer Smart Sync with Amazon Alexa it opens a new world for this Digital Media Receiver. Mount your smartphone into the built-in cradle, then connect to Pioneer Smart Sync to enjoy a smarter connected driving experience. Using this application, you broaden your access may it be wired or wireless. The receiver has a built-in amplifier and is equipped with two RCA pre-outs at 2V each. It has a 13-band customizable graphic equalizer and when utilizing Pioneer Smart Sync increases to 31 bands. Pioneer Smart Sync coupled with the installation of the ND-PS1 Rear Parking Sensors (sold separately, requires professional installation) provides obstacle detection on your smartphone display. Features include built-in Bluetooth®, Pioneer Smart Sync App with Amazon Alexa, Pandora® and Spotify® via Bluetooth®, USB direct control for iPhone® and much more.

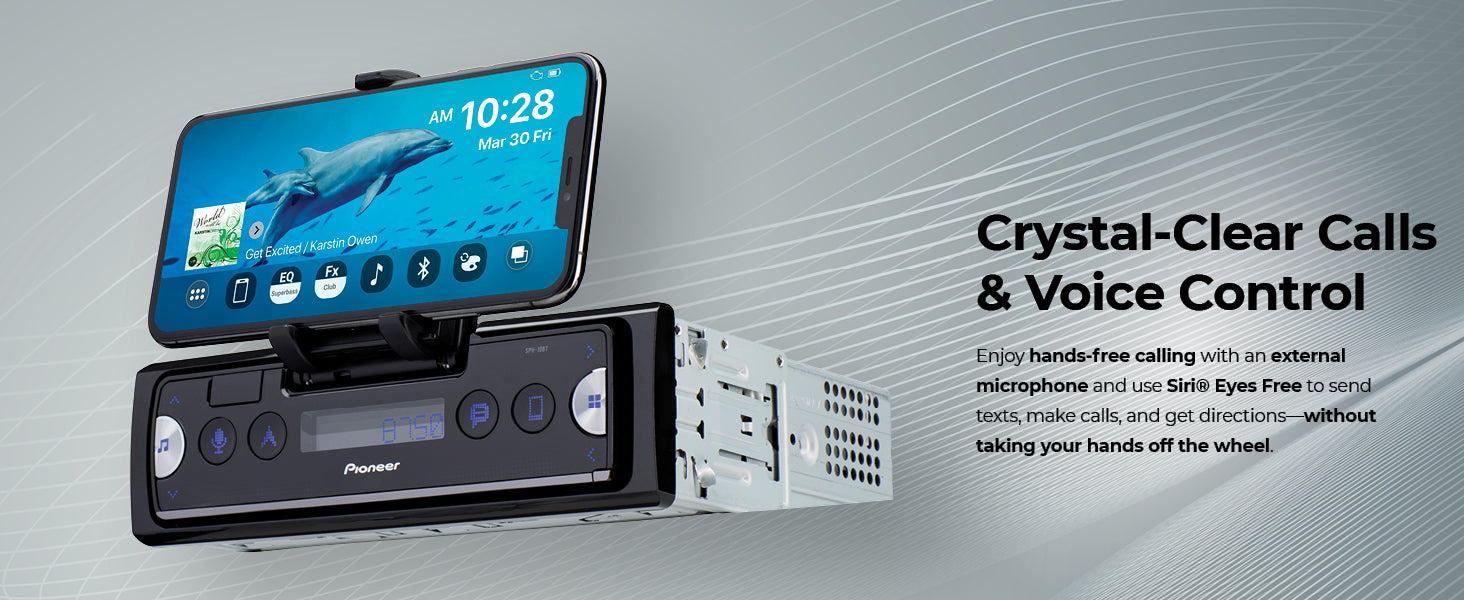

Hands free Bluetooth
This NEX Receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
Back-Up Sensors
Get obstacle detection on your smartphone display when used in conjunction with the ND-PS1 Rear Parking Sensors (sold separately, requires professional installation) and the Pioneer Smart Sync App.

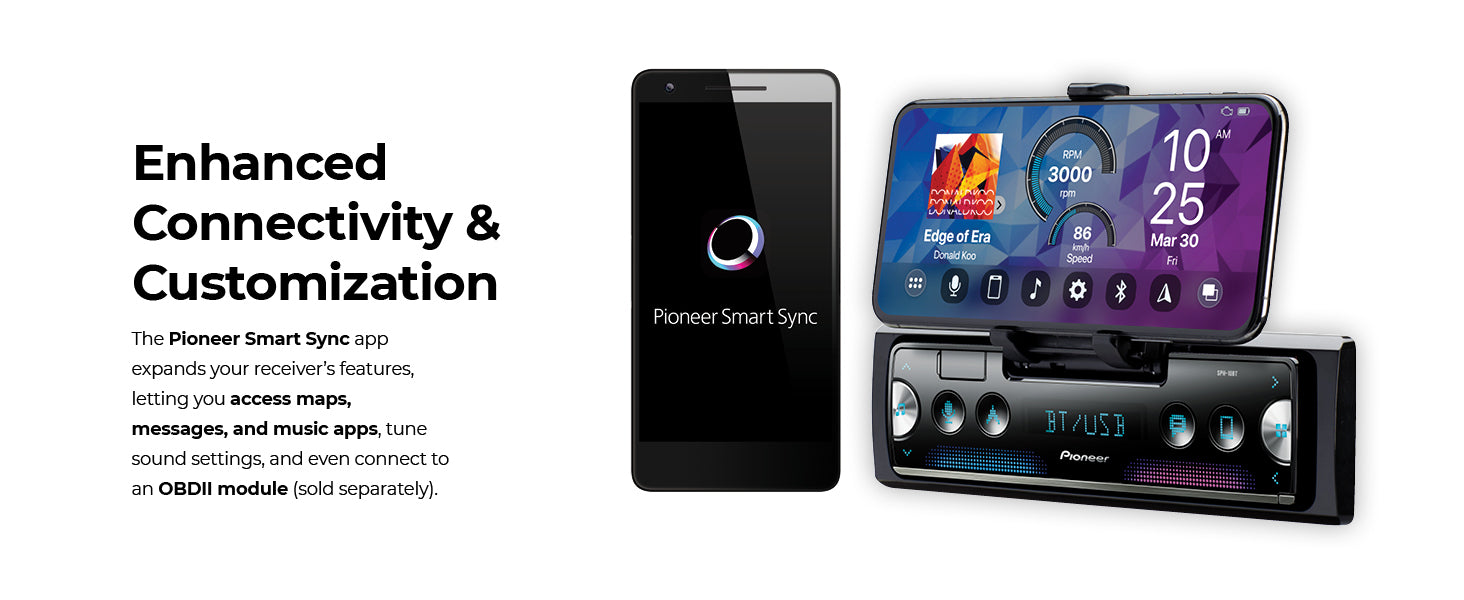

Pioneer Smart Sync
Pioneer Smart Sync is a highly evolved app, available for both iOS and Android OS, that utilizes the power of a connected smartphone to expand the features and user interface of compatible Pioneer in-dash receivers. With support for either a Bluetooth® or USB connection, the link between your smartphone and the in-dash receiver can be either wired or wireless. Through Pioneer Smart Sync, you can access many popular smartphone apps for maps, messages, music and more. Pioneer Smart Sync now features Amazon Alexa Built-in. Just download or update to the latest version of the Pioneer Smart Sync app and download the Alexa app. Using Alexa with Pioneer Smart Sync is simple; just tap-and-ask to play music, hear the news, check weather, control smart home devices, and more. Alexa lives in the cloud, so it’s always getting smarter, adding new capabilities that are delivered to your device automatically. To learn more about the Pioneer Smart Sync app, visit www.pioneer-carglobal.com/pss.

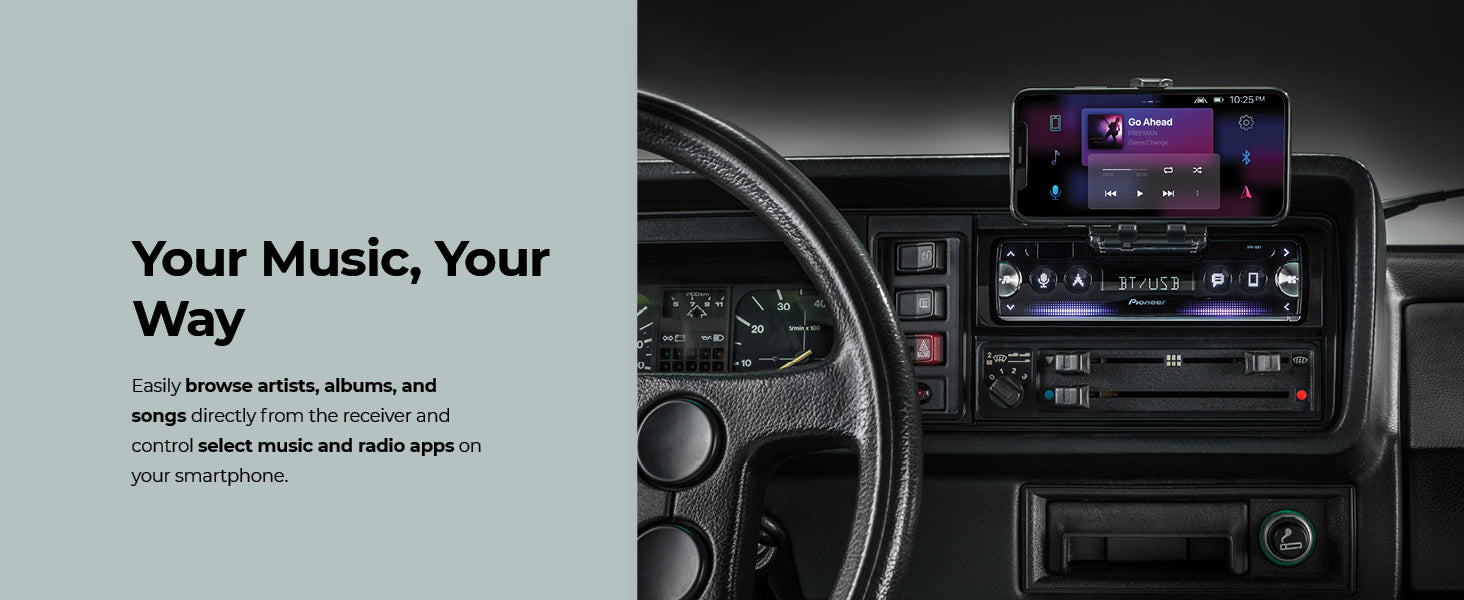

Smartphone Control
Access music on your smartphone directly from the Pioneer receiver. Search for Artist, Albums and Songs using Pioneer's intuitive interface. With Pioneer receivers you can also access and control select music and radio apps on your smartphone.
USB
This receiver is ready to roll with direct connectivity to your iPhone* for music and video via USB. Song, artist, time and album information are beautifully displayed on the touchscreen. The system's wired USB connection provides direct digital signal transfer from the device for clean, clear sound while providing 1.5 amp of current to keep your iPod/iPhone charged. *Requires iPhone 5 device or newer. Compatibility with unit and operations may vary depending on iOS version.
| HEAD UNIT AUDIO | |
|---|---|
|

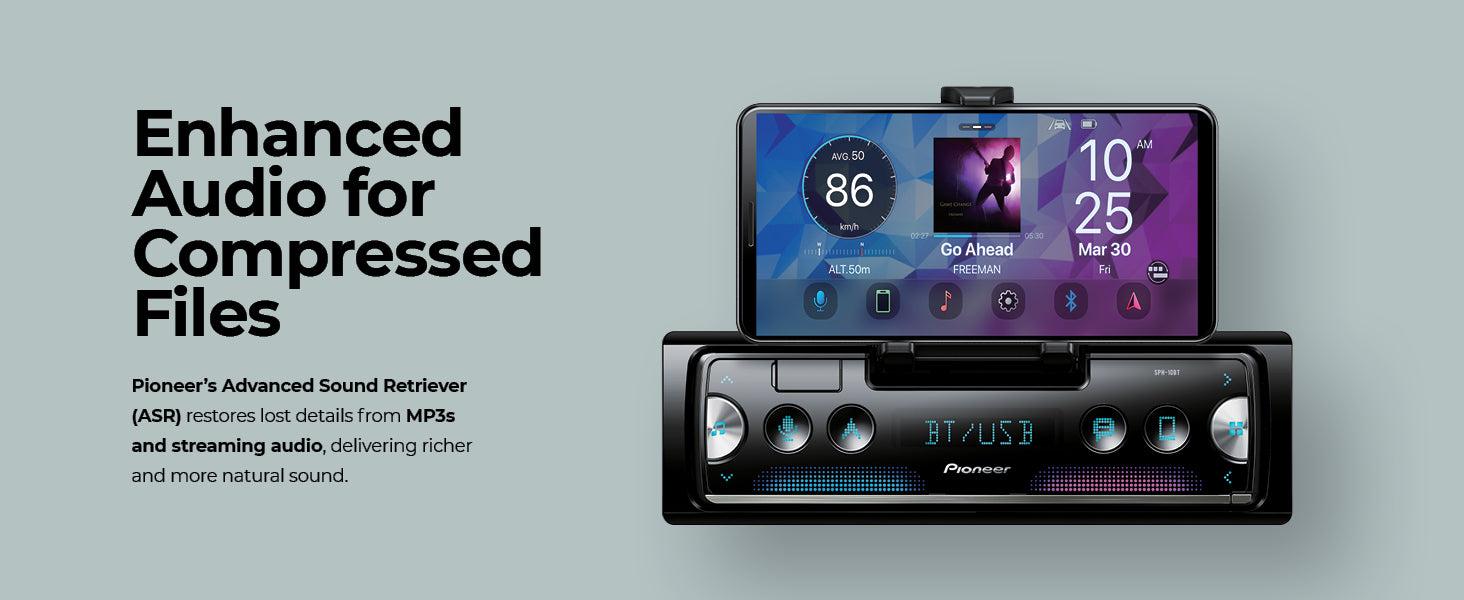

Advanced Sound Retriever
Mode-1/Mode-2/Off
|
Audio Bass Boost
No
|
|
Auto EQ (CD-MC20 Microphone sold separately)
No
|
Automatic Level Control
No
|
|
Auto Sound Levelizer (ASL)
No
|
Balance
Yes
|
|
Bass & Treble
No
|
Built-in Amplifier
MOSFET 50 W x 4
|
|
Crossover Network Mode
No
|
Crossover Standard Mode
HPF/LPF
|
|
Customizable Graphic Equalizer
13 Band, 31 Band with Pioneer Smart Sync app
|
DA Converter
24 Bit
|
|
Digital Signal Processor
Built In
|
Dynamic Bass Enhancer
Off/Low/High
|
|
Easy EQ (EEQ) Preset Equalizer
Yes
|
Fade
Yes
|
|
Listening Position Selector
With Pioneer Smart Sync
|
Loudness
High/Mid/Low/Off
|
|
MIXTRAX®
No
|
Source Level Adjuster
Yes
|
|
Speaker Output
4-ch
|
Spectrum Analyzer
No
|
|
Subwoofer Control
Yes
|
Time Alignment
ManualWith Pioneer Smart Sync
|
| HEAD UNIT AUDIO |
|---|
|
Advanced Sound Retriever
Mode-1/Mode-2/Off
|
|
Audio Bass Boost
No
|
|
Auto EQ (CD-MC20 Microphone sold separately)
No
|
|
Automatic Level Control
No
|
|
Auto Sound Levelizer (ASL)
No
|
|
Balance
Yes
|
|
Bass & Treble
No
|
|
Built-in Amplifier
MOSFET 50 W x 4
|
|
Crossover Network Mode
No
|
|
Crossover Standard Mode
HPF/LPF
|
|
Customizable Graphic Equalizer
13 Band, 31 Band with Pioneer Smart Sync app
|
|
DA Converter
24 Bit
|
|
Digital Signal Processor
Built In
|
|
Dynamic Bass Enhancer
Off/Low/High
|
|
Easy EQ (EEQ) Preset Equalizer
Yes
|
|
Fade
Yes
|
|
Listening Position Selector
With Pioneer Smart Sync
|
|
Loudness
High/Mid/Low/Off
|
|
MIXTRAX®
No
|
|
Source Level Adjuster
Yes
|
|
Speaker Output
4-ch
|
|
Spectrum Analyzer
No
|
|
Subwoofer Control
Yes
|
|
Time Alignment
ManualWith Pioneer Smart Sync
|
| HEAD UNIT BLUETOOTH | |
|---|---|
|
Built-in Bluetooth®
Yes
|
Hands-Free
Yes
|
|
AVRCP
1.6
|
Advanced Audio Distribution Profile (A2DP)
Yes
|
|
Secure Simple Pairing (SSP)
Yes
|
Serial Port Profile (SPP)
Yes
|
|
Dual Phone Connection
No
|
Sound Retriever Air
Mode 1/Mode 2/Off
|
|
Guest Mode
No
|
Hands Free Version
1.6
|
|
Microphone Included
Included
|
Phone Registation
5-phone
|
| HEAD UNIT BLUETOOTH |
|---|
|
Built-in Bluetooth®
Yes
|
|
Hands-Free
Yes
|
|
AVRCP
1.6
|
|
Advanced Audio Distribution Profile (A2DP)
Yes
|
|
Secure Simple Pairing (SSP)
Yes
|
|
Serial Port Profile (SPP)
Yes
|
|
Dual Phone Connection
No
|
|
Sound Retriever Air
Mode 1/Mode 2/Off
|
|
Guest Mode
No
|
|
Hands Free Version
1.6
|
|
Microphone Included
Included
|
|
Phone Registation
5-phone
|
| HEAD UNIT DIGITAL MEDIA PLAYBACK | |
|---|---|
|
Audio Playback via USB
MP3 Audio PlaybackWMA Audio PlaybackAAC Audio PlaybackFLAC Audio Playback (Hi-Res)WAV Audio Playback (Hi-Res)
| |
| HEAD UNIT DIGITAL MEDIA PLAYBACK |
|---|
|
Audio Playback via USB
MP3 Audio PlaybackWMA Audio PlaybackAAC Audio PlaybackFLAC Audio Playback (Hi-Res)WAV Audio Playback (Hi-Res)
|
| HEAD UNIT DISPLAY | |
|---|---|
|
Anti Glare/Reflection
No
|
Back Light
LED
|
|
Brightness Control
Yes
|
Color Customization
210000 Colors with Pioneer Smart Sync12 Preset Colors without Pioneer Smart Sync
|
|
Device Display
VA LCD (1-Line)
|
Device (Non-DIN/Modular Unit)
1-DIN
|
|
Dimmer
Automatic with vehicle illumination, Timer Controlled, Manual
|
Display Off Mode
Yes
|
|
Home Screen Customization
No
|
Monitor Mechanism
No
|
|
Screen Size/Aspect Ratio
No
|
Touch Screen
No
|
| HEAD UNIT DISPLAY |
|---|
|
Anti Glare/Reflection
No
|
|
Back Light
LED
|
|
Brightness Control
Yes
|
|
Color Customization
210000 Colors with Pioneer Smart Sync12 Preset Colors without Pioneer Smart Sync
|
|
Device Display
VA LCD (1-Line)
|
|
Device (Non-DIN/Modular Unit)
1-DIN
|
|
Dimmer
Automatic with vehicle illumination, Timer Controlled, Manual
|
|
Display Off Mode
Yes
|
|
Home Screen Customization
No
|
|
Monitor Mechanism
No
|
|
Screen Size/Aspect Ratio
No
|
|
Touch Screen
No
|
| HEAD UNIT EXPANDABILITY | |
|---|---|
|
Dual Zone Rear-Seat Entertainment
No
|
OEM Integration
No
|
|
OTA Update Compatabile
No
|
Parking Assist Lines
No
|
|
RCA-Video-Output
No
|
SD/SDHC Memory Card Slot
No
|
|
USB
Front Type-A (5V, 1-1/2 A)
|
USB Direct Control for iPhone®
5s and newer
|
| HEAD UNIT EXPANDABILITY |
|---|
|
Dual Zone Rear-Seat Entertainment
No
|
|
OEM Integration
No
|
|
OTA Update Compatabile
No
|
|
Parking Assist Lines
No
|
|
RCA-Video-Output
No
|
|
SD/SDHC Memory Card Slot
No
|
|
USB
Front Type-A (5V, 1-1/2 A)
|
|
USB Direct Control for iPhone®
5s and newer
|
| HEAD UNIT GENERAL | |
|---|---|
|
Detachable Face Security
Detachable
|
Direct Access Key
No
|
|
Flap Face
No
|
Multi-Language Display
English, French, Spanish
|
|
Music Browser
USBWith Smart Sync App
|
Parking Sensor input (Optional with ND-PS1)
Yes
|
|
Remote Control
Optional
|
Rotary Volume Control
No
|
|
Smartphone Cradle
Yes
|
Steering Wheel Control Ready (Adapter Sold Separately)
Yes
|
| HEAD UNIT GENERAL |
|---|
|
Detachable Face Security
Detachable
|
|
Direct Access Key
No
|
|
Flap Face
No
|
|
Multi-Language Display
English, French, Spanish
|
|
Music Browser
USBWith Smart Sync App
|
|
Parking Sensor input (Optional with ND-PS1)
Yes
|
|
Remote Control
Optional
|
|
Rotary Volume Control
No
|
|
Smartphone Cradle
Yes
|
|
Steering Wheel Control Ready (Adapter Sold Separately)
Yes
|
| HEAD UNIT INTEGRATION | |
|---|---|
|
Amazon Alexa
Paired with Pioneer Smart Sync
|
Android Auto™
No
|
|
Apple® CarPlay
No
|
AppRadio Mode+
No
|
|
Gracenote Sports
No
|
Mirroring
No
|
|
Mobile Operating System
AndroidApple iOS
|
Music Playback (MTP)
No
|
|
Pandora®
Source with Pioneer Smart Sync
|
Pioneer App Compatibility
Pioneer Smart Sync Android, Pioneer Smart Sync iPhoneApple Maps with Pioneer Smart SyncGoogle Maps with Pioneer Smart SyncWAZE with Pioneer Smart Sync
|
|
Siri® Eyes Free (VR) (Internet Required)
No
|
Spotify
Source with Pioneer Smart Sync
|
|
Voice Control
Yes
|
Weblink
No
|
|
Wifi
No
| |
| HEAD UNIT INTEGRATION |
|---|
|
Amazon Alexa
Paired with Pioneer Smart Sync
|
|
Android Auto™
No
|
|
Apple® CarPlay
No
|
|
AppRadio Mode+
No
|
|
Gracenote Sports
No
|
|
Mirroring
No
|
|
Mobile Operating System
AndroidApple iOS
|
|
Music Playback (MTP)
No
|
|
Pandora®
Source with Pioneer Smart Sync
|
|
Pioneer App Compatibility
Pioneer Smart Sync Android, Pioneer Smart Sync iPhoneApple Maps with Pioneer Smart SyncGoogle Maps with Pioneer Smart SyncWAZE with Pioneer Smart Sync
|
|
Siri® Eyes Free (VR) (Internet Required)
No
|
|
Spotify
Source with Pioneer Smart Sync
|
|
Voice Control
Yes
|
|
Weblink
No
|
|
Wifi
No
|
| HEAD UNIT TUNER | |
|---|---|
|
Best Station Memory
Yes
|
HD Radio™
No
|
|
Hybrid Radio
No
|
Local Seek tuning
Yes
|
|
Presets
18 FM, 6 AM
|
PS (Preset Scan)
No
|
|
RDS
Yes
|
SiriusXM-Ready™ (Tuner Sold Separately)
No
|
|
Supertuner® IIID
No
| |
| HEAD UNIT TUNER |
|---|
|
Best Station Memory
Yes
|
|
HD Radio™
No
|
|
Hybrid Radio
No
|
|
Local Seek tuning
Yes
|
|
Presets
18 FM, 6 AM
|
|
PS (Preset Scan)
No
|
|
RDS
Yes
|
|
SiriusXM-Ready™ (Tuner Sold Separately)
No
|
|
Supertuner® IIID
No
|
| PRODUCT PERFORMANCE | |
|---|---|
|
Continuous Power Output
22 W x 4-Channel
|
Load Impedence Allowance
4 Ohm (4 Ohm to 8 Ohm Allowable)
|
|
Max Power Output
50 W x 4-ch 4 ohm ,50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
|
RCA Preamp Outputs
4-ch
|
|
RCA Preout Voltage
2V
|
RMS Power Output (CTA-2006)
14 W RMS x 4-ch 4 ohm
|
|
Signal to Noise
No
| |
| PRODUCT PERFORMANCE |
|---|
|
Continuous Power Output
22 W x 4-Channel
|
|
Load Impedence Allowance
4 Ohm (4 Ohm to 8 Ohm Allowable)
|
|
Max Power Output
50 W x 4-ch 4 ohm ,50 W x 2-ch 4 ohm 70 W X 1-ch (subwoofer) 2 Ohm
|
|
RCA Preamp Outputs
4-ch
|
|
RCA Preout Voltage
2V
|
|
RMS Power Output (CTA-2006)
14 W RMS x 4-ch 4 ohm
|
|
Signal to Noise
No
|
