Name: GM-A5702
Brand: Pioneer Electronics (USA) Inc.
SKU: GM-A5702
Price: 110.0 USD
Availability: InStock

GM-A5702

$110.00

Find out if this product fits your vehicle

Select quantity

2-Channel - Class AB, 1000w Max Power - Bridgeable Amplifier

1000 Watts Max Power

Automatic signal sensing and Turn-On

Adjustable bass boost

Variable low pass filter

Overview
Specs
Knowledgebase
Manuals/Warranty

Pioneer's GM-A5702 2-channel amplifier will greatly improve the sound quality in your vehicle. This punchy Pioneer amplifier will power a pair of speakers with up to 240 watts RMS each, which is a gigantic jump over the power supplied by your car radio alone. You will hear a lot more of the little details in your music, especially when you turn your system up to overcome road noise. You can also put this versatile amplifier into single-channel mode, switch on the low-pass filter for clarity, and run a subwoofer with up to 480 watts RMS, perfect for some rocking' bass. Speaker-level inputs allow you to add the GM-A5702 to a factory radio that does not have preamp outputs.

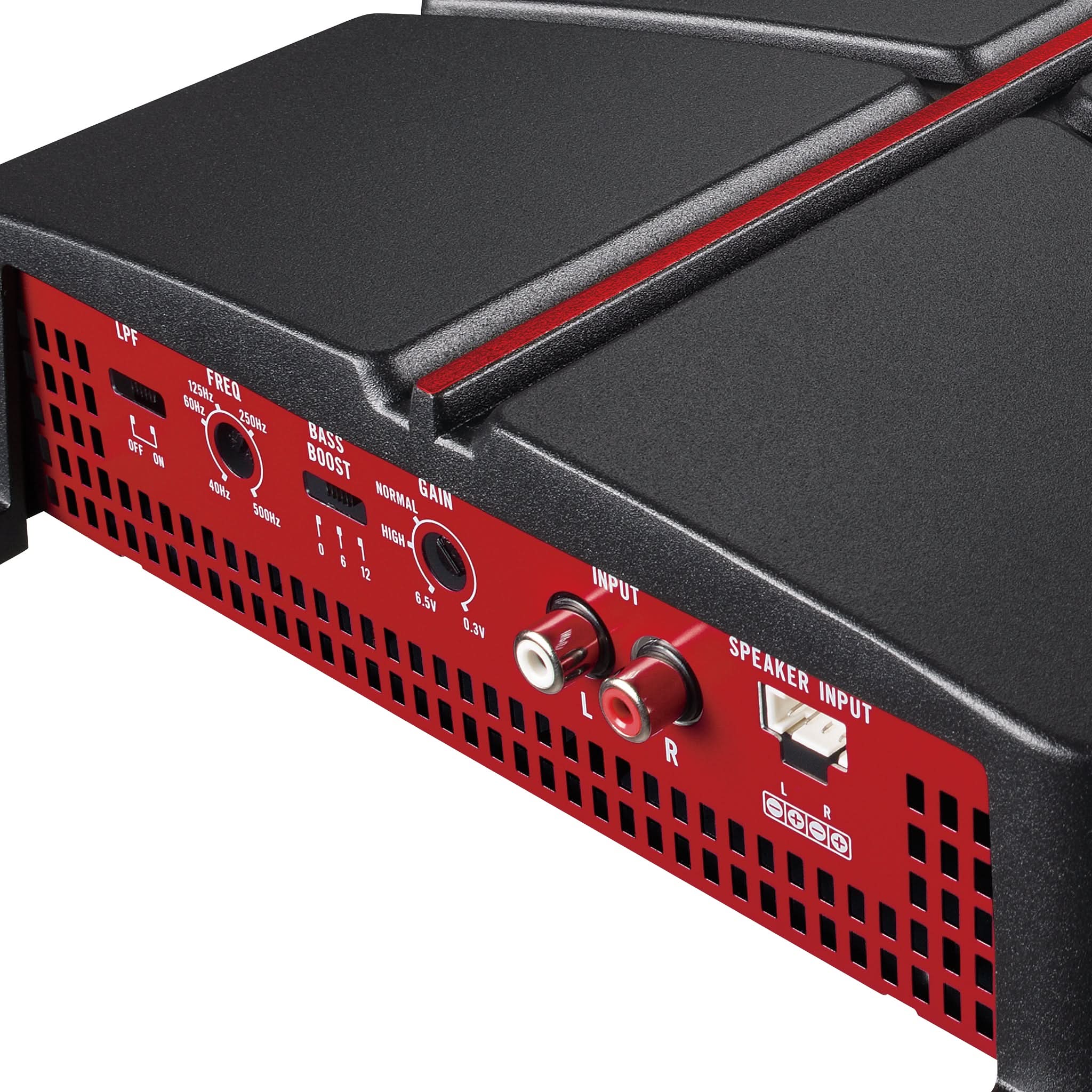

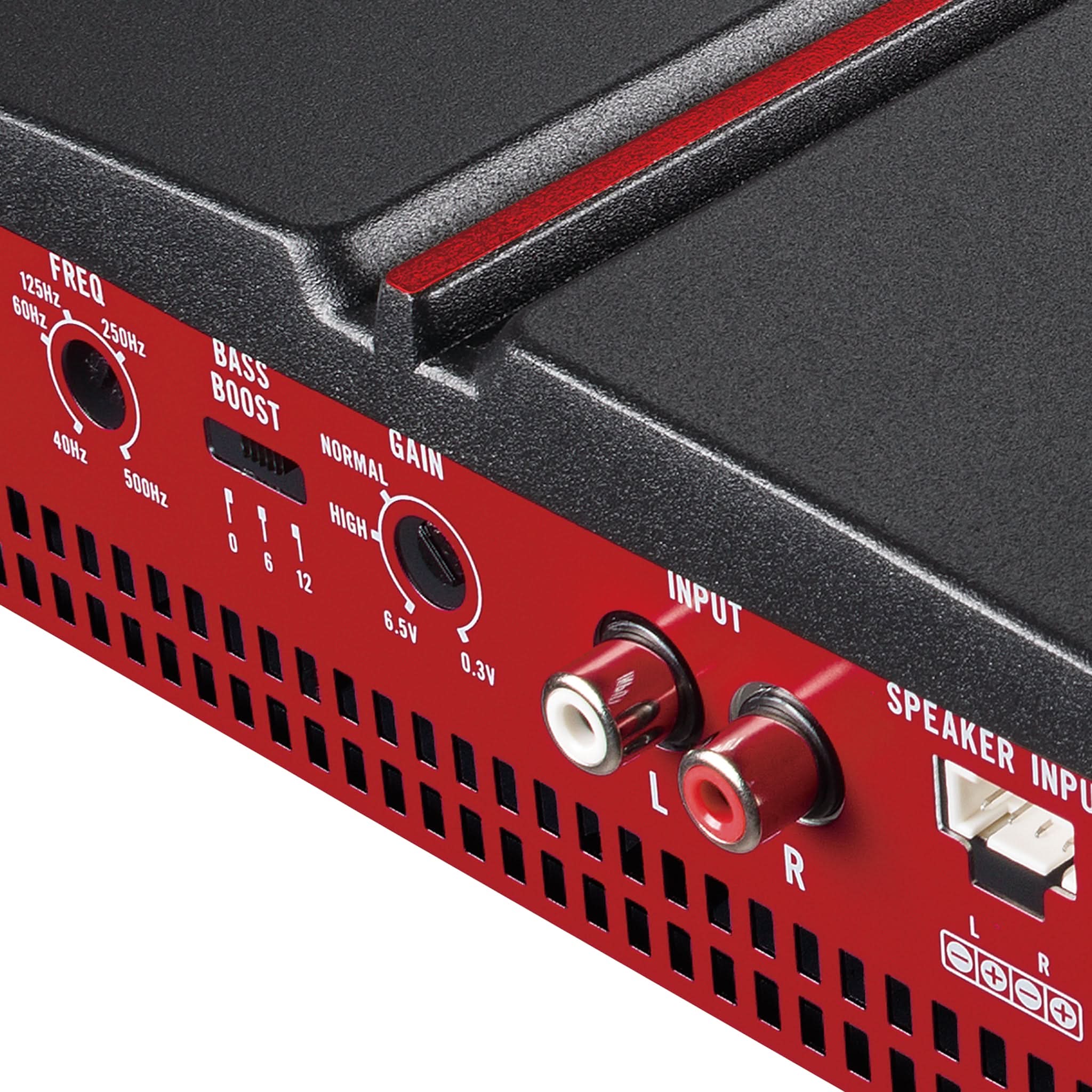

Bass Boost

This amplifier can be set bass boost to levels variably from 0 to 12 dB for optimal bass. With this precise control it enhances the overall balance and impact of all sounds according to listening preference and music style. The amplifier allows adjustment in three steps: 0 dB, 6 dB or 12 dB.

Variable Low-Pass Filter

For extra flexibility, a variable LPF makes audio frequency more adjustable according to subwoofer characteristics and personal listening preferences. This amplifier's LPF is adjustable from 40 Hz to 500 Hz.

Automatic Signal sensing and Turn-On

Pioneer amplifiers automatically select the proper input signal mode, either RCA or speaker level. When the receiver is turned on, the amplifier automatically turns on. When connected to an OEM receiver or a receiver without RCA output and utilizing speaker level output, the amp automatically senses the input mode and powers up in sync with the receiver. When connected to an OEM receiver or a receiver without RCA output using speaker wire the amplifier is turned on at the same time as the receiver. Pioneer's amplifiers automatically detect the input signal and select RCA level or speaker level.

Growing Power - Shrinking size

New Pioneer amps brilliantly integrate high-power performance superior to that of previous models in space-efficient sizes for flexibility of installation in various car cabins.

Technology of the GM Series

From dramatic distinction to intricate design, Pioneer's new GM-Series amplifiers are thrillers in every sense, pushing the limits of flexibility and functionality.

AMP FEATURES
Bridgable Yes	Class A/B
Grounding System Negative	Power Source 14.4V (10.8 V to 15.1 V allowable)
Protection Control system Yes	Terminal Type Screw
Unit Weight 4.9 lbs

AMP FEATURES
Bridgable Yes
Class A/B
Grounding System Negative
Power Source 14.4V (10.8 V to 15.1 V allowable)
Protection Control system Yes
Terminal Type Screw
Unit Weight 4.9 lbs

PRODUCT PERFORMANCE
Allowable Load Impedance 2 ohm to 8 ohm allowable	Avg Current Consumption (amps x #ch) 9.5 A x 2-Channel - 4 Ohm, 15.5 A x 1-Channel - 4 Ohm
Bass Boost 50 Hz - Frequency	Continuous-Power-Output 150 W x 2-Channel - 4 Ohm, 240 W x 2-Channel - 2 Ohm, 480 W x 1-Channel - 4 Ohm Bridged
Crossover Network Channel LPF - 40 Hz to 500 Hz	Crossover Network Channel Slope -12db/oct
Frequency Response Channel 10Hz to 70kHz (+0dB,-3dB)	Fuse Rating 30 A x 2
Maximum Power Output 300 W x 2-Channel (4 Ohm), 500 W x 2-Channel (2 Ohm), 1000 W (4 Ohm Bridged)	RCA Inputs 2-Channel
Signal to Noise 96 dB (IHF-A network)	Speaker Line input Sensor Yes

PRODUCT PERFORMANCE
Allowable Load Impedance 2 ohm to 8 ohm allowable
Avg Current Consumption (amps x #ch) 9.5 A x 2-Channel - 4 Ohm, 15.5 A x 1-Channel - 4 Ohm
Bass Boost 50 Hz - Frequency
Continuous-Power-Output 150 W x 2-Channel - 4 Ohm, 240 W x 2-Channel - 2 Ohm, 480 W x 1-Channel - 4 Ohm Bridged
Crossover Network Channel LPF - 40 Hz to 500 Hz
Crossover Network Channel Slope -12db/oct
Frequency Response Channel 10Hz to 70kHz (+0dB,-3dB)
Fuse Rating 30 A x 2
Maximum Power Output 300 W x 2-Channel (4 Ohm), 500 W x 2-Channel (2 Ohm), 1000 W (4 Ohm Bridged)
RCA Inputs 2-Channel
Signal to Noise 96 dB (IHF-A network)
Speaker Line input Sensor Yes
