Name: TS-MR1640
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-MR1640
Price: 120.0 USD
Availability: InStock

TS-MR1640

$120.00

Find out if this product fits your vehicle

Select quantity

6-1/2" - 2-way, 160 W Max Power, Water-resistant IMPP™ cone, 27mm Dome Tweeter - Marine Coaxial Speakers (pair)

30 W Nominal Power

White Water-Resistant IMPP Composite Cone Woofer

1-1/8” Poly-Ether Imide Dome Tweeter

Overview
Specs
Knowledgebase
Manuals/Warranty

Nautica Series 6-1/2'' Marine-Use 2-way Speaker with 160 W Max. Power - Lightweight polymide (PI) tweeter diaphragm with uniquely shaped wave guide provides natural with clear vocals Marine wide dispersion.

¾ inch Poly-Imide Reflex Horn Tweeter

The Reflex Horn design is a Pioneer innovation that delivers stunning high frequencies while at the same time providing protection for the tweeter from moisture

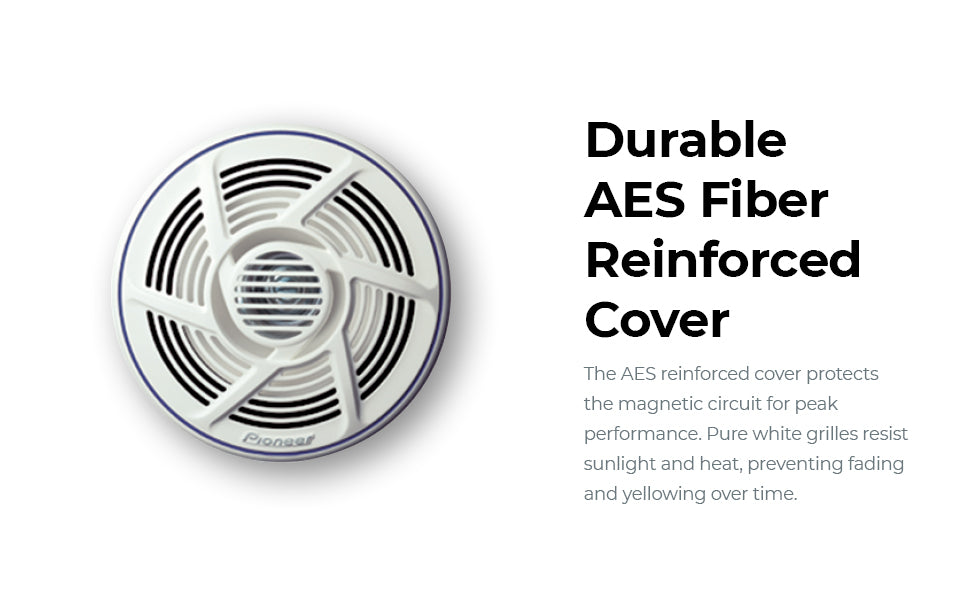

Acrylonitrile-Elastomer Styrene (AES) Glass Fiber Reinforced Basket/Magnet Cover

The AES cover protects the magnetic circuit that can affect the performance of the speaker. The speakers also sport the pure white AES grilles to resist fading and yellowing caused by direct sunlight and heat.

Elastomer Surround

Each speaker utilizes an elastomer surround that resists color fading or running, which extends the longevity of the product.

Gold Tinsel Wire

Gold tinsel wire and gold plated wire terminals are used for better current transfer.

Water-resistant IMPP Composite Cone

Pioneer's popular injection molded polypropylene (IMPP) cones produce outstanding mid-bass response and resist the effects of salt water, humidity and extreme heat.

FEATURES
Cut Out dimensions 5	Mounting Depth 2-1/4 - Midrance
Outer Diameter 5/8	Speaker Grill Classic White
Tweeter 27mm

FEATURES
Cut Out dimensions 5
Mounting Depth 2-1/4 - Midrance
Outer Diameter 5/8
Speaker Grill Classic White
Tweeter 27mm

MATERIALS
Cone Material IMPP-Water Resistant	Custom Fit Basket No
Damper Nomex	Diaphragm Material Polyetherimide (PEI) - Midrange
Magnet Material Ferrite - Speaker,Ferrite, Strontium - Midrange	Magnet Weight 9 oz - Speaker,0.74 oz - Midrange
Surround Material Elastic Polymer	Surround Type Rolled
Voice Coil Material Glass Imide	Voice Coil wire Copper
Wire Terminals Integrally molded

MATERIALS
Cone Material IMPP-Water Resistant
Custom Fit Basket No
Damper Nomex
Diaphragm Material Polyetherimide (PEI) - Midrange
Magnet Material Ferrite - Speaker,Ferrite, Strontium - Midrange
Magnet Weight 9 oz - Speaker,0.74 oz - Midrange
Surround Material Elastic Polymer
Surround Type Rolled
Voice Coil Material Glass Imide
Voice Coil wire Copper
Wire Terminals Integrally molded

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 30	Crossover Frequency 4000 Hz
Frequency Response 30 Hz to 30 kHz	Maximum Peak Power Handling - Watts 160
Nominal Impedance - Ohm 4-Ohm	Sensitivity (1W/1m) 91 dB
System-Type Coaxial 2-way,Dome - Midrange

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 30
Crossover Frequency 4000 Hz
Frequency Response 30 Hz to 30 kHz
Maximum Peak Power Handling - Watts 160
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 91 dB
System-Type Coaxial 2-way,Dome - Midrange

TS-MR1640

$120.00
