Name: TS-MR1600
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-MR1600
Price: 70.0 USD
Availability: InStock

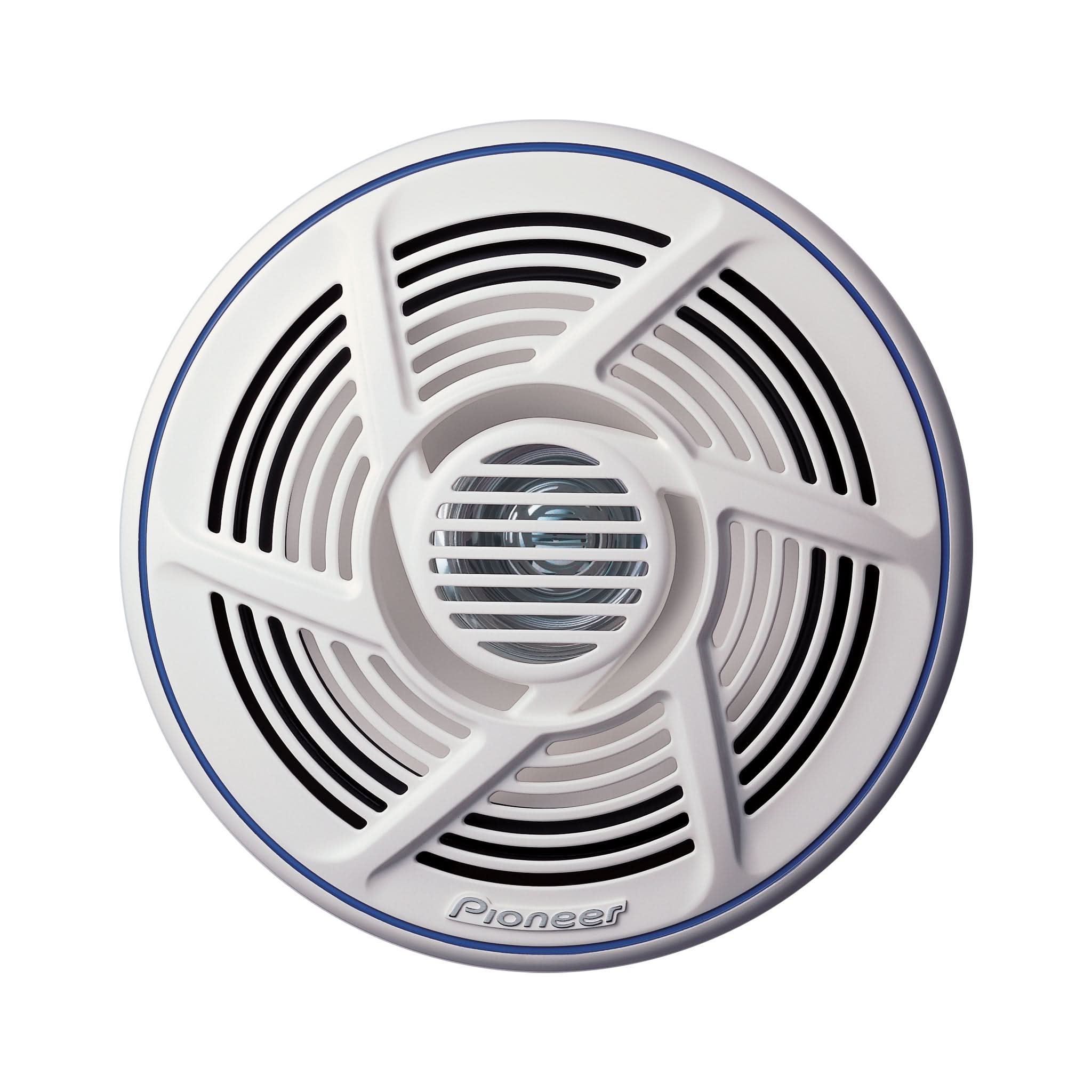

TS-MR1600

$70.00

Find out if this product fits your vehicle

Select quantity

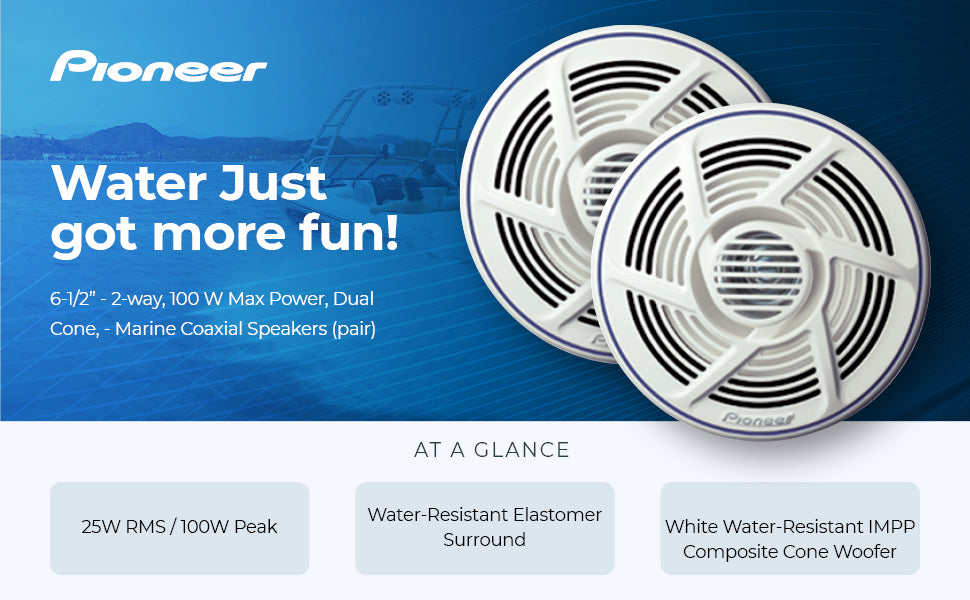

6-1/2" - 2-way, 100 W Max Power, Dual Cone, - Marine Coaxial Speakers (pair)

25 W Nominal Power

Water-Resistant Elastomer Surround

White Water-Resistant IMPP Composite Cone Woofer

Overview
Specs
Knowledgebase
Manuals/Warranty

Nautica Series 6-1/2" Marine-Use Dual-Cone Speaker with 100 W Maximum Power - Lightweight polymide (PI) tweeter diaphragm with uniquely shaped wave guide provides natural with clear vocals Use wide dispersion.

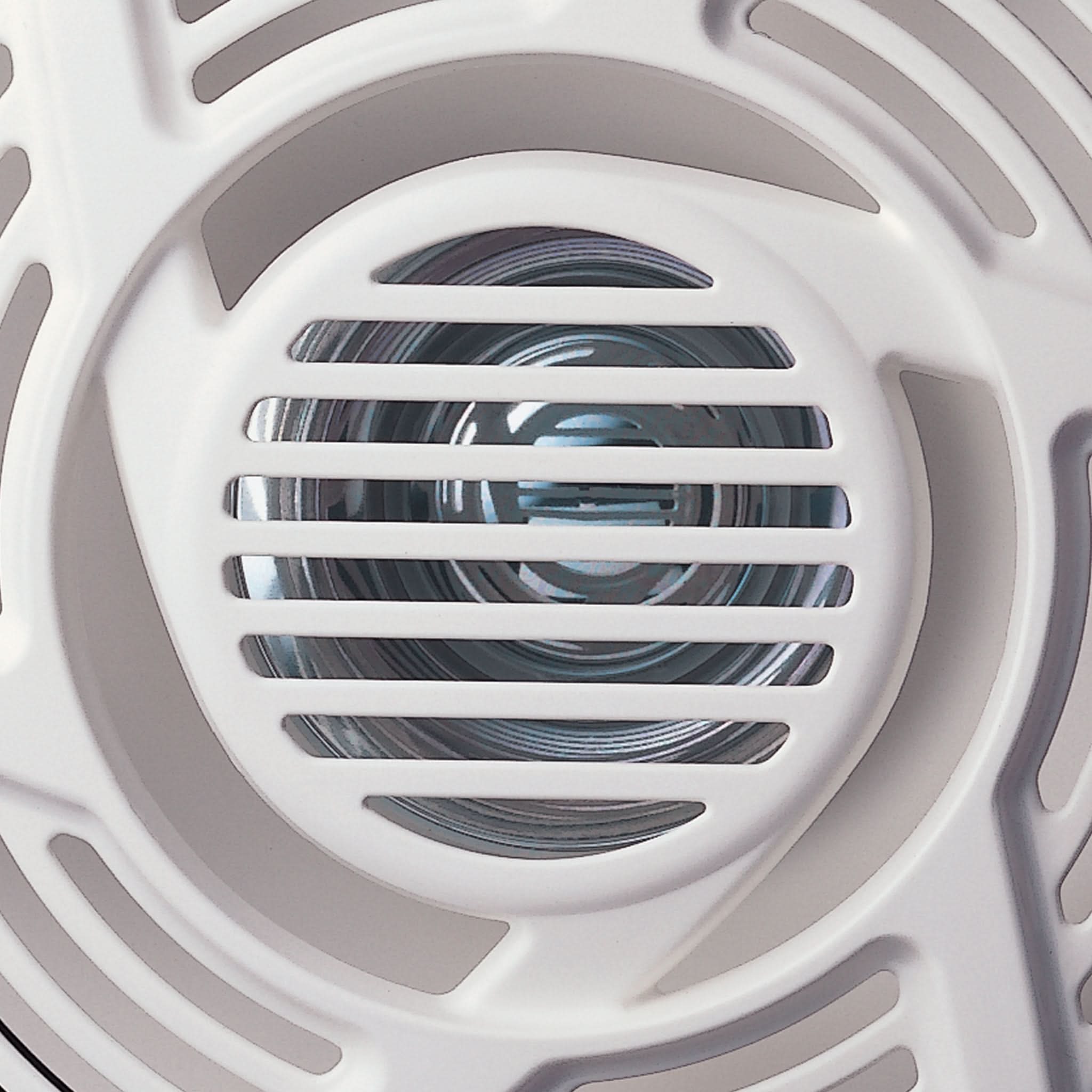

¾ inch Poly-Imide Reflex Horn Tweeter

The Reflex Horn design is a Pioneer innovation that delivers stunning high frequencies while at the same time providing protection for the tweeter from moisture

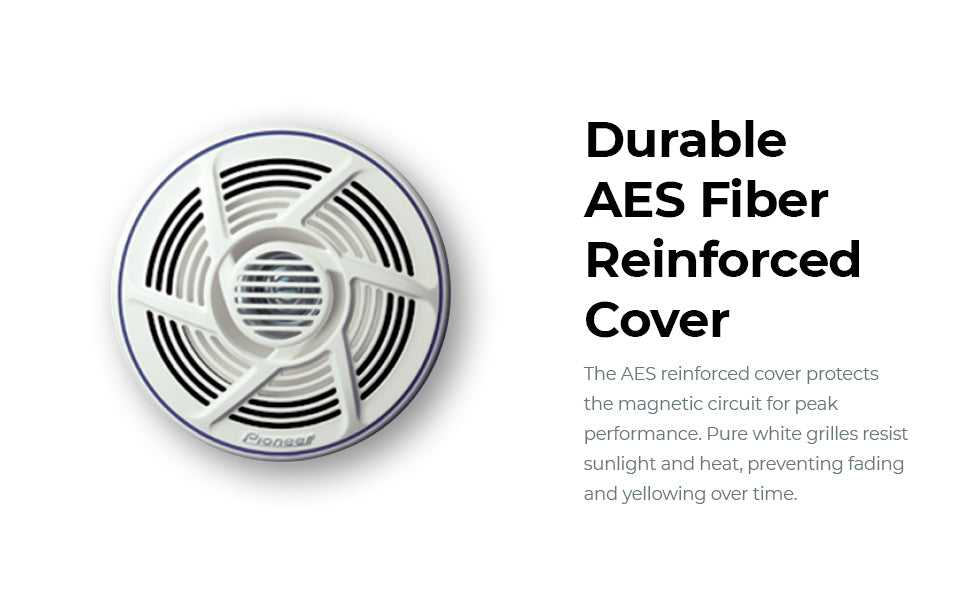

Acrylonitrile-Elastomer Styrene (AES) Glass Fiber Reinforced Basket/Magnet Cover

The AES cover protects the magnetic circuit that can affect the performance of the speaker. The speakers also sport the pure white AES grilles to resist fading and yellowing caused by direct sunlight and heat.

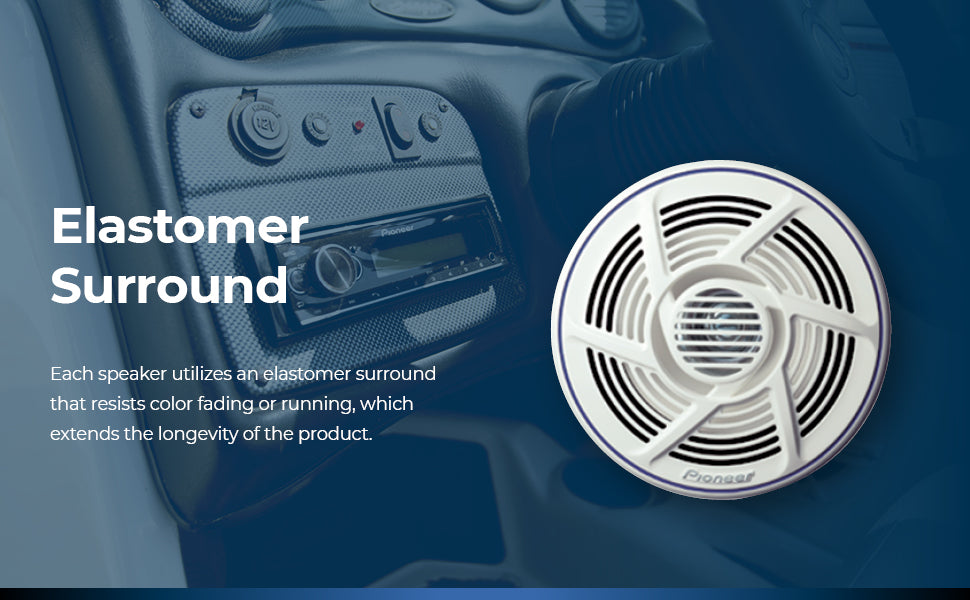

Elastomer Surround

Each speaker utilizes an elastomer surround that resists color fading or running, which extends the longevity of the product.

Gold Tinsel Wire

Gold tinsel wire and gold plated wire terminals are used for better current transfer.

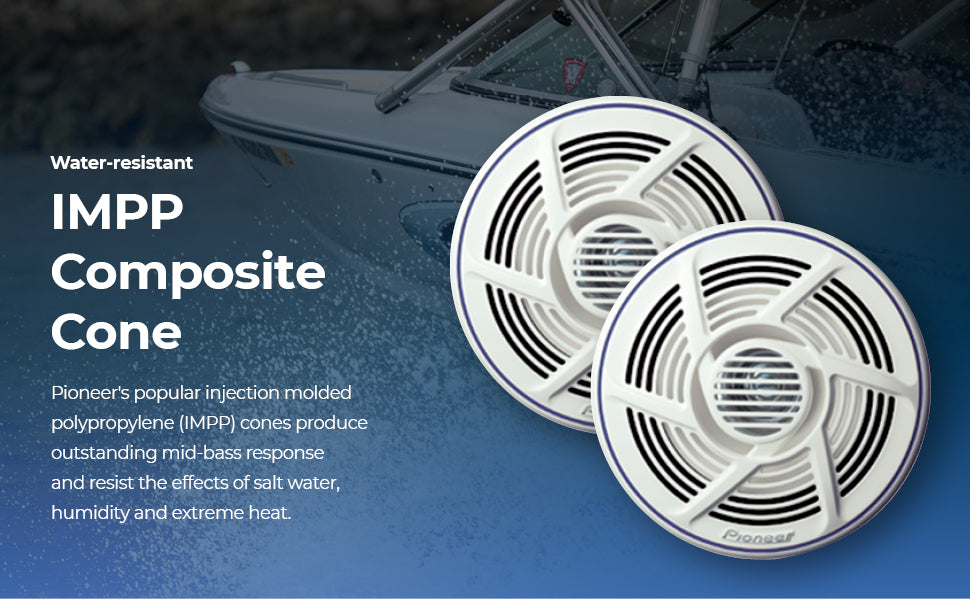

Water-resistant IMPP Composite Cone

Pioneer's popular injection molded polypropylene (IMPP) cones produce outstanding mid-bass response and resist the effects of salt water, humidity and extreme heat.

FEATURES
Cut Out dimensions 5	Mounting Depth 2-1/4 - Midrance
Speaker Grill Classic White

FEATURES
Cut Out dimensions 5
Mounting Depth 2-1/4 - Midrance
Speaker Grill Classic White

MATERIALS
Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP	Cone Special Feature Marine Use Construction
Custom Fit Basket No	Damper Nomex
Magnet Material Strontium - Speaker,Strontium - Midrange	Magnet Weight 6.3 oz - Speaker,6.3 oz - Midrange
Surround Material Elastic Polymer	Surround Type Rolled
Voice Coil Material Glass Imide	Voice Coil wire Copper
Wire Terminals Integrally molded

MATERIALS
Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP
Cone Special Feature Marine Use Construction
Custom Fit Basket No
Damper Nomex
Magnet Material Strontium - Speaker,Strontium - Midrange
Magnet Weight 6.3 oz - Speaker,6.3 oz - Midrange
Surround Material Elastic Polymer
Surround Type Rolled
Voice Coil Material Glass Imide
Voice Coil wire Copper
Wire Terminals Integrally molded

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 25	Crossover Frequency NA
Frequency Response 30 Hz to 20 kHz	Maximum Peak Power Handling - Watts 100
Nominal Impedance - Ohm 4-Ohm	Sensitivity (1W/1m) 90 dB
System-Type Coaxial 2-way

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 25
Crossover Frequency NA
Frequency Response 30 Hz to 20 kHz
Maximum Peak Power Handling - Watts 100
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 90 dB
System-Type Coaxial 2-way
