TS-G1620F

TS-G1620F

$60.00

Find out if this product fits your vehicle

Select quantity

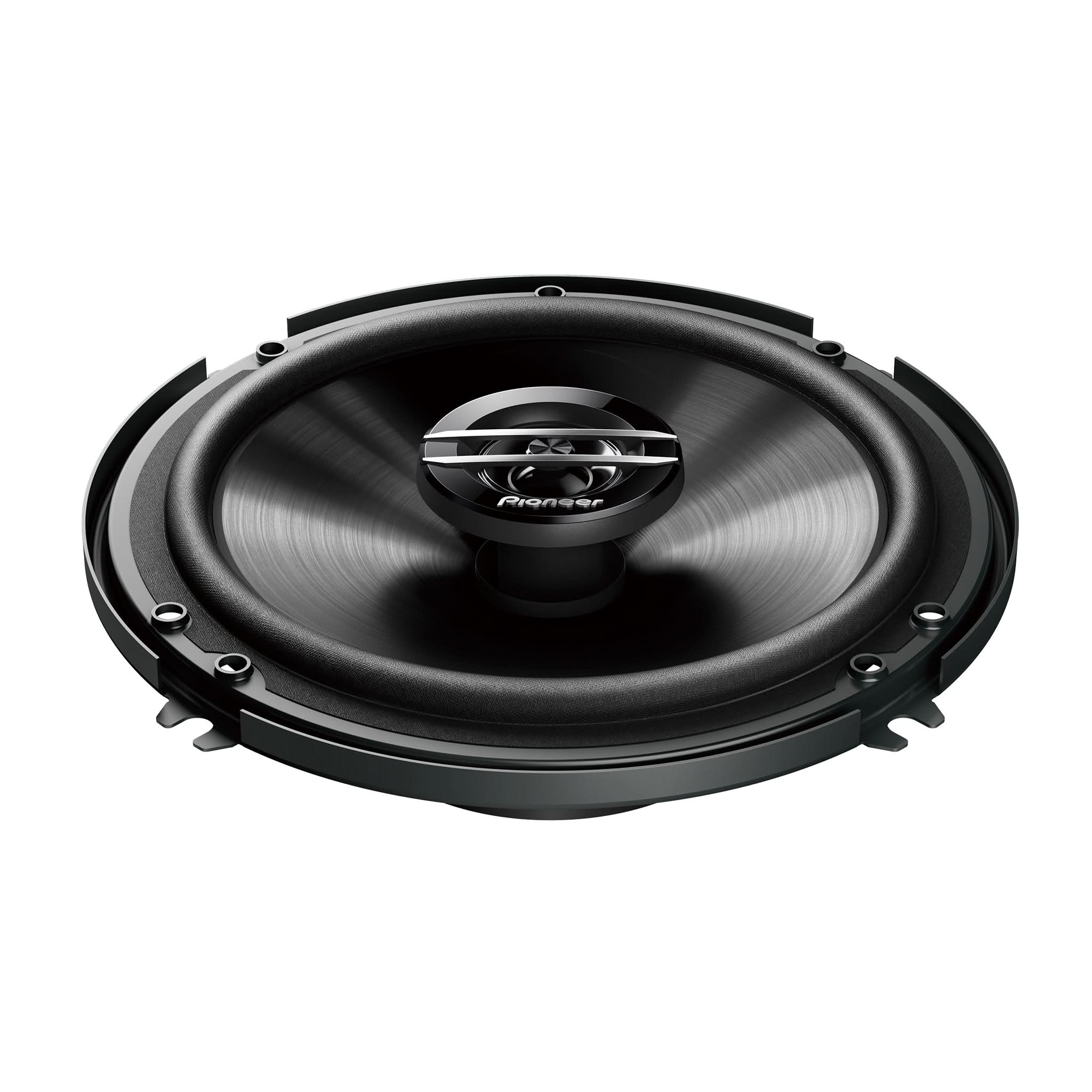

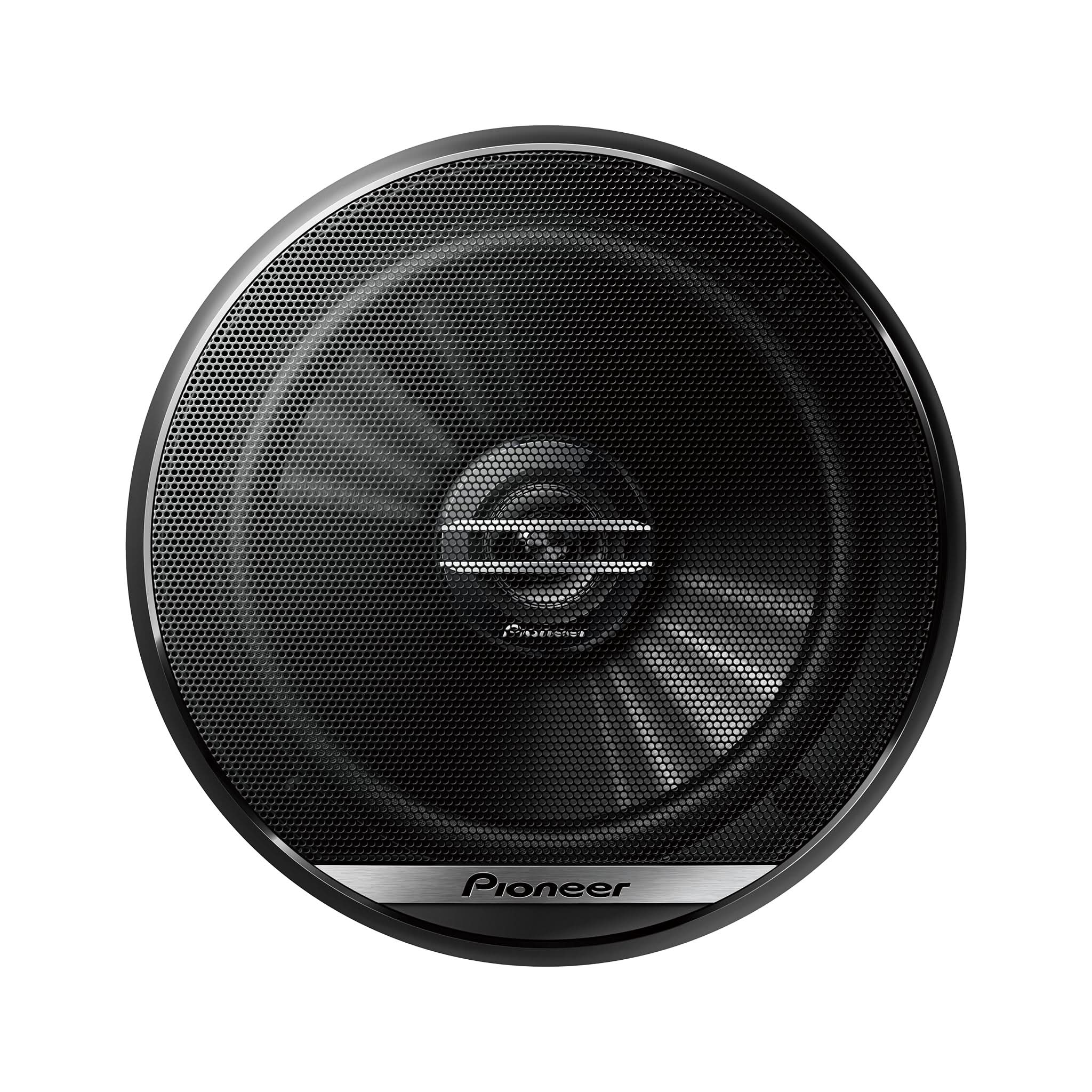

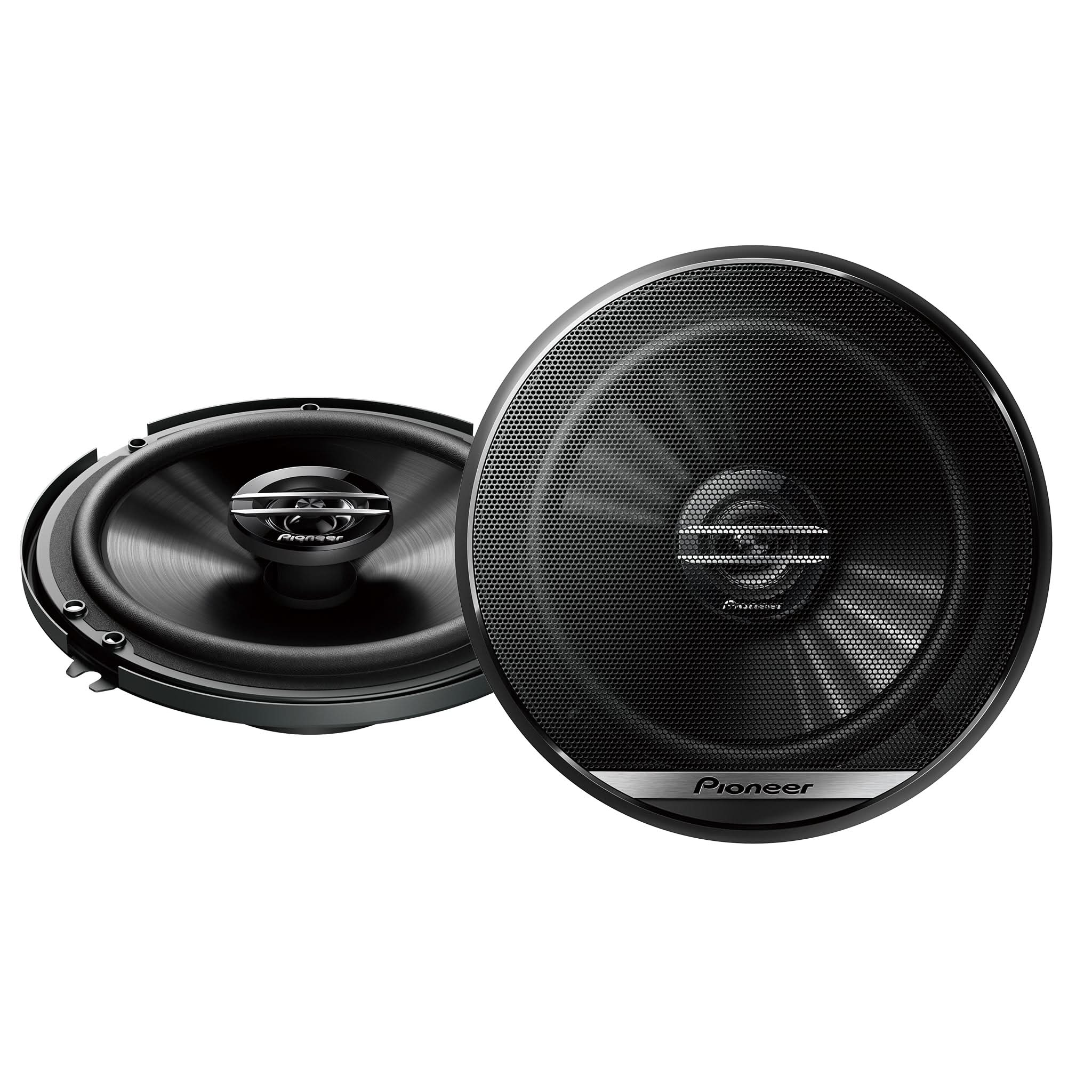

6-1/2" - 2-way, 300 W Max Power, IMPP™ cone, 30mm Tweeter - Coaxial Speakers (pair)

300 W Max Power (40 W Nominal)

6-1/2" Injected Molded Polypropylene (IMPP) Composite Cone Woofer

Patented Pioneer P.F.S.S Spider

30mm Balanced Dome Tweeter

Overview
Specs
Knowledgebase
Manuals/Warranty

6-1/2" - two-way, 300 W max. power (35 watts nominal) - features Pioneer’s extremely strong and lightweight Injected Molded Polypropylene IMPP™ cone for improved sensitivity and reduced distortion. The conex damper delivers higher power handling and deeper bass, and the 30mm Balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy install into a wide variety of vehicles.

P.F.S.S. spider

Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, while its hard part controls excessive vibration and prevents movement error.

Installation and sound to suite any car

These speakers are excellent choices to replace a bad set of factory speakers. Their two-way design features Pioneer’s extremely strong and lightweight Injected Molded Polypropylene™ (IMPP) with MICA composite cone woofer for improved sensitivity and reduced distortion. You don't get just basic, run-of-the-mill features either. The conex damper delivers higher power handling and deeper bass, and the Balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy installation and custom-fit baskets for select Ford and Mazda vehicles.

FEATURES
Cut Out dimensions 5	Mounting Depth 1-3/4 - Midrange
Speaker Grill NA	Tweeter 30mm

FEATURES
Cut Out dimensions 5
Mounting Depth 1-3/4 - Midrange
Speaker Grill NA
Tweeter 30mm

MATERIALS
Basket Material Metal	Cone Material IMPP - with MICA
Custom Fit Basket No	Damper Poly cotton
Diaphragm Material Polyethylene terephthalate (PET) - Midrange	Magnet Material Ferrite
Magnet Weight 5.5 oz	Shorting Ring Material Copper
Surround Material Rubber Coated Cloth	Surround Type Rolled
Voice Coil Material Kapton	Voice Coil wire Copper
Wire Terminals Lug Type

MATERIALS
Basket Material Metal
Cone Material IMPP - with MICA
Custom Fit Basket No
Damper Poly cotton
Diaphragm Material Polyethylene terephthalate (PET) - Midrange
Magnet Material Ferrite
Magnet Weight 5.5 oz
Shorting Ring Material Copper
Surround Material Rubber Coated Cloth
Surround Type Rolled
Voice Coil Material Kapton
Voice Coil wire Copper
Wire Terminals Lug Type

PRODUCT PERFORMANCE
Crossover Frequency NA	Frequency Response 31 Hz to 18 kHz
Maximum Peak Power Handling - Watts 300	Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 89 dB	System-Type Coaxial 2-way, Balance Dome - Midrange

PRODUCT PERFORMANCE
Crossover Frequency NA
Frequency Response 31 Hz to 18 kHz
Maximum Peak Power Handling - Watts 300
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 89 dB
System-Type Coaxial 2-way, Balance Dome - Midrange
