4K Ultra HD Blu-ray playback
Support 4K Ultra HD Blu-ray playback using included CyberLink software.
Latest high-grade rubber coating
Features the latest high-grade rubber coating from Japanese coating manufacturer Musashi Paint Co., Ltd. This provides some of the best resistance against scratching and peeling in the industry. We have dedicated a great amount of care to the way the product feels when picked up, giving it a luxury feel.
The latest version of PureRead 4+ featuring unique algorithms
When read errors caused by scratches or fingerprints occur when importing (ripping) audio CDs, using this function allows for automatic detection of the disc state, adjustment of the read method using an original algorithm, and then re-reading of the disc. This minimizes error data interpolation.
*Not all discs or all portions of discs may be playable if they are too damaged.
Displaying PureRead mode
With the device not operating, press and hold the eject button for at least two seconds. The busy indicator flashes, and the current PureRead mode setting is displayed. You can check the mode in advance without launching the Drive Utility on your PC.

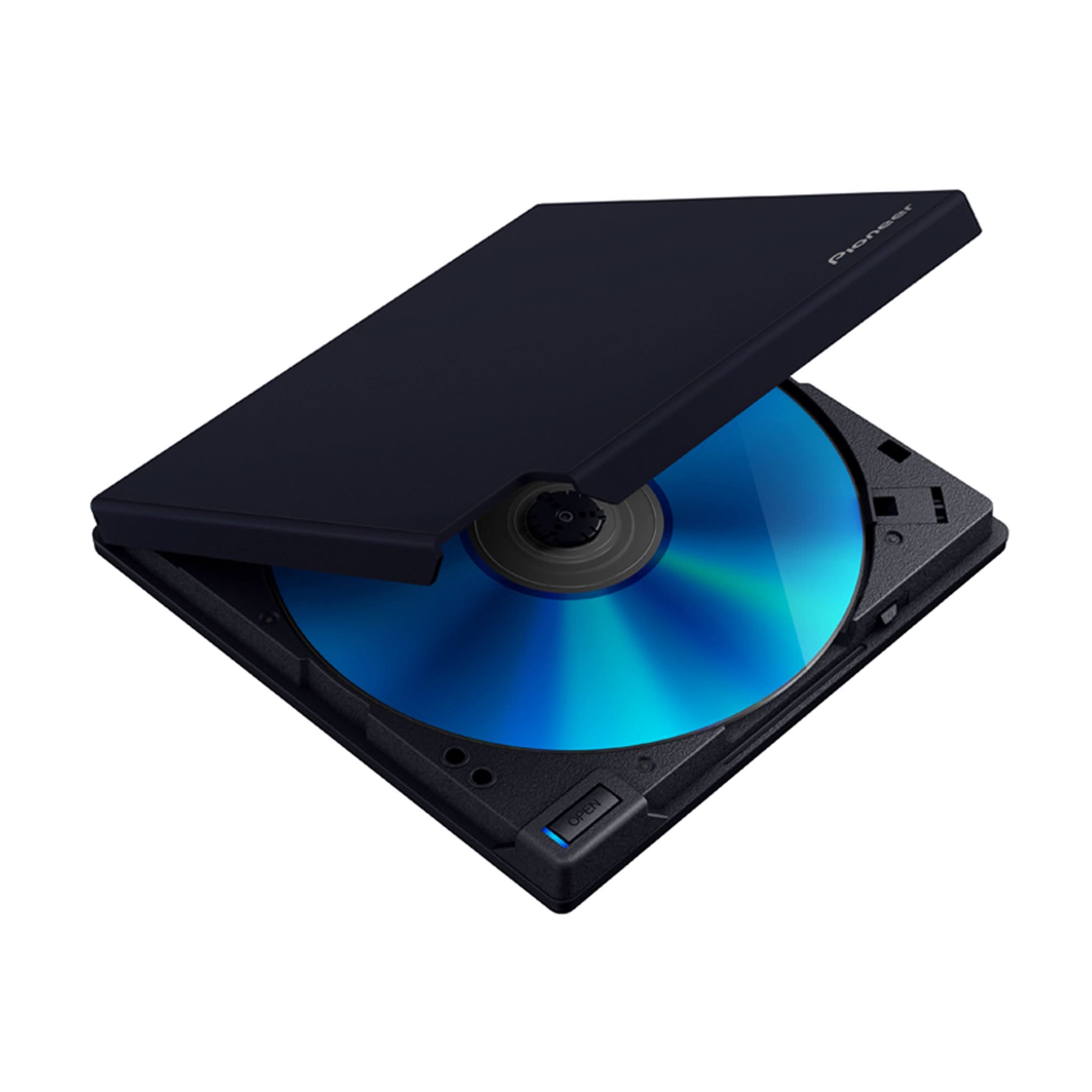

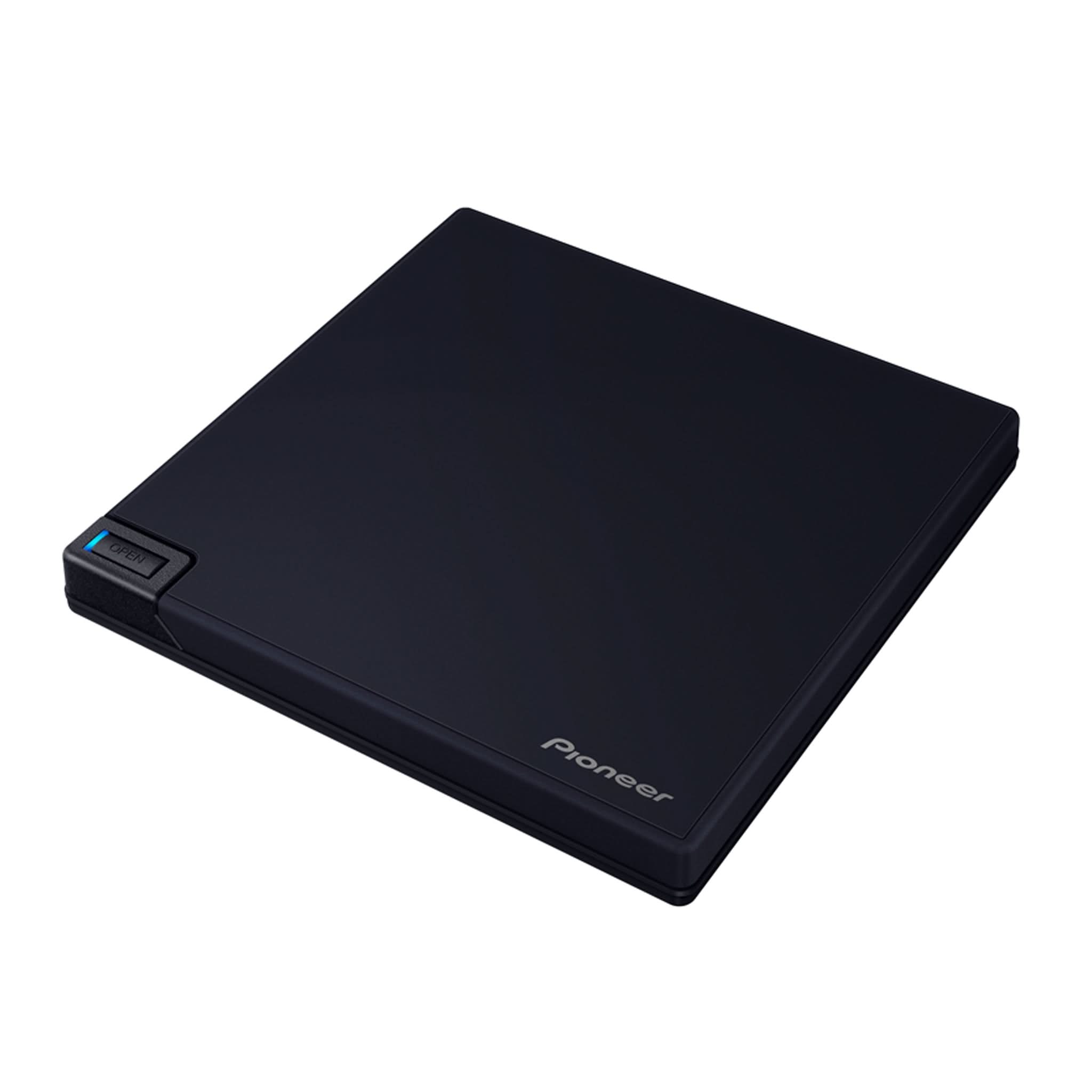

Compact, ultra-lightweight body
Clamshell type body that enables the easy insertion and removal of a disc in a narrow space. An ultra-lightweight body 230g (0.51 lb) about the size of a CD case.
Uses a reversible L-shaped USB cable
Uses a reversible L-shaped USB cable that allows you to place the drive to the left or right of the PC with ease.
*The L-shaped USB cable can connect to the drive in either direction, but when plugged in with the cord extending to the right, the cable blocks the AC Adapter Connector. To avoid damage if using an optional AC adapter, plug in the USB cable so the cord extends to the left.
Custom Eco function reduces the drive’s power consumption
If the drive does not receive any commands (instructions for operation) from the PC for a specified period, this function will reduce the drive’s power consumption, such as by stopping the disc from rotating or reducing the disc rotation speed. Shortening this specified period will make the drive enter the power saving mode earlier.
OPTICAL MAX READ SPEED | |
---|---|
BD-ROM DL
4x
|
BD-ROM DL (Ultra HD Bue-Ray)
6x
|
BD-ROM SL
6x
|
BD-ROM TL (Ultra HD Bue-Ray)
24x
|
CD-ROM
8x
|
DVD-ROM
8x
|
DVD-ROM DL
6x
|
MRS-BD.BD-R
6x
|
MRS-BD.BD-R (LTH)
6x
|
MRS-BD.BD-R DL
6x
|
MRS-BD.BD-RE DL
4x
|
MRS-BD.BD-RE TL
6x
|
MRS-BD.M-DISC(BD) DL
6x
|
MRS-BD.M-DISC(BD) SL
4x
|
MRS-BD.M-DISC(BD) TL
24x
|
MRS-CD.CD-R
24x
|
MRS-CD.CD-RW
8x
|
MRS-DVD.DVD+R
8x
|
MRS-DVD.DVD+R DL
8x
|
MRS-DVD.DVD+RW
8x
|
MRS-DVD.DVD-R
8x
|
MRS-DVD.DVD-R DL
5x
|
MRS-DVD.DVD-RAM
8x
|
MRS-DVD.DVD-RW
8x
|
OPTICAL MAX READ SPEED |
---|
BD-ROM DL
4x
|
BD-ROM DL (Ultra HD Bue-Ray)
6x
|
BD-ROM SL
6x
|
BD-ROM TL (Ultra HD Bue-Ray)
24x
|
CD-ROM
8x
|
DVD-ROM
8x
|
DVD-ROM DL
6x
|
MRS-BD.BD-R
6x
|
MRS-BD.BD-R (LTH)
6x
|
MRS-BD.BD-R DL
6x
|
MRS-BD.BD-RE DL
4x
|
MRS-BD.BD-RE TL
6x
|
MRS-BD.M-DISC(BD) DL
6x
|
MRS-BD.M-DISC(BD) SL
4x
|
MRS-BD.M-DISC(BD) TL
24x
|
MRS-CD.CD-R
24x
|
MRS-CD.CD-RW
8x
|
MRS-DVD.DVD+R
8x
|
MRS-DVD.DVD+R DL
8x
|
MRS-DVD.DVD+RW
8x
|
MRS-DVD.DVD-R
8x
|
MRS-DVD.DVD-R DL
5x
|
MRS-DVD.DVD-RAM
8x
|
MRS-DVD.DVD-RW
8x
|
OPTICAL MAX WRITE SPEED | |
---|---|
BD-R QL.Write Speed
4x
|
DVD-RW
6x
|
DVD+RW
8x
|
MWS-BD.BD-R
6x
|
MWS-BD.BD-R DL
6x
|
MWS-BD.BD-RE
2x
|
MWS-BD.BD-RE DL
2x
|
MWS-BD.BD-RE TL
2x
|
MWS-BD.BD-R (LTH)
6x
|
MWS-BD.BD-R TL
4x
|
MWS-BD.M-DISC(BD) DL
6x
|
MWS-BD.M-DISC(BD) SL
4x
|
MWS-BD.M-DISC(BD) TL
4x
|
MWS-CD.CD-R
24x
|
MWS-CD.CD-RW
24x
|
MWS-DVD.DVD-R
8x
|
MWS-DVD.DVD+R
8x
|
MWS-DVD.DVD-RAM
5x
|
MWS-DVD.DVD-R DL
6x
|
MWS-DVD.DVD+R DL
6x
|
MWS-DVD.M-DISC(DVD)
4x
|
OPTICAL MAX WRITE SPEED |
---|
BD-R QL.Write Speed
4x
|
DVD-RW
6x
|
DVD+RW
8x
|
MWS-BD.BD-R
6x
|
MWS-BD.BD-R DL
6x
|
MWS-BD.BD-RE
2x
|
MWS-BD.BD-RE DL
2x
|
MWS-BD.BD-RE TL
2x
|
MWS-BD.BD-R (LTH)
6x
|
MWS-BD.BD-R TL
4x
|
MWS-BD.M-DISC(BD) DL
6x
|
MWS-BD.M-DISC(BD) SL
4x
|
MWS-BD.M-DISC(BD) TL
4x
|
MWS-CD.CD-R
24x
|
MWS-CD.CD-RW
24x
|
MWS-DVD.DVD-R
8x
|
MWS-DVD.DVD+R
8x
|
MWS-DVD.DVD-RAM
5x
|
MWS-DVD.DVD-R DL
6x
|
MWS-DVD.DVD+R DL
6x
|
MWS-DVD.M-DISC(DVD)
4x
|
PRODUCT PERFORMANCE | |
---|---|
Data Buffer
4 MB
|
Mounting Orientation
The drive can only be used on a horizontal surface (desk, table, etc.).
|
PRODUCT PERFORMANCE |
---|
Data Buffer
4 MB
|
Mounting Orientation
The drive can only be used on a horizontal surface (desk, table, etc.).
|
READ SUPPORT | |
---|---|
Read Support.BD
Ultra HD Blu-ray(BD-ROM DL、BD-ROM TL)、BD-ROM、BD-ROM DL、BD-R、BD-R DL、BD-R TL、BD-R QL、BD-RE、BD-RE DL、BD-RE TL、BD-R LTH、M-DISC(BD)SL、M-DISC(BD)DL、M-DISC(BD)TL
|
Read Support.CD
CD-ROM、CD-ROM XA、Photo CD、Video CD、CD-DA⁴、CD-Extra、CD-Text、CD-R、CD-RW
|
Read Support.DVD
DVD-ROM、DVD-ROM DL、DVD-Video、DVD-R、DVD-R DL、DVD-RW、DVD+R、DVD+R DL、DVD+RW、DVD-RAM³、M-DISC(DVD)
|
READ SUPPORT |
---|
Read Support.BD
Ultra HD Blu-ray(BD-ROM DL、BD-ROM TL)、BD-ROM、BD-ROM DL、BD-R、BD-R DL、BD-R TL、BD-R QL、BD-RE、BD-RE DL、BD-RE TL、BD-R LTH、M-DISC(BD)SL、M-DISC(BD)DL、M-DISC(BD)TL
|
Read Support.CD
CD-ROM、CD-ROM XA、Photo CD、Video CD、CD-DA⁴、CD-Extra、CD-Text、CD-R、CD-RW
|
Read Support.DVD
DVD-ROM、DVD-ROM DL、DVD-Video、DVD-R、DVD-R DL、DVD-RW、DVD+R、DVD+R DL、DVD+RW、DVD-RAM³、M-DISC(DVD)
|
WRITE SUPPORT | |
---|---|
Write Support.BD
BD-R、BD-R DL、BD-R TL、BD-R QL、BD-RE、BD-RE DL、BD-RE TL、BD-R LTH、M-DISC(BD)SL、M-DISC(BD)DL、M-DISC(BD)TL
|
Write Support.CD
CD-R、UltraSpeed+CD-RW、UltraSpeed CD-RW、HighSpeed CD-RW、CD-RW
|
Write Support.DVD
DVD-R²、DVD-R DL、DVD-RW、DVD+R、DVD+R DL、DVD+RW、HighSpeed DVD+RW、DVD-RAM³、M-DISC(DVD)
|
WRITE SUPPORT |
---|
Write Support.BD
BD-R、BD-R DL、BD-R TL、BD-R QL、BD-RE、BD-RE DL、BD-RE TL、BD-R LTH、M-DISC(BD)SL、M-DISC(BD)DL、M-DISC(BD)TL
|
Write Support.CD
CD-R、UltraSpeed+CD-RW、UltraSpeed CD-RW、HighSpeed CD-RW、CD-RW
|
Write Support.DVD
DVD-R²、DVD-R DL、DVD-RW、DVD+R、DVD+R DL、DVD+RW、HighSpeed DVD+RW、DVD-RAM³、M-DISC(DVD)
|
* Meeting minimum system requirements does not guarantee operation as other system characteristics may impact performance. Also, system requirements may differ depending on the OS or applications used (for example, some applications may require greater processing power). Please consult with software or OS providers regarding any questions about the OS or applications.
** Maximum Write Speed (BD): When using a USB 2.0 port, BD writing/reading speed will not achieve 6X. To perform high-speed writing, please use media that supports high-speed writing
Region codes: The region code for the drive can be set only five times (including the initial setting). The region code selected with the fifth setting will be locked as the final region code. Accordingly, take care when changing this code.
DVD discs that do not have a region code set can be played on players with any region code setting.
¹HDCP (High-bandwidth Digital Content Protection) display device is required only for playback of high-definition copy protected content (for example, a Hollywood Blu-ray title). For such content, the connection between the PC and the display device must be made using a digital DVI, HDMI, or DisplayPort cable.
²This product supports writing to DVD-R Version 2.0 for General. It cannot write to DVD-R for Authoring 3.95GB or 4.7GB.
³This product is compatible with cartridge-less DVD-RAM Version 2.0/2.1/2.2 only.
⁴New Maxi is not supported.
⁶When using a USB 2.0 port, BD writing/reading speed will not achieve 6X. To perform high-speed writing, please use media that supports high-speed writing.
Note: PureRead 4+, Advanced Quiet Drive Feature and Custom Eco function can be configured as well as enabled and disabled with the Pioneer BDR-XD08UMB-S Drive Utility. The utility is available for download from https://pioneer.jp/device_e/product-e/ibs/device_e/dev00001r_e.html
