Name: TS-G520
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-G520
Price: 45.0 USD
Availability: InStock

TS-G520

$45.00

$60.00

Find out if this product fits your vehicle

Select quantity

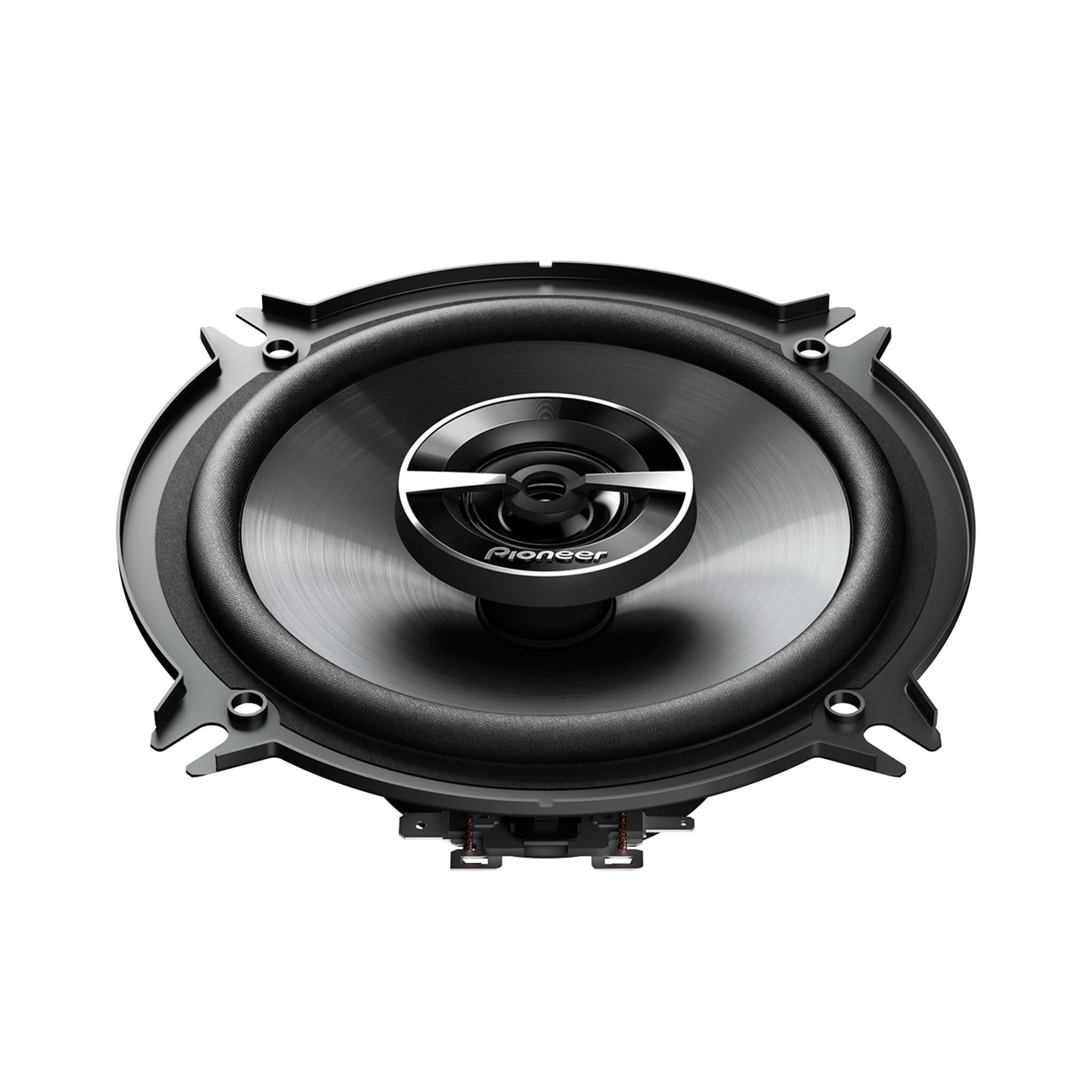

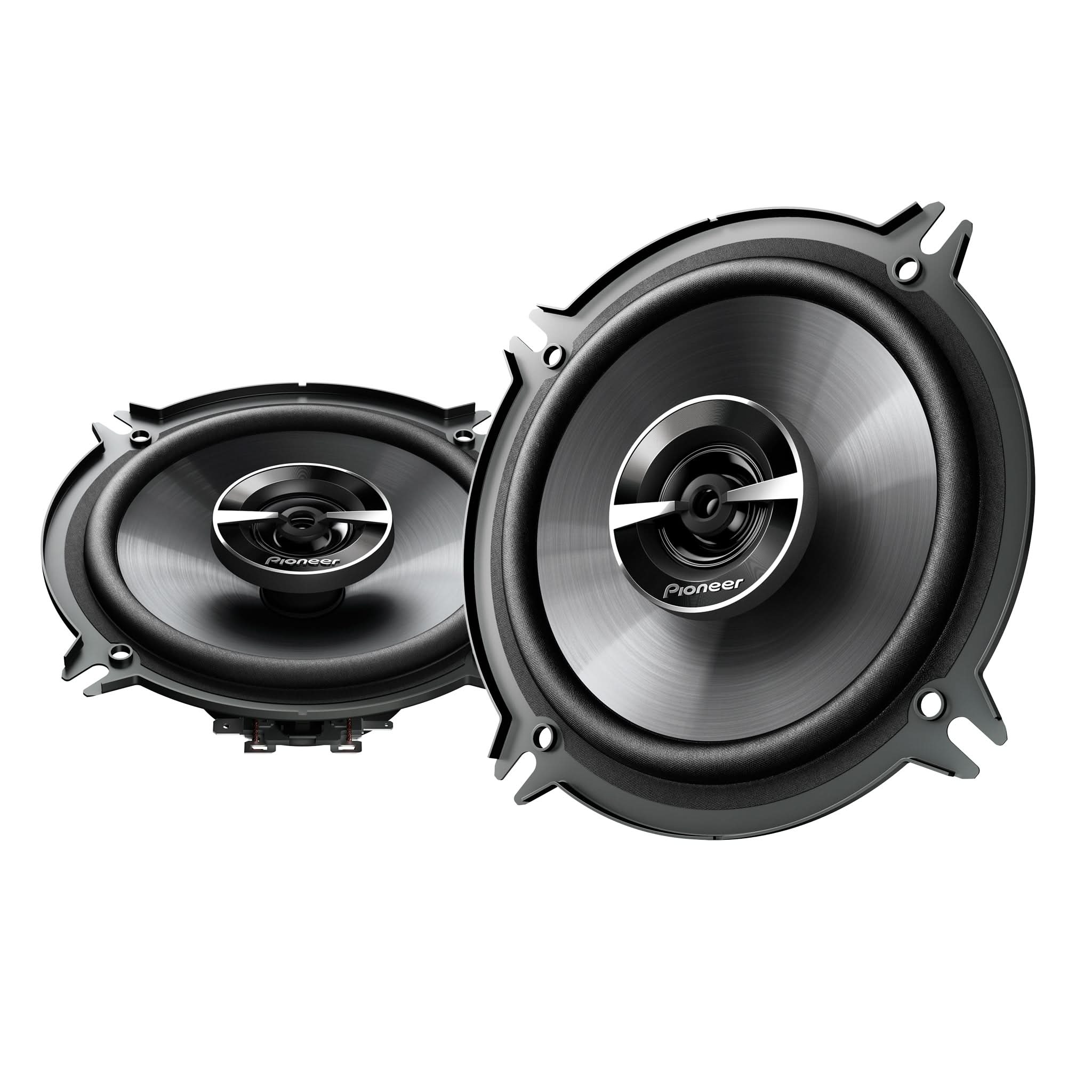

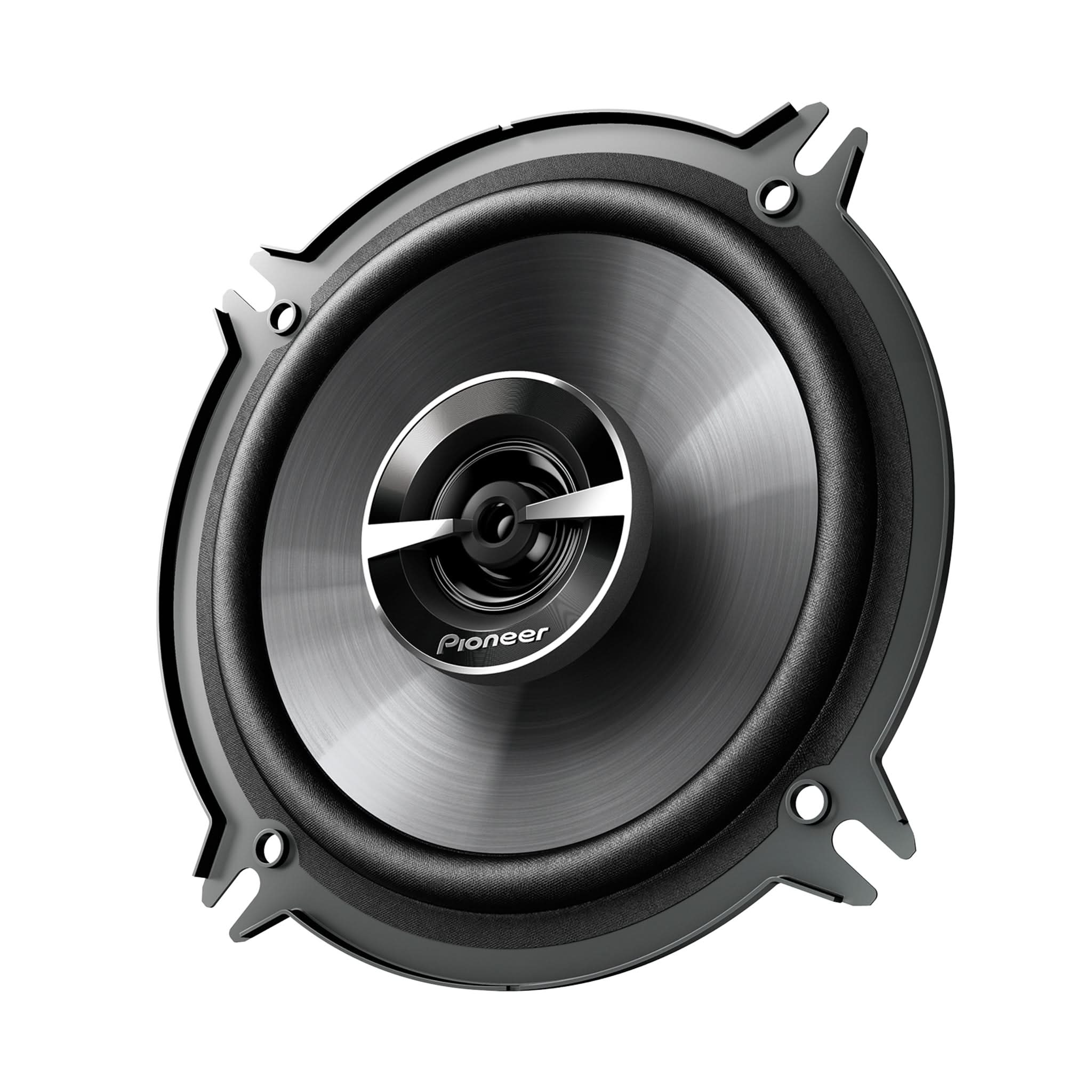

5 1/4" - 2-way, 250 W Max Power, IMPP™ cone, 30mm Tweeter - Coaxial Speakers (pair)

G-Series 5-1/4" 2-way car speakers

Injection molded polypropylene IMPP™ and mica-reinforced composite woofer cone

Rubber-coated cloth surround

30mm PET dome tweeter

Handles up to 35 W RMS (250 W peak power)

Frequency range: 33-24,000 Hz

Sensitivity: 88 dB

Overview
Specs
Knowledgebase
Manuals/Warranty

The Pioneer TS-G520 5-1/4" is a 2-way speaker system with 250 W maximum power handling/35 W continuous power handling. In addition, it has a 30mm Tweeter to enrich high-range reproduction. The speaker cone comprises of polypropylene IMPP™ cone and a rubber-coated cloth surround giving your music more impact and presence.

G-Series Speakers

This G-series speaker sets you up with quality materials and a durable design for a better listening experience. The sensitive yet strong polypropylene woofer and a rubber-coated cloth surround give your music more impact and presence. Its large balanced dome tweeter allows accuracy for high-range rich reproductions of all the details in your favorite vocal and instrumentation.

Mid-Range Dome

The mid-range is a 30mm PET Balanced Dome producing vibrant high frequencies, and its OFC shorting ring minimizes distortion when you turn up the volume.

P.F.S.S. spider

Progressive Flex Suspension System supports the voice coil effectively by dampening the large cone vibration and enhancing linearity of sound reproduction. Its soft part makes movement smooth and reproduces clear sound and at excessive input, while its hard part controls excessive vibration and prevents movement error.

Installation and sound to suite any car

These speakers are excellent choices to replace a bad set of factory speakers. Their two-way design features Pioneer’s extremely strong and lightweight Injected Molded Polypropylene™ (IMPP) with MICA composite cone woofer for improved sensitivity and reduced distortion. You don't get just basic, run-of-the-mill features either. The conex damper delivers higher power handling and deeper bass, and the Balanced dome tweeter reproduces highs with great performance and musicality. These speakers are designed with a shallow mounting depth for easy installation and custom-fit baskets for select Ford and Mazda vehicles.

FEATURES

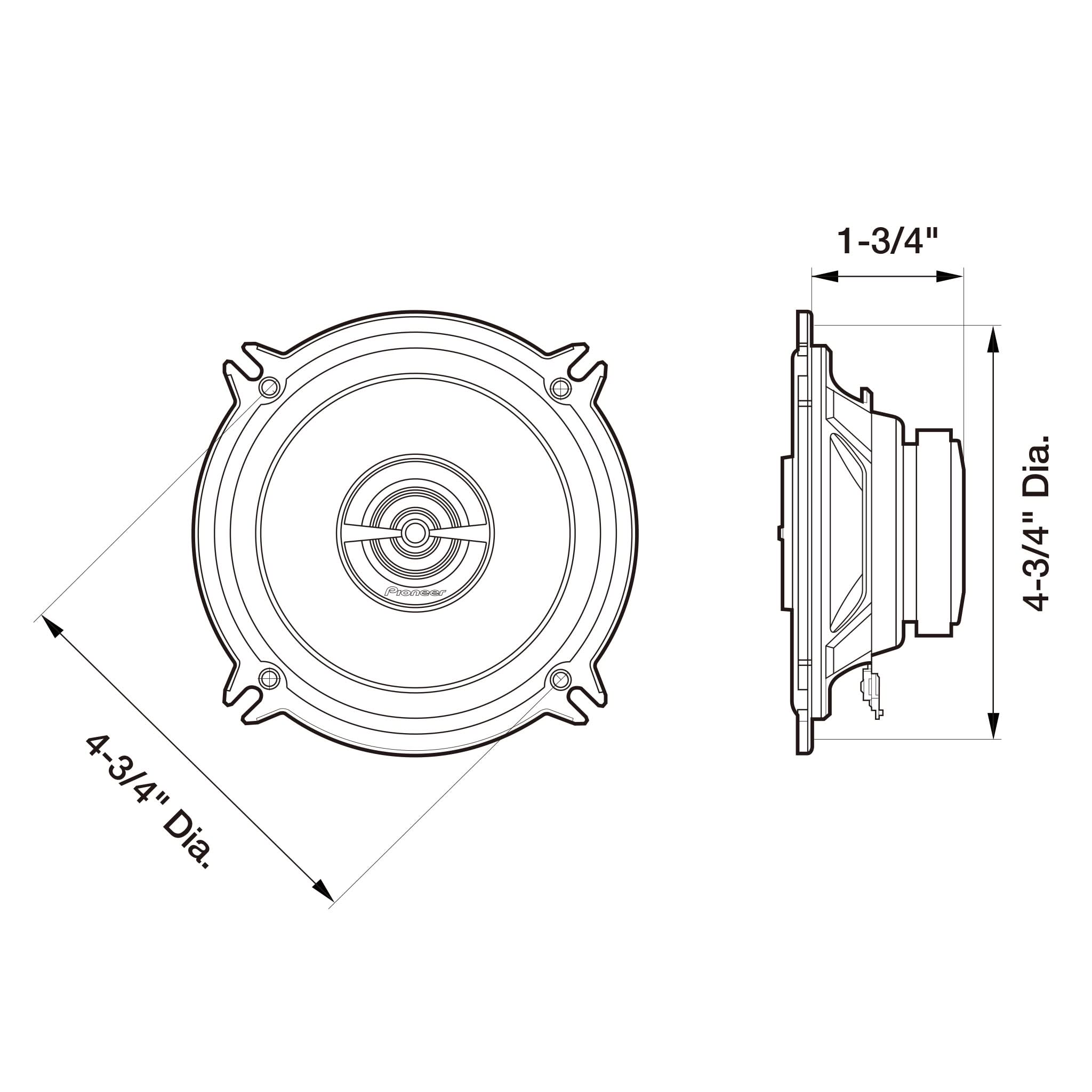

Mounting Depth 1-5/8 - Tweeter	Tweeter 30mm

FEATURES
Mounting Depth 1-5/8 - Tweeter
Tweeter 30mm

MATERIALS
Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP	Surround Material Rubber
Basket Material Stamped Metal	Surround Type rolled

MATERIALS
Cone Material Carbon and Mica reinforced Injected Molded Polypropylene - IMPP
Surround Material Rubber
Basket Material Stamped Metal
Surround Type rolled

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 35W	Frequency Response 33 Hz - 24 kHz
Maximum Peak Power Handling - Watts 250W	Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 88	System-Type Coaxial 2-way, Balance Dome - Tweeter

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 35W
Frequency Response 33 Hz - 24 kHz
Maximum Peak Power Handling - Watts 250W
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 88
System-Type Coaxial 2-way, Balance Dome - Tweeter
