Name: TS-6900PRO
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-6900PRO
Price: 105.3 USD
Availability: InStock

TS-6900PRO

$105.30

$130.00

Find out if this product fits your vehicle

Select quantity

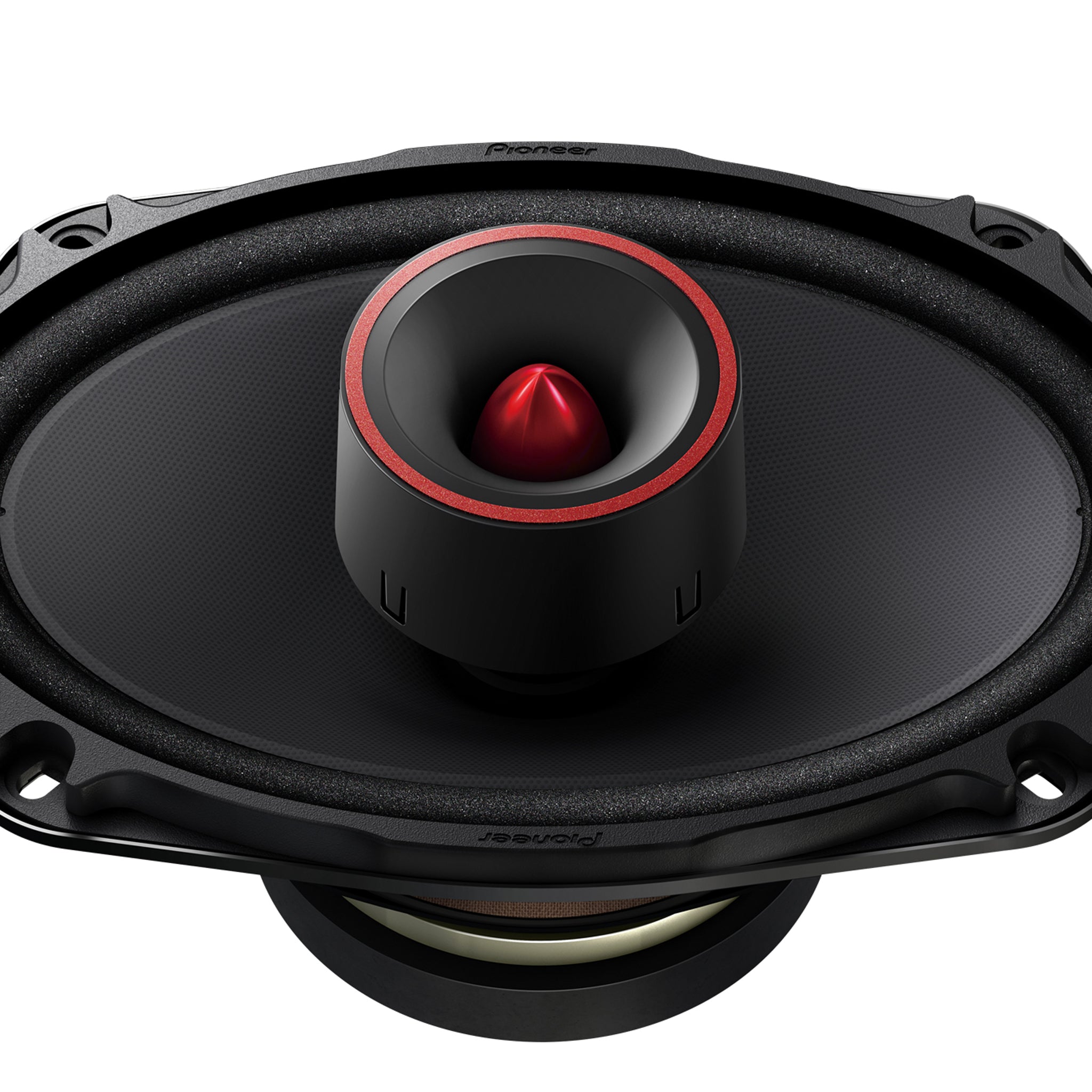

6" x 9" - 2-way 600 W Max Power, 72mm Bullet Tweeter and Blended Pulp Cone - PRO Series Coaxial Speakers (pair)

600 W Max Power (100 W Nominal)

6" x 9" Optimally Blended Pulp Cone Woofer

2-7/8" Titanium Diaphragm Bullet Tweeter

Designed for High Sensitivity and High Power Handling

P.R.O. Series - Pioneer Reference for Open Show car audio systems

Overview
Specs
Knowledgebase
Manuals/Warranty

The Pioneer Reference for Open Show series of speakers are designed specifically for those looking to produce serious sound pressure levels. Inspired by Pioneer’s history of record-breaking SPL competition, the new P.R.O. Series line of speakers is constructed with the street enthusiast in mind. With an emphasis on efficiency and power handling, the P.R.O. series lineup consists of bullet tweeters, mid bass drivers, and a subwoofer that can be mixed and matched to deliver impressive output, without requiring an impressive investment. The TS-6900PRO 6" x 9" High Efficiency 2-way Coaxial Speaker features 600 W Max Power (100 W Nominal) handling, a coaxially mounted 2-7/8" bullet tweeter, an optimally blended pulp woofer cone, and a motor and basket structure designed for high sensitivity and high power handling.

P.R.O

The Pioneer Reference for Open Show series of speakers is designed specifically for those looking to produce some serious sound pressure levels. Inspired by Pioneer’s history of record-breaking SPL competition, the new P.R.O. series line of speakers is constructed with the street enthusiast in mind. With an emphasis on efficiency and power handling, the P.R.O. series lineup consists of bullet tweeters, mid bass drivers, and a subwoofer that can be mixed and matched to deliver impressive output, without requiring an impressive investment.

Pure Power

This mid-bass driver delivers the perfect balance of power handling and output to compliment the crisp highs from the bullet tweeters. Anchored by high strength, stamped steel frames, the mid bass drivers feature lightweight blended pulp cones suspended by a corrugated surround and motivated by oversized magnets resulting in copious amounts of sensitivity, excursion, and power handling.

FEATURES
Cut Out dimensions 8-3/4 x 6	Mounting Depth 3-1/2
Tweeter 72mm

FEATURES
Cut Out dimensions 8-3/4 x 6
Mounting Depth 3-1/2
Tweeter 72mm

MATERIALS
Cone Material Blended Pulp	Surround Material Urethane
Basket Material Metal	Magnet Weight 20.1 oz - Speaker,3.5 oz - Tweeter
Voice Coil wire Copper	Surround Type Rolled
Magnet Material Ferrite - Speaker,Ferrite - Tweeter	Damper Aramid Fiber

MATERIALS
Cone Material Blended Pulp
Surround Material Urethane
Basket Material Metal
Magnet Weight 20.1 oz - Speaker,3.5 oz - Tweeter
Voice Coil wire Copper
Surround Type Rolled
Magnet Material Ferrite - Speaker,Ferrite - Tweeter
Damper Aramid Fiber

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 100W	Crossover Frequency 4500 Hz
Frequency Response 29 Hz to 40 kHz	Maximum Peak Power Handling - Watts 600W
Nominal Impedance - Ohm 4-Ohm	Sensitivity (1W/1m) 92 dB
System-Type Coaxial 2-way, Bullet - Tweeter

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 100W
Crossover Frequency 4500 Hz
Frequency Response 29 Hz to 40 kHz
Maximum Peak Power Handling - Watts 600W
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 92 dB
System-Type Coaxial 2-way, Bullet - Tweeter

Instruction Manual ()
Product Warranty ()

TS-6900PRO

$105.30

$130.00

Car Fit Guide Provided by

Guide provided for reference but cannot be guaranteed.
