Pioneer Exclusive Luminous Bar
The Pioneer Exclusive Luminous Bar offers an Enhanced Visual Mode for Navigation, providing clear and intuitive guidance support. It also features Music Synchronization Mode, which syncs lighting effects with your music for an immersive experience. Additionally, the Visual Support for Voice-Interaction ensures seamless communication with your car’s voice assistant. For added security, the Red LED Blinker activates while the car is parked, deterring potential intruders.

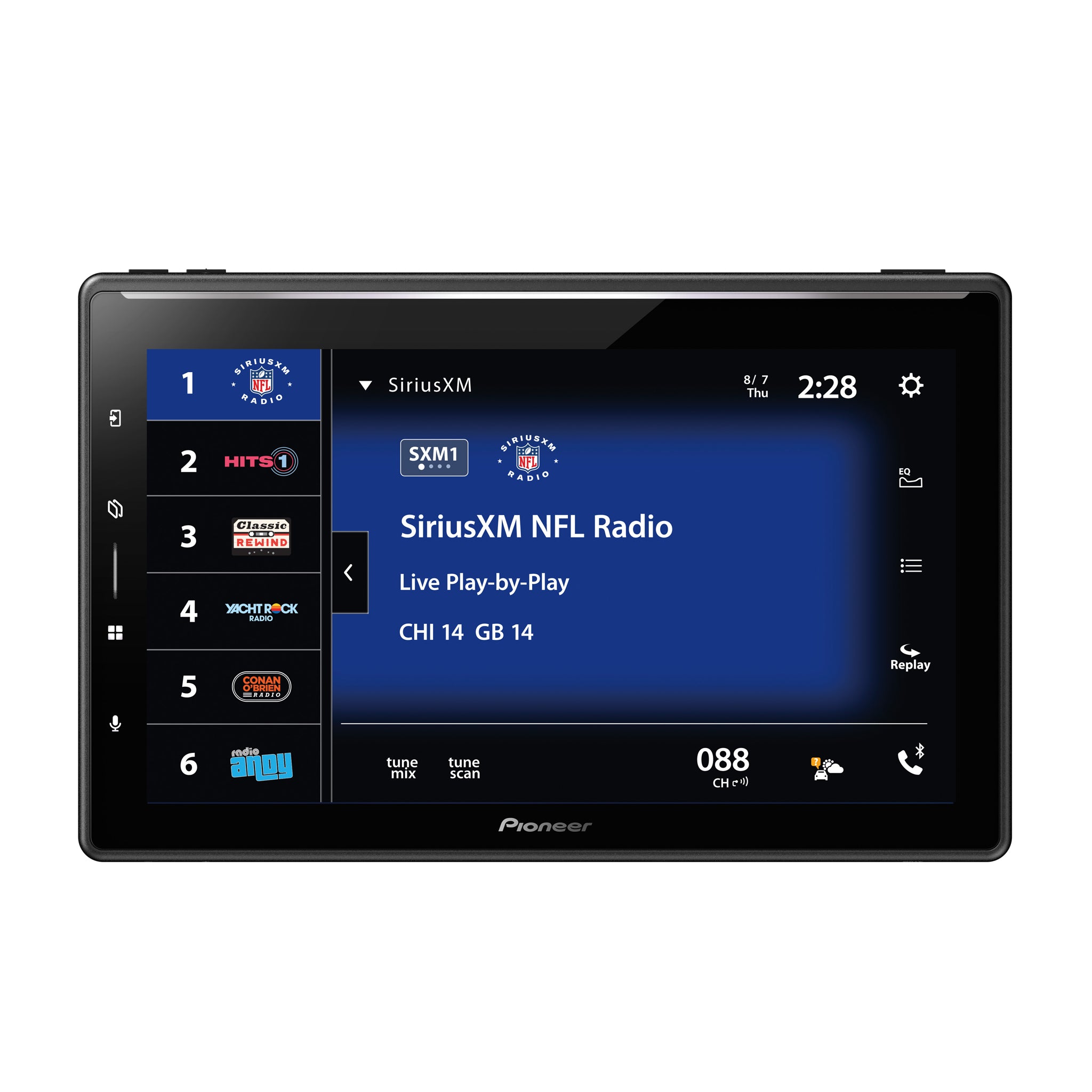

Floating Display with 10.1 Inch Large HD Screen
The all new floating display configuration allows a large display to be installed using a universal 1-DIN chassis. The floating screen offers horizontal, vertical and tilt adjustability to ensure the best fit and usability in the vehicle's dash.
PxLINK App
The PxLink app offers a range of features to enhance your audio experience. Easily change your background and customize shortcut keys for quick access to your favorite functions. It allows you to manage your quick access menu and utilize split-screen mode for multitasking. The dual screen mode lets you use your phone as a remote control, providing a seamless user experience. Additionally, the app enables you to receive notifications and information, access tips and information, and stay updated with the latest firmware updates.
Android Auto
This receiver also features Android Auto, which extends the Android platform into the car in a way that’s purpose-built for driving. Android Auto automatically brings you useful information and organizes it into simple cards that appear just when they’re needed. It’s designed to minimize distraction so you can stay focused on the road ahead. Android Auto is compatible with Android phones running Android 5.0 (Lollipop) or later. Android Auto may not be available on all devices.
Apple CarPlay
This receiver features Apple CarPlay, the smarter, safer and more fun way to use your iPhone® in the car. Apple CarPlay gives iPhone users an incredibly intuitive way to make calls, use Maps, listen to music, and verbally send and listen to messages with just a word or a touch. Apple CarPlay requires iPhone 5 device or newer with the latest version of iOS.
Wireless connectivity
This receiver supports a cable free connection between your smartphone and the receiver using Wi-Fi® wireless connectivity. Now compatible with both Android Auto Wireless (available on Google Pixel and Nexus devices)¹ and Android Auto over USB, the receiver makes it easier than ever to connect. Android Auto¹ makes it easier to access your favorite navigation, media and communication apps on the road while minimizing distractions. Compatibility with Apple CarPlay supports connecting to an iPhone® device using either a wireless connection or a wired USB connection. Now you no longer need to worry about taking your smartphone out of your bag or your pocket before you get into your car. Additional fees may apply.
¹Android Auto Wireless or Android Auto may not be available on all devices. ²Video playback is enabled only when the vehicle is in park and the parking brake engaged.
QuickSwipe Access and Top Side Hard Buttons
Minimize distractions with the new direct access buttons located on the left side of the unit. Perform quick interactions like making calls, initiate voice actions, go to app screens, and return to the main menu in 1-click instead of 2 to 3 times more interactions. Also included physical buttons on top (Vol-, Vol+, Mute)
Hands free Bluetooth
This NEX Receiver makes hands-free phone calls simple. Pioneer’s included external microphone provides crystal clear sound. Stream music, podcasts, audiobooks, and more from your compatible phone or other Bluetooth® devices.
RDS Radio and HD Radio
Combining RDS (Radio Data System) with HD Radio offer an exceptional listening experience. RDS provides useful information like station identification, song titles, and traffic updates, enhancing the traditional FM radio experience. When paired with HD Radio, which delivers crystal-clear digital sound and additional channels, listeners get the best of both worlds.
LIGHT and DARK MODE
Light Mode will make the receiver screen much easier to see when sunlight is being reflected in the car. The receiver will automatically switch between light/dark mode at a set time, or when your vehicles headlights turn on/off. This can also be controlled manually.
Split-Screen Mode
With Split-Screen mode you can simultaneously display and control both the Apple CarPlay UI and the receiver’s menu for your secondary source at the same time, on one screen. This function is useful when you want to access your music content (i.e. AM/FM Tuner or USB) while navigating through Apple CarPlay without having to toggle back and forth.
Smartphone Connectivity with Vozsis paired with Amazon Alexa
The Pioneer Vozsis with Alexa smartphone app available for both iOS and Android OS devices to bring Alexa capability to your compatible Weblink enabled in-dash receiver. The Vozsis with Alexa and Weblink® Host app make using Alexa voice service in your car simple – just tap-and-ask, and Alexa will respond.

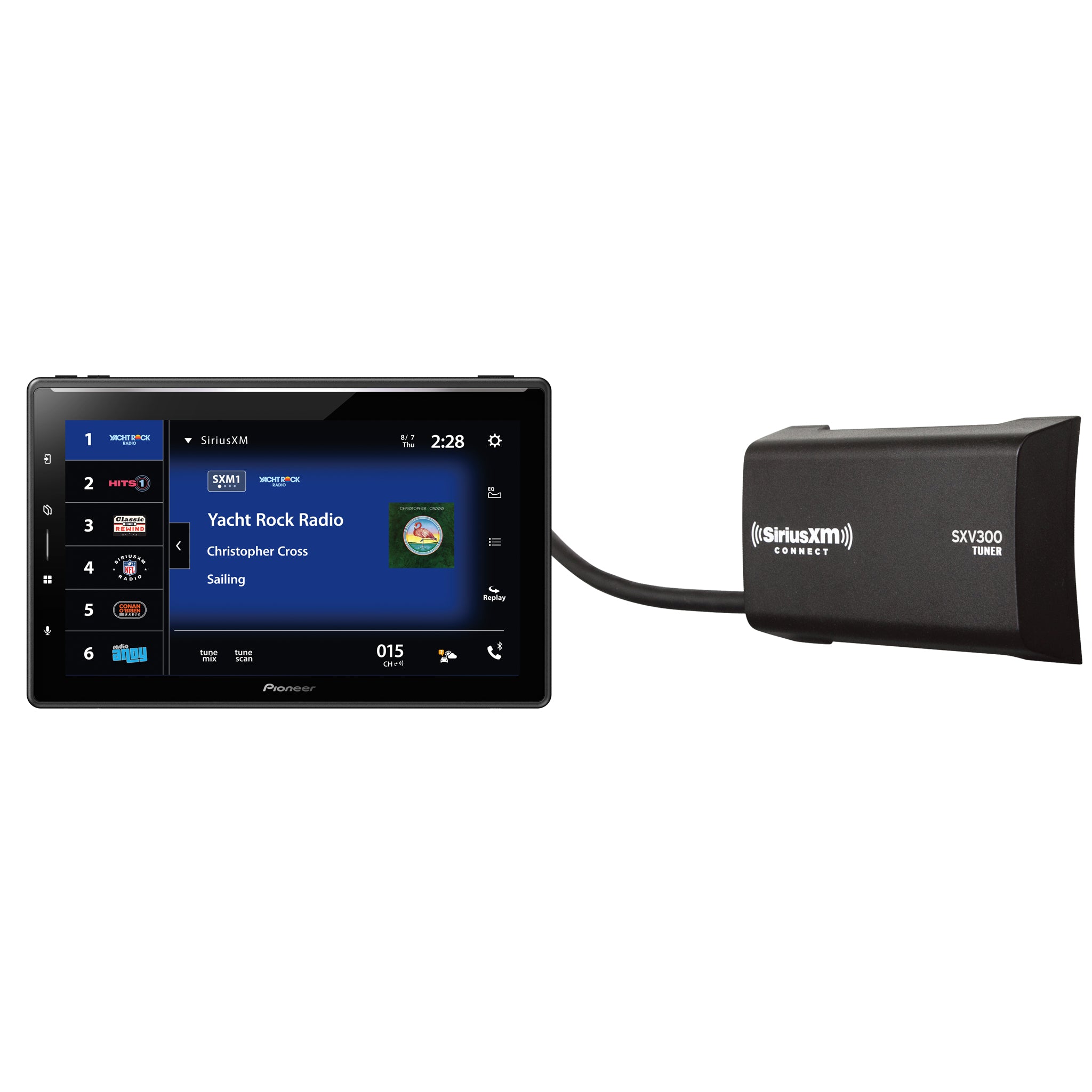

SiriusXM Ready
Your Favorite Stations Wherever You Go, Wherever you are, this Receiver is SiriusXM- Ready® so you can get over 140 channels, including commercial-free music, plus the best sports and live events, comedy, news, exclusive talk, and entertainment. SiriusXM programming is received through the SiriusXM Connect Vehicle Tuner (SiriusXM SXV300 Tuner sold separately, SiriusXM subscription required). To learn more or to purchase the tuner, visit SiriusXM.
iDatalink Maestro
When connected to iDatalink-compatible Pioneer radios, it enhances your multimedia experience with exclusive features like gauges, vehicle information, parking assistance, climate control, and radar detection screens. Plus, it retains all the factory infotainment features you love, such as steering wheel controls, voice commands, and more.
Metra Axxess
The Metra Axxess Data Interface (sold separately) allows retaining and adjustments of your personalized features and customized menu settings through the receiver.
The Metra Axxess Data Interface with plug-n-play harness allows vehicle information and customized settings to be displayed on the receiver. Interfacing with the Metra Axxess offers smart vehicle integration solutions to retain and control settings that would otherwise be lost after replacing the factory head unit, including HVAC functions, audio controls on the steering wheel, gauges, and more.
Sound quality for all
Your car and your music are as unique as you are. With a Pioneer NEX in-dash receiver, sound quality features like built-in EQ and Time Alignment, 13-Band Graphic Equalizer with touch panel swipe settings and built-in high/low pass crossover with adjustable points and slopes provide you with the controls to tailor the listening experience to your vehicle and listening preferences.
Back Up Camera Input Ready
Back Up Camera input enables you to add a rear-view camera, with the system automatically switching to a full-screen image of the rear view when the car is placed in reverse gear. The full-screen image returns to the source screen last in use when the vehicle is taken out of reverse gear.
*Rear visibility systems (backup cameras) are required under federal regulations in certain new vehicles according to a phase-in schedule that began on May 1, 2016. Owners of vehicles equipped with compliant rear visibility systems should not install or use this product in a way that alters or disables that system’s compliance with applicable regulations. If you are unsure whether your vehicle has a rear visibility system subject to these regulations, please contact the vehicle manufacturer or dealer.
Second Camera Input
The receiver has an additional input where you can add a second camera. The second camera view can be activated at any time and has many potential uses including monitoring a tow vehicle, providing a side view for better lane visibility. Downloading the latest firmware allows the camera to show inverse perspective mapping for additional installation flexibility. This feature comes in handy when positioning a second camera on another area of the vehicle for a mirror imaging perspective from left to right.
HEAD UNIT AUDIO | |
---|---|
Advanced Sound Retriever
Mode-1/Mode-2/Off
|
Audio Bass Boost
Yes
|
Auto Sound Levelizer (ASL)
Yes
|
Balance
Yes
|
Built-in Amplifier
MOSFET 50 W x 4
|
Crossover Network Mode
HPF/Band Pass/LPF
|
Crossover Standard Mode
HPF/LPF
|
Customizable Graphic Equalizer
13 Band
|
DA Converter
Pioneer Dual-Core 48-Bit DSP/DAC
|
Digital Signal Processor
Built-in Pioneer Dual-Core 48-Bit DSP/DAC
|
Dynamic Bass Enhancer
Six Levels
|
Easy EQ (EEQ) Preset Equalizer
Yes
|
Fade
Yes
|
Listening Position Selector
Yes
|
Loudness
High/Mid/Low/Off
|
Speaker Output
4-ch
|
Spectrum Analyzer
Yes (Luminous Bar & Background image)
|
Subwoofer Control
Yes
|
Time Alignment
Manual
|
HEAD UNIT AUDIO |
---|
Advanced Sound Retriever
Mode-1/Mode-2/Off
|
Audio Bass Boost
Yes
|
Auto Sound Levelizer (ASL)
Yes
|
Balance
Yes
|
Built-in Amplifier
MOSFET 50 W x 4
|
Crossover Network Mode
HPF/Band Pass/LPF
|
Crossover Standard Mode
HPF/LPF
|
Customizable Graphic Equalizer
13 Band
|
DA Converter
Pioneer Dual-Core 48-Bit DSP/DAC
|
Digital Signal Processor
Built-in Pioneer Dual-Core 48-Bit DSP/DAC
|
Dynamic Bass Enhancer
Six Levels
|
Easy EQ (EEQ) Preset Equalizer
Yes
|
Fade
Yes
|
Listening Position Selector
Yes
|
Loudness
High/Mid/Low/Off
|
Speaker Output
4-ch
|
Spectrum Analyzer
Yes (Luminous Bar & Background image)
|
Subwoofer Control
Yes
|
Time Alignment
Manual
|
HEAD UNIT BLUETOOTH | |
---|---|
Advanced Audio Distribution Profile (A2DP)
Yes
|
AVRCP
1.6
|
Built-in Bluetooth®
Yes
|
Dual Phone Connection
Yes
|
Hands-Free
Yes
|
Hands Free Version
1.6
|
Microphone Included
Included
|
Secure Simple Pairing (SSP)
Yes
|
Serial Port Profile (SPP)
Yes
|
Phone Registation
5-phone
|
HEAD UNIT BLUETOOTH |
---|
Advanced Audio Distribution Profile (A2DP)
Yes
|
AVRCP
1.6
|
Built-in Bluetooth®
Yes
|
Dual Phone Connection
Yes
|
Hands-Free
Yes
|
Hands Free Version
1.6
|
Microphone Included
Included
|
Secure Simple Pairing (SSP)
Yes
|
Serial Port Profile (SPP)
Yes
|
Phone Registation
5-phone
|
HEAD UNIT DIGITAL MEDIA PLAYBACK | |
---|---|
Audio Playback via USB
MP3 Audio Playback, WMA Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res)
|
Audio Video Playback via USB
.avi, .mpg/mpeg, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts
|
Image Display Via USB
BMP, JPEG, PNG
|
HEAD UNIT DIGITAL MEDIA PLAYBACK |
---|
Audio Playback via USB
MP3 Audio Playback, WMA Audio Playback, WAV Audio Playback (Hi-Res), AAC Audio Playback, FLAC Audio Playback (Hi-Res)
|
Audio Video Playback via USB
.avi, .mpg/mpeg, .mp4, .3gp, .mkv, .flv, .wmv/.asf, .m4v, H.263, H.264, .ts/.m2ts/.mts
|
Image Display Via USB
BMP, JPEG, PNG
|
HEAD UNIT DISPLAY | |
---|---|
Back Light
LED
|
Brightness Control
Yes
|
Color Customization
5 display colors, 112 key colors
|
Device (Non-DIN/Modular Unit)
1-DIN, Floating
|
Dimmer
Automatic with vehicle illumination, Timer Controlled, Manual
|
Display Off Mode
Yes
|
Home Screen Customization
Yes
|
Monitor Mechanism
Adjustable, Floating
|
Resolution
HD (1280 x 720)
|
Screen Size/Aspect Ratio
10.1/16:9
|
Touch Screen
Capacitive
|
HEAD UNIT DISPLAY |
---|
Back Light
LED
|
Brightness Control
Yes
|
Color Customization
5 display colors, 112 key colors
|
Device (Non-DIN/Modular Unit)
1-DIN, Floating
|
Dimmer
Automatic with vehicle illumination, Timer Controlled, Manual
|
Display Off Mode
Yes
|
Home Screen Customization
Yes
|
Monitor Mechanism
Adjustable, Floating
|
Resolution
HD (1280 x 720)
|
Screen Size/Aspect Ratio
10.1/16:9
|
Touch Screen
Capacitive
|
HEAD UNIT EXPANDABILITY | |
---|---|
Audio Video Inputs
Input 1 - Backup Camera Dedicated, Input 2 - AUX (Minijack), Input 3 - A/V or 2nd Camera
|
OEM Integration
iDatalink Maestro RR, iDatalink Maestro RR2, Metra Axxess
|
OTA Update Compatabile
Yes
|
Parking Assist Lines
Yes
|
USB
Single Rear Type-A (5 V, 1.5 A)
|
USB Direct Control for iPhone®
5s and newer
|
HEAD UNIT EXPANDABILITY |
---|
Audio Video Inputs
Input 1 - Backup Camera Dedicated, Input 2 - AUX (Minijack), Input 3 - A/V or 2nd Camera
|
OEM Integration
iDatalink Maestro RR, iDatalink Maestro RR2, Metra Axxess
|
OTA Update Compatabile
Yes
|
Parking Assist Lines
Yes
|
USB
Single Rear Type-A (5 V, 1.5 A)
|
USB Direct Control for iPhone®
5s and newer
|
HEAD UNIT GENERAL | |
---|---|
Detachable Face Security
Fixed
|
Multi-Language Display
English, French, Spanish Portuguese, Chinese (Simplified)
|
Remote Control
Wireless control with PxLink
|
Steering Wheel Control Ready (Adapter Sold Separately)
Yes
|
HEAD UNIT GENERAL |
---|
Detachable Face Security
Fixed
|
Multi-Language Display
English, French, Spanish Portuguese, Chinese (Simplified)
|
Remote Control
Wireless control with PxLink
|
Steering Wheel Control Ready (Adapter Sold Separately)
Yes
|
HEAD UNIT INTEGRATION | |
---|---|
Amazon Alexa
Paired with Pioneer Vozsis
|
Android Auto™
Wireless Connection or Wired USB Connection
|
Apple® CarPlay
Wireless Connection or Wired USB Connection
|
Mobile Operating System
AndroidApple iOS
|
Music Playback (MTP)
Yes
|
Pandora®
With Apple CarPlay or Android Auto
|
Pioneer App Compatibility
PxLink
|
Siri® Eyes Free (VR) (Internet Required)
iPhone Only
|
Spotify
With Apple CarPlay or Android Auto
|
Voice Control
Yes
|
Wifi
Tethering, WiFi Hotspot
|
Weblink
3
|
HEAD UNIT INTEGRATION |
---|
Amazon Alexa
Paired with Pioneer Vozsis
|
Android Auto™
Wireless Connection or Wired USB Connection
|
Apple® CarPlay
Wireless Connection or Wired USB Connection
|
Mobile Operating System
AndroidApple iOS
|
Music Playback (MTP)
Yes
|
Pandora®
With Apple CarPlay or Android Auto
|
Pioneer App Compatibility
PxLink
|
Siri® Eyes Free (VR) (Internet Required)
iPhone Only
|
Spotify
With Apple CarPlay or Android Auto
|
Voice Control
Yes
|
Wifi
Tethering, WiFi Hotspot
|
Weblink
3
|
HEAD UNIT NAVIGATION | |
---|---|
External GPS Antenna
Yes
|
HEAD UNIT NAVIGATION |
---|
External GPS Antenna
Yes
|
HEAD UNIT TUNER | |
---|---|
Best Station Memory
Yes
|
HD Radio™
Built InArtist ExperienceMulticasting
|
Hybrid Radio
Yes
|
Local Seek tuning
Yes
|
Presets
18 FM, 6 AM
|
RDS
Yes
|
SiriusXM-Ready™ (Tuner Sold Separately)
Yes
|
HEAD UNIT TUNER |
---|
Best Station Memory
Yes
|
HD Radio™
Built InArtist ExperienceMulticasting
|
Hybrid Radio
Yes
|
Local Seek tuning
Yes
|
Presets
18 FM, 6 AM
|
RDS
Yes
|
SiriusXM-Ready™ (Tuner Sold Separately)
Yes
|
PRODUCT PERFORMANCE | |
---|---|
Continuous Power Output
22 W x 4-Channel
|
Load Impedence Allowance
4 Ohm (4 Ohm to 8 Ohm Allowable)
|
Max Power Output
50 W x 4-ch 4 ohm
|
RCA Preamp Outputs
6-ch
|
RCA Preout Voltage
4V
|
RMS Power Output (CTA-2006)
14 W RMS x 4-ch 4 ohm
|
Signal to Noise
No
|
PRODUCT PERFORMANCE |
---|
Continuous Power Output
22 W x 4-Channel
|
Load Impedence Allowance
4 Ohm (4 Ohm to 8 Ohm Allowable)
|
Max Power Output
50 W x 4-ch 4 ohm
|
RCA Preamp Outputs
6-ch
|
RCA Preout Voltage
4V
|
RMS Power Output (CTA-2006)
14 W RMS x 4-ch 4 ohm
|
Signal to Noise
No
|
