TS-R690

Name: TS-R690
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-R690
Price: 80.0 USD
Availability: InStock

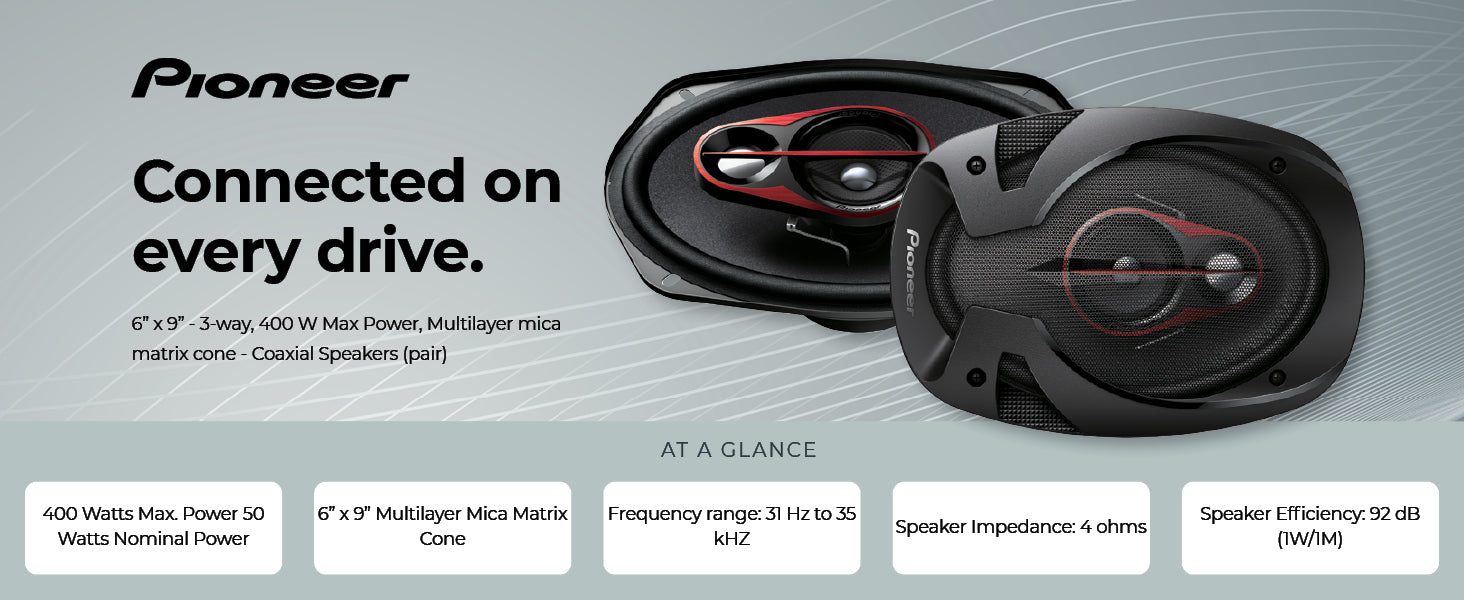

6" x 9" - 3-way, 400 W Max Power, Multilayer mica matrix cone - Coaxial Speakers (pair)

$80.00

Orders of $100 or more will receive FREE shipping!

Does it fit your car?

Features

400 W Max. Power / 50 W Nominal Power

6" x 9" Multilayer Mica Matrix Cone

Frequency range: 31Hz to 35kHZ

Speaker Impedance: 4 Ohms

Speaker Efficiency: 92 dB (1W/1M)

Overview
Specs
Knowledgebase
Manuals/Warranty

Features You'll Love.

Unleash powerful performance with the Pioneer TS-R690 3-way speaker, delivering up to 400 W of max power and engineered for rich, detailed sound. Featuring a bold full mesh cover with a striking red flange, a multilayer Mica matrix cone, and a shallow basket design. The TS-R690 is built for style, strength, and seamless installation.

R Series

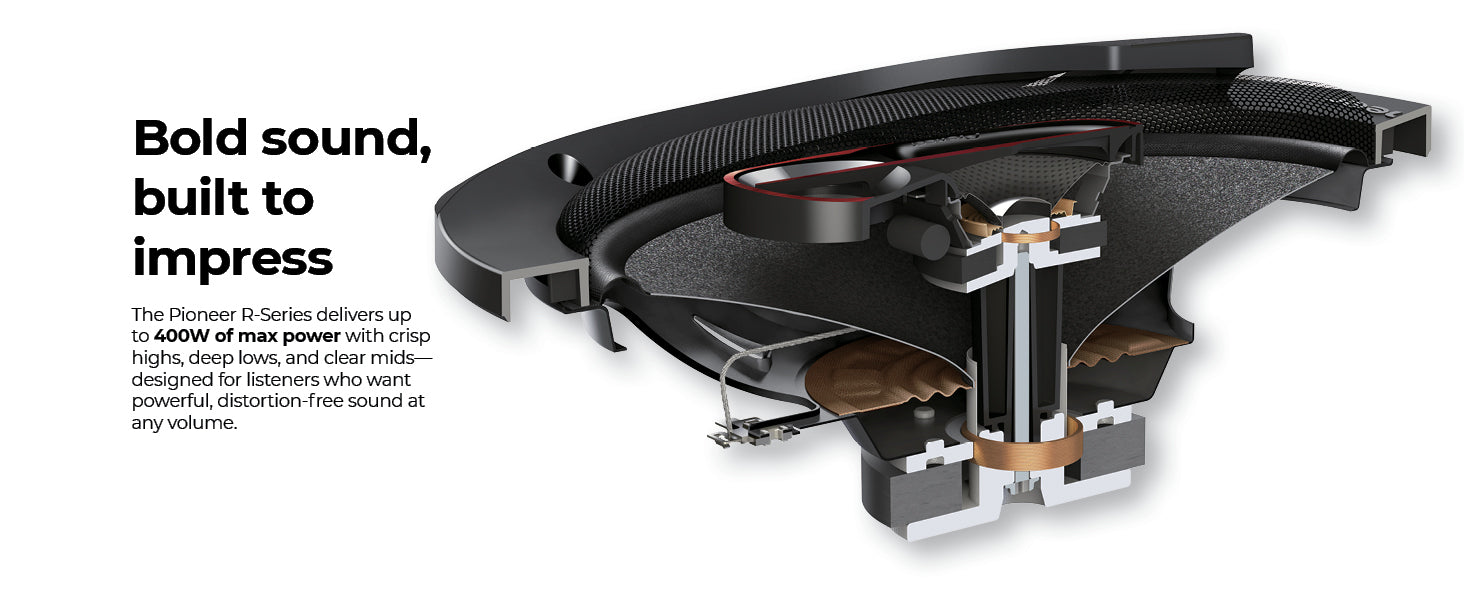

R-Series speakers are built to impress, delivering bold, dynamic sound with outstanding clarity and efficiency. Every note comes through crisp and clear, with minimal distortion, even at high volumes. Thanks to optimized sound dispersion, you’ll enjoy rich, immersive audio from virtually any listening angle. Designed for durability and long-lasting performance, these speakers also offer flexible installation options to fit into most vehicle. Whether you're upgrading your factory system or building a custom car audio setup, the R-Series brings powerful sound and premium quality to every drive.

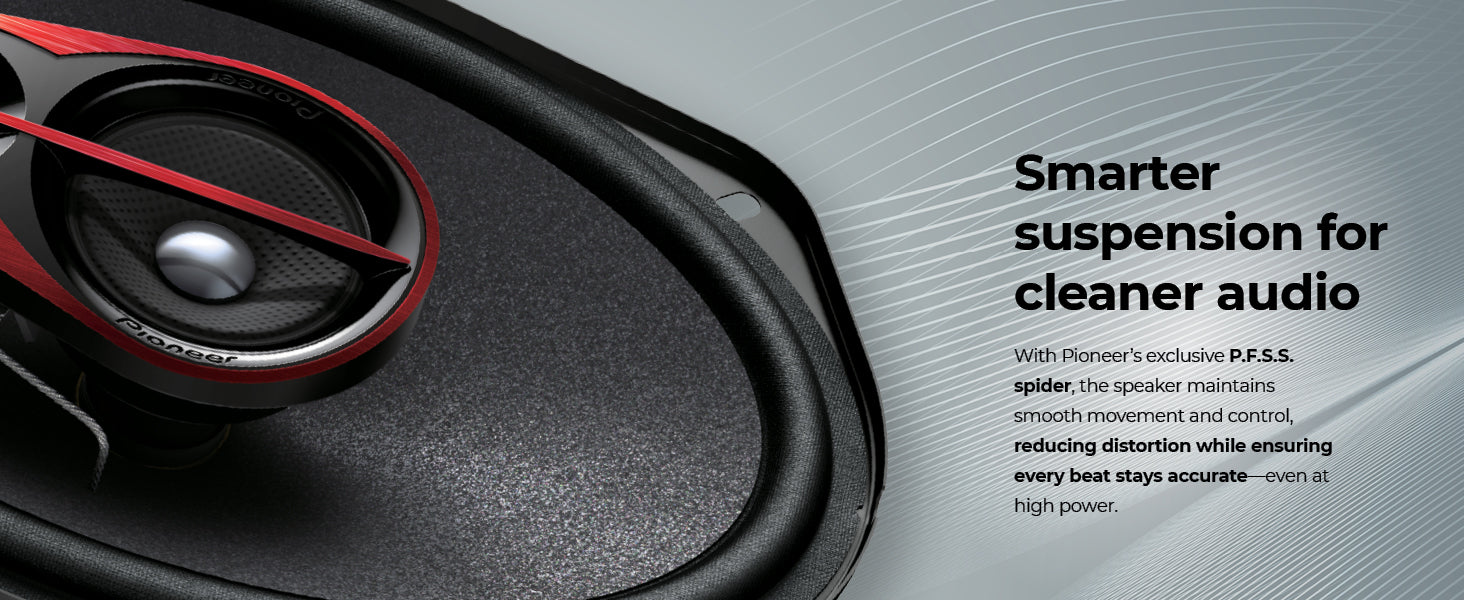

Pioneer exclusive P.F.S.S. spider

The Progressive Flex Suspension System (P.F.S.S.) effectively supports the voice coil by damping cone vibrations and improving the linearity of sound reproduction. Its soft part ensures smooth movement and clear sound even under high power, while its firmer part controls excessive vibrations and prevents unwanted movements that cause distortion. The goal is simple: to provide all the details of your music while maintaining control during the large excursions generated by the bass.

Loud & Aggressive Sound

Engineered for high-impact performance, it features a Mica Reinforced Cone that enhances movement speed and efficiency, delivering louder, clearer sound with remarkable precision. Whether you're cruising down the highway or stuck in traffic, this speaker fills your car with deep, aggressive sound.

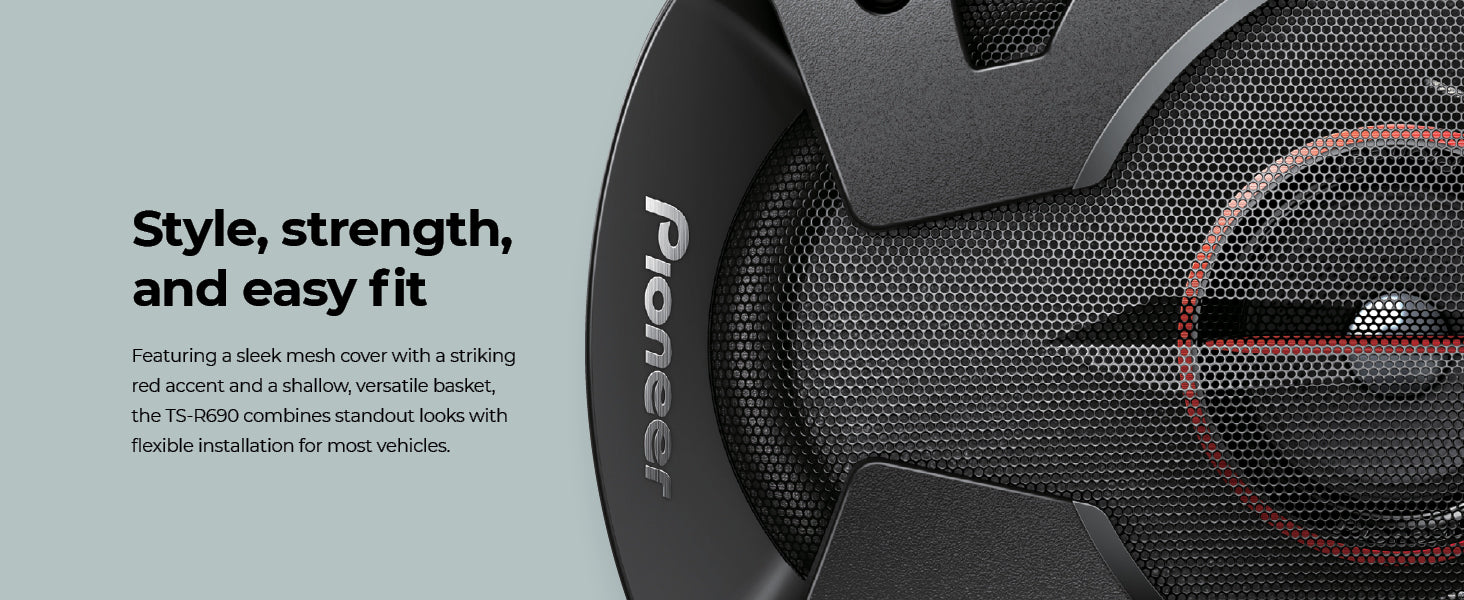

Installation Flexibility

Designed with versatility in mind, the TS-R car speakers offer flexible installation options to suit a wide range of vehicles. Thanks to their refined baskets and additional screw holes, these speakers can be mounted more easily and securely in various car models, even those with unconventional or tight-fitting spaces. Whether you're upgrading your factory system or customizing your ride, the TS-R speakers make the installation process easier and more adaptable.

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 50 W	Frequency Response 31Hz to 35kHZ
Maximum Peak Power Handling - Watts 400 W	Nominal Impedance - Ohm 4 Ohm
Sensitivity (1W/1m) 92 dB	System-Type Coaxial 3-way

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 50 W
Frequency Response 31Hz to 35kHZ
Maximum Peak Power Handling - Watts 400 W
Nominal Impedance - Ohm 4 Ohm
Sensitivity (1W/1m) 92 dB
System-Type Coaxial 3-way

FEATURES
Midrange Dimensions 2.25"	Mounting Depth 2.63"
Speaker Grill Included	Tweeter Dimensions 0.81"
Woofer Dimensions 6" x 9"

FEATURES
Midrange Dimensions 2.25"
Mounting Depth 2.63"
Speaker Grill Included
Tweeter Dimensions 0.81"
Woofer Dimensions 6" x 9"

MATERIALS
Basket Material Stamped Metal	Cone Material Multilayer Mica Matrix
Damper Cotton Aramid	Diaphragm Material Cellulose fiber
Magnet Material Ferrite	Magnet Weight 7.4 oz
Surround Material Light Weight Rubber Coated Cloth	Surround Type Rolled
Voice Coil Bobbin Glass Imide	Voice Coil wire Copper
Wire Terminals Lug Type

MATERIALS
Basket Material Stamped Metal
Cone Material Multilayer Mica Matrix
Damper Cotton Aramid
Diaphragm Material Cellulose fiber
Magnet Material Ferrite
Magnet Weight 7.4 oz
Surround Material Light Weight Rubber Coated Cloth
Surround Type Rolled
Voice Coil Bobbin Glass Imide
Voice Coil wire Copper
Wire Terminals Lug Type

Instruction Manual ()
Product Warranty ()
