Name: TS-D69F
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-D69F
Price: 160.0 USD
Availability: InStock

TS-D69F

$160.00

Find out if this product fits your vehicle

Select quantity

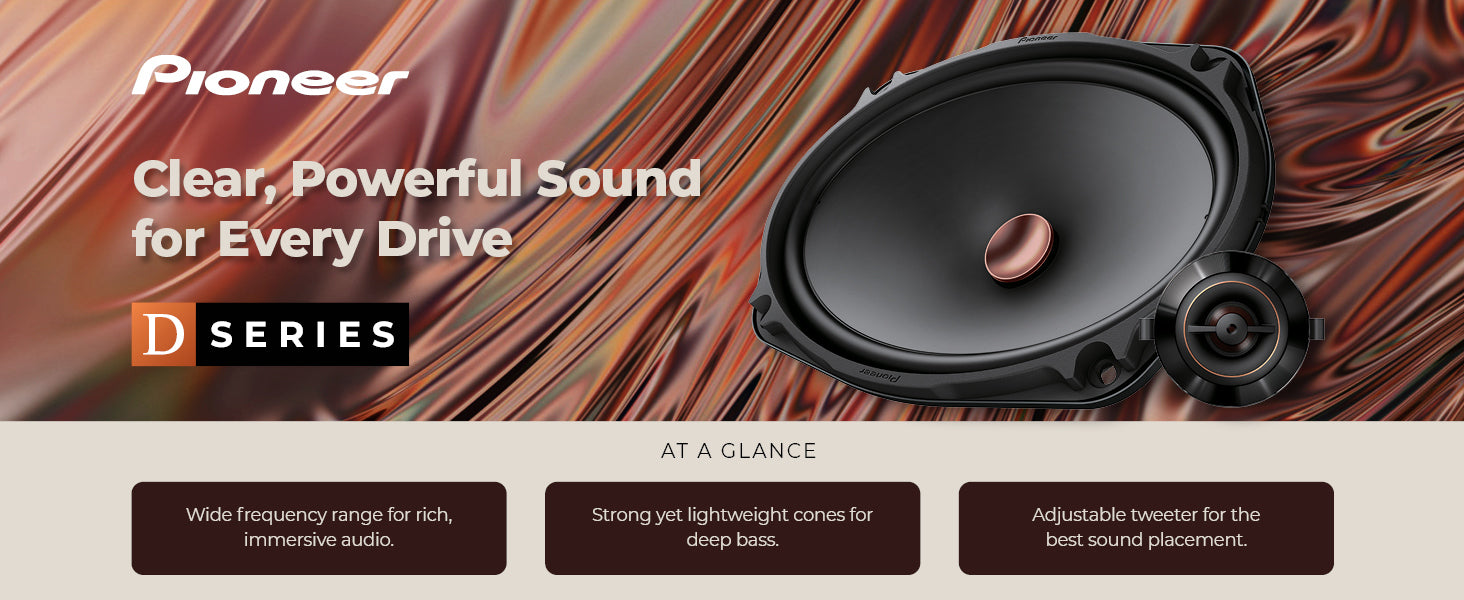

6” x 9” - 2-way, 330 W Max Power, Aramid Fiber IMPP™ cone, 26mm Polyester Dome Tweeter-Swivel Design - Coaxial Speakers (pair)

330 W Max Power (110 W Nominal)

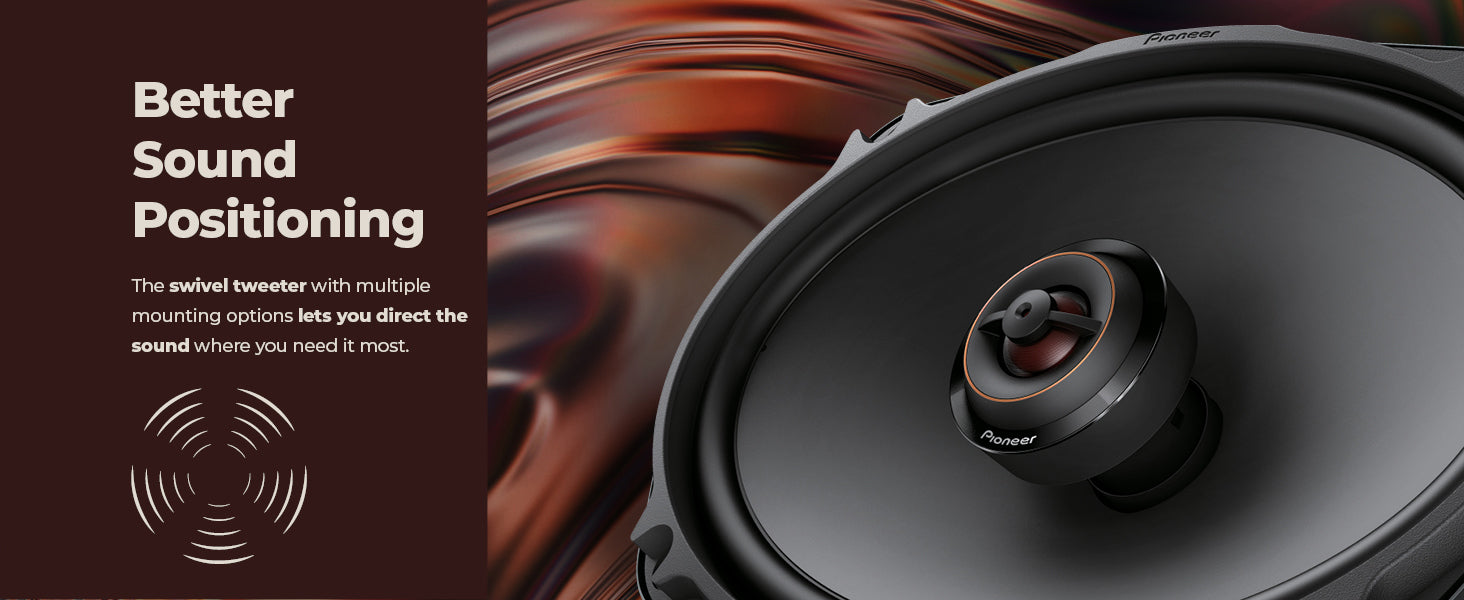

26mm Polyester Soft Dome Tweeter with Swivel Capability

Aramid Fiber Interlaced Injection Molded PolypropyleneIMPP™ Cone Construction

Universal Woofer Basket Design Expands Installation Flexibility for Maximum Bass and Sound Quality

Overview
Specs
Knowledgebase
Manuals/Warranty

The TS-D69F 6"x9" 2-way car speakers give you low distortion and unfailing performance, even under the harsh conditions of life in your car doors. This D Series polypropylene subwoofer IMPP™ cone is infused with strong aramid fibers, making it both durable and incredibly responsive for the best bass experience. A coated textile dome tweeter ensures excellent high-frequency performance for precise music playback.

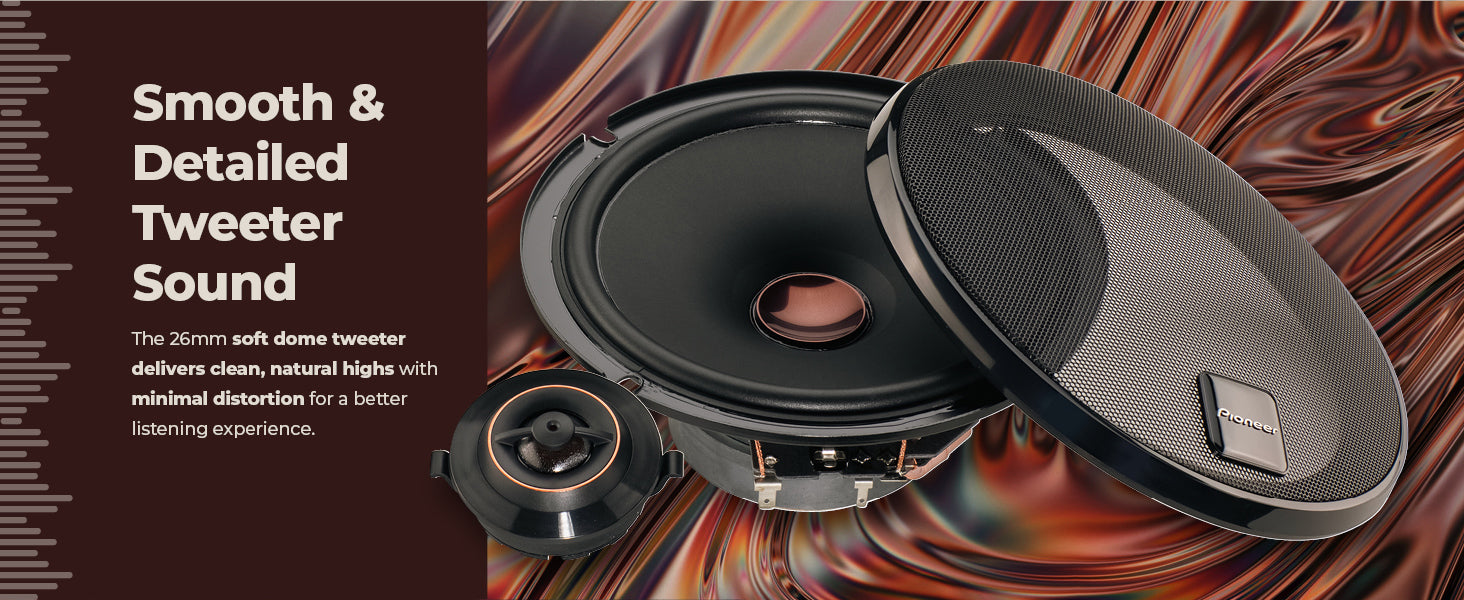

Tweeter - Soft Dome

Contoured from lightweight, resin-impregnated fibers of coated polyester fabric, the D tweeter delivers extended high-frequency performance. The 26mm diaphragm is very resistant to the harsh environmental conditions of the automotive interior (temperature, humidity, vibration, etc.), while maintaining its uniform hemispherical shape to reduce dome breakup due to excessive vibration at ultrasonic frequencies. The result is extremely low distortion levels and a smooth, natural sound.

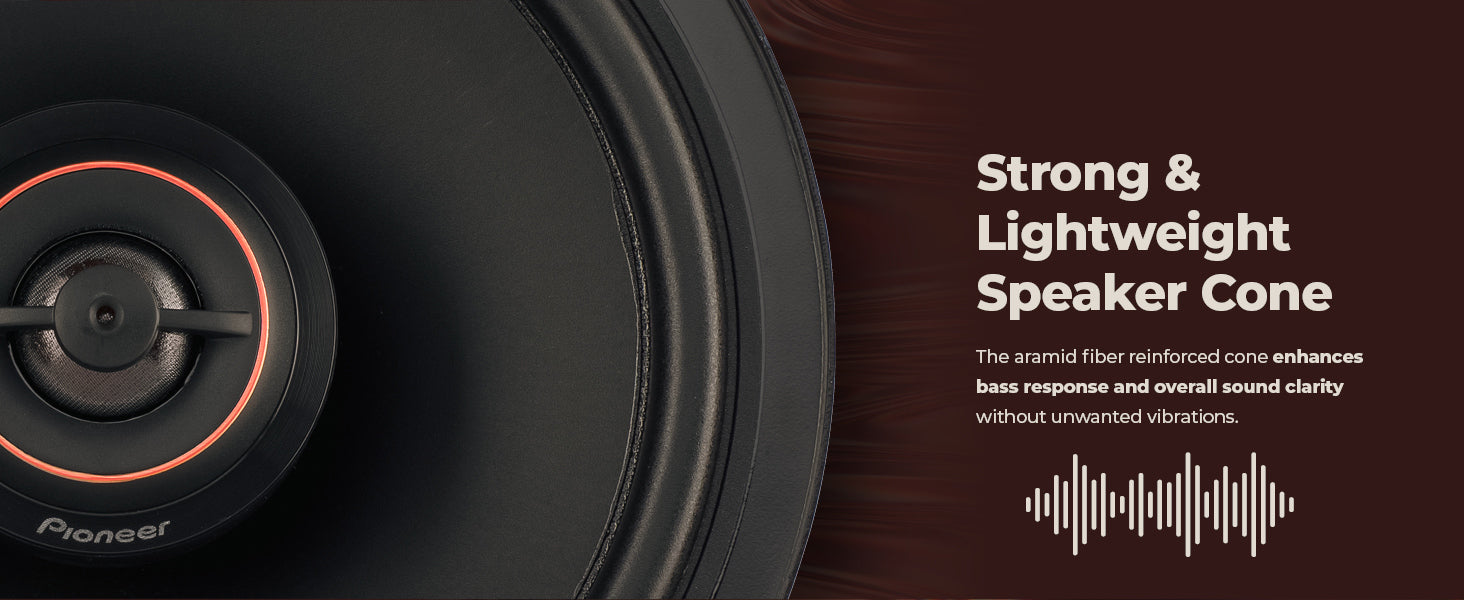

IMPP D Series

Polypropylene (PP) is a tough thermoplastic resin, ideal material for a speaker cone. The low mass and high damping of a PP cone generate good sensitivity and low distortion. However, polypropylene cones lack the rigidity and strength required for high output and extreme low bass. To resolve this, Pioneer engineers used advanced Computer-Aided Manufacturing to develop a process to blend aramid fibers into the polypropylene resin during the injection molding process. The resulting aramid fiber interlaced IMPP cone is ultra-thin and low mass with high rigidity and superior strength, built to produce natural, detailed sound with deep and powerful bass.

FEATURES
Cut Out dimensions 8-3/4 x 6	Mounting Depth 2-7/8 - Midrange
Speaker Grill NA	Tweeter 26mm
Tweeter - Swivel Type Yes

FEATURES
Cut Out dimensions 8-3/4 x 6
Mounting Depth 2-7/8 - Midrange
Speaker Grill NA
Tweeter 26mm
Tweeter - Swivel Type Yes

MATERIALS
Cone Material Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)	Surround Material Butyl Rubber
Basket Material Metal	Magnet Weight 15.2 oz - Speaker,0.2 oz - Tweeter
Voice Coil wire Copper	Surround Type Rolled
Magnet Material Ferrite - Speaker,Neodymium - Tweeter	Damper Poly cotton Aramid

MATERIALS
Cone Material Aramid Fiber Interlaced Injection Molded Polypropylene (IMPP)
Surround Material Butyl Rubber
Basket Material Metal
Magnet Weight 15.2 oz - Speaker,0.2 oz - Tweeter
Voice Coil wire Copper
Surround Type Rolled
Magnet Material Ferrite - Speaker,Neodymium - Tweeter
Damper Poly cotton Aramid

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 110	Crossover Frequency 4300 Hz (Acoustic), 3500 Hz (Electric)
Frequency Response 33 Hz to 42 kHz	Maximum Peak Power Handling - Watts 330
Nominal Impedance - Ohm 4-Ohm	Sensitivity (1W/1m) 87dB (+- 1.5dB)
System-Type Coaxial 2-way, Soft Dome - Tweeter

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 110
Crossover Frequency 4300 Hz (Acoustic), 3500 Hz (Electric)
Frequency Response 33 Hz to 42 kHz
Maximum Peak Power Handling - Watts 330
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 87dB (+- 1.5dB)
System-Type Coaxial 2-way, Soft Dome - Tweeter

Pioneer TS-D69F - 6 x 9 Speaker System Overview

Pioneer TS-D65F - 6.5 Inch Speaker System Overview

Instruction Manual ()
Product Warranty ()

TS-D69F

$160.00
