TS-F6935R

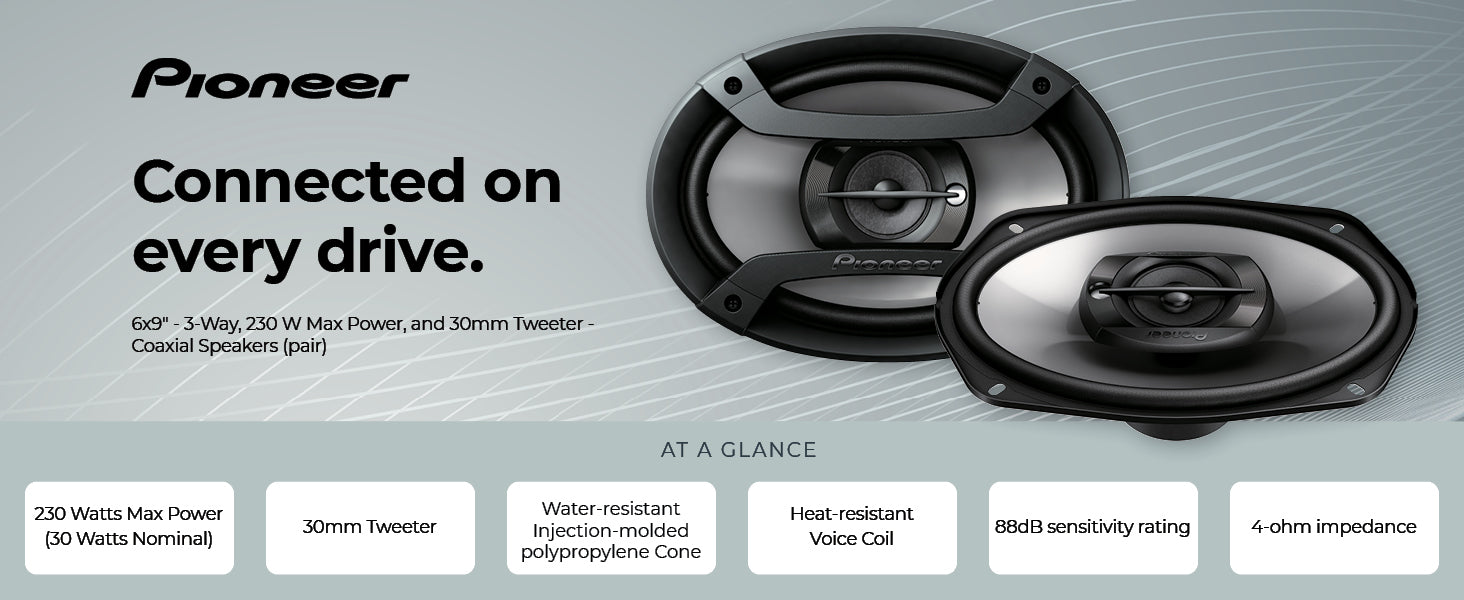

6x9" - 3-Way, 230 W Max Power, and 30mm Tweeter - Coaxial Speakers (pair)

$35.00

Orders of $100 or more will receive FREE shipping!

Does it fit your car?

Features

230 Watts Max Power (30 Watts Nominal)

30mm Tweeter

Water-resistant Injection-molded polypropylene Cone

Heat-resistant Voice Coil

TS-F6935R

$35.00

Overview
Specs
Knowledgebase
Manuals/Warranty

Features You'll Love.

Pioneer TS-F6935R 3-Way Coaxial Car Audio Speakers Full Range 6x9" Speakers, 230W Max Enhanced Bass Response Easy Installation Black Car Speakers.

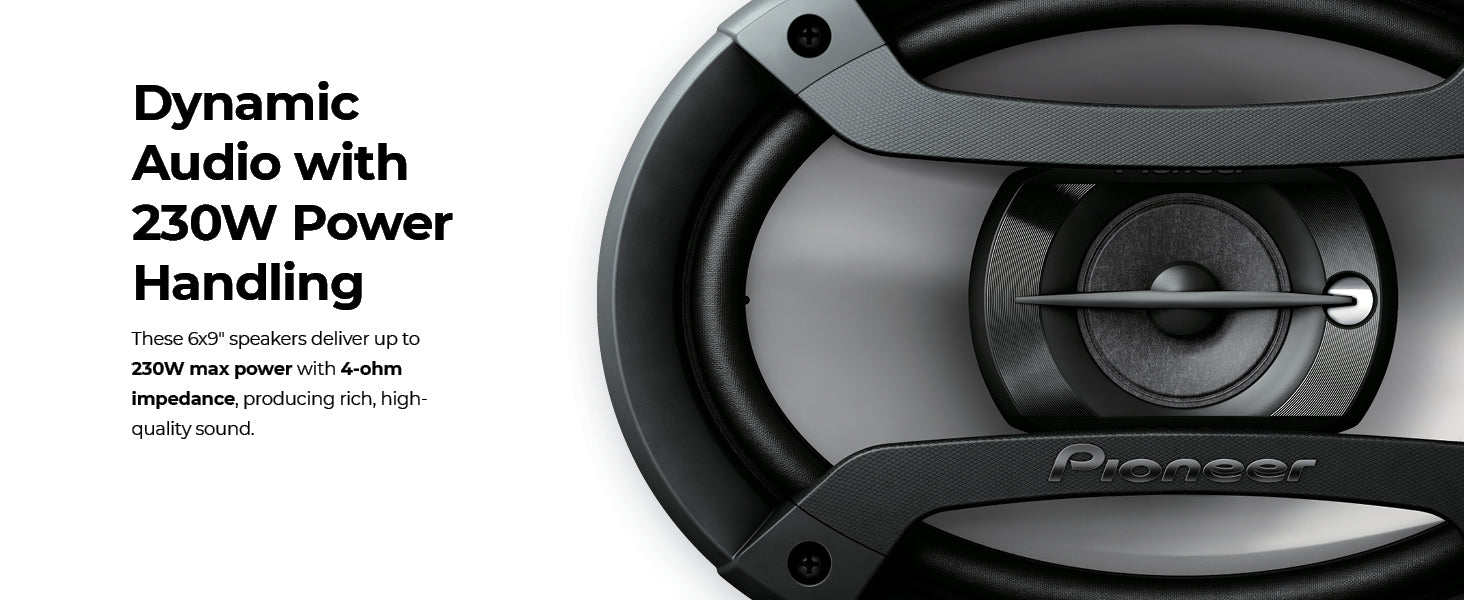

Power Handling

Delivering 230W (30W nominal) with 4-ohm impedance, these speakers combine style and high-quality sound for a dynamic audio experience.

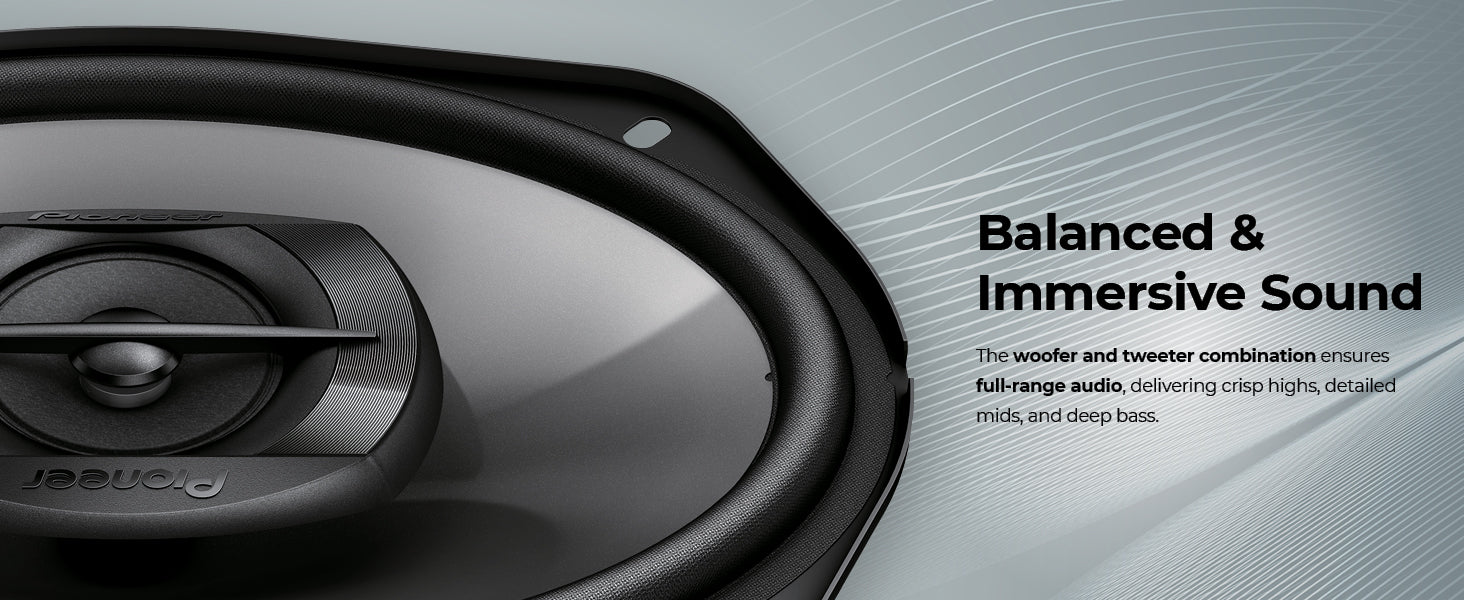

3-Way Coaxial Design

The innovative coaxial setup integrates a woofer and tweeter for balanced, immersive sound, ensuring a full range of frequencies during your drive.

Sensitivity

With an 88dB sensitivity rating, enjoy distortion-free music at higher volumes, ensuring a clear and loud audio experience with lower power inputs.

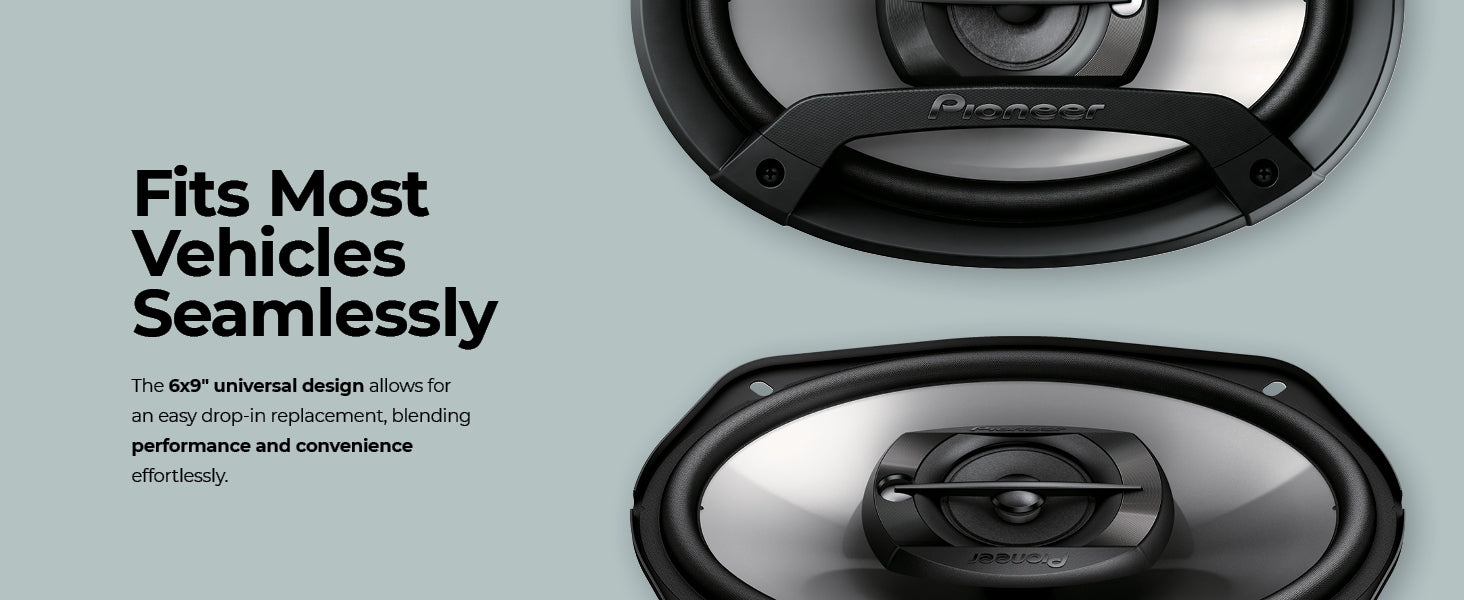

6x9" Standard Sizing

Designed with a standard 6x9" size, these speakers seamlessly integrate into most car interiors, offering versatility without compromising performance.

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 30	Frequency Response 28 Hz to 32 kHz
Maximum Peak Power Handling - Watts 230	Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 88 dB	System-Type 3-Way Coaxial

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 30
Frequency Response 28 Hz to 32 kHz
Maximum Peak Power Handling - Watts 230
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 88 dB
System-Type 3-Way Coaxial

FEATURES
Cut Out dimensions 8-3/4" x 6"	Mounting Depth 2-5/8"

FEATURES
Cut Out dimensions 8-3/4" x 6"
Mounting Depth 2-5/8"

MATERIALS
Basket Material Stamped Metal	Cone Material Injected Molded Polypropylene -IMPP Composite
Damper Cotton	Diaphragm Material Cellulose fiber - Tweeter
Magnet Material Ferrite	Magnet Weight 5.3 oz - Woofer, 0.5 oz - Tweeter
Surround Material Rubber Coated Cloth	Surround Type Rolled
Voice Coil wire Copper	Wire Terminals Lug Type

MATERIALS
Basket Material Stamped Metal
Cone Material Injected Molded Polypropylene -IMPP Composite
Damper Cotton
Diaphragm Material Cellulose fiber - Tweeter
Magnet Material Ferrite
Magnet Weight 5.3 oz - Woofer, 0.5 oz - Tweeter
Surround Material Rubber Coated Cloth
Surround Type Rolled
Voice Coil wire Copper
Wire Terminals Lug Type
