Name: TS-A878
Brand: Pioneer Electronics (USA) Inc.
SKU: TS-A878
Price: 37.5 USD
Availability: OutOfStock

TS-A878

$37.50

$50.00

Find out if this product fits your vehicle

Select quantity

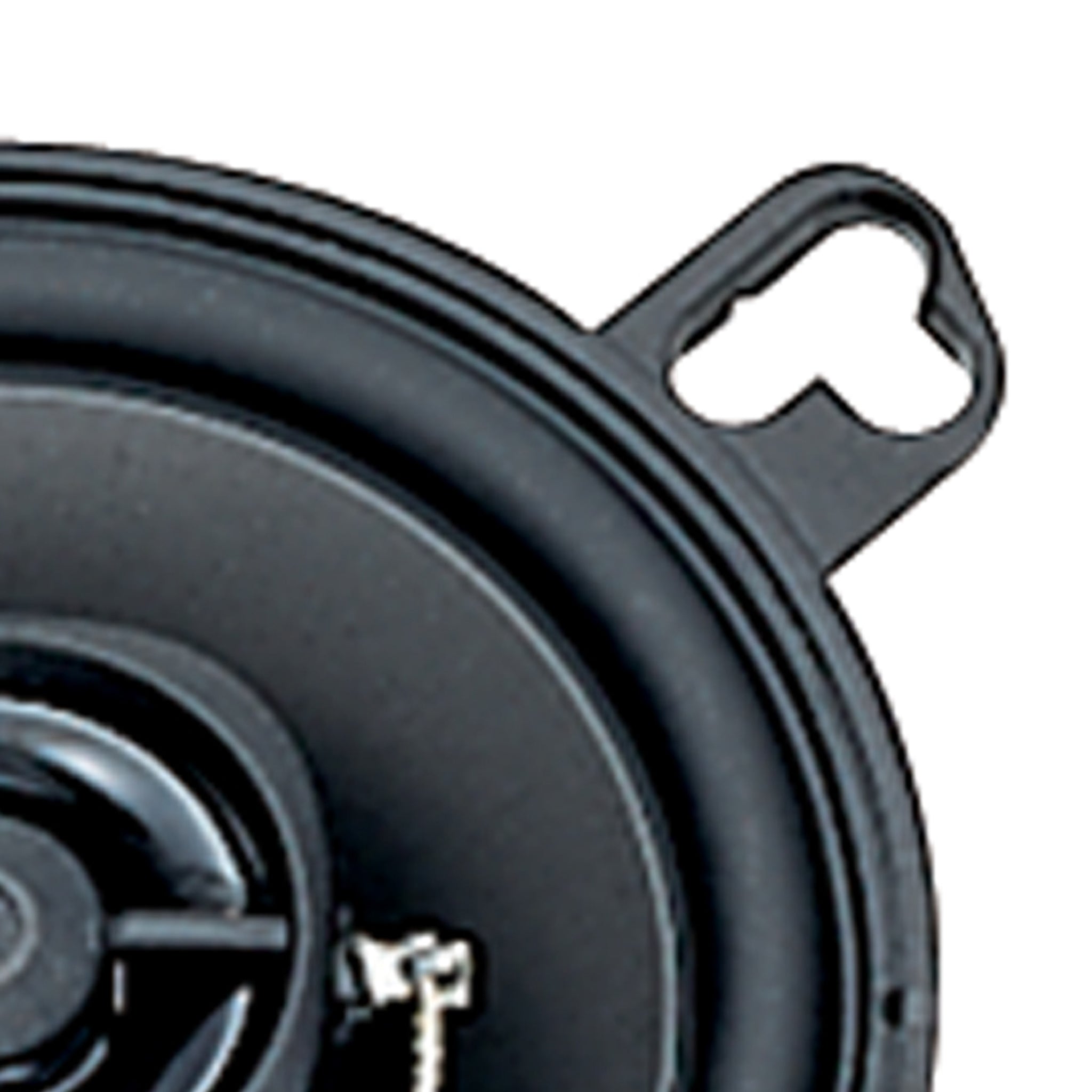

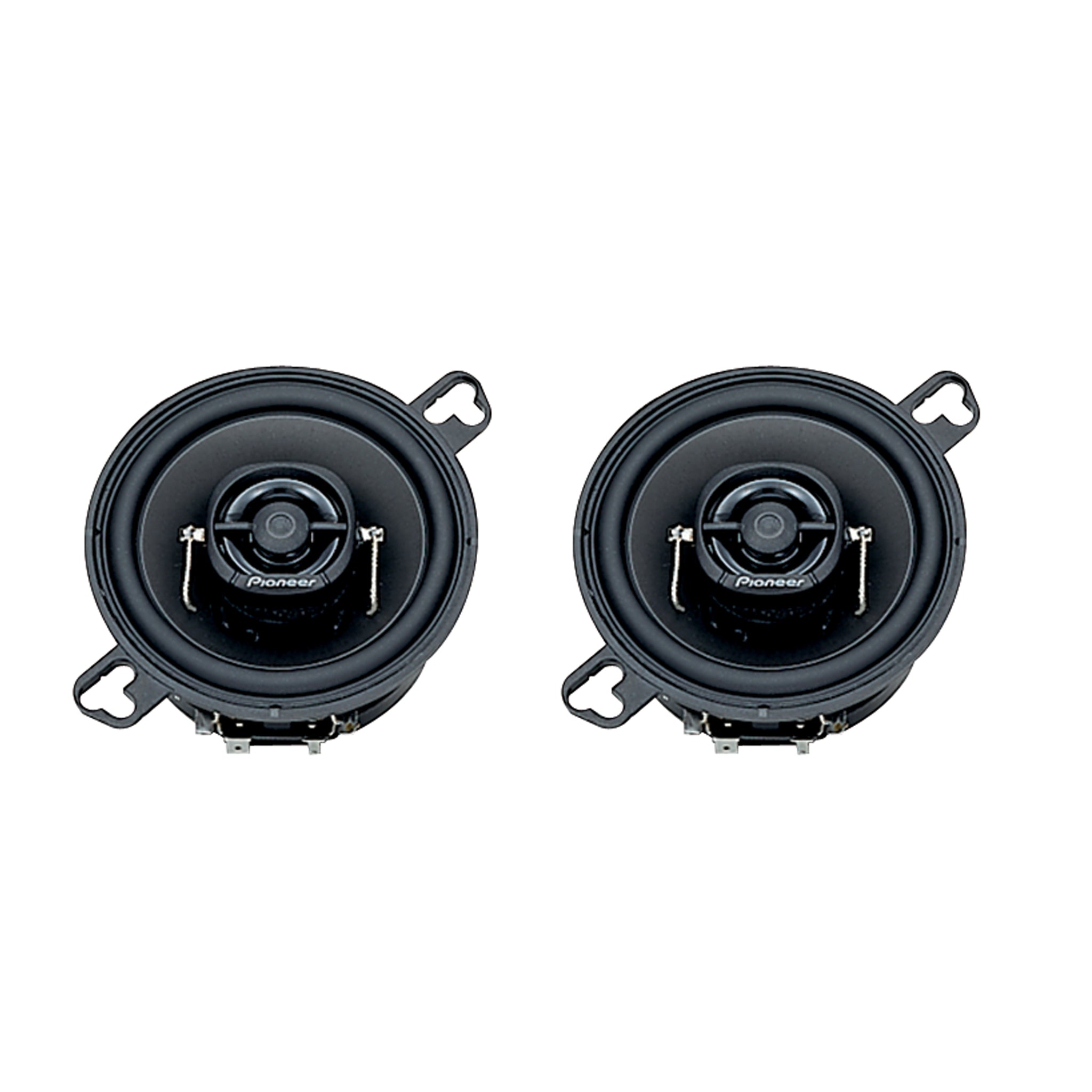

3-1/2" - 2-way Speakers, 60 W Max Power, Carbon/Mica-reinforced IMPP™ cone, 26mm Tweeter - Custom-Fit Coaxial Speakers (pair)

3½" Custom-Fit

2-Way Speaker

60 W Maximum Power

Overview
Specs
Knowledgebase
Manuals/Warranty

3-1/2-inch custom-fit two-ways deliver power handling of 60 W max. it features a composisteIMPP™ cone providing strength and rigidity required for a powerful bass sound. The weeter is a one-inch PEI dome, for smooth and accurate highs. Its custom-fit basket will fit GM, Ford, and Volkswagen vehicles.

FEATURES
Cut Out dimensions 3	Mounting Depth 1-3/8/34.9mm
Outer Diameter NA	Tweeter 25mm
Tweeter Mounting Hole Diameter NA

FEATURES
Cut Out dimensions 3
Mounting Depth 1-3/8/34.9mm
Outer Diameter NA
Tweeter 25mm
Tweeter Mounting Hole Diameter NA

MATERIALS
Cone Material IMPP-Carbon Graphite Blended	Surround Material Rubber
Basket Material Resin	Magnet Weight 4.5 oz - Woofer,0.1 oz - Midrange
Voice Coil wire Copper	Surround Type Rolled
Magnet Material Ferrite - Woofer,Neodymium - Midrange	Damper Aramid Fiber

MATERIALS
Cone Material IMPP-Carbon Graphite Blended
Surround Material Rubber
Basket Material Resin
Magnet Weight 4.5 oz - Woofer,0.1 oz - Midrange
Voice Coil wire Copper
Surround Type Rolled
Magnet Material Ferrite - Woofer,Neodymium - Midrange
Damper Aramid Fiber

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 15	Crossover Frequency 8000 Hz (Acoustic), 11000 Hz (Electric)
Frequency Response 60 Hz to 28 kHz	Maximum Peak Power Handling - Watts 60
Nominal Impedance - Ohm 4-Ohm	Sensitivity (1W/1m) 88 dB
System-Type Coaxial 2-way, Dome - Tweeter

PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts 15
Crossover Frequency 8000 Hz (Acoustic), 11000 Hz (Electric)
Frequency Response 60 Hz to 28 kHz
Maximum Peak Power Handling - Watts 60
Nominal Impedance - Ohm 4-Ohm
Sensitivity (1W/1m) 88 dB
System-Type Coaxial 2-way, Dome - Tweeter
