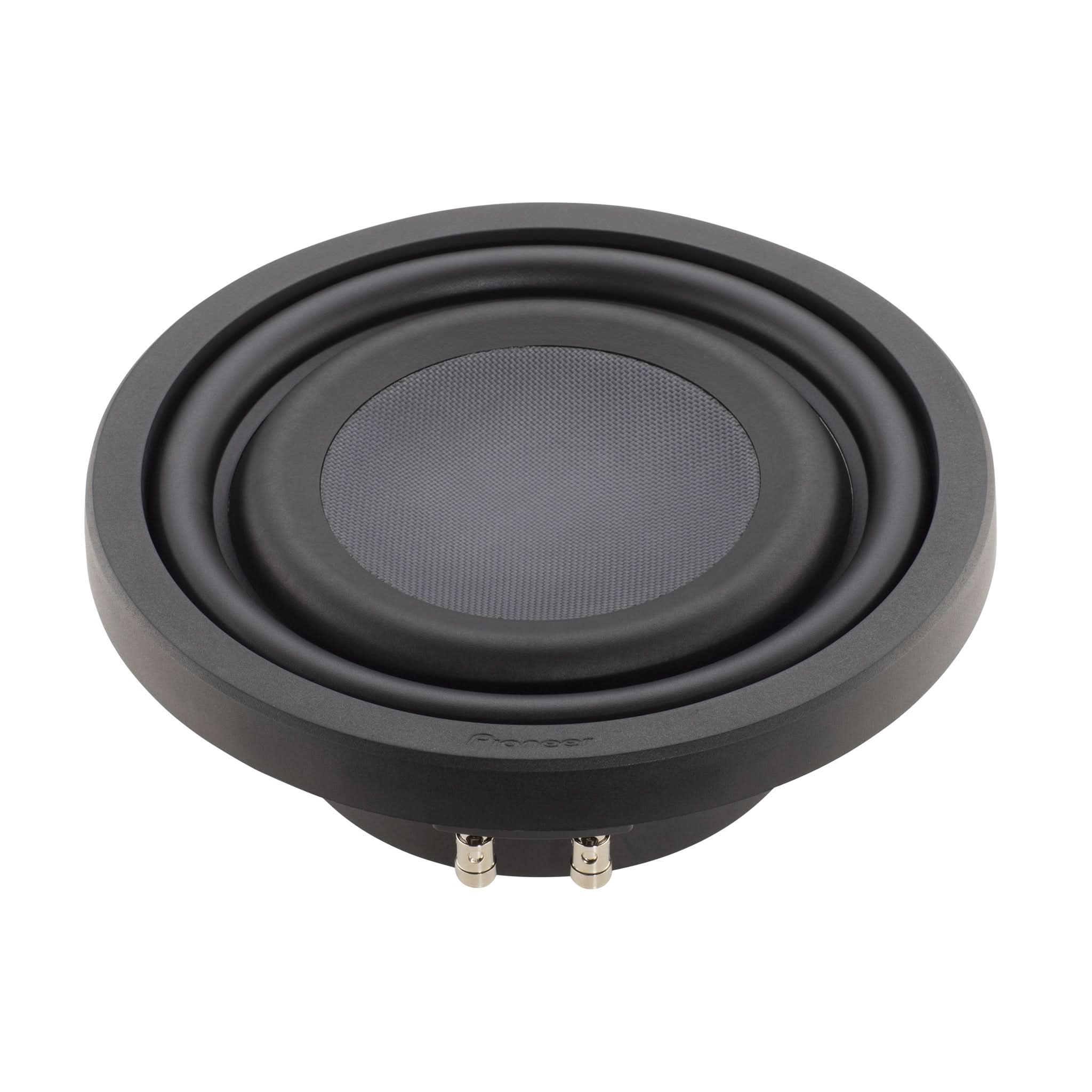

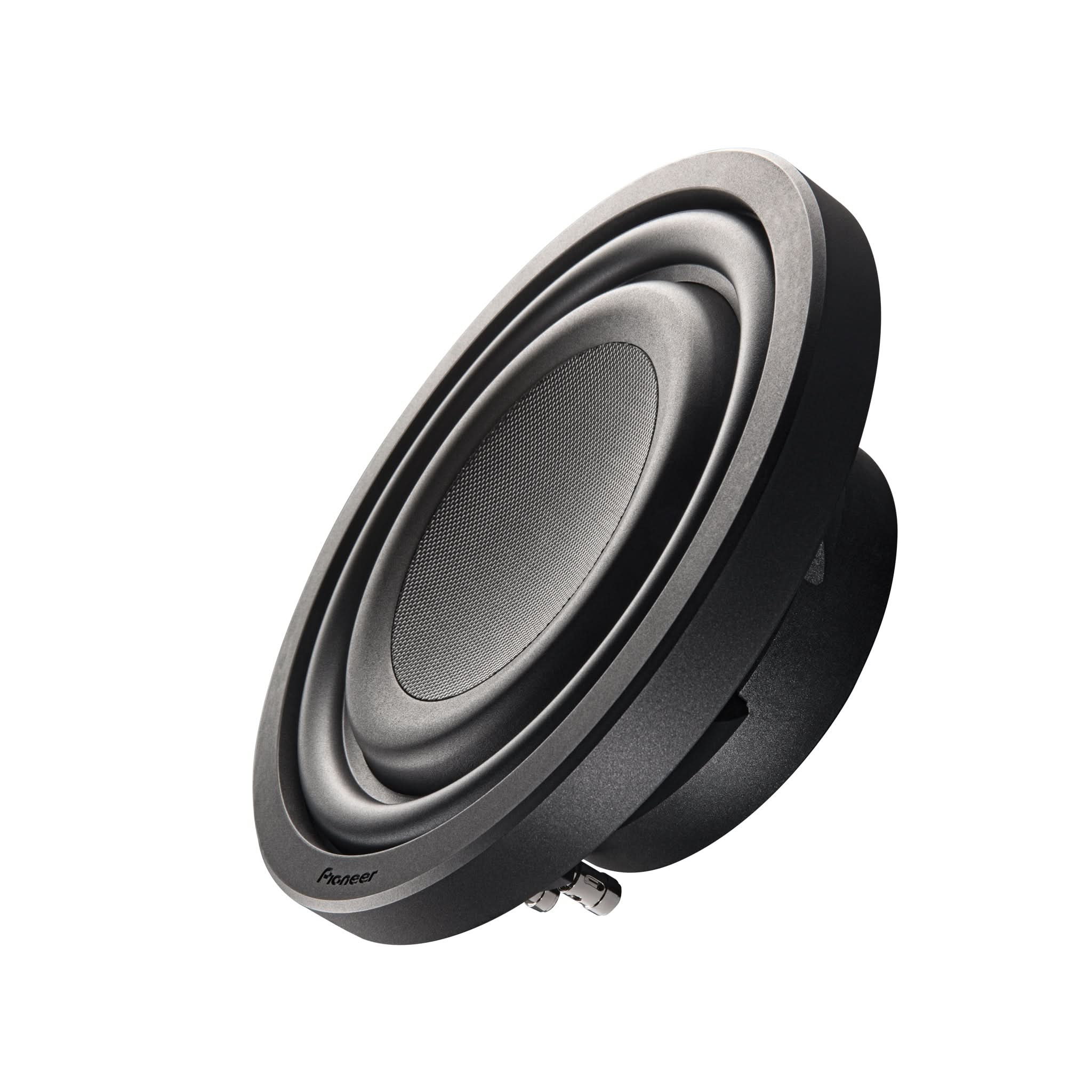

Pioneer_TS-Z10LS2_Front Image

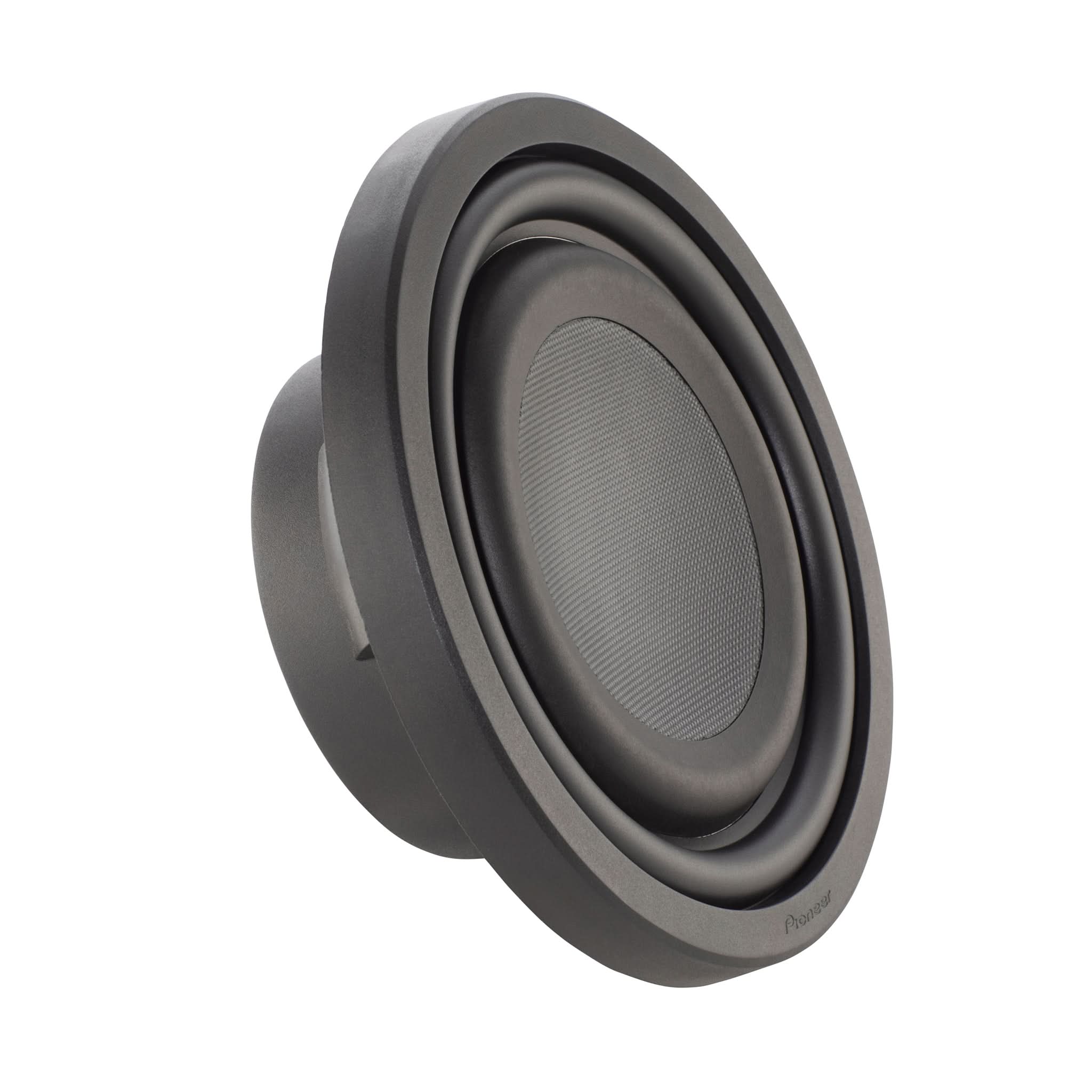

Pioneer_TS-Z10LS2_Right Angle Image

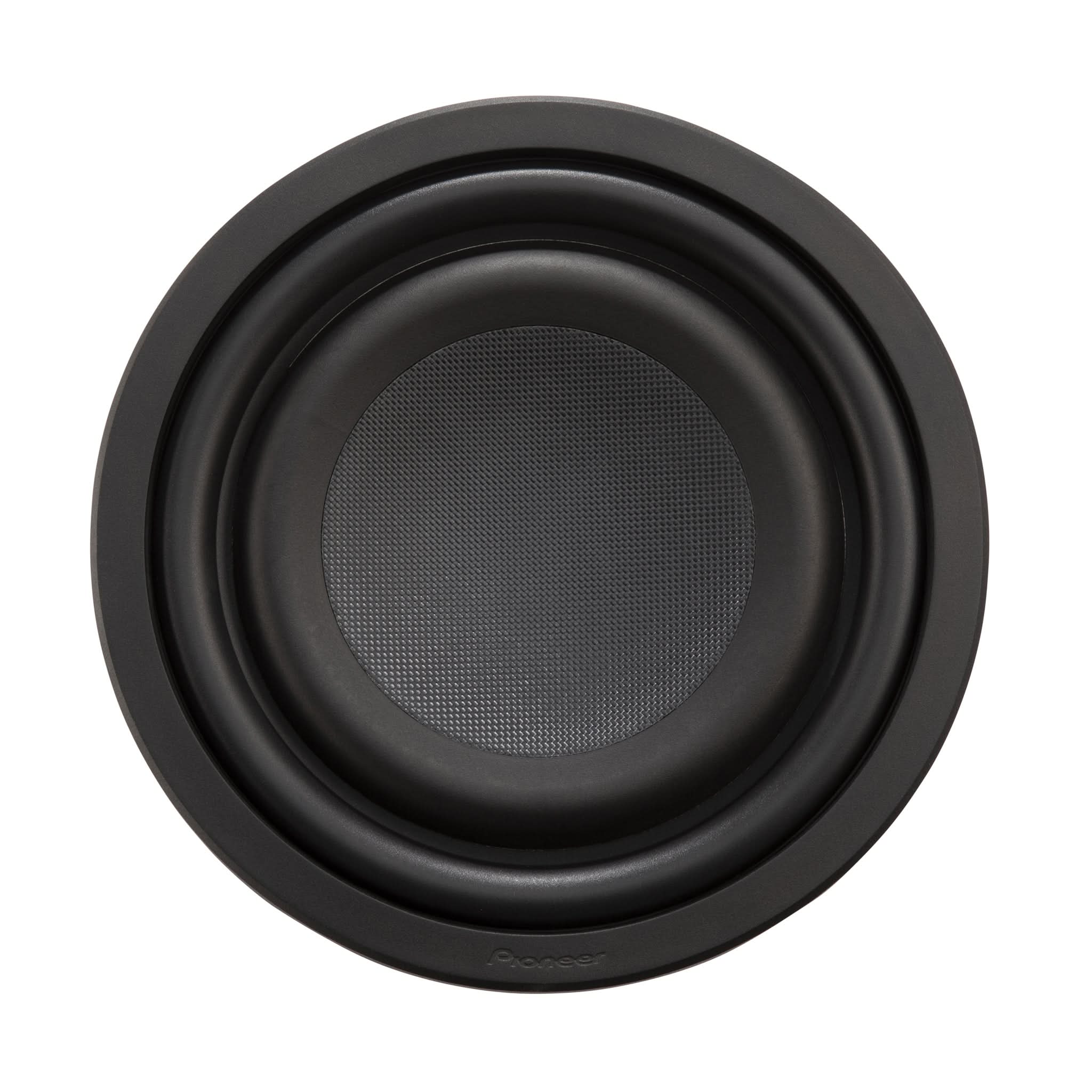

Pioneer_TS-Z10LS2_Center Image

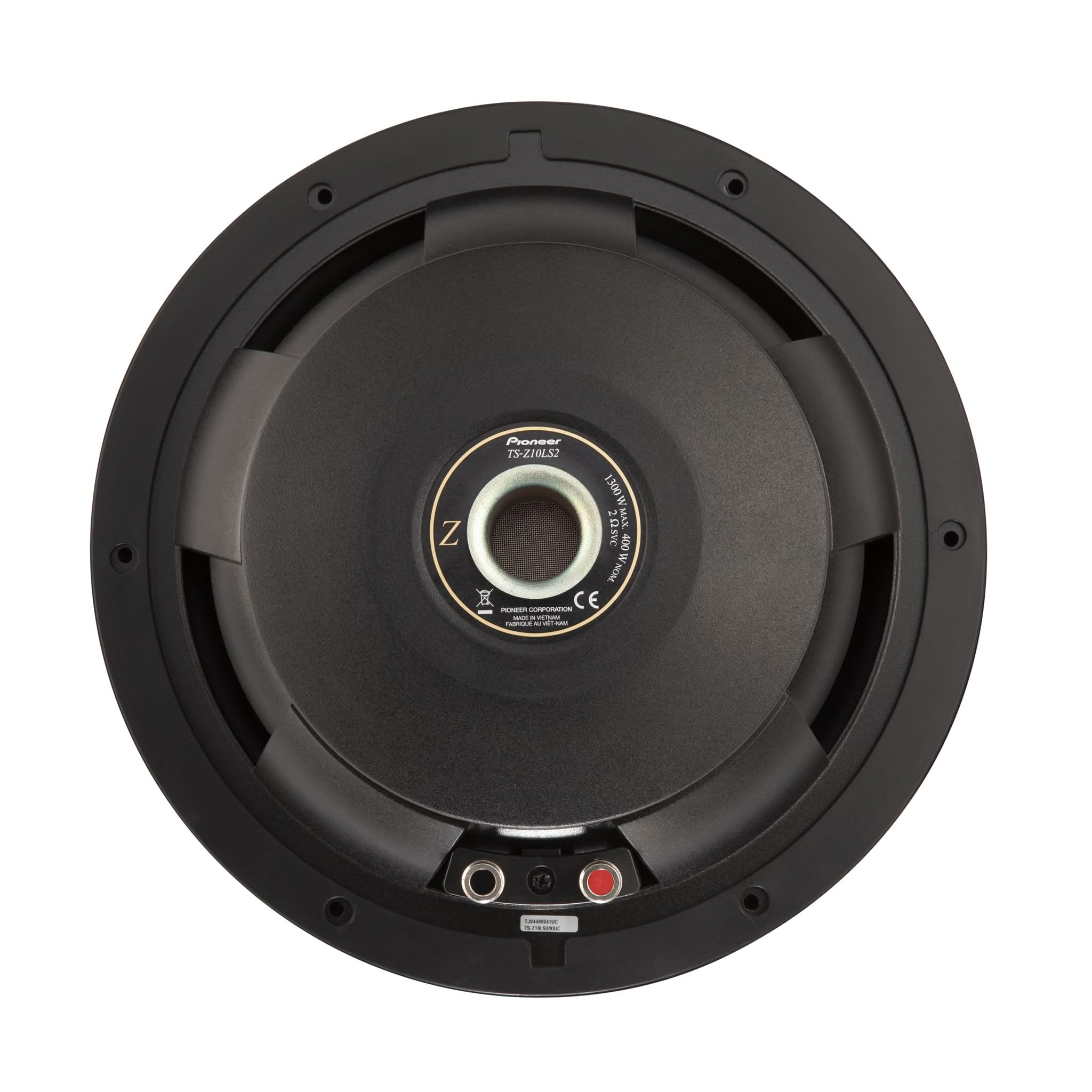

Pioneer_TS-Z10LS2_Back Image
Pioneer_TS-Z10LS2_Top Image
Pioneer_TS-Z10LS2_Front Image
Pioneer_TS-Z10LS2_Right Angle Image
Pioneer_TS-Z10LS2_Center Image
Pioneer_TS-Z10LS2_Back Image
Pioneer_TS-Z10LS2_Top Image
Overview
The Z-Series is designed for high fidelity, high output, and ease of installation. The TS-Z10LS2 10" subwoofer will handle up to 400 W RMS. The shallow basket design allows installation in places where an ordinary subwoofer will not fit. The oversized dual-layer cone of Twaron aramid fiber and cellulose fiber supported by a tough butyl rubber surround delivers accurate, hard-hitting bass notes even when the music is turned up loud. The lightweight die-cast aluminum basket provides an incredibly stable housing for the subwoofer, without any coloration. Its 2-Ω voice coil makes provides system flexibility when using multiple subwoofers with a single amplifier.

TS-Z10LS2

Regular price $250.00

Find out if this product fits your vehicle

10" - 1300 W Max Power, Single 2 Ohm Voice Coil, Twaron Aramid Fiber + Cellulose Fiber Cone, Hi-Res Audio Certified - Component Subwoofer

Twaron® Aramid Fiber + Cellulose Fiber Dual Layer Cone Construction

Extended Voice Coil, Dual Spider Design for Increased Linearity and High Excursion

Shallow Basket, Small Enclosure Design for Sound Optimization and Installation Flexibility

Designed for Hi-Res Audio

The Z-Series is designed for high fidelity, high output, and ease of installation. The TS-Z10LS2 10" subwoofer will handle up to 400 W RMS. The shallow basket design allows installation in places where an ordinary subwoofer will not fit. The oversized dual-layer cone of Twaron aramid fiber and cellulose fiber supported by a tough butyl rubber surround delivers accurate, hard-hitting bass notes even when the music is turned up loud. The lightweight die-cast aluminum basket provides an incredibly stable housing for the subwoofer, without any coloration. Its 2-Ω voice coil makes provides system flexibility when using multiple subwoofers with a single amplifier.

Cone Construction - Twaron

Twaron is a synthetic aramid fiber that is very strong, heat resistant and rigid when woven into a cloth material. Subwoofer cones created with Twaron are rigid and low mass with excellent damping characteristics. Strength and rigidity are important to maintain cone shape during challenging bass notes, while damping is critical to improving the responsiveness and signal accuracy. The low mass of an aramid fiber cone improves both sensitivity and the speed of the Z subwoofer, increasing output and power handling.

FEATURES
Built In Amp
No
CarSoundFit
Yes
Cut Out dimensions
9-1/8,23.18 cm
Equivalent Compliance (VAS)
23.1 Liters,0.81 Cu. Ft.
Free Air ResoNAnce (Fs)
34
Linear Excursion (Xmax)
9.4 mm,3/8
Mounting Depth
3-1/4
Port Diameter
3,7.62 cm
Port Length
7-1/2,19.05 cm
Recommended Ported Box Internal volume
17 Liters,0.60 Cu. FT.
Recommended Sealed Enclosure Volume
0.6 Cu Ft,17 Liters
Total Speaker Q (Qts)
0.48
FEATURES
Built In Amp
No
CarSoundFit
Yes
Cut Out dimensions
9-1/8,23.18 cm
Equivalent Compliance (VAS)
23.1 Liters,0.81 Cu. Ft.
Free Air ResoNAnce (Fs)
34
Linear Excursion (Xmax)
9.4 mm,3/8
Mounting Depth
3-1/4
Port Diameter
3,7.62 cm
Port Length
7-1/2,19.05 cm
Recommended Ported Box Internal volume
17 Liters,0.60 Cu. FT.
Recommended Sealed Enclosure Volume
0.6 Cu Ft,17 Liters
Total Speaker Q (Qts)
0.48
MATERIALS
Cone Material
IMPP - Composite
Surround Material
Rubber
Basket Material
Die Cast Aluminum
Magnet Weight
70.2 oz
Voice Coil Bobbin
Glass imide
Voice Coil wire
Copper
Gasket
Rubber
Surround Type
Rolled
Magnet Material
Ferrite
Voice Coil Type
Single Voice Coil
Voice Coil Special Feature
No
Damper
Poly cotton
MATERIALS
Cone Material
IMPP - Composite
Surround Material
Rubber
Basket Material
Die Cast Aluminum
Magnet Weight
70.2 oz
Voice Coil Bobbin
Glass imide
Voice Coil wire
Copper
Gasket
Rubber
Surround Type
Rolled
Magnet Material
Ferrite
Voice Coil Type
Single Voice Coil
Voice Coil Special Feature
No
Damper
Poly cotton
PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts
400 W
Frequency Response
20 Hz to 3.8 kHz
Maximum Peak Power Handling - Watts
1300 W
Nominal Impedance - Ohm
2-Ohm
Sensitivity (1W/1m)
74dB
System-Type
Component
PRODUCT PERFORMANCE
Continuous Power handling (RMS) - Watts
400 W
Frequency Response
20 Hz to 3.8 kHz
Maximum Peak Power Handling - Watts
1300 W
Nominal Impedance - Ohm
2-Ohm
Sensitivity (1W/1m)
74dB
System-Type
Component
