Name: ND-BC011
Brand: Pioneer Electronics (USA) Inc.
SKU: ND-BC011
Price: 100.0 USD
Availability: OutOfStock

ND-BC011

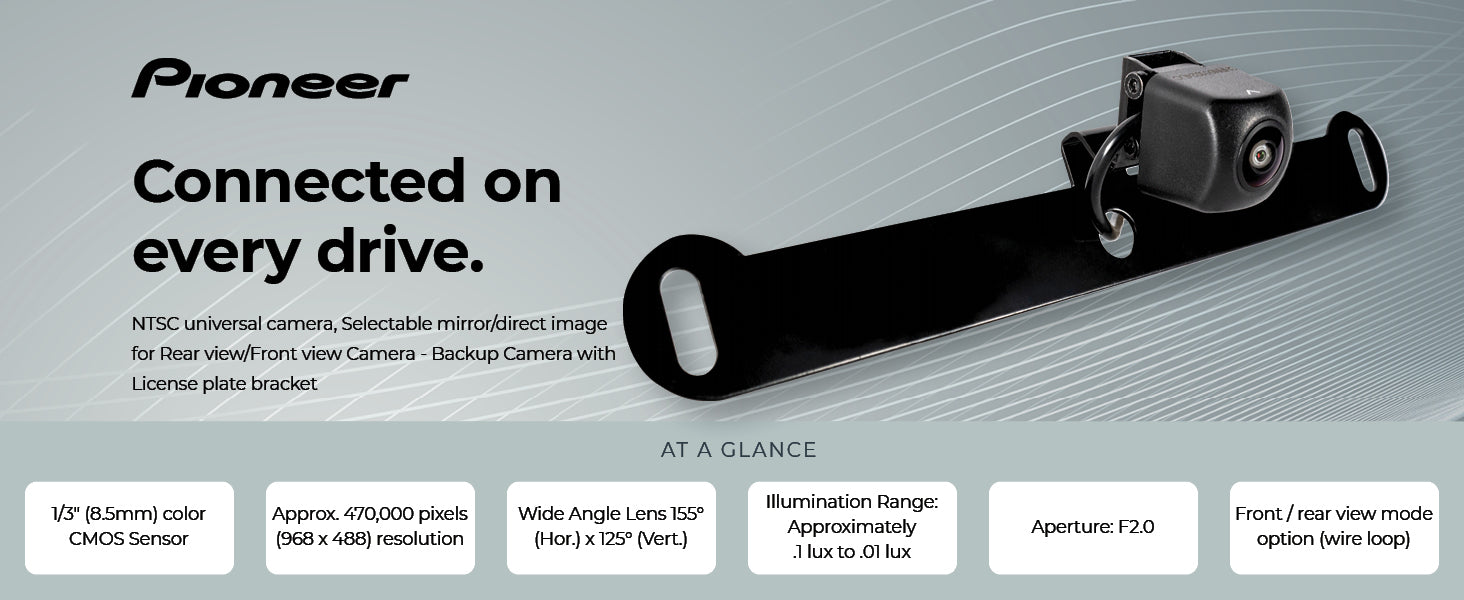

NTSC universal camera, Selectable mirror/direct image for Rear view/Front view Camera - Backup Camera with License plate bracket

$100.00

Orders of $100 or more will receive FREE shipping!

Features

1/3” (8.5mm) color CMOS Sensor

Approx. 470,000 pixels (968 x 488) resolution

Wide Angle Lens 155° (Hor.) x 125° (Vert.)

Illumination Range: Approximately .1 lux to .01 lux

Aperture: F2.0

Front / rear view mode option (wire loop)

Small in-line stylus-type connectors for easy install including License plate bracket

Camera Dimensions (WxHxD) : 7/8”(23mm) x 7/8”(23mm) x 7/8”(23mm)

ND-BC011

$100.00

Overview
Specs
Knowledgebase
Manuals/Warranty

Features You'll Love.

The ND-BC011 Universal Rearview/Backup Camera is compatible with Pioneer audio/video in-dash receivers that feature a rear-view camera input. It offers a wide-angle view of 155 degrees horizontally and 125 degrees vertically, with a resolution of over 470,000 pixels for detailed imagery. The ND-BC011 is equipped with a CMOS (Complementary Metal Oxide Semiconductor) sensor that provides improved resolution and glare reduction during daytime use, as well as enhanced low-light capability for nighttime use. Also included, is a license plate bracket for easy installation.

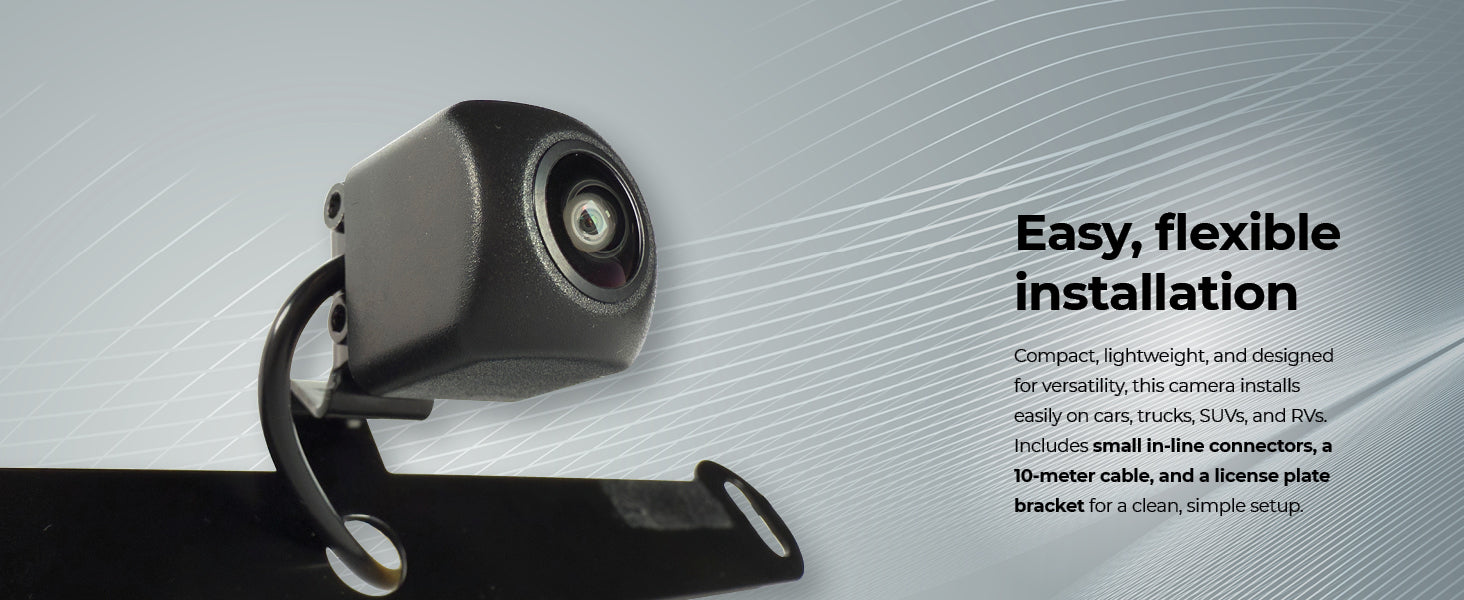

Installation Flexibility

This backup camera utilizes the vehicle's power supply with minimal connections for easier installation, and its compact size allows for hassle-free mounting. It also includes a 10-meter cable for installation on long trucks, SUVs, and recreational vehicles. To assist with the installation process, we designed this camera with small in-line pen-type connectors, making it easier to route the wire into the cabin without the need for large holes.

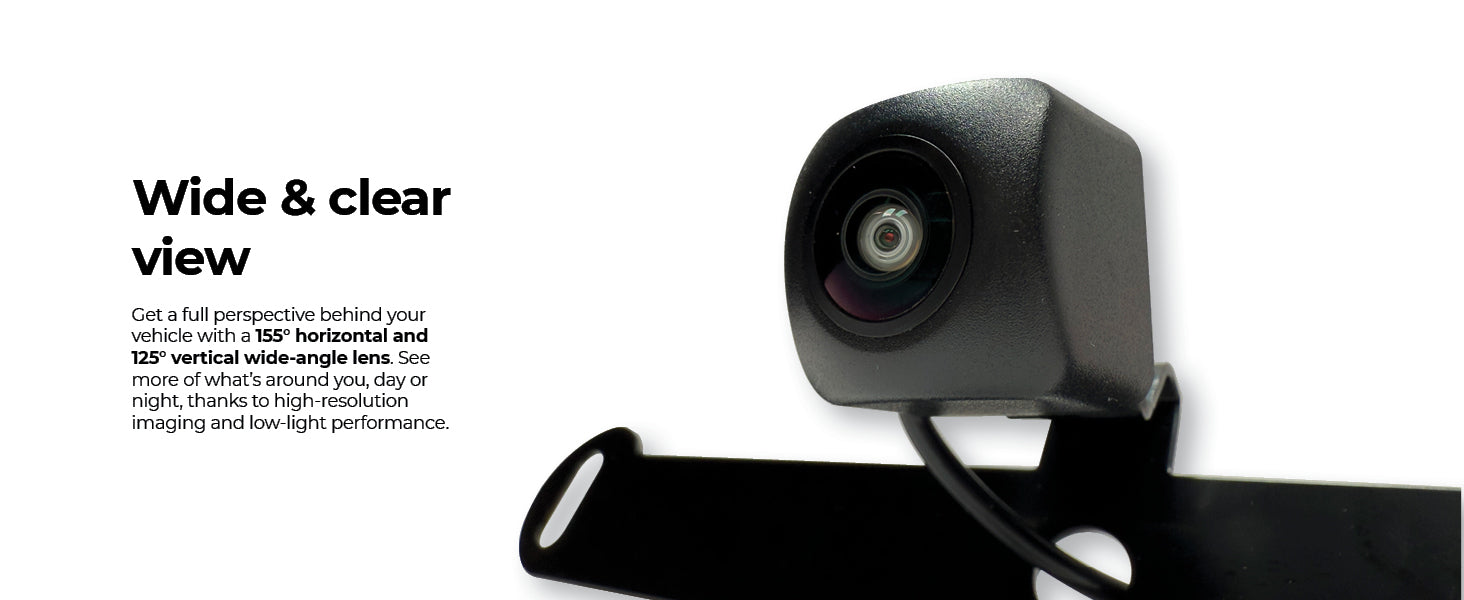

Improved Visibility

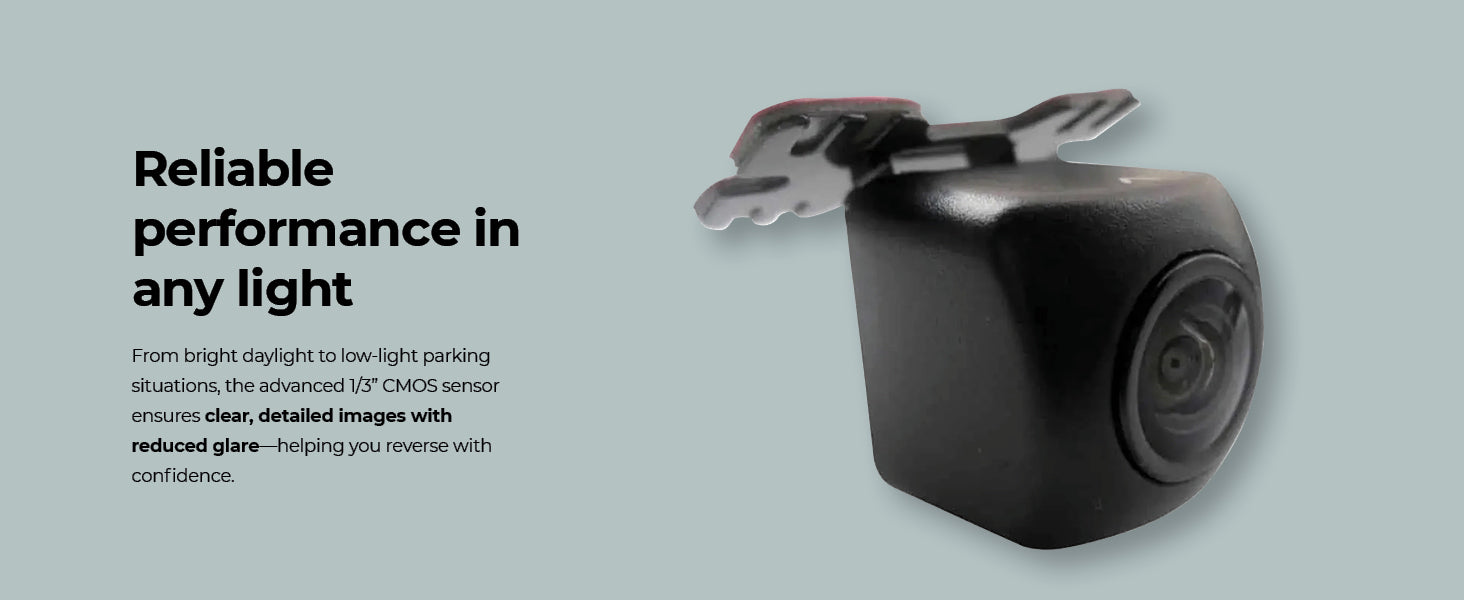

A wide-angle 155 degree horizontal and 125 degree vertical angle lens allows viewing more objects. The 1/3” (8.5mm) color CMOS sensor delivers improved resolution and glare reduction during daytime use with improved low-light capability for nighttime use.

ASSISTANCE CAMERA
Camera-Power Source Vehicle battery	Imaging Sensor CMOS
Operating Temperature –22 ºF to +158 ºF,–30 ºC to +70 ºC	Recording Angles Main Horizontal 155 Degrees,Vertical 125 Degrees
Resolution- 960 x 480

ASSISTANCE CAMERA
Camera-Power Source Vehicle battery
Imaging Sensor CMOS
Operating Temperature –22 ºF to +158 ºF,–30 ºC to +70 ºC
Recording Angles Main Horizontal 155 Degrees,Vertical 125 Degrees
Resolution- 960 x 480

ASSISTANCE FEATURES
Mount Included Yes	Mounting Location Adhesive,License Plate
Mount Types Vehicle Specific,Adhesive,License Plate

ASSISTANCE FEATURES
Mount Included Yes
Mounting Location Adhesive,License Plate
Mount Types Vehicle Specific,Adhesive,License Plate
